2AB34-NB-S3Bluetooth Earset

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 May 08, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, CLIPS Tech Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Bluetooth Earset / NB-S3 (FCC ID: 2AB34-NB-S3) We affirm that between SIEMIC and CLIPS Tech Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Mo, Sung Koo / Director of Research CLIPS Tech Co., Ltd. A-203, SK Twintech Tower, 119, Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea 153-773

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 May 08, 2014 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AB34-NB-S3 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mo, Sung Koo / Director of Research CLIPS Tech Co., Ltd. A-203, SK Twintech Tower, 119, Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea 153-773

CLIPS Tech Co., Ltd. A‐203, SK Twintech Tower, 119, Gasan digital 1‐ro, Geumcheon‐gu, Seoul, Korea 153‐773 Declaration of Differences for Family Models To: Siemic Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Date: May 08, 2014 Dear Sir/Madam, I, the undersigned, hereby declared that the differences of below models are as listed in the below table: Main Model Family models Differences NB‐S3 NB‐S2 The different is only in Color, Trade name, Models number, Other such as software, PCB layout, RF module, features and functionality remains identical. The different is more than above, please help to detail in Note* in below. Note* Sincerely, Signature : Printed Name : Mo, Sung Koo Title : Director of Research Company : CLIPS Tech Co., Ltd.

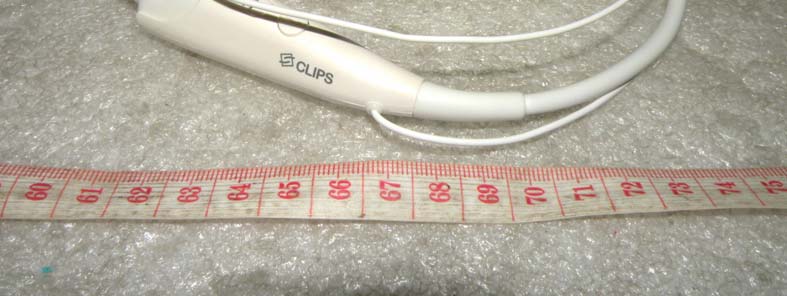

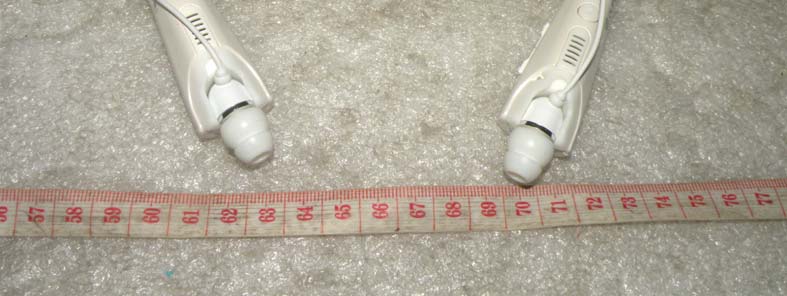

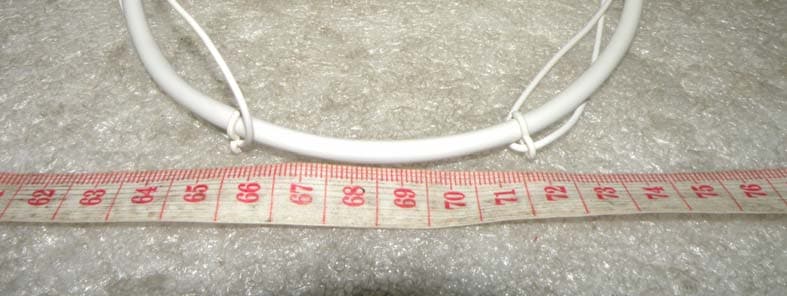

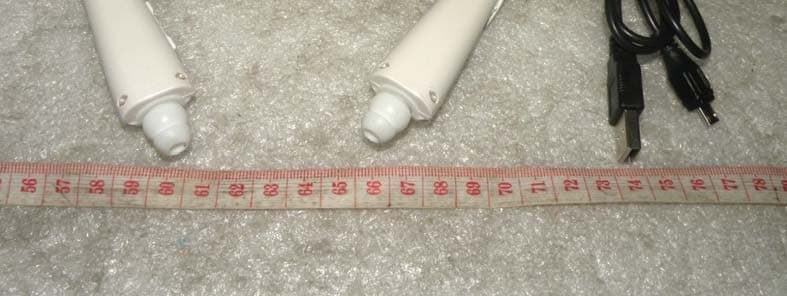

Appendix C. External Photographs Report no. ETLE140326.0449, Page C1 of C5 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 View of total construct Appendix C. External Photographs Report no. ETLE140326.0449, Page C2 of C5 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE140326.0449, Page C3 of C5 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLE140326.0449, Page C4 of C5 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Side view of EUT Appendix C. External Photographs Report no. ETLE140326.0449, Page C5 of C5 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 View of port

Appendix A. FCC ID Label and Location Report no. ETLE140326.0449, Page A1 of A2 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. CLIPS Tech Co., Ltd. Bluetooth Earset FCC ID : 2AB34-NB-S3 Model No. : NB-S3 Serial No. : Proto type Manufacturer: CLIPS Tech Co., Ltd. Made in Korea CLIPS Tech Co., Ltd. Bluetooth Earset FCC ID : 2AB34-NB-S3 Model No. : NB-S2 Serial No. : Proto type Manufacturer: CLIPS Tech Co., Ltd. Made in Korea Appendix A. FCC ID Label and Location Report no. ETLE140326.0449, Page A2 of A2 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE140326.0449, Page D1 of D7 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Inside view of EUT with Li-Polymer battery #1 Appendix D. Internal Photographs Report no. ETLE140326.0449, Page D2 of D7 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Inside view of EUT with Li-Polymer battery #2 Appendix D. Internal Photographs Report no. ETLE140326.0449, Page D3 of D7 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Top side view of main board Appendix D. Internal Photographs Report no. ETLE140326.0449, Page D4 of D7 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Bottom side view of main board with Chip Antenna Appendix D. Internal Photographs Report no. ETLE140326.0449, Page D5 of D7 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Top side view of Bluetooth Chip Antenna Appendix D. Internal Photographs Report no. ETLE140326.0449, Page D6 of D7 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Top side view of main sub board Appendix D. Internal Photographs Report no. ETLE140326.0449, Page D7 of D7 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Bottom side view of main sub board

Appendix J. Radio Frequency Exposure Report no. ETLE140326.0449, Page J1 of J1 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Standard Applicable: According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device with its physical nature to be used nearby, the distance between radiating structure and human is less than 20 cm. As per KDB 447498 D01, The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Measurement Result: This is a portable device and the Max peak output power is (3.030 mW) lower than the threshold given and derived as above, where = 0.86 (mW) / 5 (mm) * √2.480 (GHz) = 0.27 < 3.0 As the result of calculation result indicates, the RF exposure generating from given transmitter (transmitter employed digital modulation) can be excluded from SAR measurement, and is deemed compliant with RF exposure as per FCC.

Report no. ETLE140326.0449, Page 2 of 35 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: 2AB34-NB-S3 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 6 dB Bandwidth 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Power Spectral Density 5.6 Spurious Emissions 5.7 Conducted Emissions Test 5.8 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Antenna Requirement Appendix J. Radio Frequency Exposure Report no. ETLE140326.0449, Page 3 of 35 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: 2AB34-NB-S3 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Bluetooth Earset  Model Number : NB-S3  S/N : Proto type  Modulation Technique : FHSS (GFSK)  Frequency Channel : 2 402 MHz to 2 480 MHz and Channel Spacing 2 MHz (40 Ch, BT 4.0 LE)  Air Data Rate : GFSK (1 Mbps)  Antenna Type : Internal Antenna (Integral)  Antenna Gain : 0.00 dBi max  RF Power : 0.860 mW : Temperature: (20.6 ± 2.5) °C Humidity: (53 ± 10) % R.H.  Environmental of Tests Atmospheric Pressure: (101.5 ± 0.3) kPa  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.4-2009  FCC Classification : DTS (Part 15 Digital Transmission System)  Place of Tests : ETL Inc. Testing Lab. (FCC Designation Number : KR0022) Radiated Emission test 1; 97-4, Gureomae-gil, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Radiated Emission test 2 and Conducted Emission test; 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : CLIPS Tech Co., Ltd. Address : A-203, SK Twintech Tower, 119, Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea 153-773 Attention : Mo, Sung Koo / Director of Research Report no. ETLE140326.0449, Page 4 of 35 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: 2AB34-NB-S3 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2009 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2009 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2009) was used in determining radiated and conducted emissions from the CLIPS Tech Co., Ltd. Model: NB-S3 Report no. ETLE140326.0449, Page 5 of 35 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: 2AB34-NB-S3 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Bluetooth Earset (model: NB-S3). The model NB-S3 is basic model that was tested. The multi model NB-S2 is identical to basic model, except for model designation. 2.2 General Specification Item Specification Bluetooth Standard V 4.0 Frequencies 2 402 MHz ~ 2 480 MHz Supported Bluetooth Profiles HSP, HPP, A2DP, AVRCP Audio Codec High Quality Audio apt-X supported Transmitting Distance 10 m Continuous Stand-by Time 700 hours Continuous Talking Time 23 hours Earphones: Max 20 hours with volume middle (5 of 10) Music Playback Speakers: Max 7 hours with volume middle (5 of 10) Temperature (20 ± 15) °C Operating Humidity (40 ± 40) % (without frozen) Temperature (20 ± 30) °C Environment Conditions Storage Humidity (40 ± 40) % (without frozen) Input Voltage DC 5 V #1: Lithium Polymer 3.7 V, 120 mAh Battery Type #2: Lithium Polymer 3.7 V, 200 mAh Dimension 141 mm x 158 mm Weight Approx. 38 g High Internal Frequency X-tal  26 MHz Report no. ETLE140326.0449, Page 6 of 35 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: 2AB34-NB-S3 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI C63.4-2009 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with § 13 in ANSI C63.4-2009 "Measurement of Intentional radiators” The measurements were performed over the frequency range of 30 MHz to 40 GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak, Quasi-peak, Average" within a bandwidth of 120 kHz and above 1 GHz is 1 MHz. Preliminary measurements were made at 3 m using broadband antennas, and spectrum analyzer to determine the frequency producing the maximum emission in shielded room. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation,…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE140326.0449, Page B1 of B4 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Radiated Emission Test Setup (Below 30 MHz) Appendix B. Test Setup Photographs Report no. ETLE140326.0449, Page B2 of B4 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE140326.0449, Page B3 of B4 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Radiated Emission Test Setup (Above 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE140326.0449, Page B4 of B4 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: 2AB34-NB-S3 Conducted Emission Test Setup
