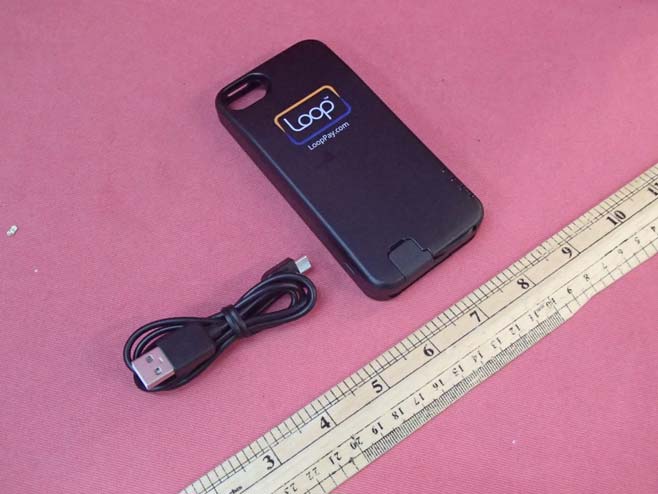

INTERTEK TESTING SERVICE Report No.: 14030540HKG-002 FCC ID: 2AB3L-LOOPMST0002 Equipment Photographs Model: LOOPMST0002 (External)

INTERTEK TESTING SERVICE Report No.: 14030540HKG-002 FCC ID: 2AB3L-LOOPMST0002 Equipment Photographs Model: LOOPMST0002 (Internal) INTERTEK TESTING SERVICE Report No.: 14030540HKG-002 FCC ID: 2AB3L-LOOPMST0002 Equipment Photographs Model: LOOPMST0002 (Internal) INTERTEK TESTING SERVICE Report No.: 14030540HKG-002 FCC ID: 2AB3L-LOOPMST0002 Equipment Photographs Model: LOOPMST0002 (Internal) INTERTEK TESTING SERVICE Report No.: 14030540HKG-002 FCC ID: 2AB3L-LOOPMST0002 Equipment Photographs Model: LOOPMST0002 (Internal)

Analysis Report Report No.: 14030540HKG-002 The Equipment Under Test (EUT) is a 2.4GHz Bluetooth 4.0 Loop ChargeCase. The Bluetooth 4.0 portion is operating between 2402MHz and 2480MHz (40 channels with 2MHz channel spacing). The EUT is powered by 1 x 3.7V rechargeable battery. It has a USB port (for charging only) charging the rechargeable battery. And It can charge iPhone when plug connector cable to iPhone and the case. When the EUT is switched ON, The corresponding Bluetooth device would be searched and connected to the EUT. After pairing, a “bit” sound will come out. Simultaneous transmission SAR evaluation between iPhone and ChargeCase is not required as the maximum duration of overlapping transmissions between iPhone and the ChargeCase is not greater than 30 seconds. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 89.2dBμV/m at 3m Maximum allowed field strength of production tolerance: +3dB / - 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 92.2dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.498mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.498mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Report No. SET2014-10275 CCIC-SET/T-I (00) Page 1 of 212 SAR TEST REPORT Report No.： SET2014-10275 Product： Loop MST Charge Case(Black) new Model No.： LOOPMST0002 Brand Name： Loop FCC ID： 2AB3L-LOOPMST0002 Applicant： BBPOS Limited Address： Suite 1602,16/F,Tower 2,Nina Tower,No.8 Yeung UK Road, Tsuen Wan, N.T., Hong Kong Issued by： CCIC-SET Lab Location： Electronic Testing Building, Shahe Road，Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 212 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2014-10275 CCIC-SET/T-I (00) Page 2 of 212 Test Report Product. .................................: Loop MST Charge Case(Black) new Model No. .........................: LOOPMST0002 Brand Name.......................: Loop FCC ID...............................: LOOPMST0002 Applicant...........................: BBPOS Limited Applicant Address..............: Suite 1602,16/F,Tower 2,Nina Tower,No.8 Yeung UK Road, Tsuen Wan, N.T., Hong Kong Manufacturer.....................: BBPOS Limited Manufacturer Address.........: Suite 1602,16/F,Tower 2,Nina Tower,No.8 Yeung UK Road, Tsuen Wan, N.T., Hong Kong Rating .................................... : 5V 1400mAh Test Standards...................: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz; IEEE 1528–2003, IEEE 1528a-2005: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques; Test Result........................: Pass Tested by .................: 2014-10-08 Chun Mei, Test Engineer Reviewed by.............: 2014-10-08 Shuangwen Zhang,Senior Egineer Approved by...............: 2014-10-08 Wu Li’an , Manager Report No. SET2014-10275 CCIC-SET/T-I (00) Page 3 of 212 Contents 1. GENERAL CONDITIONS 2. ADMINISTRATIVE DATA 2.1. Identification of the Responsible Testing Laboratory 2.2. Identification of the Responsible Testing Location(s) 2.3. Organization Item 2.4. Identification of Applicant 2.5. Identification of Manufacture 3. GENERAL INFORMATION 3.1 Description of Equipment Under Test (EUT) 4. SAR SUMMARY 5. SPECIFIC ABSORPTION RATE (SAR) 5.1. Introduction 5.2. SAR Definition 5.3. Phantoms 5.4. Device Holder 5.5. Probe Specification 6. OPERATIONAL CONDITIONS DURING TEST 6.1. Schematic Test Configuration 6.2. SAR Measurement System 6.3. Equipments and results of validation testing 6.4. SAR measurement procedure 6.5. Antennas position and test position 7. ANTENNA LOCATION 8. CHARACTERISTICS OF THE TEST 8.1. General information 8.2. Applicable Measurement Standards 9. LABORATORY ENVIRONMENT 9.1. The Ambient Conditions during SAR Test 10. EUT TESTING POSITION 11. MEASUREMENT PROCEDURE 11.1. Conducted power measurement 11.2. SAR measurement 12. CONDUCTED RF OUTPUT POWER 12.1. Conducted RF Output Power for Model A1530 13. SAR TEST RESULTS 13.1. SAR data for iphone without BT iphone case 13.1.1 The results for Model A1530 13.1.2 The plots for Model A1530 with charger case 13.2. Standalone Head SAR data with BT iphone case 13.3. Highest SAR Plots 13.3.1 The results for iphone with BT iphone case Report No. SET2014-10275 CCIC-SET/T-I (00) Page 4 of 212 14. MEASUREMENT UNCERTAINTY 15. MAIN TEST INSTRUMENTS This Test Report consists of the following Annexes: Annex A: Test Layout Annex B: Sample Photographs Annex C: System Performance Check Data Annex D: Calibration Certificate of Probe and Dipoles Report No. SET2014-10275 CCIC-SET/T-I (00) Page 5 of 212 1．GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone does not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of CCIC-SET 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of CCIC-SET and the Accreditation Bodies, if it applies. Report No. SET2014-10275 CCIC-SET/T-I (00) Page 6 of 212 2. ADMINISTRATIVE DATA 2.1. Identification of the Responsible Testing Laboratory Company Name: CCIC-SET Department: EMC & RF Department Address: Electronic Testing Building, Shahe Road, Nanshan District, ShenZhen, P. R. China Telephone: +86-755-26629676 Fax: +86-755-26627238 Responsible Test Lab Managers: Mr. Wu Li’an 2.2. Identification of the Responsible Testing Location(s) Company Name: CCIC-SET Address: Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, P. R. China 2.3. Organization Item CCIC-SET Report No.: SET2014-10275 CCIC-SET Project Leader: Mr. Li Sixiong CCIC-SET Responsible for accreditation scope: Mr. Wu Li’an Start of Testing: 2014-09-22 End of Testing: 2014-09-29 2.4. Identification of Applicant Company Name: BBPOS Limited Address: Suite 1602,16/F,Tower 2,Nina Tower,No.8 Yeung UK Road, Tsuen Wan, N.T., Hong Kong 2.5. Identification of Manufacture Company Name: BBPOS Limited Address: Suite 1602,16/F,Tower 2,Nina Tower,No.8 Yeung UK Road, Tsuen Wan, N.T., Hong Kong Notes: This data is based on the information by the applicant. Report No. SET2014-10…

Text truncated - open the document above for the full version.

Report No. SET2014-10275 CCIC-SET/T-I (00) Page 120 of 212 Fig.19 Edge 2 distance 5mm Fig.20 Edge 3 distance 5mm Report No. SET2014-10275 CCIC-SET/T-I (00) Page 121 of 212 Fig.21 Edge 4 distance 5mm Report No. SET2014-10275 CCIC-SET/T-I (00) Page 122 of 212 ANNEX B of CCIC-SET CONFORMANCE TEST REPORT FOR HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS SET2014-10275 LOOP MST CHARGE CASE(BLACK) NEW Type Name: Loop MST Charge Case(Black) new smart PTT case for iPhone Hardware Version： Software Version： Sample Photographs This Annex consists of 3 pages Date of Report: 2014-10-08 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 123 of 212 1. Appearance Appearance and size (obverse with Model) Appearance and size (reverse with Model) Report No. SET2014-10275 CCIC-SET/T-I (00) Page 124 of 212 Appearance and size (obverse without Model A1530) Appearance and size (reverse without Model A1530) Report No. SET2014-10275 CCIC-SET/T-I (00) Page 125 of 212 ANNEX C of CCIC-SET CONFORMANCE TEST REPORT FOR HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS SET2014-10275 LOOP MST CHARGE CASE(BLACK) NEW Type Name: Loop MST Charge Case(Black) new smart PTT case for iPhone Hardware Version： Software Version： System Validation This Annex consists of 20 pages Date of Report：2014-10-08 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 126 of 212 System Validation (Head, 835MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 9/22/2014 Measurement duration: 12 minutes 57 seconds A. Experimental conditions. Phantom File surf_sam_plan.txt Phantom Flat Plane Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR Frequency (MHz) 835.000000 Relative permittivity (real part) 41.45 Relative permittivity 15.07 Conductivity (S/m) 0.91 Power drift (%) -0.240000 ConvF: 4.80 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-5.00, Y=6.00 SAR 10g (W/Kg) 1.801556 SAR 1g (W/Kg) 2.443875 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 127 of 212 System Validation (Head, 1900MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 9/23/2014 Measurement duration: 14 minutes 51 seconds A. Experimental conditions. Phantom File surf_sam_plan.txt Phantom Flat Plane Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement Results Band SAR Frequency (MHz) 1900.000000 Relative permittivity (real part) 39.89 Relative permittivity 15.07 Conductivity (S/m) 1.40 Power drift (%) -0.430000 ConvF: 5.49 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=8.00 SAR 10g (W/Kg) 5.156024 SAR 1g (W/Kg) 9.789668 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 128 of 212 System Validation (Head, 835MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 9/24/2014 Measurement duration: 12 minutes 57 seconds A. Experimental conditions. Phantom File surf_sam_plan.txt Phantom Flat Plane Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR Frequency (MHz) 835.000000 Relative permittivity (real part) 41.43 Relative permittivity 15.05 Conductivity (S/m) 0.91 Power drift (%) -0.310000 ConvF: 4.80 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-5.00, Y=6.00 SAR 10g (W/Kg) 1.801027 SAR 1g (W/Kg) 2.449344 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 129 of 212 System Validation (Head, 1900MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 9/25/2014 Measurement duration: 14 minutes 51 seconds A. Experimental conditions. Phantom File surf_sam_plan.txt Phantom Flat Plane Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement Results Band SAR Frequency (MHz) 1900.000000 Relative permittivity (real part) 39.94 Relative permittivity 15.03 Conductivity (S/m) 1.40 Power drift (%) -0.080000 ConvF: 5.49 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=8.00 SAR 10g (W/Kg) 5.163587 SAR 1g (W/Kg) 9.823574 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 130 of 212 System Validation (Head, 835MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 9/26/2014 Measurement duration: 12 minutes 57 seconds A. Experimental conditions. Phantom File surf_sam_plan.txt Phantom Flat Plane Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR Frequency (MHz) 835.000000 Relative permittivity (real part) 41.47 Relative permittivity 15.11 Conductivity (S/m) 0.91 Power drift (%) -0.240000 ConvF: 4.80 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-5.00, Y=6.00 SAR 10g (W/Kg) 1.800247 SAR 1g (W/Kg) 2.424578 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 131 of 212 System Validation (Head, 1900MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 9/27/2014 Measurement duration: 14 minutes 51 seconds A. Experimental conditions. Phantom File surf_sam_plan.txt Phantom Flat Plane Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement Results Band SAR Frequency (MHz) 1900.000000 Relative permittivity (real part) 39.88 Relative permittivity 15.03 Conductivity (S/m) 1.40 Power drift (%) -0.430000 ConvF: 5.49 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=8.00 SAR 10g (W/Kg) 5.187562 SAR 1g (W/Kg) 9.844587 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 132 of 212 System Validation (Head, 2450MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 9/28/2014 Measurement duration: 15 minutes 24 seconds A. Experimental conditions. Phantom File surf_sam_plan.txt Phantom…

Text truncated - open the document above for the full version.

Report No. SET2014-10275 CCIC-SET/T-I (00) Page 185 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 186 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 187 of 212 SID2450 Dipole Calibration Ceriticate Report No. SET2014-10275 CCIC-SET/T-I (00) Page 188 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 189 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 190 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 191 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 192 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 193 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 194 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 195 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 196 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 197 of 212 SID5G Dipole Calibration Ceriticate Report No. SET2014-10275 CCIC-SET/T-I (00) Page 198 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 199 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 200 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 201 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 202 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 203 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 204 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 205 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 206 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 207 of 212 Report No. SET2014-10275 CCIC-SET/T-I (00) Page 208 of 212 <Justification of the extended calibration> Referring to KDB 450824, if dipoles are verified in return loss(<-20dB, within 20% of prior calibration),and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. 835MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2013.04.05 -26.15 - 49.25 - 2014.04.02 -26.62 1.8 48.37 0.88 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> 835MHz Report No. SET2014-10275 CCIC-SET/T-I (00) Page 209 of 212 1900MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2013.04.05 -22.43 - 50.21 - 2014.04.02 -23.22 3.5 51.08 -0.87 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> 1900MHz Report No. SET2014-10275 CCIC-SET/T-I (00) Page 210 of 212 2450MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2013.04.05 -27.99 - 51.37 - 2014.04.02 -27.36 2.3 50.46 0.91 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> 2450MHz Report No. SET2014-10275 CCIC-SET/T-I (00) Page 211 of 212 Calibration Certificate of Keithley 2000 Multimeter Report No. SET2014-10275 CCIC-SET/T-I (00) Page 212 of 212 SAR System Validation Per FCC KDB 865664 D02v01，SAR system validation status should be documented to confirm measurement accuracy. The SAR systems (including SAR probes，system components and software versions) used for this device were validated against its performance specifications prior to the SAR measurements. Reference dipoles were used with the required tissue- equivalent media for system validation，according to the procedures outlined in FCC KDB 865664 D 01 v01 and IEEE 1528-2003. Since SAR probe calibrations are frequency dependent， each probe calibration point was validated at a frequency within the valid frequency range of the probe calibration point，using the system that normally operates with the probe for routine SAR measurements and according to the required tissue-equivalent media. A tabulated summary of the system validation status including the validation date(s)，measurement frequencies， SAR probes and tissue dielectric parameters has been included. Freq. MHz Date probe position COND PERM CW validation Mod validation σ ε Sensitivity Probe linearity Probe isotropy Mod type Duty factor PAR 835 20140712 SN09/13 EP169 Head 0.91 41.21 PASS PASS PASS GMSK PASS N/A 1750 20140823 SN09/13 EP169 Head 1.39 39.93 PASS PASS PASS N/A N/A N/A 1900 20140824 SN09/13 EP169 Head 1.41 39.95 PASS PASS PASS GMSK PASS N/A 2450 20140827 SN09/13 EP169 Head 1.78 39.18 PASS PASS PASS GMSK PASS N/A 5200 20140828 SN09/13 EP169 Head 5.23 35.22 PASS PASS PASS OFDM N/A PASS 5300 20140829 SN09/13 EP169 Head 5.23 35.26 PASS PASS PASS OFDM N/A PASS 5500 20140905 SN09/13 EP169 Head 5.24 35.28 PASS PASS PASS OFDM N/A PASS 5600 20140906 SN07/14 EPG211 Head 5.26 35.31 PASS PASS PASS OFDM N/A PASS 5800 20140908 SN07/14 EPG211 Head 5.25 35.29 PASS PASS PASS OFDM N/A PASS 835 20140712 SN07/14 EPG211 Body 0.95 55.12 PASS PASS PASS GMSK PASS N/A 1750 20140823 SN09/13 EP169 Body 1.49 53.25 PASS PASS PASS N/A N/A N/A 1900 20140824 SN09/13 EP169 Body 1.52 53.28 PASS PASS PASS GMSK PASS N/A 2450 20140827 SN09/13 EP169 Body 1.93 52.46 PASS PASS PASS GMSK PASS N/A 5200 20140828 SN09/13 EP169 Body 5.89 48.13 PASS PASS PASS OFDM N/A PASS 5300 20140829 SN09/13 EP169 Body 5.92 48.15 PASS PASS PASS OFDM N/A PASS 5500 20140905 SN09/13 EP169 Body 5.93 48.16 PASS PASS PASS OFDM N/A PASS 5600 20140906 SN09/13 EP169 Body 5.93 48.18 PASS PASS PASS OFDM N/A PASS 5800 20140908 SN07/14 EPG211 Body 5.95 48.17 PASS PASS PASS OFDM N/A PASS NOTE: While the probes have been calibrated for both CW and modulated signals, all measurements were performed using communication systems calibrated for CW signals only. Modulations in the table abové represent test configurations for which the measurement system has been validated per FCC KDB publication 865664 D01v01 for scenarios when CW probe calibrations are used with other signal types.SAR systems were validated for modulate…

Text truncated - open the document above for the full version.

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax:…
