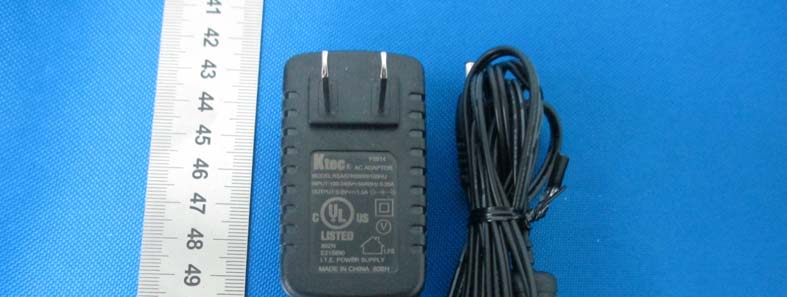

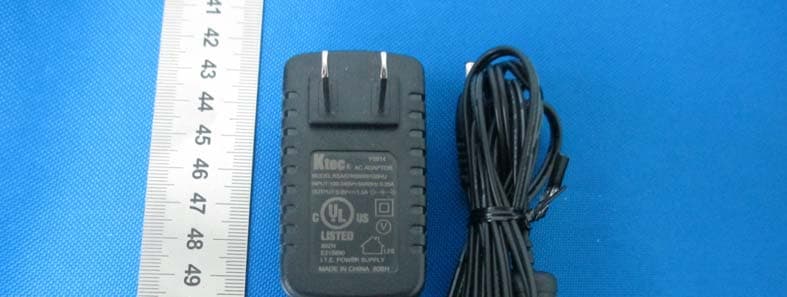

2AB47TVAC19000CWLAN Pan/Tilt Camera&App

Wi-Fi-enabled Indoor Dome Camera TVAC19000C US User guide FR Notice d’utilisation PT Manual de instruções ES Manual de instrucciones For more information and additional FAQ’s please visit us online at: www.abus.com/plug-and-play Version 10/2014 This user guide contains important operating instructions for this device. This guide should be kept in a convenient location for continued reference. For a table of contents, see page 9. Ce manuel d'utilisateur contient des instructions d'utilisation importantes pour cet appareil. Ce manuel devrait être conservé dans un endroit pratique aux fins de référence. Pour consulter la table des matières, veuillez ouvrir le manuel à la page 36. Este guia do usuário contém importantes instruções de operação para este dispositivo. Este guia deve ser mantido num local conveniente para servir de contínua referência. Para um índice de conteúdos, ver a página 64. Esta guía del usuario contiene instrucciones de manejo importantes para este dispositivo. Esta guía debe conservarse en un lugar apropiado para su consulta permanente. Véase la tabla de contenido en la página 92. English Français Português Español Wi-Fi-enabled Indoor Dome Security Camera TVAC19000C User guide For more information and additional FAQ’s please visit us online at: www.abus.com/plug-and-play Version 10/2014 Original user guide in English. Retain for future reference. 4 English Introduction Dear Customer, Thank you for purchasing the ABUS TVAC19000C Wireless Indoor Dome Security Camera. To ensure optimum performance and condition of this system is maintained, please read the enclosed operating manual. This operating manual is meant to guide you through the process of operating the TVAC19000C Wireless Indoor Dome Security Camera. This manual contains instructions for the system’s setup, installation maintenance and relevant safety information. In the event you have questions regarding the system, installation or operating procedures please consult your local authorized dealer or our customer service team. ABUS USA, LLC surveillance products are not manufactured and/or sold with the intent to be used for illegal purposes. ABUS USA, LLC expects consumer’s use of these products to be in compliance with local, state and federal law. For further information on video and audio recording legal requirements, please consult your local, state and federal law. Thank you, ABUS USA, LLC Data storage is subject to national data privacy guidelines. Disclaimer This user guide has been produced with the greatest of care. Should you discover any missing information or inaccuracies, please contact us under the address shown on the back of the manual. ABUS USA, LLC does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user guide at any time and without prior warning. ABUS USA, LLC is not liable or responsible for direct or indirect damage resulting from the equipment, performance and use of this product. No forms of guarantee are accepted for the contents of this document. ABUS USA, LLC products are not manufactured and/or sold with the intent to be used for illegal purposes. ABUS USA, LLC expects consumer’s use of these products to be in compliance with all local, state and federal law. For further information on video surveillance and audio recording legal requirements, please consult your local, state and federal law. © 2014, All rights allowed by law are hereby reserved. 5 English Icon explanation Danger of electrical shock. Important warning regarding operation of device Important information regarding operation of device Important safety advice All warranty claims are invalid in the event of damage. caused by operating the system in non-compliance with this user guide. ABUS USA, LLC cannot be held liable for resulting damages. In the event of material or personal damage caused by improper operation or non- compliance with the safety information, ABUS USA, LLC cannot be held liable. All warranty claims are voided in such cases. The device has been manufactured in compliance with international safety standards. Please read these safety advices carefully. Safety advice 1. Mains supply 120 V AC voltage, 60 Hz (using a power supply unit for 5 V DC) Operate this product only from the type of power supply indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your local power company. Disconnect the product from the mains before you start any maintenance or installation procedures. The power supplies are only for indoor usage. 2. Overloading Do not overload a wall outlet, extension cord or adapter as this may result in electric fire or shock. 3. Liquids Protect the device from any kind of liquids entering. 4. Cleaning Disconnect the product from the wall outlet before cleaning. Use a light damp cloth (no solvents) to dust the product. 5. Accessories Do not use any unsupported accessories as these may be hazardous or cause damage the product. 6. Location  This device can be used only inside.  The product will be damaged even it falls from a low height.  During the installation of the camera please take care that the camera image sensor does not point directly into the sunlight. Please follow the installation instructions in the corresponding chapter of this user manual.  Do not place the device near a radiator or heat register.  Only operate the device at locations where temperatures within the permitted ambient temperature range of 14 °F to 122 °F. Outside the predetermined temperature range operation is possible, but cannot be guaranteed. 6 English 7. Wireless transmission The wireless range depends on a variety of environmental factors. The local conditions at the installation site may have a negative impact on the range. When there are no obstructions between the receiver and transmitter, a range of up to 325 feet is possible, but this range will be considerably less within buildings…

Text truncated - open the document above for the full version.

DATE : 2014‐10‐16 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint below company and person: Name Jamy Yu Position Manager Company Name Dongguan Dongdian Testing Service Co.,Ltd. Address 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel / Fax Tel: +86‐0769‐22891499 fax:+86‐0769‐22895596 E‐Mail [email protected] to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with: Applicant name ABUS USA LLC Address 23910N.19th Ave.,Unit#56 Phoenix,AZ 850851850,USA Name Zac Roy Twight Position CEO Company Name ABUS USA LLC Address 23910N.19th Ave.,Unit#56 Phoenix,AZ 850851850,USA Tel / Fax (623) 516‐9933 E‐Mail [email protected]

DATE :2014‐10‐16 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AB47TVAC19000C Product Name: WLAN Pan/Tilt Camera&App Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Name Zac Roy Twight Position CEO Company Name ABUS.USA.LLC Address 23910N.19th.Ave.,Unit#56.Phoenix,AZ.850851850,USA Tel / Fax (623) 516-9933 E‐Mail [email protected]

Model Declaration Date: 2014-10-27 To whom it may concern: We ABUS USA LLC. declare that for our product: WLAN Pan/Tilt Camera&App, Model No: TVAC19000C, FCC ID: 2AB47TVAC19000C and device: 720p Outdoor WIFI Camera, Model No: APPCAM26PT,FCC ID: LE2APPCAM26PT from JSW Pacific Corporation are electrically identical, except name and model No and FCC ID info. Yours sincerely, Signatory Name： Zac Roy Twight Position： CEO Company Name： ABUS USA LLC Address： 23910N.19th Ave.,Unit#56 Phoenix,AZ 850851850,USA Tel / Fax： (623) 516-9933 E-Mail： [email protected]

RF Exposure Evaluation Result 1. Requirement Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. Limits for General Population/Uncontrolled Exposure 2. Calculation Method From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 3. Estimation Result Mode Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) 2412 20.14 103.28 2 1.58 0.033 2437 20.45 110.92 2 1.58 0.035 11b 2462 20.22 105.20 2 1.58 0.033 2412 20.51 112.46 2 1.58 0.035 2437 20.52 112.72 2 1.58 0.036 11g 2462 20.13 103.04 2 1.58 0.032 2412 20.21 104.95 2 1.58 0.033 2437 20.63 115.61 2 1.58 0.036 11n HT20 2462 20.23 105.44 2 1.58 0.033 2422 20.61 115.08 2 1.58 0.036 2437 20.13 103.04 2 1.58 0.032 11n HT40 2452 20.73 118.30 2 1.58 0.037 Note: The estimation distance is 20cm Conclusion: PASS Evaluation Test Engineer: Confirmed: ________________ _______________ Leo Liu Jamy Yu (Lead Engineer) (Lab Manager)

Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-RE140696 Page 1 of 171 FCC CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel: +86-0769-22891499 Http://www.dgddt.com Applicant : ABUS USA LLC Address : 23910N.19 th Ave., Unit#56 Phoenix, AZ 850851850, USA Equipment under Test : WLAN Pan/Tilt Camera&App Model No : TVAC19000C FCC ID : 2AB47TVAC19000C Manufacturer : ABUS USA LLC Address : 23910N.19 th Ave., Unit#56 Phoenix, AZ 850851850, USA Report No: DDT-RE140696 Issued Date: Oct. 22, 2014 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-RE140696 Page 2 of 171 TABLE OF CONTENTS Test report declares......................................................................................................................4 1. Summary of test results ............................................................................................................... 5 2. General test information .............................................................................................................. 6 2.1. Description of EUT ..................................................................................................................... 6 2.2. Accessories of EUT..................................................................................................................... 6 2.3. Assistant equipment used for test ................................................................................................ 6 2.4. Block diagram of EUT configuration for test ............................................................................. 7 2.5. Test environment conditions ....................................................................................................... 7 2.6. Test laboratory............................................................................................................................. 7 2.7. Measurement uncertainty ............................................................................................................ 8 3. 6dB Bandwidth and 99% Bandwidth .......................................................................................... 9 3.1. Test equipment ............................................................................................................................ 9 3.2. Block diagram of test setup ......................................................................................................... 9 3.3. Limits .......................................................................................................................................... 9 3.4. Test Procedure............................................................................................................................. 9 3.5. Test Result................................................................................................................................. 10 3.6. Original test data ....................................................................................................................... 10 4. Maximum Peak Output Power .................................................................................................. 22 4.1. Test equipment .......................................................................................................................... 22 4.2. Block diagram of test setup ....................................................................................................... 22 4.3. Limits ........................................................................................................................................ 22 4.4. Test Procedure........................................................................................................................... 23 4.5. Test Result................................................................................................................................. 23 5. Power Spectral Density ............................................................................................................. 23 5.1. Test equipment .......................................................................................................................... 23 5.2. Block diagram of test setup ....................................................................................................... 23 5.3. Limits ........................................................................................................................................ 23 5.4. Test Procedure........................................................................................................................... 23 5.5. Test Result................................................................................................................................. 24 5.6. Original test data ....................................................................................................................... 24 6. Emissions in non-restricted frequency bands ............................................................................ 31 6.1. Test equipment .......................................................................................................................... 31 6.2. Block diagram of test setup ....................................................................................................... 31 6.3. Limits ........................................................................................................................................ 31 6.4. Test Procedure........................................................................................................................... 31 6.5. Test Result................................................................................................................................. 32 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-RE140696 Page 3 of 171 6.6. …

Text truncated - open the document above for the full version.
