2AB48UR01Wireless computer mouse

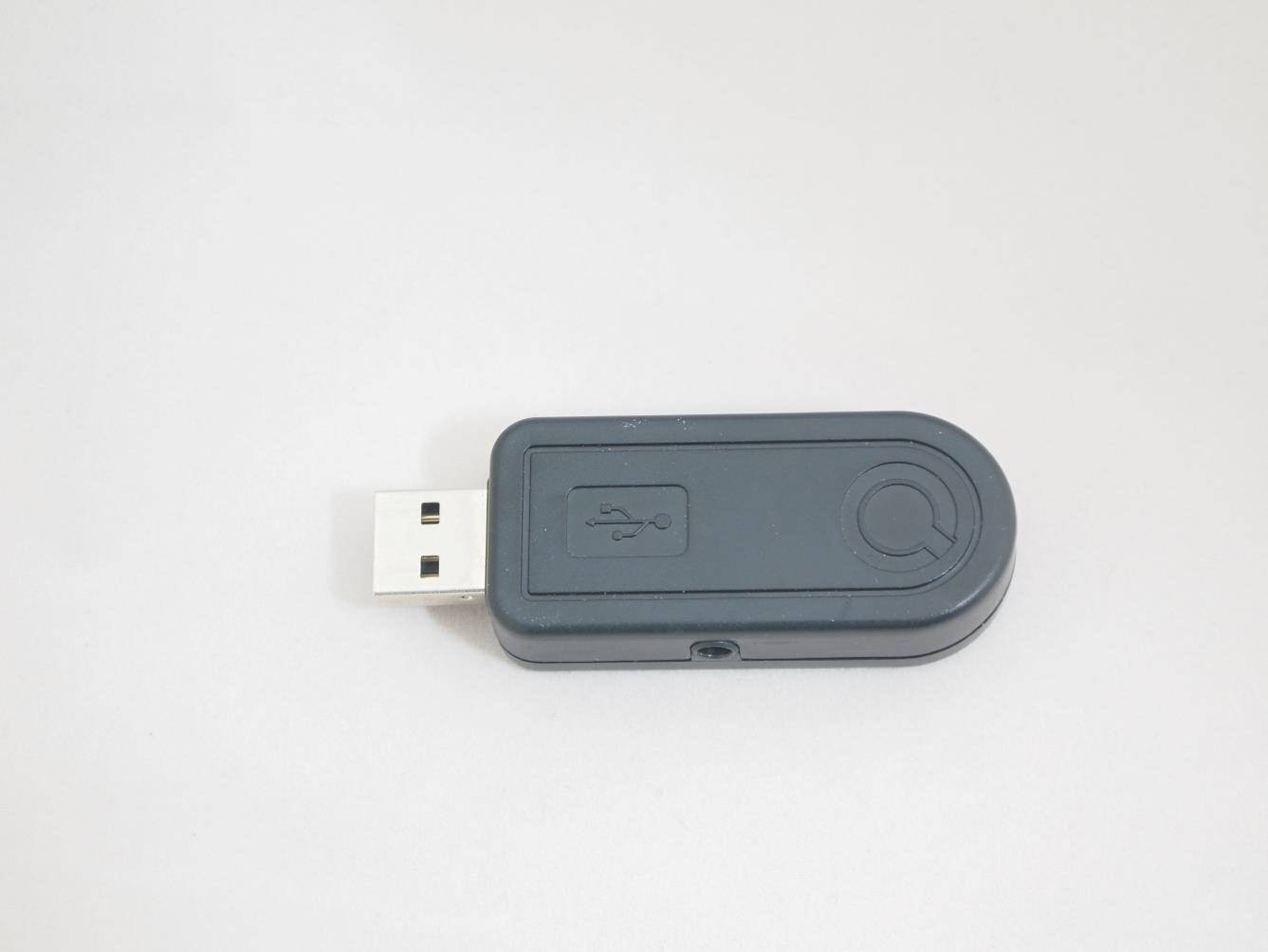

CONFIDENTIAL QUHA OY EU VAT: FI24601425 Pirkkalaistie 1 FIN 37100 Nokia Finland www.quha.com [email protected] QUHA USB RECEIVER FCC: 2AB48UR01 IC: 11870A-UR01 EXTERNAL PHOTOS CONFIDENTIAL QUHA OY EU VAT: FI24601425 Pirkkalaistie 1 FIN 37100 Nokia Finland www.quha.com [email protected] TOP CONFIDENTIAL QUHA OY EU VAT: FI24601425 Pirkkalaistie 1 FIN 37100 Nokia Finland www.quha.com [email protected] FRONT CONFIDENTIAL QUHA OY EU VAT: FI24601425 Pirkkalaistie 1 FIN 37100 Nokia Finland www.quha.com [email protected] LEFT CONFIDENTIAL QUHA OY EU VAT: FI24601425 Pirkkalaistie 1 FIN 37100 Nokia Finland www.quha.com [email protected] BACK CONFIDENTIAL QUHA OY EU VAT: FI24601425 Pirkkalaistie 1 FIN 37100 Nokia Finland www.quha.com [email protected] RIGHT

CONFIDENTIAL QUHA OY EU VAT: FI24601425 Pirkkalaistie 1 FIN 37100 Nokia Finland www.quha.com [email protected] QUHA USB RECEIVER FCC: 2AB48UR01 IC: 11870A-UR01 INTERNAL PHOTOS CONFIDENTIAL QUHA OY EU VAT: FI24601425 Pirkkalaistie 1 FIN 37100 Nokia Finland www.quha.com [email protected] TOP CONFIDENTIAL QUHA OY EU VAT: FI24601425 Pirkkalaistie 1 FIN 37100 Nokia Finland www.quha.com [email protected] BOTTOM

SAR EXCLUSION JUSTIFICATION Manufacturer Quha Oy Device Quha USB Receiver FCC ID 2AB48UR01 SAR EXCL USI ON JUSTI FIC ATI ON Guidance document reference: KDB447498 D01 General RF Exposure Guidance v05r02, page 11, paragraph 4.3.1(1). The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. CALC UL ATI ON S AND A SSUM PTI ONS Since the exact distance from the body may vary during use the worst possible distance where the device is in direct contact with the skin will be chosen as test separation distance in calculations. In this condition the antenna is 5 mm away from the body. Power with tune-up: , where E is the average value of field strength. Actual evaluation: √ CON CLU SIO N The analysis shows that the device qualifies for exemption from SAR testing. Date: May 6, 2014

SGS Fimko EMC Oy Perkkaantie 11 P.O. Box 19 FI-02601 Espoo t +358 (0)42 454 541 www.sgs.fi Member of the SGS Group (SGS SA) TEST REPORT Date: ESPOO 22.05.2014 Page: 1 (21) Appendices  Date of handing in: 19.03.2014 Number: 275987B No. 1 / 1 Tested by: Pekka Kälviäinen, Test Engineer Reviewed by: Timo Hietala, Test Specialist SORT OF EQUIPMENT: 2.4 GHz Transceiver MARKETING NAME: TYPE: Quha USB Receiver MANUFACTURER: Quha Oy CLIENT: Quha Oy ADDRESS: Pirkkalaistie 1, FI-3700 Nokia, Finland TELEPHONE: +358 (0)400 339655 TEST LABORATORY: Nemko Oy FCC REG. NO. 359859 October 25, 2013 IC FILE NO. 2040F-1 November 22, 2012 SUMMARY: In regard to the performed tests the equipment under test fulfils the requirements defined in the test specifications, see page 2 for details The test results are valid for the tested unit only. Without a written permission of SGS Fimko EMC Oy it is allowed to copy this report as a whole, but not partially. Version f1.0 3 Type: Quha USB Receiver Test report: 275987B Page 2 (21) Date 22.05.2014 Summary of performed tests and test results Section in CFR 47 Section in RSS-GEN or RSS-210, Issue 8 Result 15.249 (a) A2.9 Field strength of fundamental PASS 15.249 (d)(e), 15.209 A2.9 Band-edge compliance of RF emissions PASS 15.249 (d)(e), 15.209 A2.9 Spurious radiated emissions PASS 15.215 - 20 dB bandwidth X - 4.6.1 99% bandwidth X 15.207 7.2.4 AC power line conducted emissions PASS Explanations: PASS The EUT passed that particular test. FAIL The EUT failed that particular test. N.A. The test not applicable, battery operated equipment X The measurement was done, but there is no applicable performance criteria. Disclaimer This test report is issued under SGS Fimko general terms of delivery (available on request and accessible at www.fi.sgs.com). Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. Unless otherwise stated: (a) the results shown in this document refer only to the sample(s) tested and (b) such sample(s) are retained for three months. This document cannot be reproduced except in full, without prior approval of SGS Fimko. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. Type: Quha USB Receiver Test report: 275987B Page 3 (21) Date 22.05.2014 Contents Summary of performed tests and test results .......................................................................................... 2 1. EUT and Accessory Information ......................................................................................................... 4 1.1 EUT description ........................................................................................................................ 4 1.2 EUT and accessories ................................................................................................................ 4 1.3 Additional information related to testing ................................................................................... 4 2. Test setups .......................................................................................................................................... 5 3. Standards and measurement methods ............................................................................................... 6 4. Test results .......................................................................................................................................... 6 4.1 Field strength of fundamental ................................................................................................... 6 4.1.1 EUT operation mode ................................................................................................................. 6 4.1.2 Test method and limit ............................................................................................................... 6 4.1.3 Test results ............................................................................................................................... 7 4.2 Band-edge compliance of RF emissions .................................................................................. 8 4.2.1 EUT operation mode ................................................................................................................. 8 4.2.2 Test method and limit ............................................................................................................... 8 4.2.3 Test results ............................................................................................................................... 9 4.3 Spurious radiated emission .................................................................................................... 11 4.3.1 EUT operation mode ............................................................................................................... 11 4.3.2 Test method and limit ............................................................................................................. 11 4.3.3 Test results ............................................................................................................................. 13 4.4 20 dB and 99% bandwidths .................................................................................................... 14 4.4.1 EUT operation mode ............................................................................................................... 14 4.4.2 Test method and limit ............................................................................................................. 14 4.4.3 Test results ............................................................................................................................. 14 4.5 Duty cycle correction factor, Transmit time in 100 ms ............................................................ 16 4.5.1 Test data .....................................................................…

Text truncated - open the document above for the full version.

Type: Quha USB Receiver S/N: 838861062, 838861061, 838861063 Appendix to Test report: 275987B Photographs Photograph 1. Radiated spurious emission test. Photograph 2. Conducted emissions at mains ports.
