2AB4K363901TV9 INCH PORTABLE SWIVEL TV/DVD PLAYER COMBO

2 Safety Instructions & Warnings Important Safety Instructions •Read these Instructions. •Keep these Instructions. •Heed all Warnings. •Follow all instructions. •Do not use this apparatus near water. •Clean only with a dry cloth. •Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. •Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. •Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. •Only use attachments/accessories specified by the manufacturer. •Unplug this apparatus during lightning storms or when unused for long periods of time. •Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. FCC Warnings This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cuase undesired operation. Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. • T he device has been evaluated to meet general RF exposure requirement. The devicecan be used in portable exposure condition without restriction. • This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. ATTENTION RISQUE D' ÉLECTROCUTION NE PAS OUVRIR CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player’s lid is open and the system’s interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches. WARNING : This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. This product meets and complies with all Federal product guidelines. 3 Additional Warnings and Precautions • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. • Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. • CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure. • WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause. • WARNING: Shock hazard - Do Not Open. • Caution and marking information is located at the rear or bottom of the apparatus. • WARNING: To reduce the risk of fire or electric shock, do n…

Text truncated - open the document above for the full version.

Rev1/26/2023 METINDUSTRIALLTD FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:6-4-2024 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2AB4K363901TV METINDUSTRIALLTD("theapplicant")certifiesthattheequipmentforwhichauthorizationis soughtisnot“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuantto section2.903oftheFCCrules. Sincerely, (Applicantsignature) (Applicantprintedname)TONYLAM/Manager Rev1/26/2023 METINDUSTRIALLTD FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:6-4-2024 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:2AB4K363901TV METINDUSTRIALLTD (“theapplicant”)certifiesthat,asofthedateofthefilingoftheapplication, theapplicantisnotidentifiedontheCoveredList(asaspecificallynamedentityoranyofitssubsidiaries oraffiliates)asanentityproducing“covered”equipment. Sincerely, (Applicantsignature) (Applicantprintedname) TONYLAM/Manager

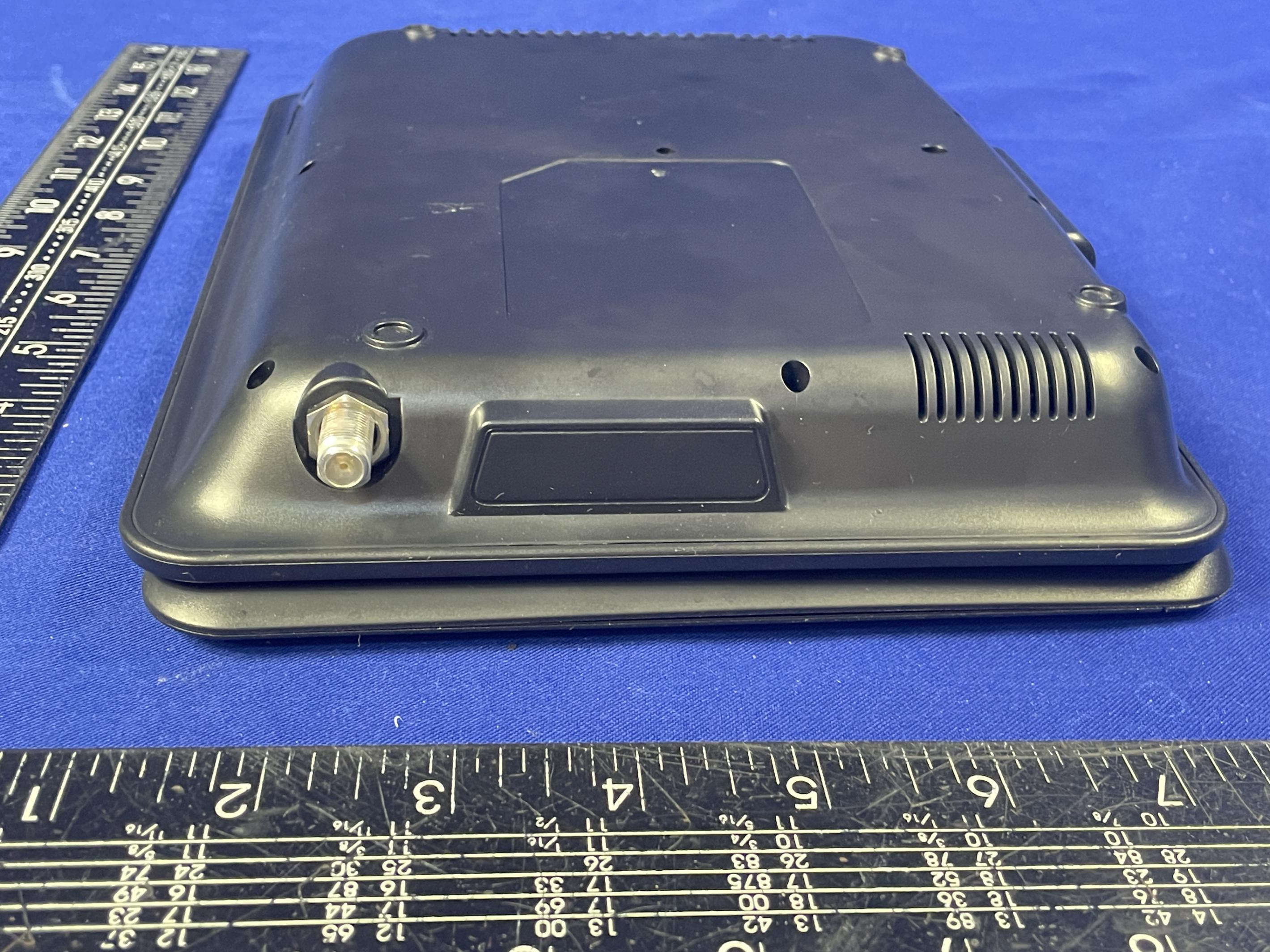

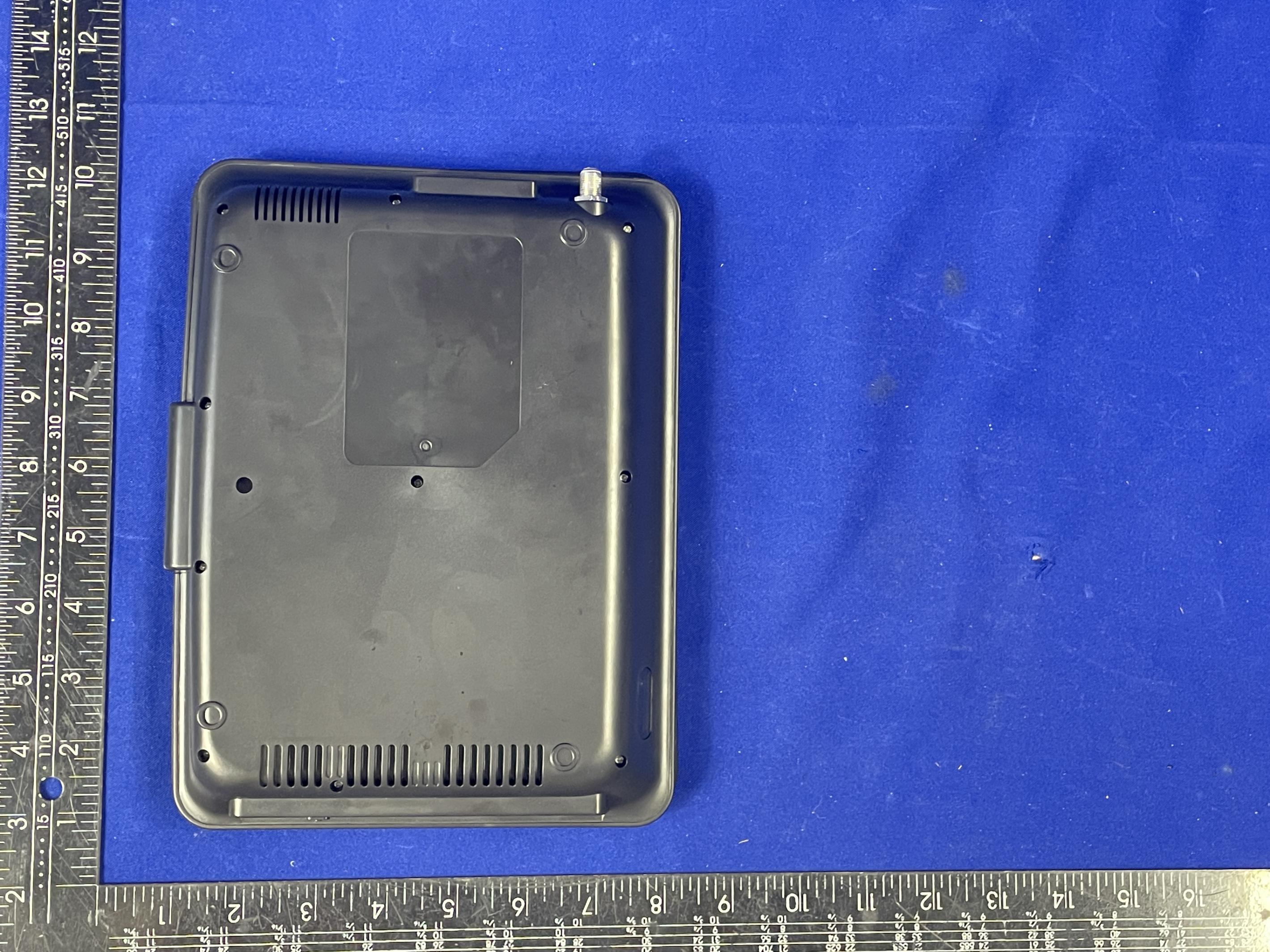

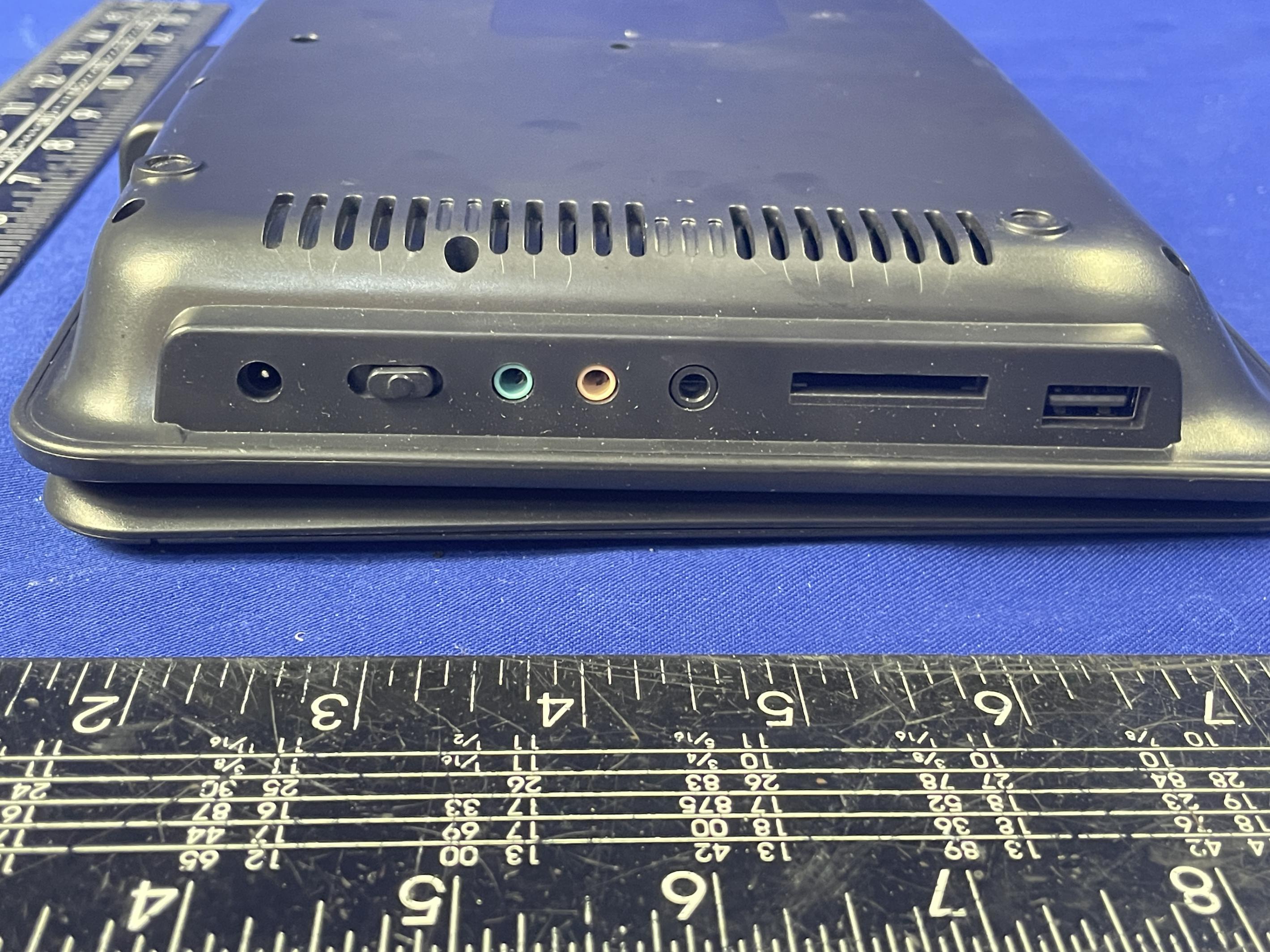

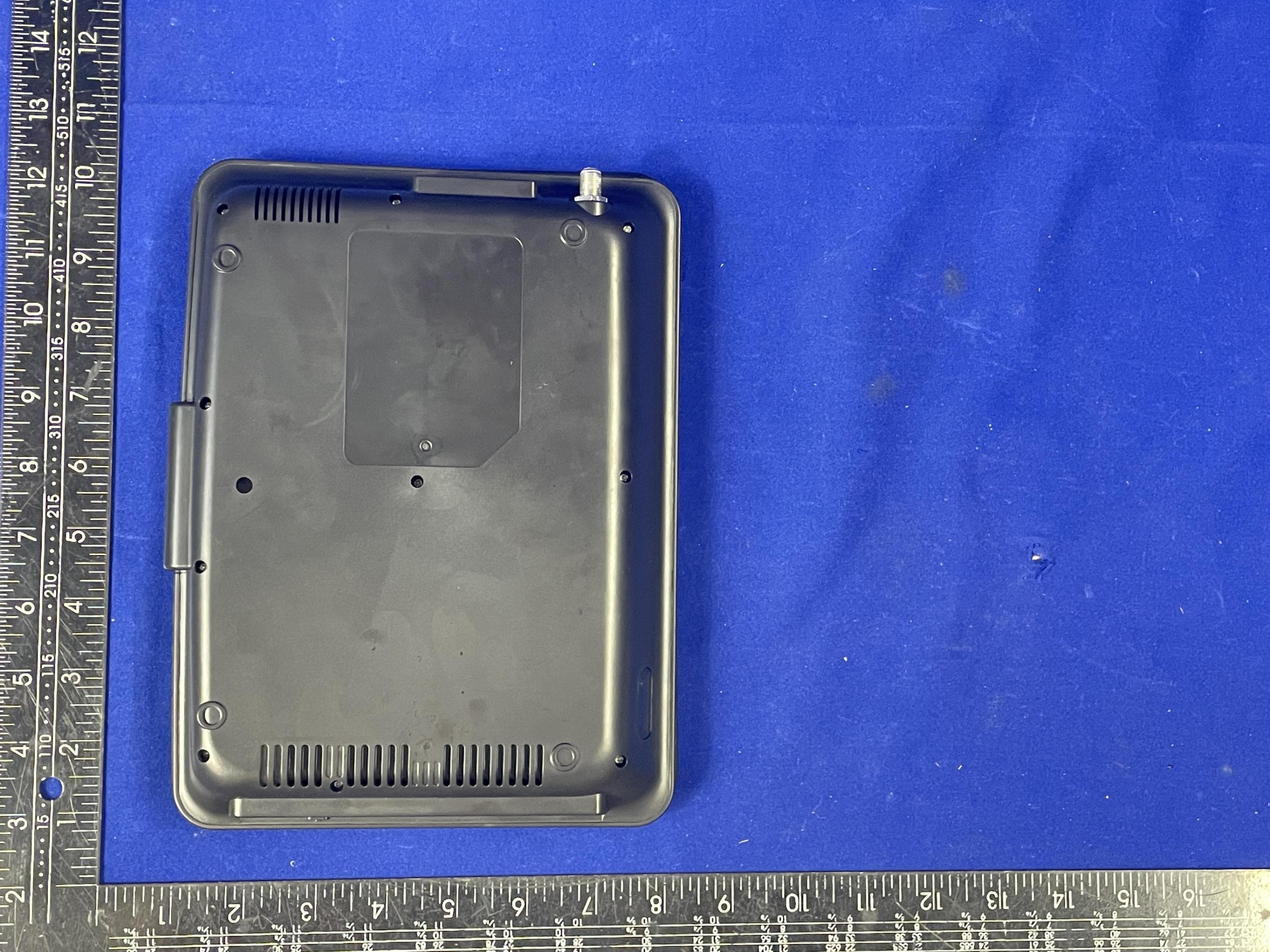

EUTEXTERNALPHOTOGRAPHS

----------------Theend----------------

EUT INTERNAL PHOTOGRAPHS PCB Antenna

. ----------------The end----------------

FCCID:2AB4K363901TV Accordingto§15.247(i)and§1.1307(b)(1),systemsoperatingundertheprovisionsofthissection shallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. AccordingtoKDB447498D01GeneralRFExposureGuidanceV06 The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparationdistances ≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]* [ √ f(GHz)] ≤ 3.0for1-gSARand ≤ 7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz； PoweranddistanceareroundedtothenearestmWandmmbeforecalculation； Theresultisroundedtoonedecimalplaceforcomparison； Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis ≤ 50mm andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. Weuse5mmasseparationdistancetocalculate. Maximummeasuredtransmitterpower: Test Mode AntennaFrequency[MHz] Conducted Powert[dBm] Result calculation 1-gSAR DH5Ant1 2402 -0.88 0.2533 2441 -0.95 0.2513 2480 -1.14 0.2423 2DH5Ant1 2402 -0.11 0.3023 2441 -0.08 0.3073 2480 -0.3 0.2943 3DH5Ant1 2402 0.17 0.3223 2441 0.22 0.3293 2480 0.08 0.3213 Conclusion: Forthemaxresult:0.329≤3.0for1-gSARextremitySAR,NoSARisrequired. Signature:Date:2024.6.14 NAMEANDTITLE(Pleaseprintortype):LisaWang/Manager COMPANY(Pleaseprintortype):ShenzhenEMTEKCo.,Ltd./Building69,MajialongIndustry Zone,NanshanDistrict,Shenzhen,Guangdong,China

Report No. ENS2404190293W00201RPage 1 of 75Ver.1.0 TEST REPORT Product Name:9 INCH PORTABLE SWIVEL TV/DVD PLAYER COMBO Model Number:MET901TV, MD901TV, PTDE954B, PTDE954NP, PTDE954TL, PTDE954XX (where XX denote 0-9, A-Z or N/A to represent variances in cosmetic or buyer) FCC ID:2AB4K363901TV Prepared for:MET INDUSTRIAL LTD Address:Room 605, 6/F., No. 9 Wing Hong Street, Lai Chi Kok, Kowloon, Hong Kong. Prepared by:EMTEK (SHENZHEN) CO., LTD. Address:Building 69, Majialong Industry Zone,Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number:ENS2404190293W00201R Date(s) of Tests:April 19, 2024 to April 29, 2024 Date of issue:April 29, 2024 $二维码$ Report No. ENS2404190293W00201RPage 2 of 75Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION................................................................................................................3 2 EUT TECHNICAL DESCRIPTION..............................................................................................................5 3 SUMMARY OF TEST RESULT...................................................................................................................6 4 TEST METHODOLOGY..............................................................................................................................7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS............................................................... 7 4.2 MEASUREMENT EQUIPMENT USED..........................................................................................7 4.3 DESCRIPTION OF TEST MODES................................................................................................ 8 5 FACILITIES AND ACCREDITATIONS.........................................................................................................9 5.1 FACILITIES.....................................................................................................................................9 5.2 EQUIPMENT.................................................................................................................................. 9 5.3 LABORATORY ACCREDITATIONS AND LISTINGS.....................................................................9 6 TEST SYSTEM UNCERTAINTY...............................................................................................................10 7 SETUP OF EQUIPMENT UNDER TEST..................................................................................................11 7.1 RADIO FREQUENCY TEST SETUP 1.........................................................................................11 7.2 RADIO FREQUENCY TEST SETUP 2.........................................................................................11 7.3 CONDUCTED EMISSION TEST SETUP.................................................................................... 13 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM........................................................14 7.5 SUPPORT EQUIPMENT..............................................................................................................14 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS............................................................................15 8.1 STANDARDAPPLICABLE...................................................................................................................15 8.2 EUT PSEUDORANDOMFREQUENCYHOPPINGSEQUENCE............................................................... 15 8.3 EQUALHOPPINGFREQUENCYUSE................................................................................................. 16 8.4 FREQUENCYHOPPINGSYSTEM.......................................................................................................16 9 TEST REQUIREMENTS...........................................................................................................................17 9.1 20DB&99%BANDWIDTH.............................................................................................................17 9.2 CARRIER FREQUENCY SEPARATION......................................................................................24 9.3 NUMBER OF HOPPING FREQUENCIES...................................................................................29 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME)................................................................... 32 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER...................................................................34 9.6 CONDUCTED SUPRIOUS EMISSION........................................................................................39 9.7 RADIATED SPURIOUS EMISSION.............................................................................................52 9.8 CONDUCTED EMISSION TEST..................................................................................................72 9.9 ANTENNA APPLICATION............................................................................................................75 Report No. ENS2404190293W00201RPage 3 of 75Ver.1.0 1 TEST RESULT CERTIFICATION Applicant:MET INDUSTRIAL LTD Address:Room 605, 6/F., No. 9 Wing Hong Street, Lai Chi Kok, Kowloon, Hong Kong. Manufacturer:MET INDUSTRIAL LTD Address:Room 605, 6/F., No. 9 Wing Hong Street, Lai Chi Kok, Kowloon, Hong Kong. EUT:9 INCH PORTABLE SWIVEL TV/DVD PLAYER COMBO Model Name: MET901TV, MD901TV, PTDE954B, PTDE954NP, PTDE954TL, PTDE954XX (where XX denote 0-9, A-Z or N/A to represent variances in cosmetic or buyer) Trade Mark:MET, Modern, GPX Measurement Procedure Used: APPLICABLE STANDARDS STANDARDTEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS IC RSS-GEN, Issue 5(04-2018)+A1(03-2019)+A2(02-2021) IC RSS-247 Issue 2(02-2017) PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by…

Text truncated - open the document above for the full version.

Report No. ENS2404190293W00201RPage 55 of 75Ver.1.0 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 Report No. ENS2404190293W00201RPage 56 of 75Ver.1.0 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 Report No. ENS2404190293W00201RPage 57 of 75Ver.1.0 3DH5_Ant1_2402_30~1000 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_30~1000 Report No. ENS2404190293W00201RPage 58 of 75Ver.1.0 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 Report No. ENS2404190293W00201RPage 59 of 75Ver.1.0 9.7 RADIATED SPURIOUS EMISSION 9.7.1 Applicable Standard According to FCC Part 15.247(d), 15.205, 15.209 and KDB 558074 D01 15.247 MEAS GUIDANCE v05r02 According to IC RSS-Gen and RSS-247 9.7.2 Conformance Limit According to FCC Part 15.247(d): radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). According to FCC Part15.205, Restricted bands MHzMHzMHzGHz 0.090-0.11016.42-16.423399.9-4104.5-5.15 10.495-0.50516.69475-16.69525608-6145.35-5.46 2.1735-2.190516.80425-16.80475960-12407.25-7.75 4.125-4.12825.5-25.671300-14278.025-8.5 4.17725-4.1777537.5-38.251435-1626.59.0-9.2 4.20725-4.2077573-74.61645.5-1646.59.3-9.5 6.215-6.21874.8-75.21660-171010.6-12.7 6.26775-6.26825123-1382200-230014.47-14.5 8.291-8.294149.9-150.052310-239015.35-16.2 8.362-8.366156.52475-156.525252483.5-250017.7-21.4 8.37625-8.38675156.7-156.92690-290022.01-23.12 8.41425-8.41475162.0125-167.173260-326723.6-24.0 12.29-12.293167.72-173.23332-333931.2-31.8 12.51975-12.52025240-2853345.8-335836.43-36.5 12.57675-12.57725322-335.43600-4400(2) 13.36-13.41 According to FCC Part15.205,the level of any transmitter spurious emission in Restricted bands shall not exceed the level of the emission specified in the following table Restricted Frequency(MHz)Field Strength (μV/m)Field Strength (dBμV/m)Measurement Distance 0.009-0.4902400/F(KHz)20 log (uV/m)300 0.490-1.70524000/F(KHz)20 log (uV/m)30 1.705-303029.530 30-88100403 88-21615043.53 216-960200463 Above 960500543 9.7.3 Test Configuration Test according to clause 7.2 radio frequency test setup 2 9.7.4 Test Procedure This test is required for any spurious emission that falls in a Restricted Band, as defined in Section 15.205. It must be performed with the highest gain of each type of antenna proposed for use with the EUT. Use the following spectrum analyzer settings: For Above 1GHz: The EUT was placed on a turn table which is 1.5m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 1 MHz VBW  RBW Sweep = auto Detector function = peak Report No. ENS2404190293W00201RPage 60 of 75Ver.1.0 Trace = max hold For Below 1GHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 100 kHz for VBW  RBW Sweep = auto Detector function = peak Trace = max hold For Below 30MHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 9kHz VBW  RBW Sweep = auto Detector function = peak Trace = max hold For Below 150KHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 200Hz VBWRBW Sweep = auto Detector function = peak Trace = max hold Follow the guidelines in ANSI C63.10-2013 with respect to maximizing the emission by rotating the EUT, measuring the emission while the EUT is situated in three orthogonal planes (if appropriate), adjusting the measurement antenna height and polarization, etc. A pre-amp and a high pass filter are required for this test, in order to provide the measuring system with sufficient sensitivity. Allow the trace to stabilize. The peak reading of the emission, after being corrected by the antenna factor, cable loss, pre-amp gain, etc., is the peak field strength, which must comply with the limit specified in Section 15.35(b). Submit this data. Now set the VBW to 10 Hz, while maintaining all of the other instrument settings. This peak level, once corrected, must comply with the limit specified in Section 15.209. If the dwell time per channel of the hopping signal is less than 100 ms, then the reading obtained with the 10 Hz VBW may be further adjusted by a “duty cycle correction factor”, derived from 20log(dwell time/100 ms), in an effort to demonstrate compliance with the 15.209 limit. Submit this data. Repeat above procedures until all frequency measured was complete. 9.7.5 Test Results Spurious Emission below 30MHz(9KHz to 30MHz) Temperature: 22 ̊ C Relative Humidity:45% ATM Pressure:1011 mbar Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m)Over(dB) H/VPKAVPKAVPKAV ---------------- Note: the amplitude of spurious emission that is attenuated by more than 20dB below the permissible limit has no need to be reported. Distance extrapolation factor =40log(Specific distance/ test distance)( dB); Limit line=Specific limits(dBuV) + distance extrapolation factor Spurious Emission Above 1GHz(1GHz to 25GHz) Report No. ENS2404190293W00201RPage 61 of 75Ver.1.0 All the antenna(Antenna 1) and modes(GFSK, π/4-DQPSK, 8DPSK) mode have been tested, and the worst(Antenna 1,GFSK) resultrecorded was report as below: Test mode:GFSKFrequency:Channel 0: 2402MHz Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m)Over(dB) H/VPKAVPKAVPKAV 8709.375V56.3636.6974.0054.0017.6417.31 11495.62 5 V59.8538.9074.0054.0014.1515.10 17640V66.2545.2574.0054.007.758.75 9223.125H56.8338.6074.0054.0017.1715.40 11499.37 5 H60.9439.4474.0054.00…

Text truncated - open the document above for the full version.

1.1.PhotosofRadiationEmissionMeasurement PhotosofConductedEmissionMeasurement SpuriousEmissionTestSetup(Below1GHz) SpuriousEmissionTestSetup(Above1GHz) ----------------Theend----------------
