2AB5H-RV7001PocketCinema V150W

User’s Manual Page 1 EN Welcome Thank you very much for purchasing this product. Before you start, you are recommended to read this manual step by step to obtain the best results with your new Pico projector. We wish you enjoy it. About the product This is the latest generation of Pico projector with DLP technology inside. Known for great cinema projectors, the DLP technology provides rich colors and enhances the contrast of the image. Integrated with WLAN, the Pico projector provides cable-free connection from your notebook, tablet, or smartphone to the Pico projector by streaming pictures, videos, websites, and documents wirelessly and projecting the images up to 120’’ (300 cm) in size. With its support to multiple media files, Office and PDF documents, and versatile connection options including HDMI, MHL, AV-in, VGA, USB and SD card slot, this Pico projector is the best solution for mobile use in business and entertainment. Safety Notice 1. Keep the device and packaging materials out of the reach of infants and children. 2. Avoid subjecting the power adapter and other contacts to dripping or splashing water and dry your hands before you use it. Do not place objects filled with liquids such as vases, etc. on or near the device. 3. Make sure that the used power outlet is always readily available and never hidden. In case of emergency, use the power adapter to separate the device from the power network. 4. Keep your device away from all flames such as candles and do not set them up in the vicinity of the device. 5. Keep the unit at least 10 cm away from other objects. Make sure the ventilation is not covered by newspapers, tablecloths, curtains, etc. 6. For your own safety, do not use the projector during thunderstorms or lightning. 7. Relative Humidity is 20% ~ 80%, non-condensing. 8. The battery is integrated with the device. Do not dissemble and modify. The battery should be replaced by an authorized service center only. 9. Ensure that the ambient room temperature is within 5 ~ 35°C. 10. Wait before using if the device has been moved from a cold location into a warm one. Any condensation that has formed may in certain circumstances destroy the device. As soon as the device has reached room temperature it can be used without risk. 11. Handle the product with care. Avoid contact with sharp objects. Keep device away from metallic objects. 12. Place the projector on a flat surface. Any collision or falling to the ground is likely to damage the product. User’s Manual Page 2 EN 13. Do not drop or disassemble the product otherwise the warranty voids. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to an authorized service center. 14. Use only the accessories supplied by the manufacturer. 15. Both product and user’s manual are subject to further improvement or supplement without further notice. Care and Safety Information for Pico Projectors 1. Avoid facing directly into the projector’s lens. 2. During the operation, this product may heat lightly, which is normal. 3. The device should not be used in a very dusty environment. Dust particles and other foreign objects may damage the unit. 4. Do not expose the device to extreme vibrations. It may damage the internal components. 5. Use the enclosed power adapter (see technical data): Check whether the mains voltage of the power supply matches the mains voltage available at the setup location. This equipment complies with the voltage type specified on the unit. Notice for Long-time Projection The built-in battery supports approximately 120 mins of projection. For long time projection, you are recommended to use AC adapter. When the battery is too weak to stay in operation, the low battery capacity icon ( ) will flash. You need to charge the product while the icon showed. It’s normal that the projector will feel warm with continuous use due to its high performance. If the projector runs for a long time and over-heated, the High-Temperature icon ( ) will appear on the screen. The system will automatically enter the standby mode. Avoid Hearing Damage: Listening at high volume for a long period of time could cause damage to your ears. User’s Manual Page 3 EN FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Move the equipment away from the receiver. - Plug the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/television technician for additional suggestions. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. FCC Radiation Exposure Statement: This equipment complies with FCC radiation e…

Text truncated - open the document above for the full version.

AIPTEK International Inc. 2F, No.58, Park Avenue 2nd Rd., Science-Based Industrial Park, Hsinchu 30844, Taiwan, R.O.C Tel: 886-3-5678138 / Fax: 886-3-5678569 Confidential Letter Date: 2014/4/2 Federal Communications Commission Authorization and Evaluation Division FCC ID：2AB5H-RV7001 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : AIPTEK International Inc. Applicant’s company address : 2F, No.58, Park Avenue 2nd Rd., Science-Based Industrial Park, Hsinchu 30844, Taiwan, R.O.C Signature : Name and Job Title : Hank Jiang / Staff Engineer E-Mail : [email protected] Tel. : 886-3-5678138

AIPTEK International Inc. 2F, No.58, Park Avenue 2nd Rd., Science-Based Industrial Park, Hsinchu 30844, Taiwan, R.O.C Tel: 886-3-5678138 / Fax: 886-3-5678569 Power of Attorney Date: 2014/4/2 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: AIPTEK / RV7 FCC ID: 2AB5H-RV7001 Product name: PocketCinema V150W FCC Grantee contact person information. Applicant’s company name : AIPTEK International Inc. Applicant’s company address : 2F, No.58, Park Avenue 2nd Rd., Science-Based Industrial Park, Hsinchu 30844, Taiwan, R.O.C Signature : Name and Job Title : Hank Jiang / Staff Engineer E-Mail : [email protected] Tel. : 886-3-5678138

AIPTEK International Inc. 2F, No.58, Park Avenue 2nd Rd., Science-Based Industrial Park, Hsinchu 30844, Taiwan, R.O.C Tel: 886-3-5678138 / Fax: 886-3-5678569 Ad Hoc Mode Function Declaration Date: 2014/4/2 FCC ID：2AB5H-RV7001 To Whom it may concern, We, the undersigned, declare that the EUT (Model Name: RV7) doesn’t have Ad Hoc function on “non-US/Canada frequencies”. Regards, FCC Grantee contact person information. Applicant’s company name : AIPTEK International Inc. Applicant’s company address : 2F, No.58, Park Avenue 2nd Rd., Science-Based Industrial Park, Hsinchu 30844, Taiwan, R.O.C Signature : Name and Job Title : Hank Jiang / Staff Engineer E-Mail : [email protected] Tel. : 886-3-5678138

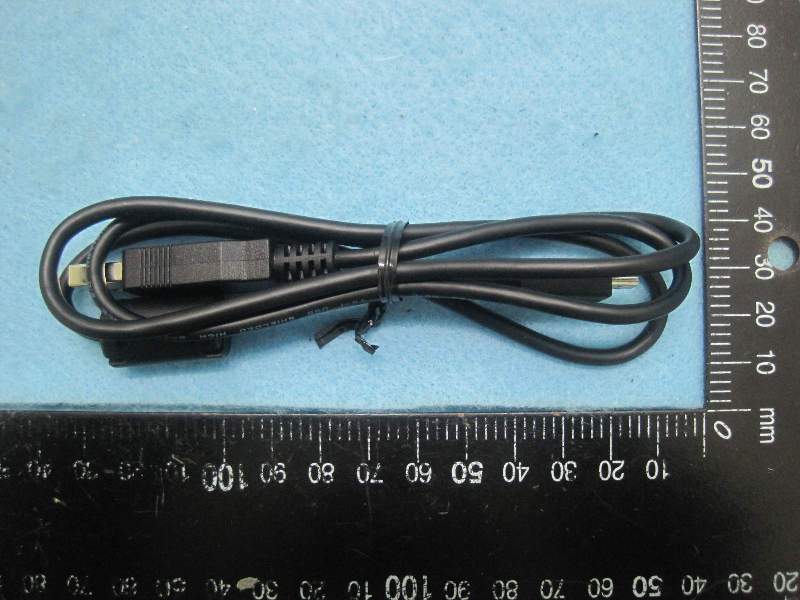

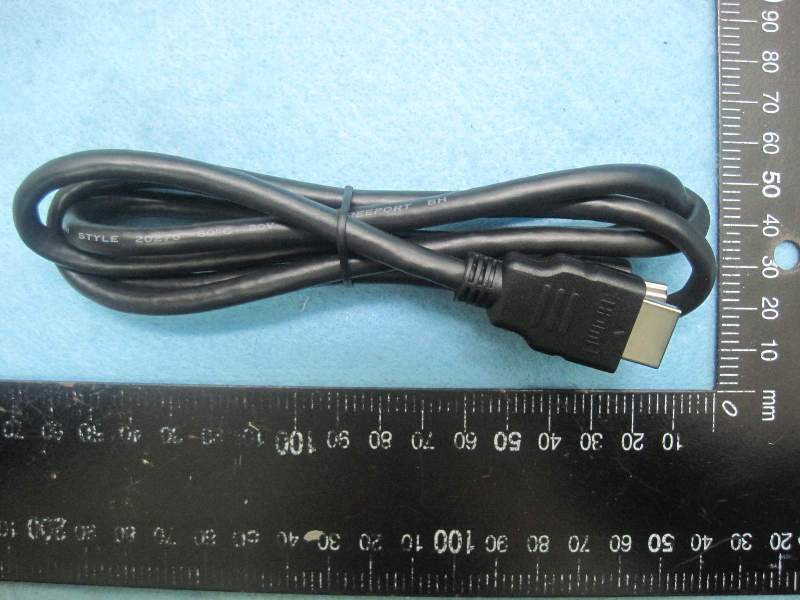

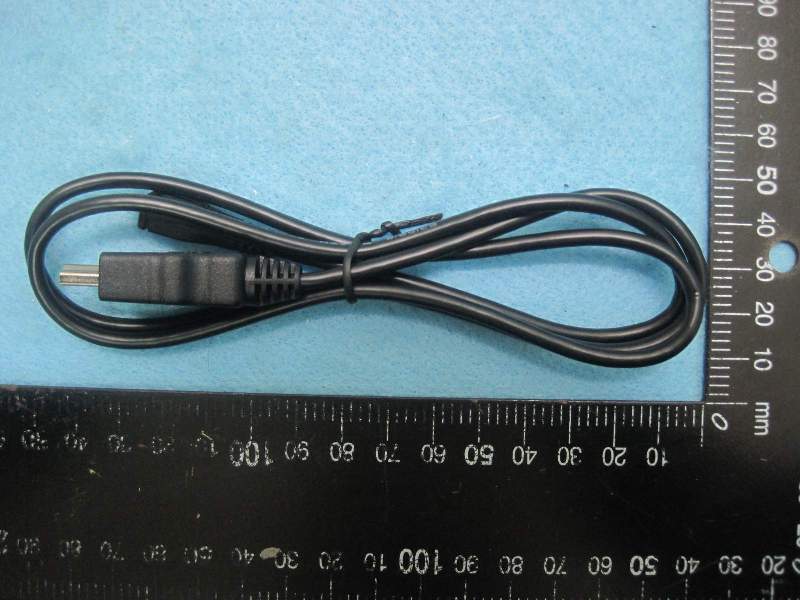

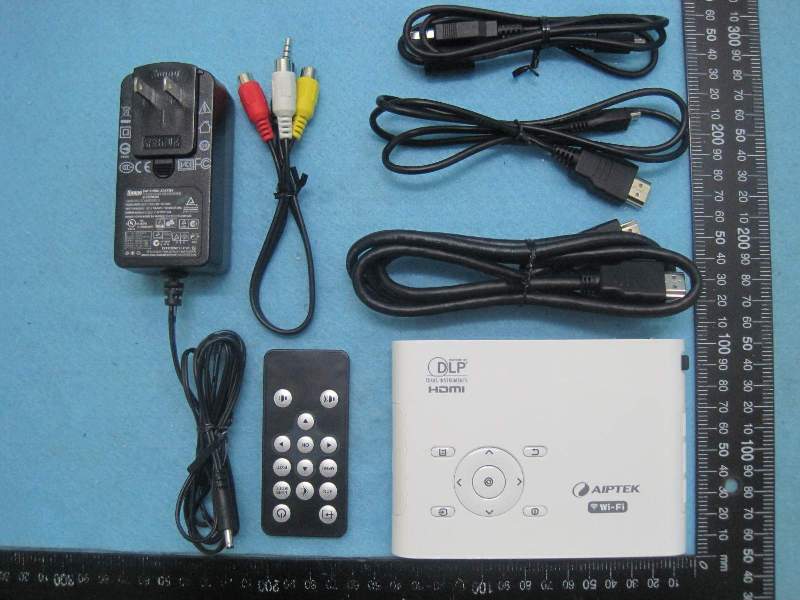

Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 1 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 2 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 3 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 4 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 5 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Adapter Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 6 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 HDMI Cable Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 7 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 HDMI Cable (HDMI to MICRO USB Cable) USB Cable Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 8 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 AV Cable Remote Controller Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 9 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973

CCAF14LP0030T6 FCC ID: 2AB5H-RV7001 S E 1 x x x x x x x x This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CCAF14LP0030T6 FCC ID: 2AB5H-RV7001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. S / N : S E 1 x x x x x x x x CCAF14LP0030T6 FCC ID: 2AB5H-RV7001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 19.27 mm 57.3 mm 1 mm 5 mm 24 mm 2014.04.027713AgnesPeng V150W ID-***** 1 : 1mm 60.12 mm

Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 1 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 2 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 3 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 4 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 5 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 6 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 7 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 8 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 9 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 10 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 11 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 12 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 13 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 14 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 15 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 16 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 17 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 18 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 19 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 20 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 21 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 22 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 23 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 24 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973 Report No.:3N2681-01 SPORTON International Inc. PAGE NUMBER : 25 OF 25 TEL : 886-3-327-3456 ISSUED DATE : Apr. 03, 2014 FAX : 886-3-327-0973

Report No.: FA3N2681-01 Report Format Version: 01 Page No. : i of ii FCC ID : 2AB5H-RV7001 Issued Date : Apr. 03, 2014 Table of Contents 1. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................... 1 1.1. Applicable Standard ..........................................................................................................................................................................1 1.2. MPE Calculation Method ....................................................................................................................................................................1 1.3. Calculated Result and Limit................................................................................................................................................................2 Report No.: FA3N2681-01 Report Format Version: 01 Page No. : ii of ii FCC ID : 2AB5H-RV7001 Issued Date : Apr. 03, 2014 History of This Assessment Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FA3N2681-01 Rev. 01 Initial issue of report Apr. 03, 2014 Report No.: FA3N2681-01 Report Format Version: 01 Page No. : 1 of 2 FCC ID : 2AB5H-RV7001 Issued Date : Apr. 03, 2014 1. MAXIMUM PERMISSIBLE EXPOSURE 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FA3N2681-01 Report Format Version: 01 Page No. : 2 of 2 FCC ID : 2AB5H-RV7001 Issued Date : Apr. 03, 2014 1.3. Calculated Result and Limit Antenna Type : Chip Antenna Max Conducted Power for IEEE 802.11n 20MHz (1TX) : 19.78 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.50 1.1220 19.7800 95.0605 0.021230 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company AIPTEK International Inc. Applicant Address 2F, No.58, Park Avenue 2nd Rd., Science-Based Industrial Park, Hsinchu 30844, Taiwan, R.O.C FCC ID 2AB5H-RV7001 Manufacturer’s company AIPTEK International Inc. Manufacturer Address 2F, No.58, Park Avenue 2nd Rd., Science-Based Industrial Park, Hsinchu 30844, Taiwan, R.O.C Product Name PocketCinema V150W Brand Name AIPTEK Model No. RV7 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Nov. 26, 2013 Final Test Date Dec. 26, 2013 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR3N2681-01 Report Format Version: 01 Page No. : i of ii FCC ID: 2AB5H-RV7001 Issued Date : Apr. 03, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. EUT Operation during Test ...................................................................................................................................................................8 3.10. Duty Cycle ..........................................................................................................................................................................................9 3.11. Test Configurations ...........................................................................................................................................................................11 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................18 4.3. Power Spectral Density Measurement ..............................................................................................................................................21 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................26 4.5. Radiated Emissions Measurement ....................................................................................................................................................31 4.6. Emissions Measurement ....................................................................................................................................................................50 4.7. Antenna Requirements .....................................................................................................................................................................68 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 69 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 71 APPENDIX A. TEST PHOTOS ................…

Text truncated - open the document above for the full version.

Report No.: FR3N2681-01 FCC ID: 2AB5H-RV7001 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR3N2681-01 FCC ID: 2AB5H-RV7001 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR3N2681-01 FCC ID: 2AB5H-RV7001 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR3N2681-01 FCC ID: 2AB5H-RV7001 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR3N2681-01 FCC ID: 2AB5H-RV7001 Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
