2AB5K-AW50011WIFI WALL Switch

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2014-6-3 Sheet of File: Sheet1.SchDoc Drawn By: AC-DC AC 120V/60HZ MCU/WI-FI RELAY Power Module control signal

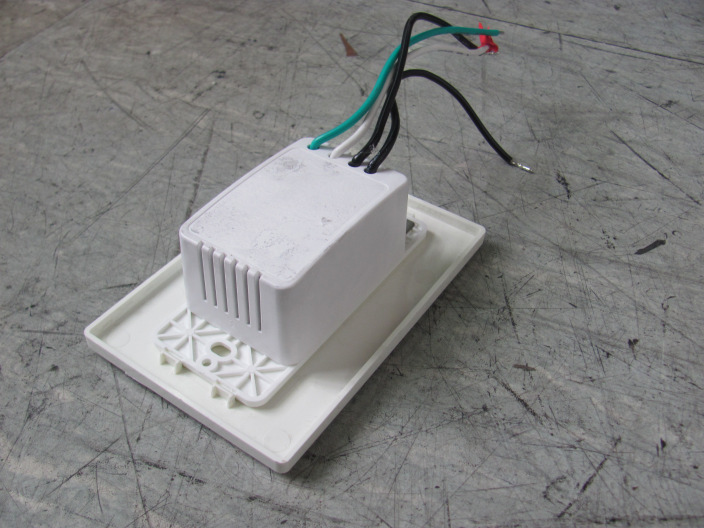

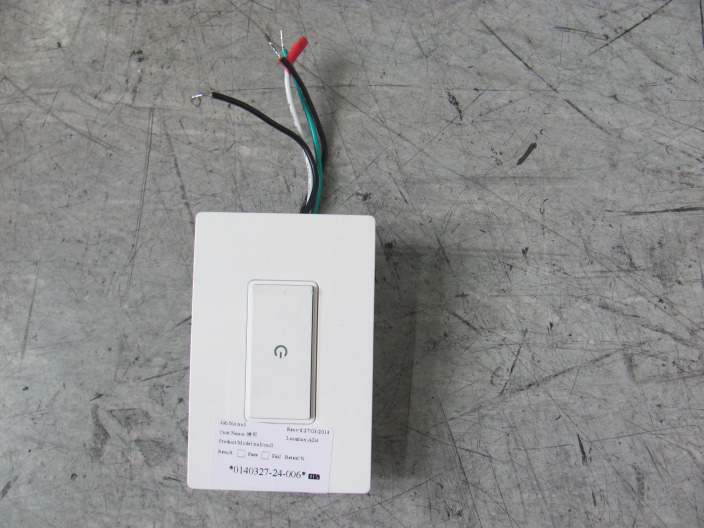

FCC ID: 2AB5K-AW50011 Page 1 of 3 External Picture FCC ID: 2AB5K-AW50011 Page 2 of 3 FCC ID: 2AB5K-AW50011 Page 3 of 3

FCC ID: 2AB5K-AW50011 Page 1 of 5 Internal Picture FCC ID: 2AB5K-AW50011 Page 2 of 5 FCC ID: 2AB5K-AW50011 Page 3 of 5 FCC ID: 2AB5K-AW50011 Page 4 of 5 FCC ID: 2AB5K-AW50011 Page 5 of 5

The device is designed to support IEEE802.11b/g/n payload data rates. The device provides the combined functions of Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) baseband modulation, Medium Access Controller (MAC), CPU, memory, host interfaces, and direct conversion WLAN RF radio on a single module. On the transmit path, data from the host system is queued in memory by the local CPU. The MAC retrieves data for transmission at the appropriate time. System Block IEEE 802.11/Standards 802.11b data rates of 1, 2, 5.5 and 11 Mbps 802.11g data rates 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11n compliant, with maximum data rates up to 72 Mbps (20 MHz channel) Wlan The device is a fully self-contained small form-factor, single stream, 802.11 b/g/n wifi module, which provide a wireless interface to any equipment with a Serial/GPIO/I2C/ADC interface for data transfer. It integrate MAC, baseband processor, RF transceiver with power amplifier in hardware and all wifi protocol and configuration functionality and networking stack, in embedded firmware to make a fully self-contained 802.11 b/g/n wifi solution for a variety of applications. It support AP and STA wireless networking and support WIFI Direct mode. It can set output power, wifi channel automatically.

FCC ID: 2AB5K-AW50011 Page 1 of 2 Statement of compliance to Maximum Permissible Exposure (MPE) Applicant : LUMI LEGEND ELECTRICAL CO., LTD No.18,lane239,Beihai Road,Jiangbei,Ningbo,China|315032 Manufacturer : LUMI LEGEND ELECTRICAL CO., LTD No.18,lane239,Beihai Road,Jiangbei,Ningbo,China|315032 Equipment : WIFI WALL Switch Type/Model : AW50011 According to §2.1091, §2.1093 and §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. The S = PG / (4πR²) Where S = power density in mW/cm² P = transmit power in mW G = numeric gain of transmit antenna R = distance (cm) R is chosen to be 20cm, the gain of antenna G = 2.00dBi = 1.585 As we can see from the test reports 131201748SHA-001: The maximum output power for Wi-Fi = 23.38dBm= 217.77mW The MPE of Wi-Fi = PG / (4πR²) = 217.77 * 1.585 / (4 * 3.14 * 20 * 20) = 0.069 This level is below the simultaneous transmission MPE test exclusion requirements (≤1.0). Date of issue: May 26, 2014 Prepared by: Reviewed by: Jackson Huang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: 2AB5K-AW50011 Page 2 of 2 Appendix I Definition below must be outlined in the User Manual: To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended.

1 1 2 2 3 3 4 4 DD CC BB AA 标记处数更改文件号签字日期 设计 校对 审核 批准 产品型号 比例 材料 宁波瑞明电器有限公司 名称： 图号： 页码：1/1 版次1/1 C2 4.7U C4 50V/100UF C7 2.2U R2 2M R5 10K R7 120K R10 2R R11 30K R13 47 R8 100K R9 13M C8 470pF C3 102 Q1 13003 3 5 2 8 1 10 5 4 4 1 6 3 T1 EE13 R60 R3 220K R4 2M R12 4.7K L N OUT 1 GND 2 VCC 3 CS 4 GND 5 FB 6 U1Comment: ME8304 R1 13M R14 300 10Ω±5% 1W RF1 MB8S 0.8A AC AC+ - DB1 1mH 0.18A L2 D3 RSO7M D2 1N4007 D1 C1 4.7U T2 4 51 2 JK1 M7 D4 GND L L-OUT R16 1KR15 2K RELAY&LED C5 35V/10UF C6 16V/10UF VinVout GND T3 1117-3.3V +5V+3.3V +5V R17 470 CONFIGURE_ LED LED1 LED2 +3.3V S1 SW-PB C9 104 GND RESET_KEY C10 100U C11 104 R18 1K GND L1 v MOV LSR C12 50V/100UF Y1 2.2nF wifi 插座模块 SW6101113-V1.0 葛勤磊 2013-5-3

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Title NumberRevisionSize B Date:2014/6/3Sheet of File:C:\Users\..\SW5101M113.SCHDrawn By: 4.7U C102 6.3V/560UF C1 2.2U 50V C112 2M R115 10K R111 120K R113 2R R108 31.6K R112 10 R34 470R R17 13M R117 1nF C17 102PF C106 13003 Q101 3 5 2 8 1 10 5 4 4 1 6 3 EE13 T101 10R R110 200K R106 2M R118 4.7K R109 L N OUT 1 GND 2 VCC 3 CS 4 GND 5 FB 6 Comment: ME8304IC101 13M R116 330 R110 1A/250V 保险丝 F101 1mH 0.18A L102 D8 RS07M D103 1N4007 D106 4.7U C101 22UF/16V C8 25V/10UF C201 VinVout GND 1117-3.3V IC201 +5V L101 v RV101 L3 2.2nF Y101 Q201 4 51 2 继电器 JK1 IN4001 D7 L L-OUT 3K R207 3K R202 RELAY&LED +5V D202 470R R205 430k R3 75k R4 51k R5 33k R6 20k R7 10k R8 N V2P 1k R19 10nF C9 1N4007 D101 1N4007 D104 DVDD 1 AC/DC 2 AVDD 3 NC 4 VIP 5 V1N 6 V2N 7 V2P 8 /RESET 9 REFin/out 10 AGND 11 SCF 12 S1 13 S0 14 G1 15 G0 16 CLKIN 17 CLKOUT 18 19 20 DGND 21 CF 22 23 24 IC1 3.579545MHz Y1 20pF C13 20pF C14 200 R35 1K R16 10nF C10 +5V +5V V2P 10k R18 +5V +5V 1K R20 10nF/50V C5 10nF/50V C6 1K R13 1K R15 2mΩ 锰铜电阻 CT1 LIN1 765432189 1011 WF1 22uF/16V C4 LIN1 LOUT 10UF/25V C204 +3.3V 470 R201 CONFIGURE_ D201 +3.3V SW-PB S201 RESET_KEY CONFIGURE/RES 10 R203 PLUS A KEY_RESET 22uF/16V C7 100nF C16 PLUS A LIN

FCC ID: 2AB5K-AW50011 Page 1 of 56 EMC TEST REPORT for Intentional Radiator (Wi-Fi Function) No. 140201130SHA-001 Applicant : LUMI LEGEND ELECTRICAL CO., LTD. No.18,lane239,Beihai Road,Jiangbei,Ningbo,China|315032 Manufacturer : LUMI LEGEND ELECTRICAL CO., LTD. No.18,lane239,Beihai Road,Jiangbei,Ningbo,China|315032 Product Name : WIFI WALL Switch Type/Model : AW50011 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2013): Radio Frequency Devices ANSI C63.4 (2009): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Date of issue: May 26, 2014 Prepared by: Reviewed by: Jackson Huang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: 2AB5K-AW50011 Page 2 of 56 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: 2AB5K-AW50011 Page 3 of 56 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION .................................................................................................................................. 6 2.1 Instrument list ................................................................................................................. 6 2.2 Test Standard .................................................................................................................. 6 2.3 Test Summary ................................................................................................................. 7 3. MINIMUM 6DB BANDWIDTH ....................................................................................................................... 8 3.1 Limit ................................................................................................................................ 8 3.2 Test Configuration .......................................................................................................... 8 3.3 Test Procedure and test setup .......................................................................................... 8 3.4 Test Protocol ................................................................................................................... 9 4. MAXIMUM PEAK OUTPUT POWER ............................................................................................................. 13 4.1 Test limit ....................................................................................................................... 13 4.2 Test Configuration ........................................................................................................ 13 4.3 Test procedure and test setup ........................................................................................ 13 4.4 Test protocol ................................................................................................................. 14 5. POWER SPECTRUM DENSITY ..................................................................................................................... 15 5.1 Test limit ....................................................................................................................... 15 5.2 Test Configuration ........................................................................................................ 15 5.3 Test procedure and test setup ........................................................................................ 15 5.4 Test Protocol ................................................................................................................. 16 6. RADIATED EMISSION ................................................................................................................................. 20 6.1 Test limit ....................................................................................................................... 20 6.2 Test Configuration ........................................................................................................ 20 6.3 Test procedure and test setup ........................................................................................ 21 6.4 Test protocol ................................................................................................................. 22 7. EMISSION OUTSIDE THE FREQUENCY BAND ............................................................................................. 26 7.1 Limit .............................................................................................................................. 26 7.2 Test Configuration ........................................................................................................ 26 7.3 Test procedure and test setup ........................................................................................ 26 7.4 Test protocol ...................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AB5K-AW50011 Page 36 of 56 Spurious Emission 9k Hz ~ 1GHz - Frequency L Spurious Emission 1GHz ~ 2.5GHz - Frequency L FCC ID: 2AB5K-AW50011 Page 37 of 56 Spurious Emission 2.5GHz ~ 10GHz - Frequency L Spurious Emission 10GHz ~ 18GHz - Frequency L FCC ID: 2AB5K-AW50011 Page 38 of 56 Spurious Emission 18GHz ~ 26GHz - Frequency L Spurious Emission 9k Hz ~ 1GHz - Frequency M FCC ID: 2AB5K-AW50011 Page 39 of 56 Spurious Emission 1GHz ~ 2.5GHz - Frequency M Spurious Emission 2.5GHz ~ 10GHz - Frequency M FCC ID: 2AB5K-AW50011 Page 40 of 56 Spurious Emission 10GHz ~ 18GHz - Frequency M Spurious Emission 18GHz ~ 26GHz - Frequency M FCC ID: 2AB5K-AW50011 Page 41 of 56 Spurious Emission 9k Hz ~ 1GHz - Frequency H Spurious Emission 1GHz ~ 2.5GHz - Frequency H FCC ID: 2AB5K-AW50011 Page 42 of 56 Spurious Emission 2.5GHz ~ 10GHz - Frequency H Spurious Emission 10GHz ~ 18GHz - Frequency H FCC ID: 2AB5K-AW50011 Page 43 of 56 Spurious Emission 18GHz ~ 26GHz - Frequency H High Band Edge - Frequency H Mode CH Max reading among band (dBm) The most restrict Attenuation outside band (dB) Limit (dB) 802.11n (HT20) L -31.90 34.01 ≥20 M -48.80 49.52 H -43.13 43.06 FCC ID: 2AB5K-AW50011 Page 44 of 56 Low Band Edge - Frequency L Spurious Emission 9k Hz ~ 1GHz - Frequency L FCC ID: 2AB5K-AW50011 Page 45 of 56 Spurious Emission 1GHz ~ 2.5GHz - Frequency L Spurious Emission 2.5GHz ~ 10GHz - Frequency L FCC ID: 2AB5K-AW50011 Page 46 of 56 Spurious Emission 10GHz ~ 18GHz - Frequency L Spurious Emission 18GHz ~ 26GHz - Frequency L FCC ID: 2AB5K-AW50011 Page 47 of 56 Spurious Emission 9k Hz ~ 1GHz - Frequency M Spurious Emission 1GHz ~ 2.5GHz - Frequency M FCC ID: 2AB5K-AW50011 Page 48 of 56 Spurious Emission 2.5GHz ~ 10GHz - Frequency M Spurious Emission 10GHz ~ 18GHz - Frequency M FCC ID: 2AB5K-AW50011 Page 49 of 56 Spurious Emission 18GHz ~ 26GHz - Frequency M Spurious Emission 9k Hz ~ 1GHz - Frequency H FCC ID: 2AB5K-AW50011 Page 50 of 56 Spurious Emission 1GHz ~ 2.5GHz - Frequency H Spurious Emission 2.5GHz ~ 10GHz - Frequency H FCC ID: 2AB5K-AW50011 Page 51 of 56 Spurious Emission 10GHz ~ 18GHz - Frequency H Spurious Emission 18GHz ~ 26GHz - Frequency H FCC ID: 2AB5K-AW50011 Page 52 of 56 High Band Edge - Frequency H FCC ID: 2AB5K-AW50011 Page 53 of 56 8. Power line conducted emission Test result: Pass 8.1 Limit Frequency of Emission (MHz) Conducted Limit (dBuV) QP AV 0.15-0.5 66 to 56* 56 to 46 * 0.5-5 56 46 5-30 60 50 * Decreases with the logarithm of the frequency. 8.2 Test configuration For table top equipment, wooden support is 0.8m height table For floor standing equipment, wooden support is 0.1m height rack. EUT LISN EMI receiver Peripheral devices LISN FCC ID: 2AB5K-AW50011 Page 54 of 56 8.3 Test procedure and test set up The EUT are connected to the main power through a line impedance stabilization network (LISN). This provides a 50 /50uH coupling impedance for the measuring equipment. The peripheral devices are also connected to the main power through a LISN that provides a 50 /50uH coupling impedance with 50 termination. Both sides (Line and Neutral) of AC line are checked for maximum conducted interference. In order to find the maximum emission, the relative positions of equipment and all of the interface cables must be changed according to ANSI C63.4 on conducted measurement. The bandwidth of the test receiver is set at 9 kHz. FCC ID: 2AB5K-AW50011 Page 55 of 56 8.4 Test protocol L Line: Frequency (MHz) Measure Level (dBuV) Limit (dBuV) Margin (dB) Type 0.18 31.21 64.61 33.40 QP 0.35 23.35 58.94 35.59 QP 0.46 30.02 56.78 26.76 QP 0.79 25.67 56.00 30.33 QP 2.25 22.84 56.00 33.16 QP 4.11 25.41 56.00 30.59 QP 0.18 24.83 54.61 29.78 AV 0.35 14.54 48.94 34.40 AV 0.46 19.01 46.78 27.77 AV 0.79 15.56 46.00 30.44 AV 2.25 10.88 46.00 35.12 AV 4.11 11.32 46.00 34.68 AV FCC ID: 2AB5K-AW50011 Page 56 of 56 N line: Frequency (MHz) Measure Level (dBuV) Limit (dBuV) Margin (dB) Type 0.18 27.59 64.44 36.85 QP 0.35 26.26 58.87 32.61 QP 0.44 35.12 57.05 21.93 QP 0.78 26.59 56.00 29.41 QP 2.03 23.52 56.00 32.48 QP 4.68 26.06 56.00 29.94 QP 0.18 20.57 54.44 33.87 AV 0.35 23.46 48.87 25.41 AV 0.44 31.76 47.05 15.29 AV 0.78 19.42 46.00 26.58 AV 2.03 17.97 46.00 28.03 AV 4.68 15.88 46.00 30.12 AV

FCC ID: 2AB5K-AW50011 Page 1 of 3 Test Setup FCC ID: 2AB5K-AW50011 Page 2 of 3 1. Radiated Emission 30MHz-1000MHz Higher than 1GHz FCC ID: 2AB5K-AW50011 Page 3 of 3 2. Conducted Emission
