2AB69-27TRADIO CONTROL VEHICLE-27MHZ -TRANSMITTER

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE PLAYING AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. RADIO CONTROL FREQUENCY For interference-free results, do not operate this vehicle with other radio-controlled toys not included in this set within transmission range. TRANSMITTER AND RECEIVER Since radio waves control this vehicle and in order to avoid interruption, do not operate this vehicle near electrical or telephone lines, interference, cd players, mobile phones, elevators, steel girders, other electronic devices and near highways. INSTALLING THE BATTERIES • Remember to set the “ON-OFF” switch at bottom of the vehicle to “OFF” position before inserting the batteries. • Unscrew and open battery compartment cover to insert batteries in the vehicle as shown in diagram. Make sure all batteries are at the correct polarities. • Close the cover and tighten the screw. • To insert battery in the controller, open battery compartment cover to insert battery as shown in diagram. • Close the cover. • Do not leave batteries in the vehicle and transmitter when the toy is not in use. • Do not mix old and new batteries together. • Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. • Non-rechargeable batteries are not to be recharged. • Remove exhausted batteries from the toy. • Supply terminals are not to be short circuited. • For best performance, alkaline batteries are recommended. • Do not dispose of batteries in fire, batteries may explode or leak. • Batteries contain mercury, don’t put in trash. Recycle or dispose as hazardous waste. • Batteries are included for demonstration purpose only and may need to be replaced by the consumer. OPERATING THE VEHICLE • For your safety, never play with this toy on the street. • Turn the “ON-OFF” switch at the bottom of the vehicle to "ON" position, then the vehicle will be idle. • The 27MHZ controller controls the 27MHZ vehicle, and the 49MHZ controller controls the 49MHZ vehicle. • Use the driving control stick on the controller to control the vehicle going forward or reverse. • Use the steering control stick on the controller to control the vehicle turning left or right. OPERATION TIPS 1. Operate only on smooth (but not slippery), dry and clean surface. 2. Do not play with this toy on grass, sand or carpet. 3. Do not drive the toy through water. 4. Always point the controller antenna upward for better transmission. 5. Do not make any physical contact with the controller antenna while operating. 6. Keep the toy in a dry and cool place after playing. 7. Do not leave in direct sunlight. CONFORMS TO TOY SAFETY STANDARDS ASTM F963-11 ALKALINE BATTERIES ARE RECOMMENDED BATTERY INSTRUCTION DIAGRAM 1.5V "AA" size 1.5V "AA" size 1.5V "AA" size 1.5V "AA" size 1.5V "AA" size 1.5V "AA" size ON OFF BOTTOM OF VEHICLE USES 6 X 1.5V "AA" SIZE BATTERIES ( NOT INCLUDED) REPLACE BATTERIES WITH NEW ONES WHEN THE VEHICLE MOVES SLOW OR IS OCCASIONALLY NOT UNDER CONTROL EACH CONTROLLER USES 2 X 1.5 “AA” SIZE BATTERY (NOT INCLUDED) RADIO CONTROLLER OPERATION DIAGRAMS DRIVING CONTROL STICK STEERING CONTROL STICK BACK OF CONTROLLER OPEN 1.5V AA 1.5V AA

Playday Manufacturers Group Ltd Room 245, 2/F, HoustonCentre, 63Mody Road, TST East, Kowloon HongKong May 13, 2015 To whom it may concern, Letter of Agency I, an officer of Playday Manufacturers Group Ltd do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, 手签 签字： 打印签字 职位：

Data: May 13, 2015 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: _2AB69-27T __ Request is hereby submitted by Playday Manufacturers Group Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Playday Manufacturers Group Ltd reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Playday Manufacturers Group Ltd and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, 手签 签字 职位

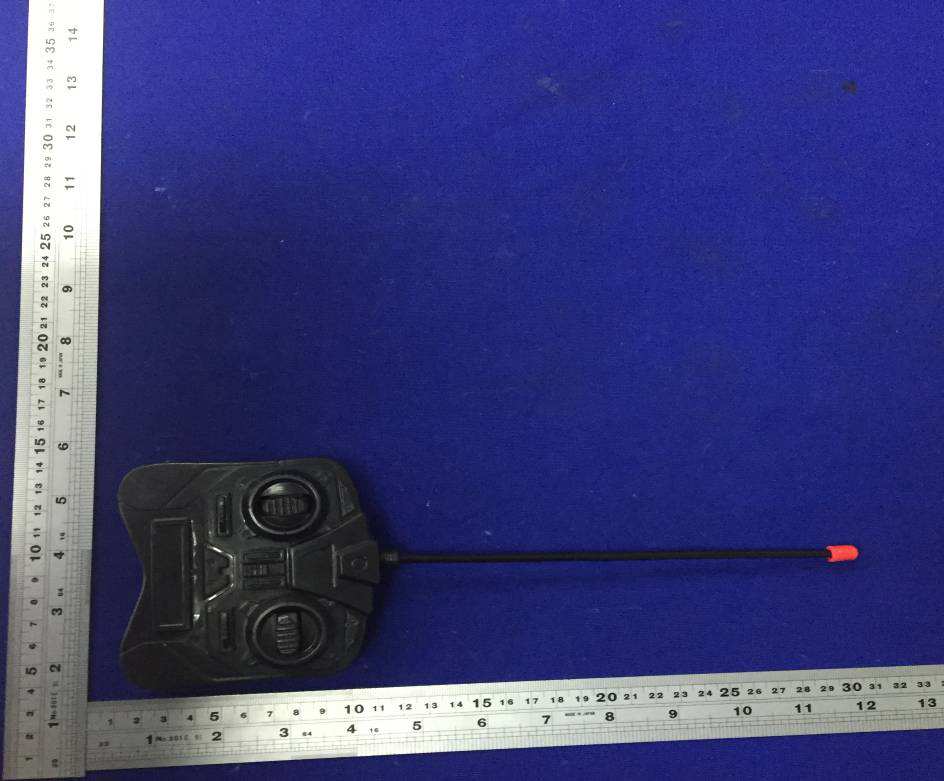

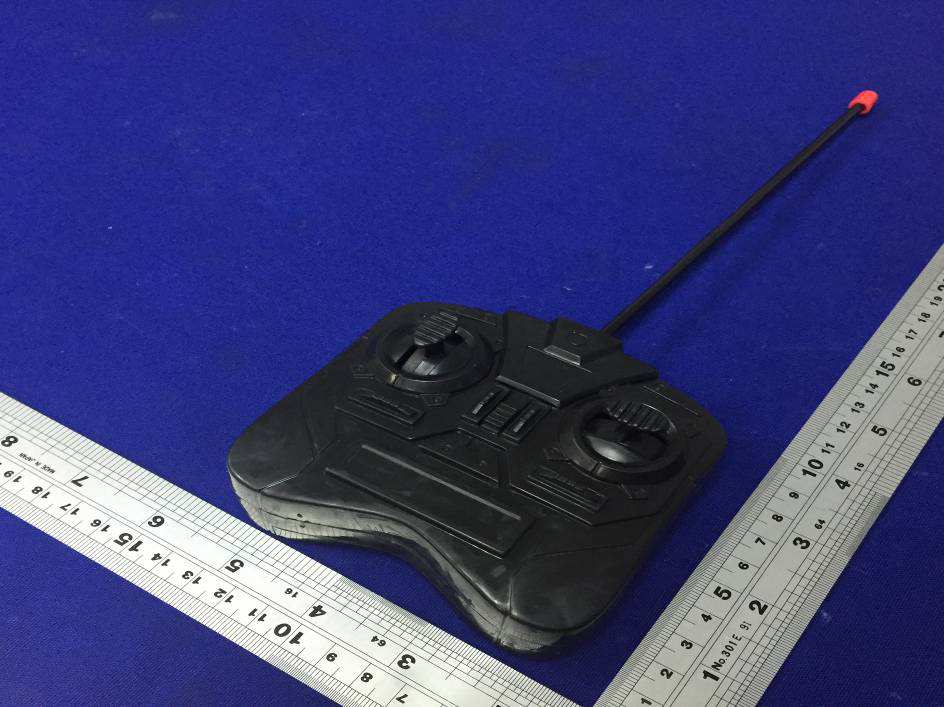

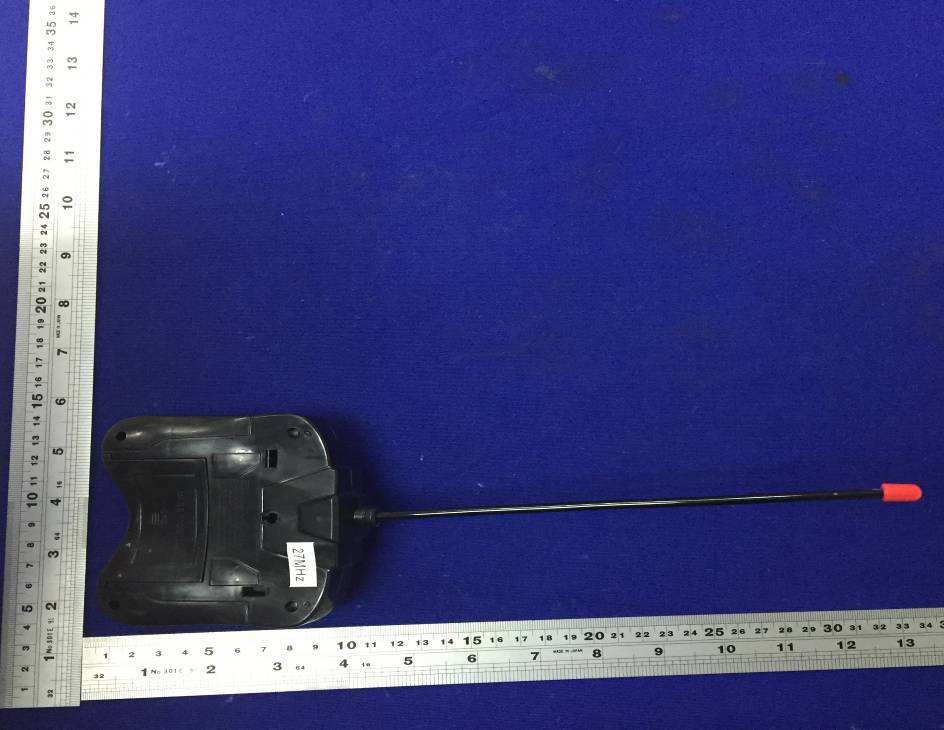

External Photos

Label Artwork and Location SIZE: 35mm (W) x 20mm (H)

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a RADIO CONTROL VEHICLE-27MHZ –TRANSMITTER operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by two 1.5V size AA batteries. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -19.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -21.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: Th e worst-case peak radiated emission for the EUT is 75.9dBμV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -19.33dBm The ERP = EIRP – 2.15 = -21.48 dBm which is within the production variation. The maximun conducted output power specified is -16.0d Bm =0.025mW The source- based time-averaging conducted output power = 0.025* Duty Cycle mW < 0.1mW (Duty Cycle<100%) Th e SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 17.7391ms Effective period of the cycle = 478.3μs x 10 + 1.4783ms x 4 = 10.6962ms DC = 10.6962ms / 17.7391ms = 0.6029 or 60.29% FCC ID: 2AB69-27T

Radiated Emission
