2AB69-49TRADIO CONTROL VEHICLE-49MHZ -TRANSMITTER

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE PLAYING AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. RADIO CONTROL FREQUENCY For interference-free results, do not operate this vehicle with other radio-controlled toys not included in this set within transmission range. TRANSMITTER AND RECEIVER Since radio waves control this vehicle and in order to avoid interruption, do not operate this vehicle near electrical or telephone lines, interference, cd players, mobile phones, elevators, steel girders, other electronic devices and near highways. INSTALLING THE BATTERIES • Remember to set the “ON-OFF” switch at bottom of the vehicle to “OFF” position before inserting the batteries. • Unscrew and open battery compartment cover to insert batteries in the vehicle as shown in diagram. Make sure all batteries are at the correct polarities. • Close the cover and tighten the screw. • To insert battery in the controller, open battery compartment cover to insert battery as shown in diagram. • Close the cover. • Do not leave batteries in the vehicle and transmitter when the toy is not in use. • Do not mix old and new batteries together. • Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. • Non-rechargeable batteries are not to be recharged. • Remove exhausted batteries from the toy. • Supply terminals are not to be short circuited. • For best performance, alkaline batteries are recommended. • Do not dispose of batteries in fire, batteries may explode or leak. • Batteries contain mercury, don’t put in trash. Recycle or dispose as hazardous waste. • Batteries are included for demonstration purpose only and may need to be replaced by the consumer. OPERATING THE VEHICLE • For your safety, never play with this toy on the street. • Turn the “ON-OFF” switch at the bottom of the vehicle to "ON" position, then the vehicle will be idle. • The 27MHZ controller controls the 27MHZ vehicle, and the 49MHZ controller controls the 49MHZ vehicle. • Use the driving control stick on the controller to control the vehicle going forward or reverse. • Use the steering control stick on the controller to control the vehicle turning left or right. OPERATION TIPS 1. Operate only on smooth (but not slippery), dry and clean surface. 2. Do not play with this toy on grass, sand or carpet. 3. Do not drive the toy through water. 4. Always point the controller antenna upward for better transmission. 5. Do not make any physical contact with the controller antenna while operating. 6. Keep the toy in a dry and cool place after playing. 7. Do not leave in direct sunlight. CONFORMS TO TOY SAFETY STANDARDS ASTM F963-11 ALKALINE BATTERIES ARE RECOMMENDED BATTERY INSTRUCTION DIAGRAM 1.5V "AA" size 1.5V "AA" size 1.5V "AA" size 1.5V "AA" size 1.5V "AA" size 1.5V "AA" size ON OFF BOTTOM OF VEHICLE USES 6 X 1.5V "AA" SIZE BATTERIES ( NOT INCLUDED) REPLACE BATTERIES WITH NEW ONES WHEN THE VEHICLE MOVES SLOW OR IS OCCASIONALLY NOT UNDER CONTROL EACH CONTROLLER USES 2 X 1.5 “AA” SIZE BATTERY (NOT INCLUDED) RADIO CONTROLLER OPERATION DIAGRAMS DRIVING CONTROL STICK STEERING CONTROL STICK BACK OF CONTROLLER OPEN 1.5V AA 1.5V AA

Playday Manufacturers Group Ltd Room 245, 2/F, HoustonCentre, 63Mody Road, TST East, Kowloon HongKong May 13, 2015 To whom it may concern, Letter of Agency I, an officer of Playday Manufacturers Group Ltd do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, 手签 签字： 打印签字 职位：

Data: May 13, 2015 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: _2AB69-49T __ Request is hereby submitted by Playday Manufacturers Group Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Playday Manufacturers Group Ltd reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Playday Manufacturers Group Ltd and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, 手签 签字 职位

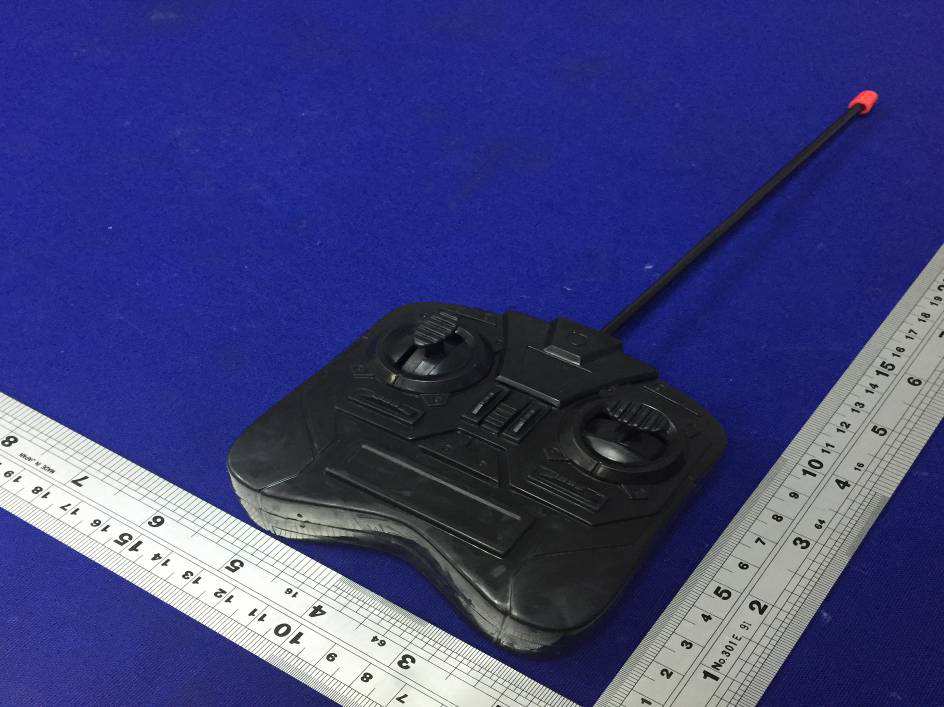

External Photos

Label Artwork and Location SIZE: 35mm (W) x 20mm (H)

Internal Photos

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a RADIO CONTROL VEHICLE-49MHZ–TRANSMITTER operating at 49.86MHz. The EUT is powered by two 1.5V AA size batteries. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna with unique antenna connector Antenna Gain: 0dBi The nominal conducted output power specified: -28.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -30.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: The worst-case peak radiated emission for the EUT is 66.7dBμV/m at 3m in the frequency 49.86MHz The EIRP = [(FS*D) ^2 / 30] mW= -28.53dBm The ERP = EIRP – 2.15 = -30.68 dBm which is within the production variation. The maximun conducted output power specified is -25dBm =0.003mW The source- based time-averaging conducted output power = 0.003* Duty Cycle mW< 0.1mW (Duty Cycle<100%) The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 308.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 18.5652ms Effective period of the cycle = 11.4778 ms DC = 11.4778 ms / 18.5652ms = 0.6182 or 61.82% FCC ID: 2AB69-49T

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 PLAYDAY MANUFACTURERS GROUP LTD Application For Certification FCC ID: 2AB69-49T RADIO CONTROL VEHICLE-49MHZ –TRANSMITTER Model: 19580 Additional Models: 6812, 6811, 80629, 80307, 80768, 80769, 80869, 81164, 81160, 81165, 81166, 81229, 80024, 20065, 80273FF, 80470, 80629, 80648, 80668, 80742, 80770, 81019, 81192, 81768, 80052PT, 6812PT, 80681FF, 81109FF, 80308, 81228, 81296, 81215, 81218, 81220 Transmitter Report No.: SZHH00956073-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] Prepared and Checked by: Approved by: Sign on file Abel Zhou Assistant Engineer Andy Yan Senior Project Engineer Date: May 28, 2015 INTERTEK TESTING SERVICES Report No.: SZHH00950673-001 FCC ID: 2AB69-49T TRF No.: FCC 15C_TX_b i GENERAL INFORMATION PLAYDAY MANUFACTURERS GROUP LTD MODEL: 19580 FCC ID: 2AB69-49T Grantee: PLAYDAY MANUFACTURERS GROUP LTD Grantee Address: Room 245, 2/F, HoustonCentre, 63Mody Road, TST East, Kowloon HongKong Contact Person: Aaron He Tel: 852 2790 5107 Manufacturer: PLAYDAY MANUFACTURERS GROUP LTD Manufacturer Address: Room 245, 2/F, HoustonCentre, 63Mody Road, TST East, Kowloon HongKong Model: 19580 Type of EUT: Transmitter Description of EUT: RADIO CONTROL VEHICLE-49MHZ –TRANSMITTER Serial Number: N/A FCC ID : 2AB69-49T Date of Sample Submitted: May 12, 2015 Date of Test: May 28, 2015 Report No.: SZHH00956073-001 Report Date: May 28, 2015 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZHH00950673-001 FCC ID: 2AB69-49T TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT PLAYDAY MANUFACTURERS GROUP LTD MODEL: 19580 FCC ID: 2AB69-49T TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an integral antenna, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZHH00950673-001 FCC ID: 2AB69-49T TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description ....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology ............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification .............................................…

Text truncated - open the document above for the full version.

Radiated Emission
