2AB6M-BY-WM5Boya Wireless Microphone

BOYA AUDIO EOUIPMENT (SHENZHEN) CO., LIMITED Add: A16 building, New Material Industrial Park of Silicon Valley Power, Guanlan Town, Shenzhen, China Tel: (86)0755-28435910 Email: [email protected] www.boya-mic.com Instruction Manual ✄✁✂☎ BY-WM5 Wireless microphone ☛✆✝✞✟ ✠✛✡☞✌✍✎✏✑✒✓✔✕✖ ✗✘✙✚✜✏✑✢✣✤✥✦✧★✩✪✍✫✬✭✮✯✰✱✲✳ ✴✵✙✎✶✲✒✷✸✹✹✺✻✶✼✽✹✾✱✷ ✴✿❀❁✙❂❃❄❅❂❆❇❈❉❃✺❊❋●❍●❈❊ Instruction Manual The BOYA BY-WM5 Wireless microphone is Compact, high performance, lightweight and compatible with DSLR cameras, Camcorders, Audio recorder etc. Battery Compartment CoverBattery Compartment Cover Hot/cold Shoe Mount Switch OFF Switch ON Low-cut Filter Volume “-” Volume “-” Volume “+” Volume “+” Audio Signal Cable Jack Earphone/Speaker JackMic Jack Earphone Jack (without speaker) Belt Clip Earphone Earphone ✁ with speaker Audio Signal CableLavalier/lapel microphone It consists of a transmitter, receiver, two piece of earphone(one is with speaker), an audio signal cable, a lavalier/lapel microphone. Switch OFF Switch ON Low-cut Filter How to use it Insert batteries in the transmitter and receiver units 1.Both transmitter and receiver requires two LR03/AAA size batteries. 2.Slide and remove the transmitter’s battery compartment cover. 3.Insert two batteries. 4.Close the battery compartment cover. 5.Do the same ways as step 2 to 4 to insert battery into receiver. Precautionary measures when using batteries Batteries/power packs, if inappropriately handled, can run out or explode.Please observe the following notes on safety when handling batteries to be used in this device: Use only batteries mentiond in these operating instructions. Do not lay the batteries in a fire and do not expose them to direct heat. In order to avoid damage to the product you must make sure that you remove the batteries,if you do not use the product over a longer pe-riod of time or if the batteries have been discharged. If battery fluid cones into contact with skin or clothes, rinse it off imme-diately with fresh water. Please read these istructions for use thoroughly before you use this new equipment for the first time.It contains everything you need to know in order to avoid damage to persons or property. Strictly follow all notes on safety in these instructions for use. Keep these instructions for use in a safe place,If you sell you equip-ment or pass it on to someone else, you should also pass on these instructions for use. Connecting the transmitter and receiver Receiver 1.Mount receiver to camera. 2.Insert the straight plug of the connecting cable into the receiver “LINE OUT” jack. 3.Insert the other plug of the connecting cable into camera “MIC” socket. 4.Insert earphone ( the one with speaker) into receiver “ ”. 5.Slider the power ON/OFF switch to ON position ( the LED indicator will light in green) Transmitter 1.Insert the earphone ( the one without speaker) into transmitter “ ”. 2.Insert the lavalier/lapel microphone into transmitter “ ”. 3.Slider the power ON/OFF switch to ON position ( the LED indicator will light in green). 4. The belt clip on the back of the unit clips the transmitter onto a belt, or the transmitter simply can be put into a pocket. Specifications: RF Modulation: GFSK (Gauss frequency Shift Keying) Frequency band: 2.4GHz (2405-2478MHz) Frequency response: 35Hz-14KHz±3dB Signal/Noise: 76dB or more ✁✂✄☎✆✝☎✂✆✞✟✠✡☛☞✆✝✌✍✄✄✎✏✑✒✓☛✔✕✖✓✗✘✙✚✆✛☎✜✛☎✢ RF output level:5 mW ✣✤✝✜✥✆✞✍✆✛☎✜✛☎✌✍✦✍✌✟✏✑✒✓✗✘✙✚ Reception sensitivity: -85dB +/- 3dB / 0dB=1V/Pa, 1kHz Audio input connector: 3.5mm mini jack Operation range: 50m (164ft.) Power requirements: 3.0V DC (Two LR03/AAA size batteries) Consumption power:Transmitter: 3.3V/110 mA Receiver: 3.3V/100 mA Battery life:Transmitter: Approx. 3.5 hours Receiver: Approx. 4 hours Dimensions:Transmitter: 60mm x 86mm x28mm (W/H/D) (2.36 x 3.3 x 1.1 inches) Receiver: 60mm x 86mm x41mm (W/H/D) (2.36 x 3.3 x 1.61 inches) Weight:Transmitter: 136g (4.37oz) (Without battery) Receiver: 152g (4.89oz) (Without battery) If transmitter and receiver connect, the light will flash every 2.5 seconds. Otherwise, the light will flash rapidly. Before leaving factory, the connection of both of transmitter and receiver will be established. How to connect transmitter and receiver 1.Turn on the receiver 2.Press the button VOLUME “+” and “-“ for 3 seconds at the same time. 3.Repeat steps 1 to 2 steps to set up the transmitter. Status Receiver Transmitter Unit is turned ON Flashing Wireless communication is established Flashing continually every 2.5 seconds Receiver unit is turned OFF(Transmitter is still ON) Off Flashing Transmitter unit is turned OFF(Receiver is still ON) Flashing Off Low power Flashing in red Status of the communication indicator CAUTION 1.Please use our original Audio Signal Cable which is equipped, it’s more compatible with the wireless microphone, and make the sound better. 2. The figure given is only the approximate value that applies when there are no obstructions between the transmitter and receiver. This distance will vary depending on metal objects, people and other obstructions and on the signal strength. 3.Battery life may vary depending on the type of battery used. IMPORTANT If you do not intend to use the wireless microphone for a long period time, please remove the batteries from both the transmitter and receiver. Do not touch the lavalier/lapel microphone, transmitter and receiver while recording, as this will cause noise to be recorded. Do not let the transmitter close to high-voltage equipment or to devices that emit strong electromagnetic fields, otherwise, it may cause the noise to be recorded. Do not use or leave the transmitter and receiver in hot, humid places. Do not leave the receiver attached to the camera when storing the camera in a case. Do not mix up to use the transmitter and receiver. WARNING Keep the wireless microphone out of the reach of children. Never use leaking batteries and never expose batteries to excessive…

Text truncated - open the document above for the full version.

Boya Audio Equipment (Shenzhen) Co., Ltd. FCC Confidentiality Request Number:CF303 Version:V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameBoya Audio Equipment (Shenzhen) Co., Ltd. AddressA16 Building,New Material Industrial Park of Silicon Valley Power,Guanlan,Longhua District, CityShenzhen, CountryChina request for this certification filing under: Grantee CodeProduct Number FCC ID:2AB6M-BY-WM5 to maintainpermanent confidentialityfor the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription √ Operational DescriptionOperational Descriptionexplaining the functioning of the block diagram √ Block DiagramsBlock Diagramsshowing the systematic building blocks of the EUT √ Schematics DiagramsSchematicsshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere.

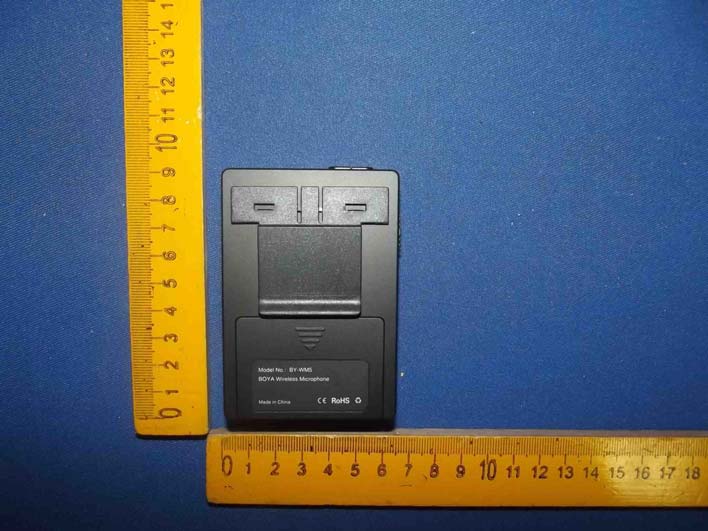

Figure 1 The EUT-Overall View Figure 2 The EUT- Front View Figure 3 The EUT- Back View Figure 4 TheEUT-SideView Figure 5 TheEUT-SideView

Label Location On EUT

Model Name: Boya Wireless Microphone Model No.: BY-WM5 FCC ID: 2AB6M-BY-WM5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Figure 6 The EUT-Inside View Figure 7 PCB of The EUT-Front View Figure 8 PCB of The EUT-Front View Figure 9 PCB of The EUT-Back View Figure 10 PCB of The EUT-Front View Figure 11 PCB of The EUT-Back View

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB6M-BY-WM5 Page 1 of 27 Report No.: 201403665F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Boya Audio Equipment (Shenzhen) Co., Ltd. Boya Wireless Microphone Model No.: BY-WM5 Report Number:201403665F Date of Test:Mar. 03 ~31, 2014 Date of Report:Apr. 01, 2014 Prepared for:Boya Audio Equipment (Shenzhen) Co., Ltd. Address:A16 Building,New Material Industrial Park of Silicon Valley Power,Guanlan,Longhua District,Shenzhen,China Prepared By:Shenzhen Anbotek Compliance Laboratory Limite d Address:1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB6M-BY-WM5 Page 2 of 27 Report No.: 201403665F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)................................................................................................................4 1.2. Auxiliary Equipment Used during Test................................................................................................ 5 1.3. Description of Test Facility.................................................................................................................. 5 1.4. Measurement Uncertainty.....................................................................................................................5 2. TEST PROCEDURE....................................................................................................................6 3. CONDUCTED LIMITS...............................................................................................................7 3.1. Block Diagram of Test Setup................................................................................................................7 3.2. Power Line Conducted Emission Measurement Limits (15.207).........................................................7 3.3. Configuration of EUT on Measurement............................................................................................... 7 3.4. Operating Condition of EUT................................................................................................................ 7 3.5. Test Procedure...................................................................................................................................... 8 3.6. Power Line Conducted Emission Measurement Results...................................................................... 8 4. RADIATION INTERFERENCE................................................................................................ 9 4.1. Requirements (15.249, 15.209):............................................................................................................9 4.2. Test Procedure...................................................................................................................................... 9 4.3. Test Configuration:............................................................................................................................. 10 4.4. Test Results.........................................................................................................................................11 5. OCCUPIED BANDWIDTH...................................................................................................... 17 5.1. Requirements (15.249):.......................................................................................................................17 5.2. Test Procedure.................................................................................................................................... 17 5.3. Test Configuration:............................................................................................................................. 17 5.4. Test Results.........................................................................................................................................17 6. PHOTOGRAPH......................................................................................................................... 21 6.1. Photo of Radiation Emission Test.......................................................................................................21 APPENDIX I (EXTERNAL PHOTOS)........................................................................................22 APPENDIX II(INTERNAL PHOTOS)........................................................................................25 Appendix I (3 Pages) Appendix II (3 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB6M-BY-WM5 Page 3 of 27 Report No.: 201403665F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: Boya Audio Equipment (Shenzhen) Co., Ltd. Manufacturer: Boya Audio Equipment (Shenzhen) Co., Ltd. EUT: Boya Wireless Microphone Model No.: BY-WM5 Serial No.: N.A. Trade Mark: N.A. Rating: DC 3.3V, 110mA Max Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emissionlevels emanating from the device and the severe levels of the device can endure and itsperformance criterion. The measurement results are contained in this test report andShenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to abo…

Text truncated - open the document above for the full version.

1. Photo of Radiation Emission Test
