2AB73JCBLE-1304BLE4.0 Activity Tracker

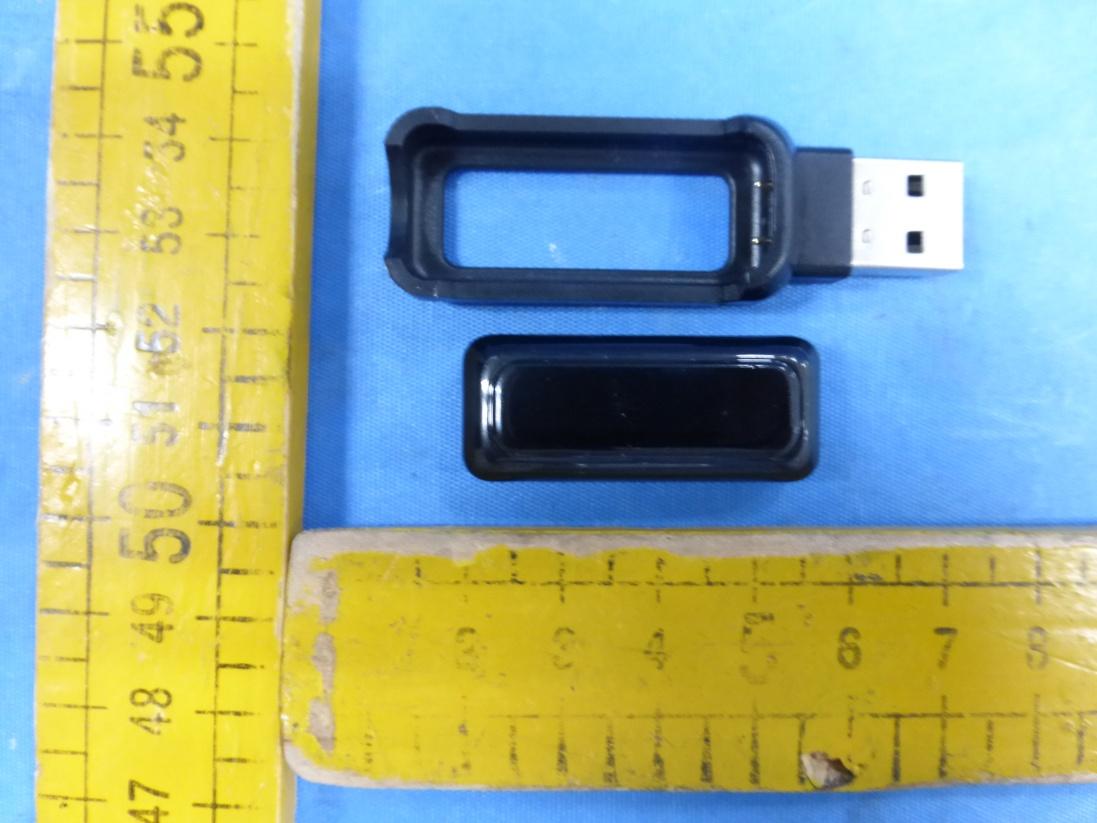

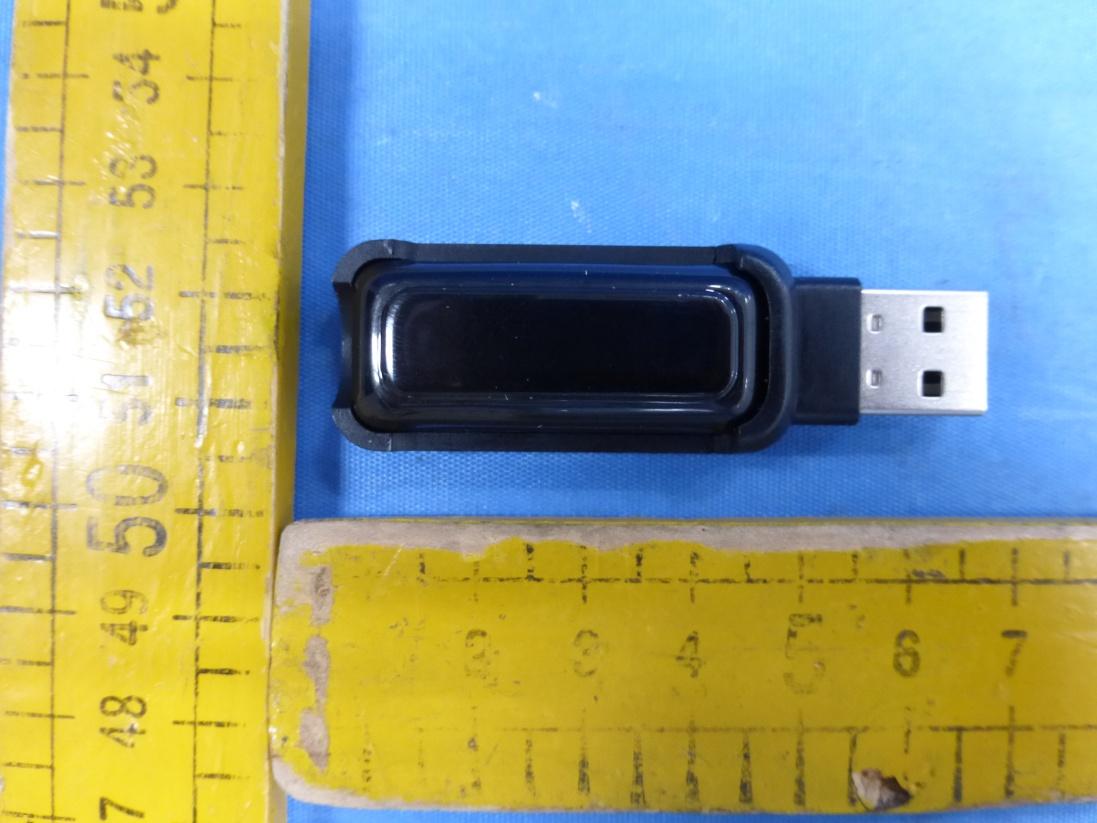

J-Style Wireless Wristband Track Activity + Sleep Model: JP-1304 1. Getting Started What’s included Your J-STYLE Wireless Wristband Activity + Sleep Tracker includes: J-STYLE tracker USB charging cradle Wristband User manual 2 . To save the battery, the Activity Tracker is set into hibernation mode when out the factory. Before first use, please long press screen for 10 seconds to activate the device. The progress bar will change from empty to full to indicate full activation as below: 3. Install APP on your BLE 4.0 smartphone 4. The bluetooth always on without mark 5. Run APP to search the device, then connect 6. Set personal information 7. Operation  Touch the screen once to change the screen display below Time, Date and Battery Step for walking and running Calories burned Distance for walking and running Activity time Daily target %  Long press the screen for 2 seconds till the sleep mark shows, then short touch the screen to enter the sleep mode, if not touch within 2 seconds, the tracker stay at activity mode.  Long press the screen for 2 seconds till the people mark shows, then short touch the screen to enter the activity mode, if not touch within 2 seconds, the tracker stay at sleep mode.  Wake up alarm(Default is all alarm off ): Total five alarms can be set, and you can set from Monday to Sunday, in vibration mode. After an alarm occurs, alarm starts every 10 seconds (One alarm consists of 3 small vibrations), alarm is max 3 times, you can touch screen to stop the alarm during the 3 alarm periods.  Activity Alarm(The default alarm time is 6AM- 7AM , interval of 45 minutes): Activity time and alarm interval can be set. Default setting is if you walk less than 100 steps within 45 minutes during activity time period, the device will remind you to exercise with vibration (3 small vibrations). 8. How to wear activity tracker Battery charge -Use the wristband to wear on your wrist -It’s water resistant , can wear it in the shower! 9. Battery Charge -The empty battery mark will display when the battery low or runs out. -The whole charging process will normally take 1 or 2 hours. -A full charged tracker should last for approximately 4-5 days. Note: Please charge the battery at least once a month to prolong battery life even not use the activity tracker for a long time. 10 . Specification Product Name: J-STYLE Wireless Wristband Activity + Sleep Tracker Size: Main body:38*15.5*11mm Wristband:235*19mm Weight: 108 g Battery: rechargeable lithium polymer battery Display: 0.91’’ OLED Data Memory: 30 days Walking distance: Max 999.99km Calories burned: Max 9999.9kcal Activity time: 99h59min. FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that my cause undesired operation. MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the device.

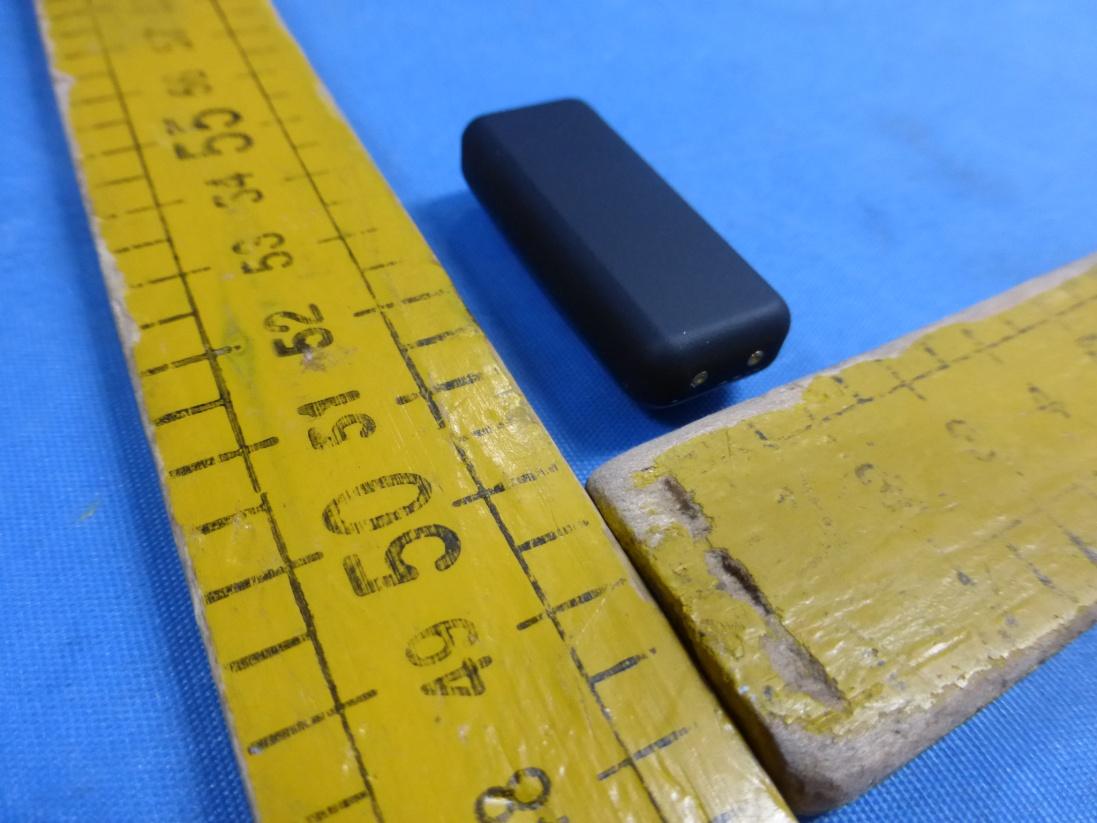

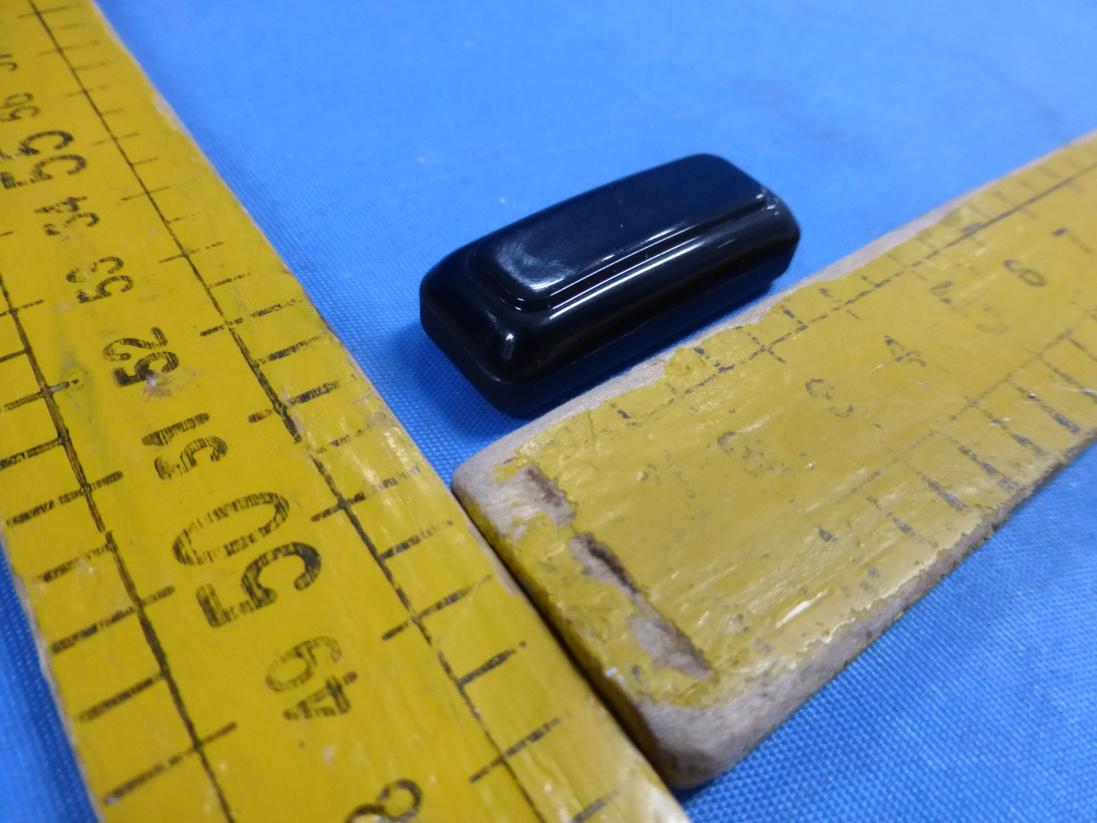

19x10mm BLE 4.0 Activity Tracker Model: JP-1304 FCC ID2AB73JCBLE-1304 5V 0.5A 9.4mm 3mm

BT Antenna

TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF exposure Estimation for HT-SYB-ANECBK-11 1. Introduction JP-1304 is BLE4.0 Activity Tracker, which contain Bluetooth function inside. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r01, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance = 0.075mW Distance = 5 mm f = 2.480 GHz [0.075/5] * SQRT(2.480) =0.024 0.024 ≤ 3.0 Therefore, excluded from SAR testing. TUV SUD China, Shenzhen Branch Reviewed by: Prepared By: Phoebe Hu/ EMC Project Manager Felix Li/EMC Project Engineer Date: 2014-08-01 Date: 2014-08-01

Report Number: 68.910.14.005.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 27 FCC- TEST REPORT Report Number : 68.910.14.005.01 Date of Issue: Jul 31, 2014 Model : JP-1304 Product Type : BLE4.0 Activity Tracker Applicant : Joint Chinese Ltd Address : Building 6, Huafeng Tech Park, Luotian Industrial Area, Songgang Town, Baoan, Shenzhen,518125,China Production Facility : Joint Chinese Ltd Address : Building 6, Huafeng Tech Park, Luotian Industrial Area, Songgang Town, Baoan, Shenzhen,518125,China Test Result :  Positive  Negative Total pages including Appendices : 27 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 68.910.14.005.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 27 1 Table of Contents 1 Table of Contents ................................................................................................................................................................ 2 2 Details about the Test Laboratory ..................................................................................................................................... 3 3 Description of the Equipment under Test ........................................................................................................................ 4 4 Summary of Test Standards .............................................................................................................................................. 5 5 Summary of Test Results ................................................................................................................................................... 6 6 General Remarks ................................................................................................................................................................ 7 7 Test Setups .......................................................................................................................................................................... 8 8 Systems test configuration ................................................................................................................................................. 9 9 Technical Requirement .................................................................................................................................................... 10 9.1 Conducted Emission ................................................................................................................................................ 10 9.2 Conducted peak output power................................................................................................................................ 13 9.3 6dB bandwidth .......................................................................................................................................................... 14 9.4 Power spectral density ............................................................................................................................................. 16 9.5 Spurious RF conducted emissions ........................................................................................................................ 17 9.6 Band edge ................................................................................................................................................................. 22 9.7 Spurious radiated emissions for transmitter ......................................................................................................... 24 10 Test Equipment List ...................................................................................................................................................... 26 11 System Measurement Uncertainty ............................................................................................................................. 27 Report Number: 68.910.14.005.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 27 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building …

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emission(30MHz-1GHz) Radiated Emission Above 1GHz
