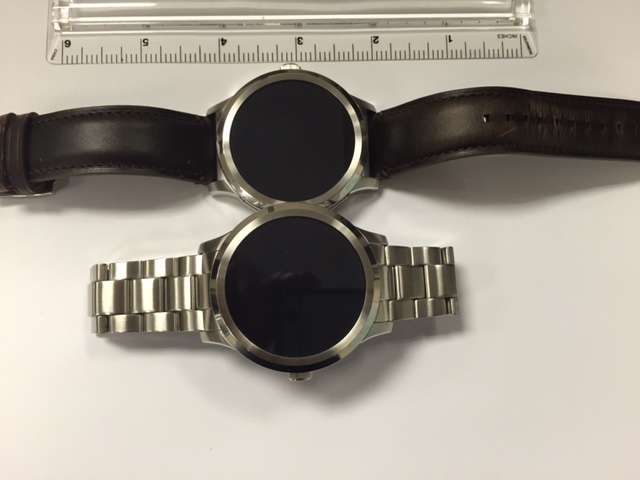

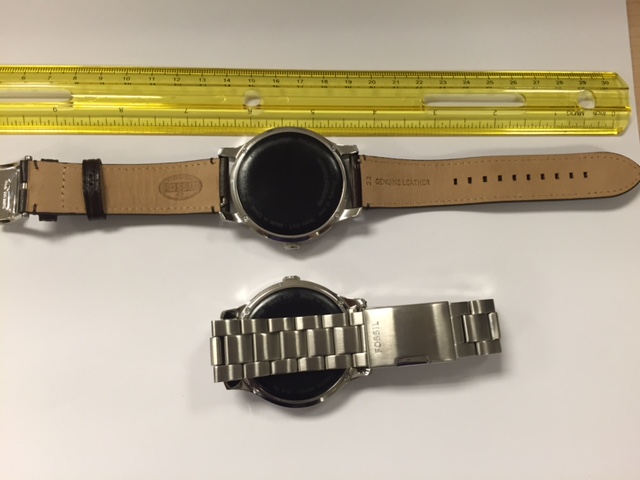

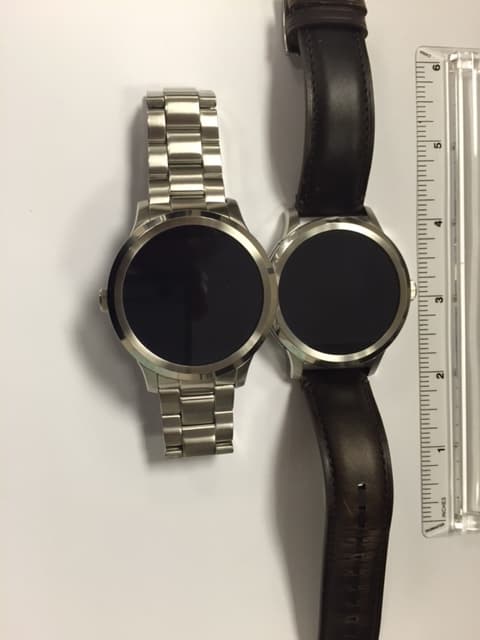

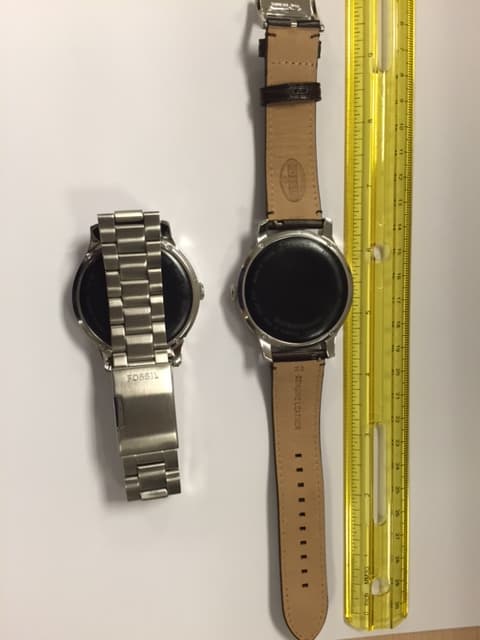

2AB8ZND10SMART WATCH WITH 802.11B/G/N, BLUETOOTH AND BLE

Contents English ...................................................................................................................................................................................2 Italiano .................................................................................................................................................................................14 Deutch ................................................................................................................................................................................24 Français ..............................................................................................................................................................................34 Nederlands .........................................................................................................................................................................44 ............................................................................................................................................................................54 23 MANUFACTURER/HERSTELLER/FABRICANT/FABRICANTE/FABBRICANTE: Fossil Group, Inc. Headquarters: 901 S. Central Expressway Richardson, Texas 75080 Internet Address: www.fossilgroup.com EUROPEAN AUTHORIZED REPRESENTATIVE/AUTORISIERTER VERTRETER/REPRÉSENTANT AUTORISÉ/REPRESETANTE AUTORIZADO/RAPPRESENTANTE AUTORIZZATO: Fossil Europe B.V., Terborgseweg 138, 7005 BD Doetinchem The Netherlands SWISS DISTRIBUTOR/DISTRIBUTEUR/DISTRIBUTORE: Fossil Switzerland GmbH, Horburgstrasse 105, 4057 Basel Schweiz/Suisse/Svizzera For a full set of device instructions, please visit: WWW.FOSSIL.COM/Q 45 ICES-003 (CANADA) This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the interference-causing equipment standard entitled: “Digital Apparatus,” ICES-003 of the Canadian Department of Communications. Cet appareil numérique respecte les limites bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, NMB-003 édictee par le Ministre Canadian des Communications. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. EUROPE (CE DECLARATION OF CONFORMITY) This product complies with the Low Voltage Directive 2006/95/EC; EMC Directive 2004/108/EC, EU Directive R&TTE Directive 1999/5/EC, and RoHS Directive 2011/65/EU. Fossil Europe B.V. ATTN: Terborgseweg 138, 7005 BD Doetinchem The Netherlands. Regulatory and Safety Notices: WARNING! This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. FCC STATEMENT (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ›Reorient or relocate the receiving antenna. ›Increase the separation between the equipment and receiver. ›Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ›Consult the dealer or an experienced radio or television technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING! Exposure to Radio Frequency Radiation The radiated output power of this device is below the FCC and Industry Canada radio frequency exposure limits. This device must not be co-located or operating in conjunction with any other antenna or transmitter. FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by manufacturer, may void the user’s authority to use the device. This device meets the FCC and IC requirements for RF exposure in public or uncontrolled environments. 67 WARRANTY DISCLAIMER: PROPER USE OF A TOUCH-SCREEN DEVICE. If your device has a touch-screen display, please note that a touch-screen responds best to a light touch from the pad of your finger or a non- metallic stylus. Using excessive force or a metallic object when pressing on the touch screen may damage the tempered glass surface and void the warranty. For more information, please refer to the “Standard Limited Warranty”. IMPORTANT! Do not allow the touch-screen to come into contact with other electrical devices. Electrostatic discharges can cause the touch screen to malfunction. CAUTION! To avoid damaging the touch screen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips. Warranty In…

Text truncated - open the document above for the full version.

Intel Corporation 2200 Mission College Blvd Santa Clara, CA 95054 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Intel Corporation 2200 Mission College Blvd Santa Clara, CA 95054 g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, , 6/19/2015 Masood Abrishamcar Compliance Manager Intel Corporation

Intel Corporation 2200 Mission College Blvd Santa Clara, CA 95054 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AB8ZND10 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards , 10/19/2015 Masood Abrishamcar Compliance Manager Intel Corporation

Intel Corporation 2200 Mission College Blvd Santa Clara, CA 95054 10/12/2015 Electronic Labeling – Smart watch model Model DW1 FCC ID: 2AB8ZND10 IC: 1000X-ND10 FCC ID, FCC Logo and IC are located on the device as E-labeling and also on the product packaging User can access Product E-labeling by going to => Setting => About => Regulatory Information The Regulatory mark and certification information are part of the product firmware and can not be modified by user. The following are provided as E-labeling on the product: Model DW1 U.S FCC ID: 2AB8ZND10 Canada IC: 1000X-ND10 CAN ICES-3 (B)/NMB-3(B) Europe The following are provide on packaging: FCC ID: 2AB8ZND10 IC: 1000X-ND10

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For SMART WATCH with 802.11b/g/n and Bluetooth FCC ID: 2AB8ZND10 Model Name: DW1 Report Number: 15U21917-S1V2 Issue Date: 10/22/2015 Prepared for INTEL CORPORATION 2200 MISSION COLLEGE BOULEVARD SANTA CLARA, CA 95052, U.S.A Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15U21917-S1V2 Issue Date: 10/22/2015 Page 2 of 18 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By V1 10/20/2015 Initial Issue -- V2 10/22/2015 Updated Section 6.3 and 9.1: Included Tune-limits for channels 12 and 13 Coltyce Sanders Report No.: 15U21917-S1V2 Issue Date: 10/22/2015 Page 3 of 18 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 4 2. Test Specification, Methods and Procedures ............................................................................ 5 3. Facilities and Accreditation ........................................................................................................ 5 4. SAR Measurement System & Test Equipment .......................................................................... 6 4.1. SAR Measurement System ........................................................................................................ 6 4.2. SAR Scan Procedures ............................................................................................................... 7 4.3. Test Equipment .......................................................................................................................... 9 5. Measurement Uncertainty ........................................................................................................... 9 6. Device Under Test (DUT) Information ...................................................................................... 10 6.1. DUT Description ...................................................................................................................... 10 6.2. Wireless Technologies ............................................................................................................. 10 6.3. Nominal and Maximum Output Power from Tune-up Procedure .............................................. 10 7. RF Exposure Conditions (Test Configurations) ...................................................................... 11 8. Dielectric Property Measurements & System Check .............................................................. 12 8.1. Dielectric Property Measurements ........................................................................................... 12 8.2. System Check.......................................................................................................................... 13 9. Conducted Output Power Measurements ................................................................................ 14 9.1. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 14 9.2. Bluetooth ................................................................................................................................. 14 10. Measured and Reported (Scaled) SAR Results ....................................................................... 15 10.1. Wi-Fi (DTS Band) ................................................................................................................. 16 10.2. Bluetooth .............................................................................................................................. 16 11. SAR Measurement Variability ................................................................................................... 17 12. Simultaneous Transmission SAR Analysis ............................................................................. 17 Appendixes .......................................................................................................................................... 18 15U21917-S1V1SAR_App A Photos & Ant. Locations ....................................................................... 18 15U21917-S1V1SAR_App B System Check Plots ............................................................................. 18 15U21917-S1V1SAR_App C Highest Test Plots ................................................................................ 18 15U21917-S1V1SAR_App D Tissue Ingredients ................................................................................ 18 15U21917-S1V1SAR_App E Probe Cal. Certificates .......................................................................... 18 15U21917-S1V1SAR_App F Dipole Cal. Certificates ......................................................................... 18 Report No.: 15U21917-S1V2 Issue Date: 10/22/2015 Page 4 of 18 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. 1. Attestation of Test Results Applicant Name INTEL CORPORATION FCC ID 2AB8ZND10 Model Name DW1 Applicable Standards FCC 47 CFR § 2.1093 Published RF exposure KDB procedures IEEE Std 1528-2013 SAR Limits (W/Kg) Exposure Category Peak spatial-average(1g of tissue) Extremities (hands, wrists, ankles, etc.) (10g of tissue) General population / Uncontrolled exposure 1.6 4 The Highest Reported SAR (W/kg) RF Exposure Conditions Equipment Class Licensed DTS U-NII DSS (BT) Next To Mouth (1g) N/A 0.042 N/A <0.01 Extremity (10g) 0.819 0.057 Simultaneous Tx N/A Date Tested 10/15/2015 to 10/16/2015 Test Results Pass UL Verification Services Inc. tested the above …

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 10/13/2015 4:33:10 PM 20151013_SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.989 S/m; ε r = 50.247; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN7356; ConvF(7.54, 7.54, 7.54); Calibrated: 4/22/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Body/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 7.15 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 62.329 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 10.9 W/kg SAR(1 g) = 5.2 W/kg; SAR(10 g) = 2.4 W/kg Maximum value of SAR (measured) = 7.37 W/kg 0 dB = 7.37 W/kg = 8.67 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 10/13/2015 4:53:38 PM 20151013_SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.22 W/kg

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 10/16/2015 2:27:17 PM Wi-Fi 2.4 GHz Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.763 S/m; ε r = 37.689; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN7356; ConvF(7.89, 7.89, 7.89); Calibrated: 4/22/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: TP 1751 Front Leather/802.11b_ch 6/Area Scan (9x9x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.0458 W/kg Front Leather/802.11b_ch 6/Zoom Scan (8x10x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.089 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 0.0630 W/kg SAR(1 g) = 0.034 W/kg; SAR(10 g) = 0.017 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.0455 W/kg 0 dB = 0.0455 W/kg = -13.42 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 10/15/2015 3:29:14 PM Wi-Fi 2.4 GHz Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.976 S/m; ε r = 50.242; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN7356; ConvF(7.54, 7.54, 7.54); Calibrated: 4/22/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Rear Leather/802.11b_ch 6/Area Scan (9x9x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.43 W/kg Rear Leather/802.11b_ch 6/Zoom Scan (7x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.096 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 1.89 W/kg SAR(1 g) = 1.21 W/kg; SAR(10 g) = 0.666 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.45 W/kg 0 dB = 1.45 W/kg = 1.61 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 10/16/2015 12:28:30 PM Wi-Fi 2.4 GHz Frequency: 2462 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 2462 MHz; σ = 1.792 S/m; ε r = 37.626; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN7356; ConvF(7.89, 7.89, 7.89); Calibrated: 4/22/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: TP 1751 Front Metal/802.11b_ch 11/Area Scan (9x9x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.0295 W/kg Front Metal/802.11b_ch 11/Zoom Scan (7x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.116 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.131 W/kg SAR(1 g) = 0.025 W/kg; SAR(10 g) = 0.013 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.0331 W/kg 0 dB = 0.0331 W/kg = -14.80 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 10/15/2015 6:14:16 PM Wi-Fi 2.4 GHz Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.976 S/m; ε r = 50.242; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN7356; ConvF(7.54, 7.54, 7.54); Calibrated: 4/22/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Rear Metal/802.11b_ch 6/Area Scan (9x9x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.839 W/kg Rear Metal/802.11b_ch 6/Zoom Scan (7x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.287 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.58 W/kg SAR(1 g) = 0.882 W/kg; SAR(10 g) = 0.495 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.14 W/kg 0 dB = 1.14 W/kg = 0.57 dBW/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 10/16/2015 6:01:51 PM Bluetooth Frequency: 2441 MHz; Duty Cycle: 1:1.29033; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 2441 MHz; σ = 1.769 S/m; ε r = 37.691; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN7356; ConvF(7.89, 7.89, 7.89); Calibrated: 4/22/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: TP 1751 Front Leather/802.11b_ch 39/Area Scan (9x9x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.00461 W/kg 0 dB = 0.00461 W/kg = -23.36 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 10/16/201…

Text truncated - open the document above for the full version.

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 30-250 1400-1800 1750-1900 1950-3000 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Body Tissue Simulating Liquids Body Tissue (Muscle) Parameters according to FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product MSL300V2 MSL450V2 MSL750V2 MSL900V2 MSL1450V2 MSL1750V2 MSL1800V2 MSL1900V2 MSL1950V2 MSL2450V2 Test Frequency (MHz) 300 400, 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2100 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product MBBL130-250V3 MBBL1350-1850V3 MBBL1550-1950V3 MBBL1900-3800V3 MBBL3500-5800V5 Test Frequency (MHz) 130-250 1350-1800 1550-1850 1950-3800 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-247 ISSUE 1 BLUETOOTH LOW ENERGY CERTIFICATION TEST REPORT FOR SMART WATCH WITH 802.11B/G/N, BLUETOOTH AND BLE MODEL NUMBER: DW1 FCC ID: 2AB8ZND10 IC: 1000X-ND10 REPORT NUMBER: 15U21900-E2V1 ISSUE DATE: OCTOBER 19, 2015 Prepared for INTEL CORPORATION 2200 MISSION COLLEGE BOULEVARD, SANTA CLARA, CA 95052, U.S.A Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U21900-E2V1 DATE: OCTOBER 19, 2015 FCC ID: 2AB8ZND10 IC:1000X-ND10 Page 2 of 57 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By V1 10/19/2015 Initial Issue C. Pang V2 10/22/2015 Updated antenna gain in section 5.3 C. Susa REPORT NO: 15U21900-E2V1 DATE: OCTOBER 19, 2015 FCC ID: 2AB8ZND10 IC:1000X-ND10 Page 3 of 57 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 6 4.2. SAMPLE CALCULATION ............................................................................................ 6 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 8 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 8 5.4. SOFTWARE AND FIRMWARE .................................................................................... 8 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 8 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 9 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................14 7. ANTENNA PORT TEST RESULTS ...................................................................................15 7.1. MEASUREMENT METHODS .....................................................................................15 7.2. ON TIME, DUTY CYCLE ............................................................................................16 7.3. 6 dB BANDWIDTH ......................................................................................................17 7.4. 99% BANDWIDTH ......................................................................................................20 7.5. OUTPUT POWER.......................................................................................................23 7.6. AVERAGE POWER ...................................................…
