2AB8ZND13LED Interactive Wristband with LED

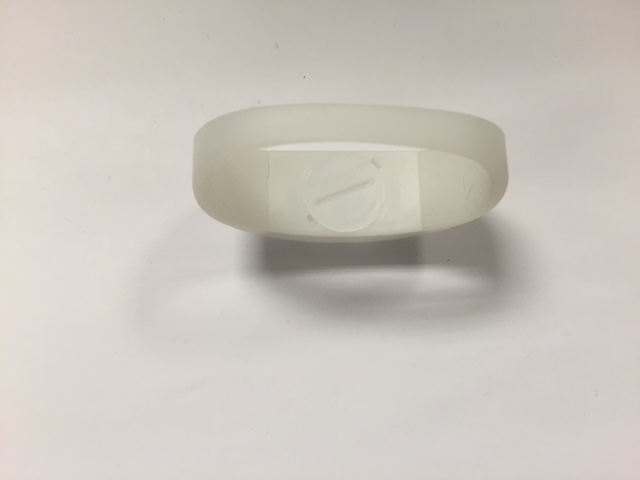

LED interactive Wristband User Guide FCC ID: 2AB8ZND13 LED interactive Wristband Users will wear it on the wrist. The wristband will light up matching the show theme colors and also respond to gesture when user move arm. Gesture data are also transmitted over Bluetooth using a proprietary protocol. User can install any BLE data viewer application to see the gesture being sand every 500ms To start the wristband you pull off the transparent plastic tab as shown in the following picture. FCC Statement (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio or television technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device operates below the FCC and Industry Canada output power threshold for radio frequency exposure limits. Any changes or modifications made to this device that are not expressly approved by manufacture, may void the user’s authority to use the device
