2ABBL-HCAM10ACTION CAMERA

HCAM10 -

HLS Technology Corporation Limited TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.10.30 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, HLS Technology Corporation Limited hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Wu. michael Signature:

Differences Description We HLS Technology Corporation Limited state: Product： ACTION CAMERA Model Name： HCAM10, HCAM10 PRO, HCAM20, HCAM20 PRO, HCAM30, HCAM30 PRO, HCAM40, HCAM40 PRO, HCAM50, HCAM50 PRO, HCAM60, HCAM60 PRO Brand Name： HLS FCC ID: 2ABBL-HCAM10 The electrical circuit design, layout, components used and internal wiring for above models are identical, only different in model name. Signatory Date 2020-10-30 Signature Name: Wu. Michael Title: Manager Company: HLS Technology Corporation Limited Address: 4F, B4 Building, 3rd Industrial Zone, Fenghuang Gang, Bao’an District, Shenzhen, China

HLS Technology Corporation Limited TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.10.30 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (ACTION CAMERA / HCAM10 /FCC ID: 2ABBL-HCAM10 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Name: Wu. Michael Signature:

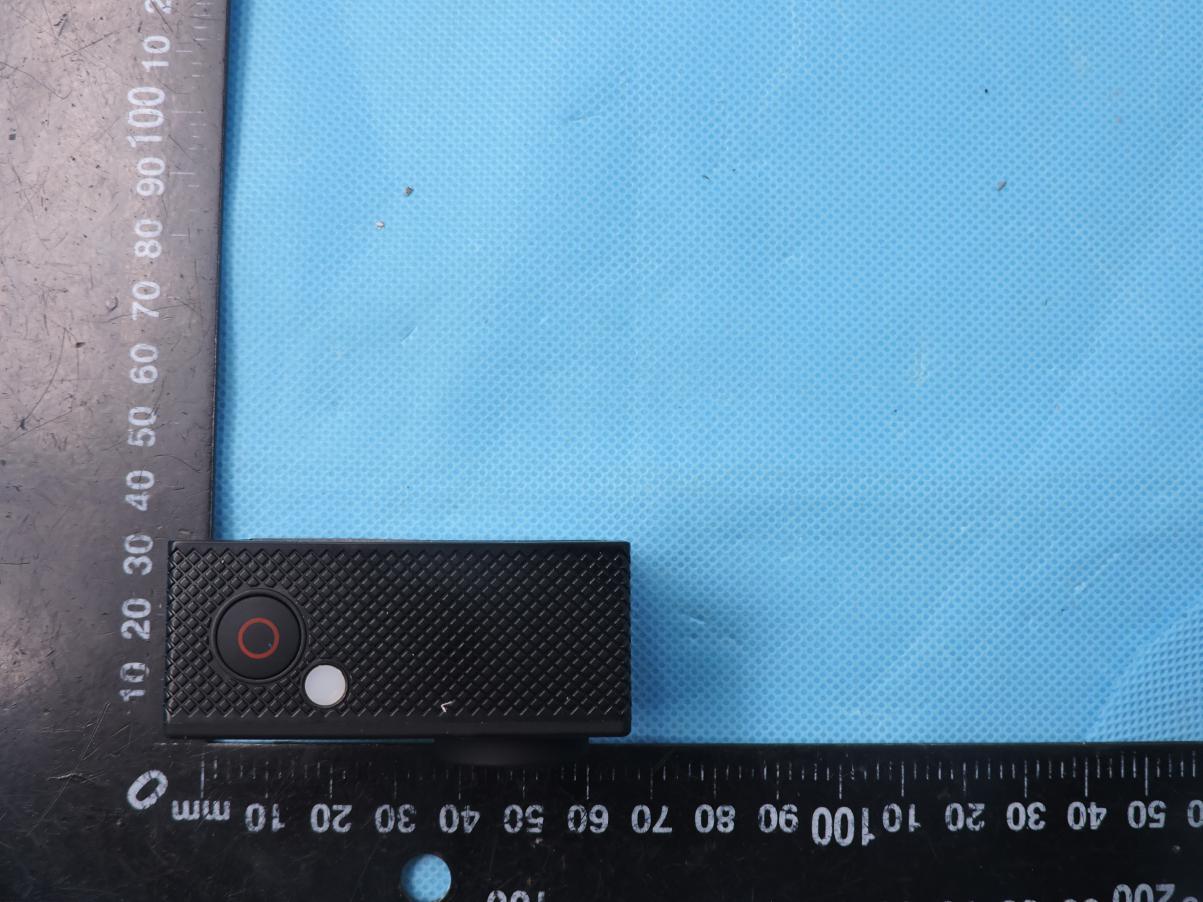

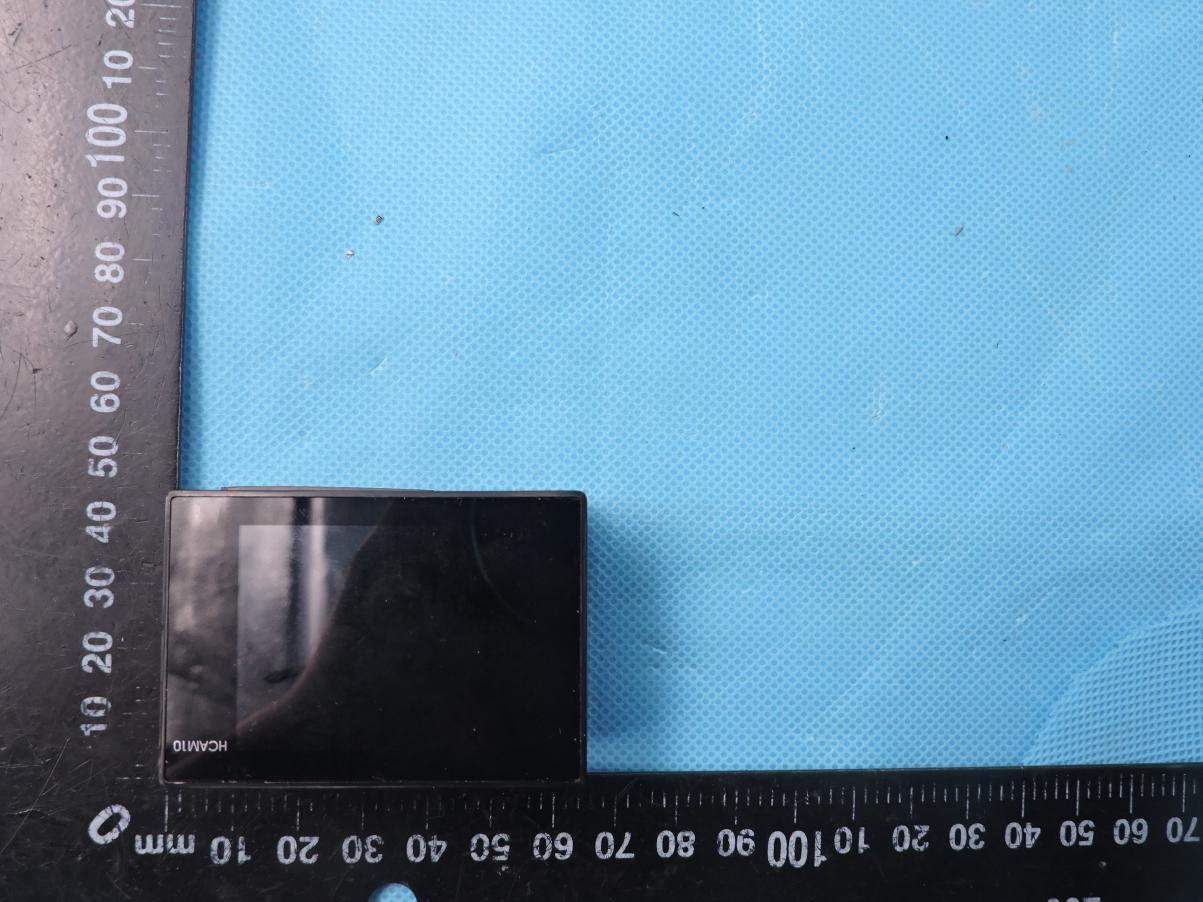

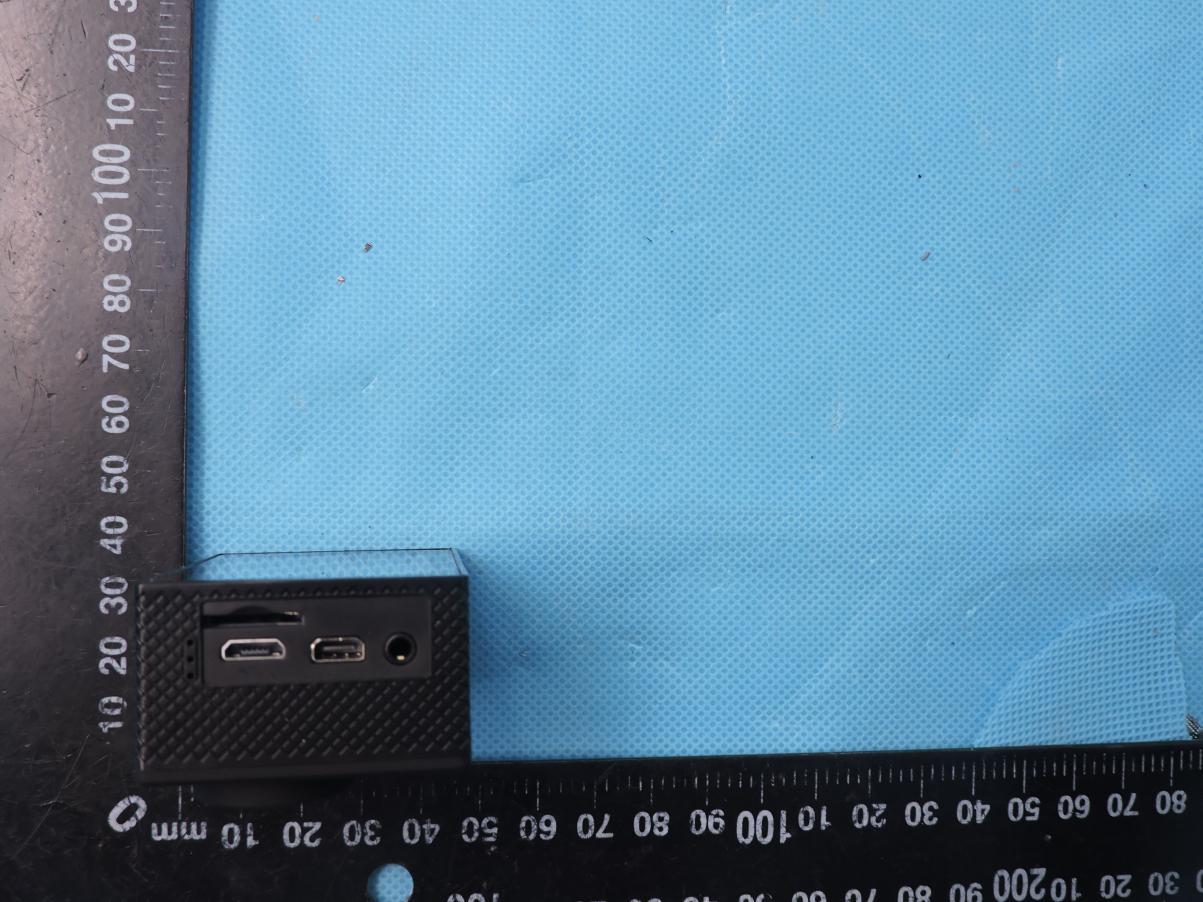

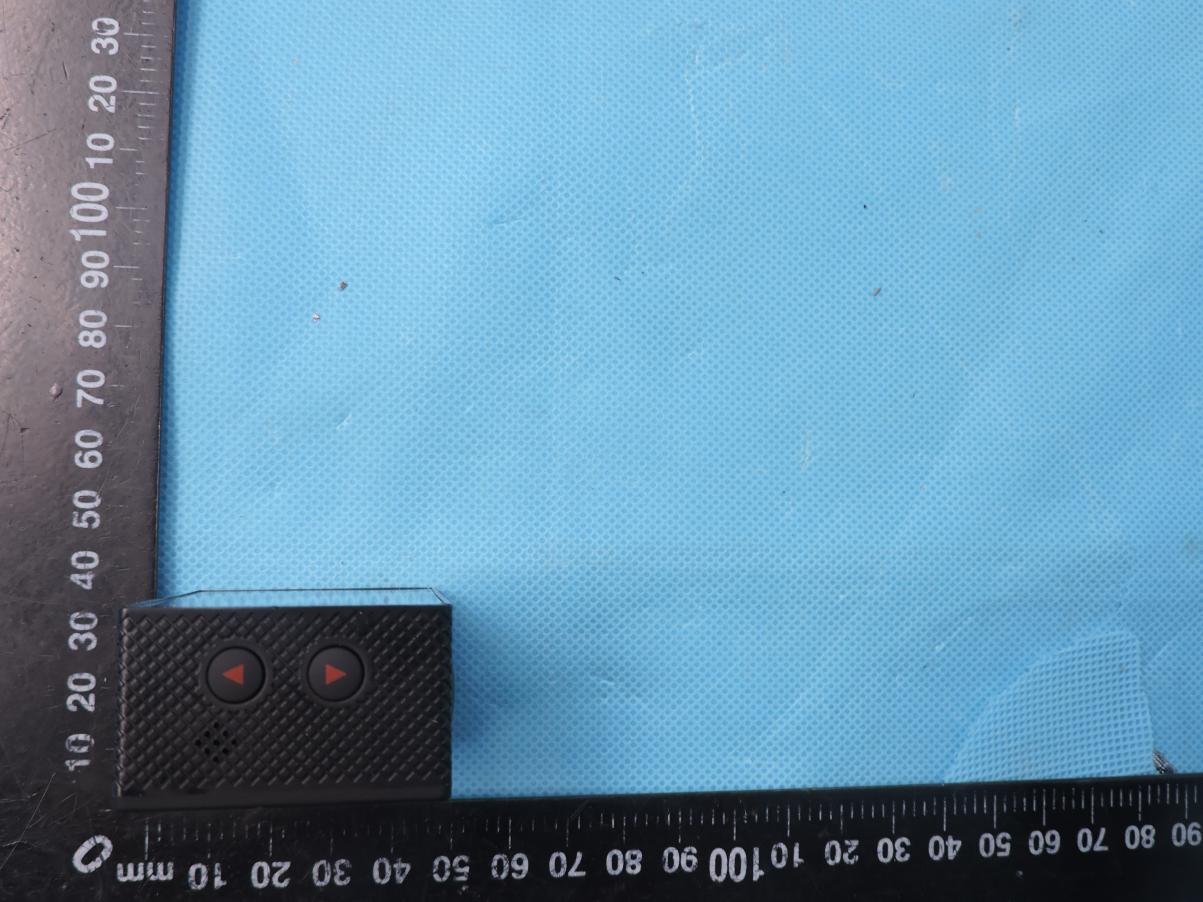

Page 1 of 3 Report No.: STS2009103 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: HCAM10 Photo 1 Photo 2 Page 2 of 3 Report No.: STS2009103 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2009103 Photo 5 Photo 6

Label ACTION CAMERA Model name: HCAM10 FCC ID: 2ABBL-HCAM10 20mm 10mm Note: The label is printed on the sample

Page 1 of 5 Report No.: STS2009103 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: HCAM10 Photo 1 Photo 2 Page 2 of 5 Report No.: STS2009103 Photo 3 Photo 4 WIFI Antenna Page 3 of 5 Report No.: STS2009103 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2009103 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2009103 Photo 9 Photo 10

FCC ID : 2ABBL-HCAM10 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID : 2ABBL-HCAM10 2.4GWIFI The Worst Case Mode 802.11b/g/n20: 2412-2462MHz Detector PEAK 802.11b 8±1dBm 802.11g 7.5±1dBm 802.11n20 7.5±0.5dBm Remark: The worst case gain of the antenna is 1.5dBi. 1.5dBi logarithmic terms convert to numeric result is nearly 1.41 802.11b2.4628.639 7.943282352.4927 3 802.11g2.4628.248.5 7.079457842.2216 3 802.11n202.4628.468.5 7.079457842.2216 3 Mode Limit Maximum Peak Conducted Output Power (dBm) frequency (GHz) Tune up Power (dBm) Tune up Power (mW) Result Threshold at which no SAR required is 2.4927≤ 3.0 for 1-g SAR, Separation distance is 5mm.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2009103W01 Issued for HLS Technology Corporation Limited 4F, B4 Building, 3rd Industrial Zone, Fenghuang Gang, Bao’an District, Shenzhen, China. Product Name: ACTION CAMERA Brand Name: HLS Model Name: HCAM10 Series Model: HCAM10 PRO, HCAM20, HCAM20 PRO, HCAM30, HCAM30 PRO, HCAM40, HCAM40 PRO, HCAM50, HCAM50 PRO, HCAM60, HCAM60 PRO FCC ID: 2ABBL-HCAM10 Test Standard: FCC Part 15.247 S T L A B S S T L A B S S T L A B S Page 2 of 61 Report No.:STS2009103W01 TEST RESULT CERTIFICATION Applicant’s Name ................. : HLS Technology Corporation Limited Address ................................. : 4F, B4 Building, 3rd Industrial Zone, Fenghuang Gang, Bao’an District, Shenzhen, China. Manufacturer's Name ........... : HLS Technology Corporation Limited Address ................................. : 4F, B4 Building, 3rd Industrial Zone, Fenghuang Gang, Bao’an District, Shenzhen, China. Product Description Product Name ........................ : ACTION CAMERA Brand Name ........................... : HLS Model Name .......................... : HCAM10 Series Model .......................... : HCAM10 PRO, HCAM20, HCAM20 PRO, HCAM30, HCAM30 PRO, HCAM40, HCAM40 PRO, HCAM50, HCAM50 PRO, HCAM60, HCAM60 PRO Test Standards ..................... : FCC Part 15.247 Test Procedure........................: ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ...................... : 23 Sept. 2020 Date (s) of performance of tests ............. : 23 Sept. 2020 ~ 26 Oct. 2020 Date of Issue .......................................... : 26 Oct. 2020 Test Result .............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 61 Report No.:STS2009103W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LISTS 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 DEVIATION FROM STANDARD 31 4.4 TEST SETUP 31 4.5 EUT OPERATION CONDITIONS 31 4.6 TEST RESULTS 32 5. POWER SPECTRAL DENSITY TEST 44 5.1 LIMIT 44 5.2 TEST PROCEDURE 44 5.3 DEVIATION FROM STANDARD 44 5.4 TEST SETUP 44 5.5 EUT OPERATION CONDITIONS 44 5.6 TEST RESULTS 45 6. BANDWIDTH TEST 51 6.1 LIMIT 51 6.2 TEST PROCEDURE 51 6.3 DEVIATION FROM STANDARD 51 6.4 TEST SETUP 51 6.5 EUT OPERATION CONDITIONS 51 Page 4 of 61 Report No.:STS2009103W01 Table of Contents Page 6.6 TEST RESULTS 52 7. PEAK OUTPUT POWER TEST 58 7.1 LIMIT 58 7.2 TEST PROCEDURE 58 7.3 DEVIATION FROM STANDARD 58 7.4 TEST SETUP 59 7.5 EUT OPERATION CONDITIONS 59 7.6 TEST RESULTS 59 8. ANTENNA REQUIREMENT 60 8.1 STANDARD REQUIREMENT 60 8.2 EUT ANTENNA 60 APPENDIX-PHOTOS OF TEST SETUP 61 Page 5 of 61 Report No.:STS2009103W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 26 Oct. 2020 STS2009103W01 ALL Initial Issue Page 6 of 61 Report No.:STS2009103W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) “N/A” denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 61 Report No.:STS2009103W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±5.6dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±3.37dB 7 Conducted Emission (150KHz-30MHz) ±3.83dB Page 8 of 61 Report No.:STS2009103W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name ACTION CAMERA Trade Name HLS Model Name HCAM10 Series Model HC…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2ABBL-HCAM10 DTS Setup photo Model name: HCAM10 DTS conduction DTS radiation L Page 2 of 2 FCC ID: 2ABBL-HCAM10 DTS radiation H
