2ABBZ-RF-GB-433RF-GB-433-CLR, CLR-C1-GB-10

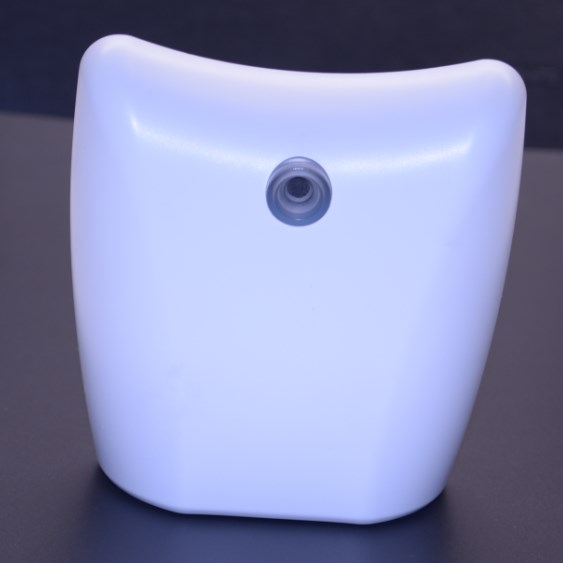

Installation Manual ClareOne Glass Break Detector CLR-C1-GB-10 RF-CLR-C1-GB-10 IM V1 05042020 Description The CLR-C1-GB-10 is a glass break detector designed to detect breaking glass made by an intruder breaking a window. The glass detector contains an acoustic detection device that detects sounds when glass is broken. The detection circuit uses an omni directional microphone to maximize coverage. When activated, the detector transmits a signal to the Clare control panel. The signals the unit provides are: supervisory, tamper and low battery (as needed). The detector is powered by (2)replaceable 3-VDC, lithium CR123A. Installation Guidelines The maximum detection range is 20' (6 m) for plate, tempered, laminated and wired glass.) Coverage is measured from the sensor to the point on the glass farthest from the sensor (see D and D' in Figure 2 below). Note: The Glassbreak Detector may not consistently detect cracks or breaks in glass. Glassbreak Detectors should always be backed up by additional methods of interior protection. •For best detection, avoid installing in rooms with lined, insulating, or sound deadening drapes or rooms with closed wooden window shutters inside. •Do not use near an air conditioner; a blast of air may cause a false alarm. •Avoid stairwells, glass booths and all rooms smaller than 10’ x 10’ (3m x 3m). •Do not install in humid rooms, excessive moisture can possibly damage the circuit board. Mounting Screw Mount 1. Remove the detector base from the detector. 2. Place the detector base in desired location and mount the base with the supplied screws. Attach the detector to the base. Testing LED’s Yellow flashing – low battery Red – Wake-up and Alarm •Test mode is entered automatically when batteries are inserted. The LED activates on glass simulator activation and goes out upon device restoral. •LED is functional only in test mode. •Test mode is active for 1 minute and is extended each time the glass is activated. Installation Manual ClareOne Glass Break Detector CLR-C1-GB-10 RF-CLR-C1-GB-10 IM V1 05042020 Batteries must be removed and re-installed to initiate test mode after expiration. (See battery replacement for removal of batteries). Glass Break Tester The glass break detector is designed to detect the breaking of framed glass. A Glass Break tester should be used to verify the detector is in a proper location and can detect breaking glass. 1.Hold the tester near the surface of the glass and behind any closed drapes or blinds, aim the tester at the detector and press the test button. 2.Watch the LED on the detector, if it detects the breaking glass sound the Red LED will light steady and the device will transmit an alarm. Programming The following steps describe the general guidelines for programming the detector into panel memory. Refer to the specific panel’s documentation for complete programming details. 1.Enter panel learn-in/enrollment mode. 2.Trip tamper switch or enter detector ID number. 3.Enter detector information. 5. Exit program mode. Battery Replacement 1.Remove detector cover by pressing on the latch and pulling the cover off. 2.Insert new batteries observing polarity. 3.Replace detector cover. Note: If a low battery alarm occurs, replace the battery within 7 days. Battery life depends on how often the detector transmits signals, but is more dependent on the temperature of the installation environment. When the battery voltage gets low, the detector transmits a low battery signal to the panel. The panel then activates trouble beeps to notify the customer that the detector battery must be replaced. Pressing the status button identifies the detector with the low battery. Replace the battery immediately when this condition occurs, using the following battery: Panasonic CR123A 3V Battery Disposal The batteries used in this detector are lithium batteries and are not reusable. Be sure to properly dispose of used lithium batteries according to your local hazardous waste disposal laws. CAUTION: Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire. Specifications Model no. RF frequency Compatibility Battery type Battery Operating temperature range Storage temperature range Relative humidity Dimensions (L x W x D) CLR-C1-GB-10 433.95 MHz Clare Control Panels 433.95 MHz (2) 3-VDC, lithium batteries (Model CR123A) Varta CR123A Panasonic CR123A 32 to 120°F (0 to 49°C) -30 to 140°F (-34 to 60°C) 95% non-condensing 2.25 x 1.0 x 0.50 in. Installation Manual RF-CLR-C1-GB-10 IM V1 05042020 ClareOne Glass Break Detector CLR-C1-GB-10 FCC / IC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Per FCC 15.19(a)(3) and (a)(4) this device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. Per FCC 15.21, The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •In…
