2ABC5-E0023Android Tablet

SIZE:130x185MM 材质：80G书写纸黑白印刷， 双面印刷 折页 Digital Signage Package Contents Please make sure all of the following are present when you unpack your Digital Signage 24“ 32“ DIGITAL SIGNAGE User Manual 1)Do not push objects into holes and ventilation slots. Do not expose this product to moisture or place any objects fil ed with liquids on or near the product. Do not place a naked flame sou ce, such as lighted candles, on or near this product. Do not store or operate the device in environments where the temperature is above 50 degrees celsius or below -10 degrees celsius. Do not intentionally hit the device or place heavy or sharp objects on the device. Only use accessories specified by the manu acturer. Keep the device away from benzene, diluents, and other chemicals. Do not attempt to repair this product yourself. Always use a qualified se vice agent to perform adjustments or repairs. Copyright Information All intellectual property rights in this publication are owned by and protected by applicable copyright laws and international treaty provisions. retains all rights not expressly granted. No part of this publication may be reproduced in any form whatsoever or used to make any derivative work without prior written approval by . Reserves the right to revise this publication, and/or make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time without prior notice. The information in this document is provided in good faith, but without any representation or warranty whatsoever, whether it is accurate,or complete or otherwise, and on express understanding that shall have no liability whatsoever to other parties in any way arising from or relating to the information or its use. All other trademarks are the property of their respective owners. Other company and brand products and service names are trademarks or registered trademarks of their respective holders. This device complies with CE and FCC regulations. Important Notices User manual Power adapter 24“ 32“ DIGITAL SIGNAGE User Manual Introducing the Android Interactive Digital Signage LCD full IPS panel Resolution:1920*1080 RK3399 Dual core cortex A72+Quad core cortex A53 RK3588 Quad core cortex A55+Quad core cortex A76 RAM 4GB , Optional 8GBRK3588) Internal memory 32GB, Optional 64GB Android 11(RK3399) ,Android 12(RK3588) 10-Point capacitive touch RJ45 Ethernet WiFi 802.11b/g/n/a/ac (RK3399) , WiFi 802.11b/g/n/a/ac/ax (WiFi 6) (RK3588) Bluetooth 5.0 Ethernet interface HDMI IN 3.5mm earphone output External microphone input Type-c Optional 4G Module Standard USB 2.0Host,Optional USB Touch function USB 3.0*2 Speaker 4*5W*2 VESA:100x100mm 24" Exterior Components32" Exterior Components This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed of at the end of its life separately from your household waste. There are separate collection systems for recycling in your country. For more information, please contact the local authority or your retailer where you purchased the product. FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 27,8mm 527,04mm 296,46mm 13,7mm 50mm 549,71mm 335,77mm 100mm 100mm 50mm 50mm 13 12 15 14 13 12 15 14 1 3579 246810 11 1 35 7 9 246810 11 1 2 8 NoNo FunctionFunction 3 4 5 6 10 11 12 13 14 15 Ethernet Port SIMOptional USB 3.0 host 7USB/Touch USB 3.0 host DC in power supply port Microphone VESA 100x100mm Volume + Power key Volume - Voice tube input Earphone Type-c HDMI IN9 1 2 8 NoNo FunctionFunction 3 4 5 6 10 11 12 13 14 15 Ethernet Port SIMOptional USB 3.0 host 7USB/Touch USB 3.0 host DC in power supply port Microphone VESA 100x100mm Volume + Power key Volume - Voice tube input Earphone Type-c HDMI IN9 733.40mm 699.4mm 432mm394mm 37mm 100mm 100mm 4-M4

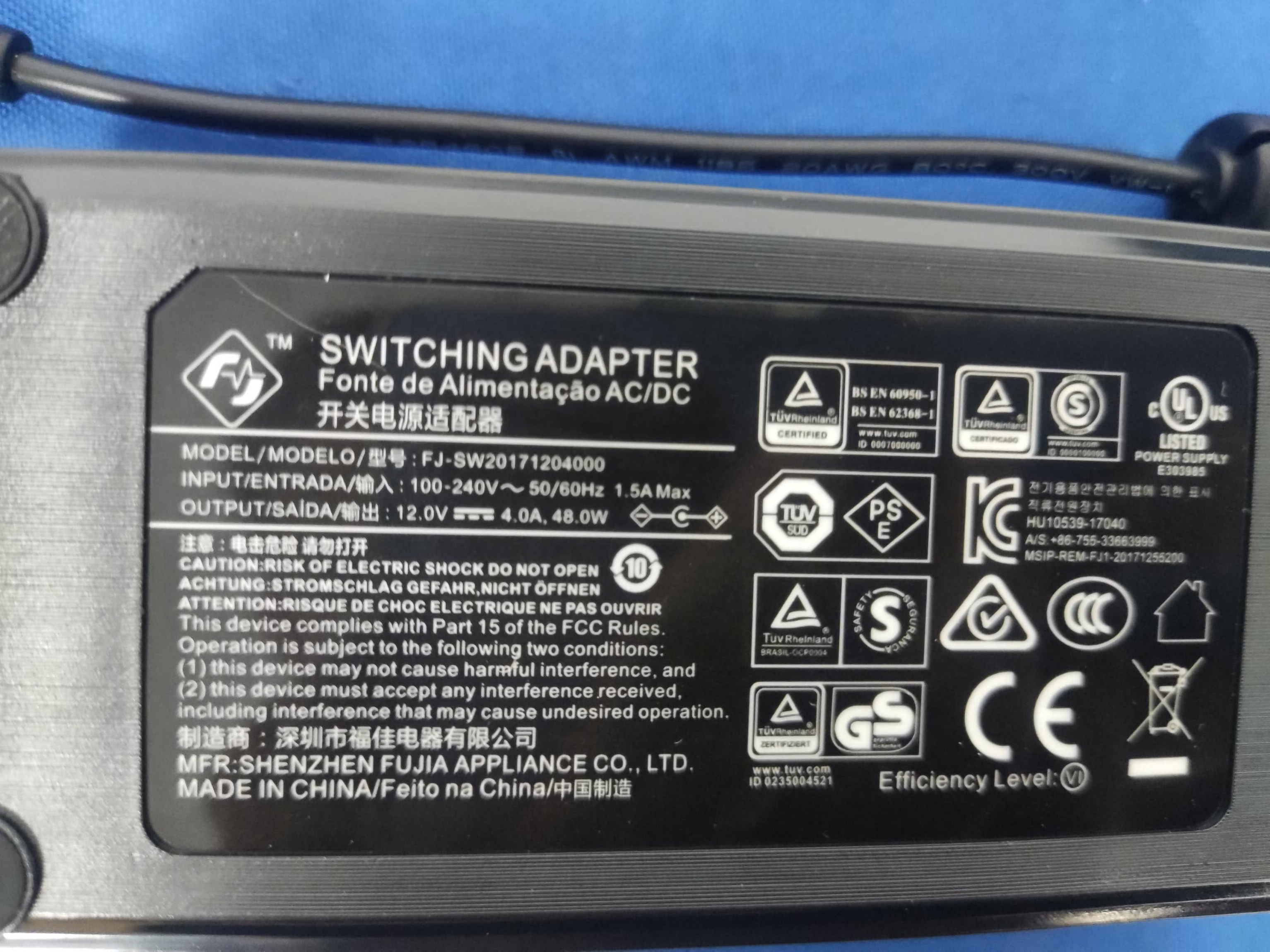

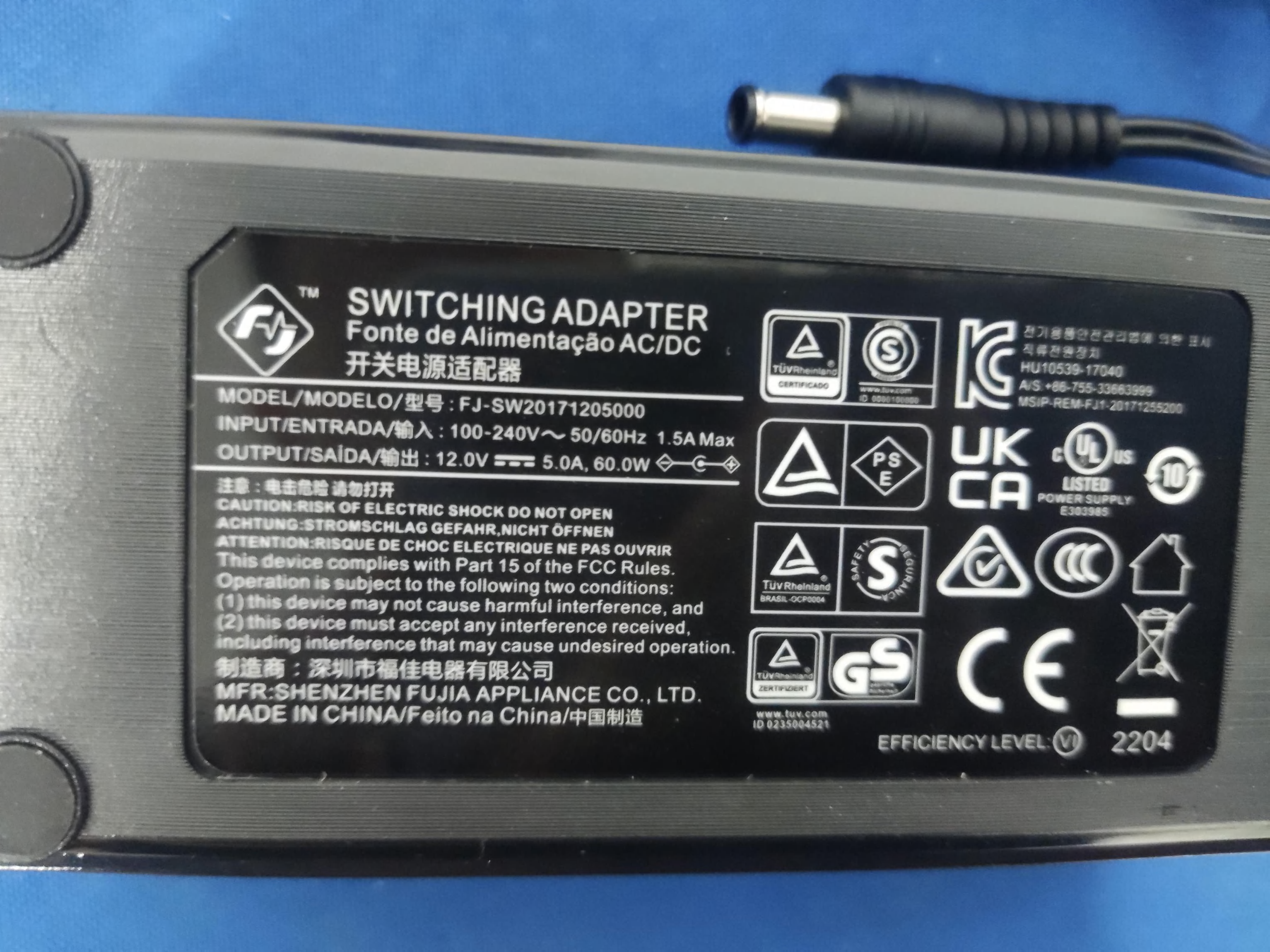

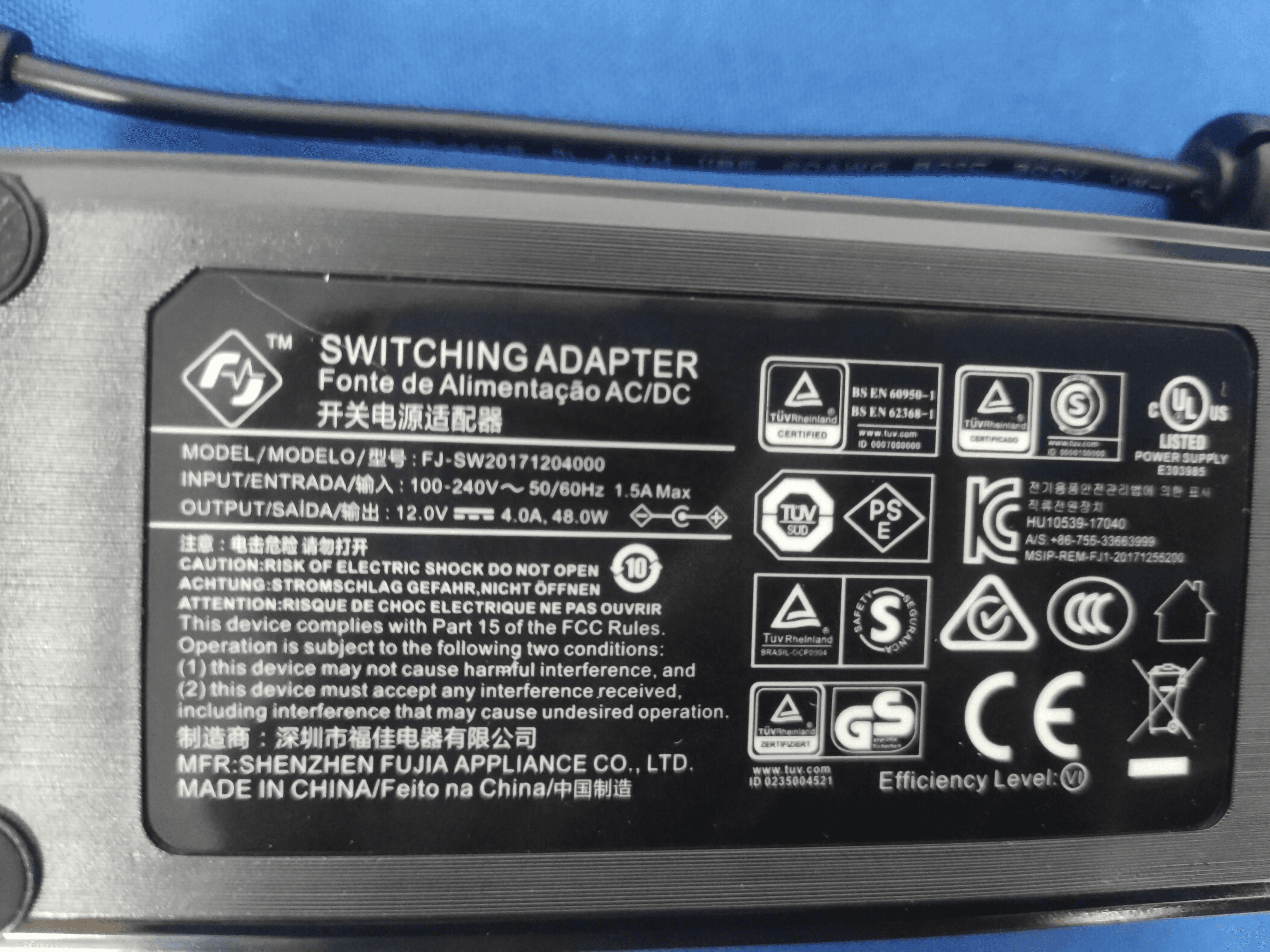

SHENZHENELECTRONTECHNOLOGYCO.,LTD. DeclarationonModelDifferences We, SHENZHENELECTRONTECHNOLOGYCO.,LTD. Bld.2,YingfengIndustrialZone,TantouCommunity,SonggangStreet,Baoan,Shenzhen, China Declarethatthefollowingproduct(s): FCCID:2ABC5-E0023 ProductName:AndroidTablet ModelNo.:SW3295T,NW3295T,SW2495T,NW2495T NW2495TandSW2495Tuse23.8-inchdisplayscreenanduse12V⎓4Aadapterforpower supply;NW3295TandSW3295Tadopt32inchdisplayanduse12V⎓5Aadapterforpower supply.Exceptfortheantenna,displayscreensizeandcoloroftheabovemodels,the productappearance,circuitworkingprinciple,safetystructure,keycomponentsand productionprocessofothermodelsarecompletelyconsistent.Differentnameswillnotaffect thesafetyandelectromagneticcompatibilityoftheproduct.Thereforethisapplicationcanbe regardedasidenticalinperformancetothesubmittedtestsample.Thereforethisapplication canberegardedasidenticalinperformancetothesubmittedtestsample. Themanufacturerwouldtakealltheresponsibilitiesfortheaboveproduct(s). Forandonbehalfof Authorizedperson Name:YonghongLi Position:Headofengineer Dateofissue:2022-08-29 *IherebydeclarethatIamentitledtosignonbehalfoftheapplicantandthattheinformationsuppliediscorrectandcomplete.

SHENZHENELECTRONTECHNOLOGYCO.,LTD. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2022-08-22 Subject;RequestforConfidentiality FCCID:2ABC5-E0023 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription SWSECURITYDESCRIPTION PartsList Tuneup Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:YonghongLi Title:Headofengineer

SHENZHENELECTRONTECHNOLOGYCO.,LTD. LetterofAuthorization Company:SHENZHENELECTRONTECHNOLOGYCO.,LTD. Address:Bld.2,YingfengIndustrialZone,TantouCommunity,Songgang Street,Baoan,Shenzhen,China ProductName:AndroidTablet ModelNumber(s):SW3295T,NW3295T,SW2495T,NW2495T ProductDescription:AndroidTablet WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2022-08-22 Name:YonghongLi Title:Headofengineer Company:SHENZHENELECTRONTECHNOLOGYCO.,LTD.

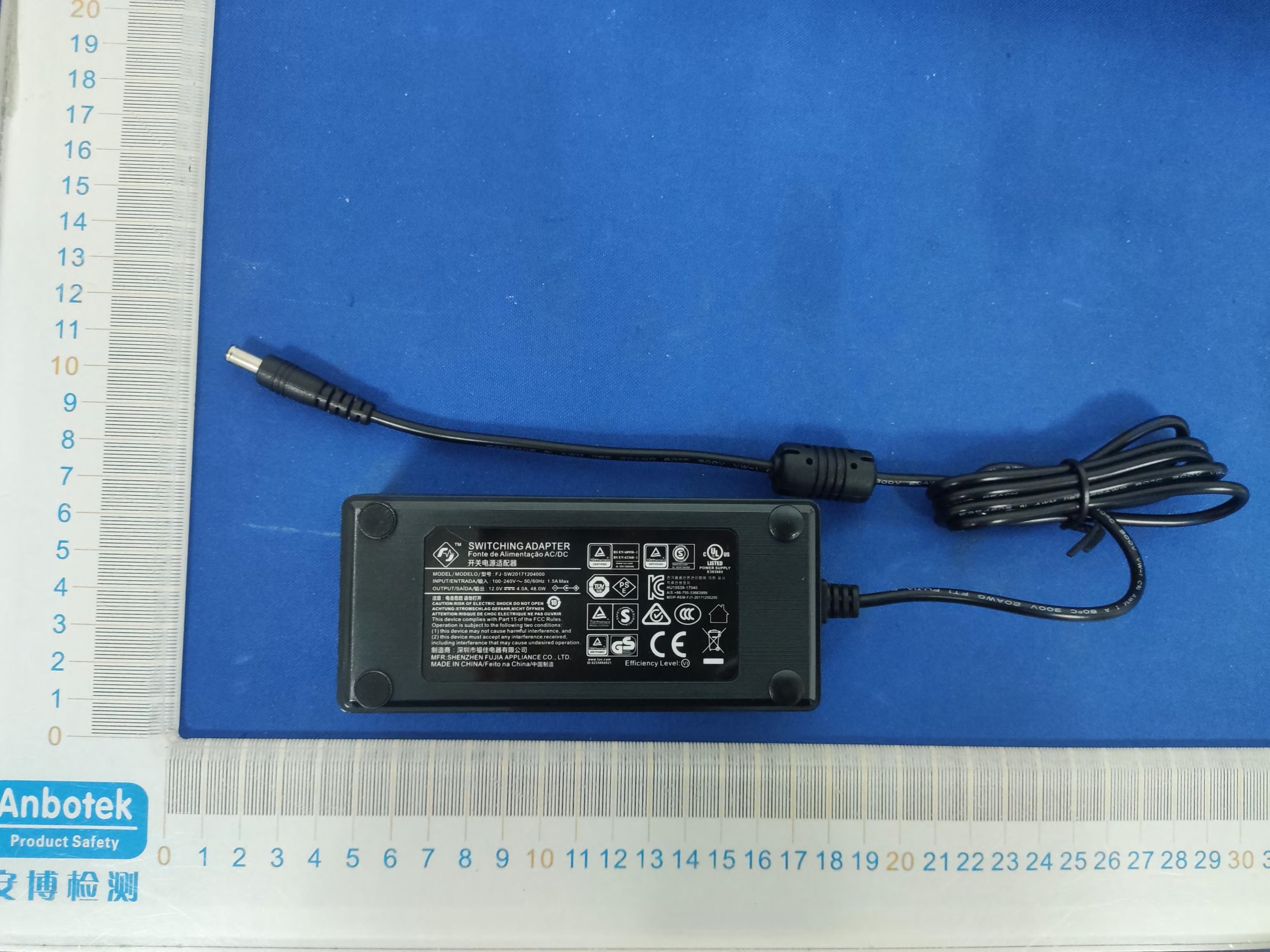

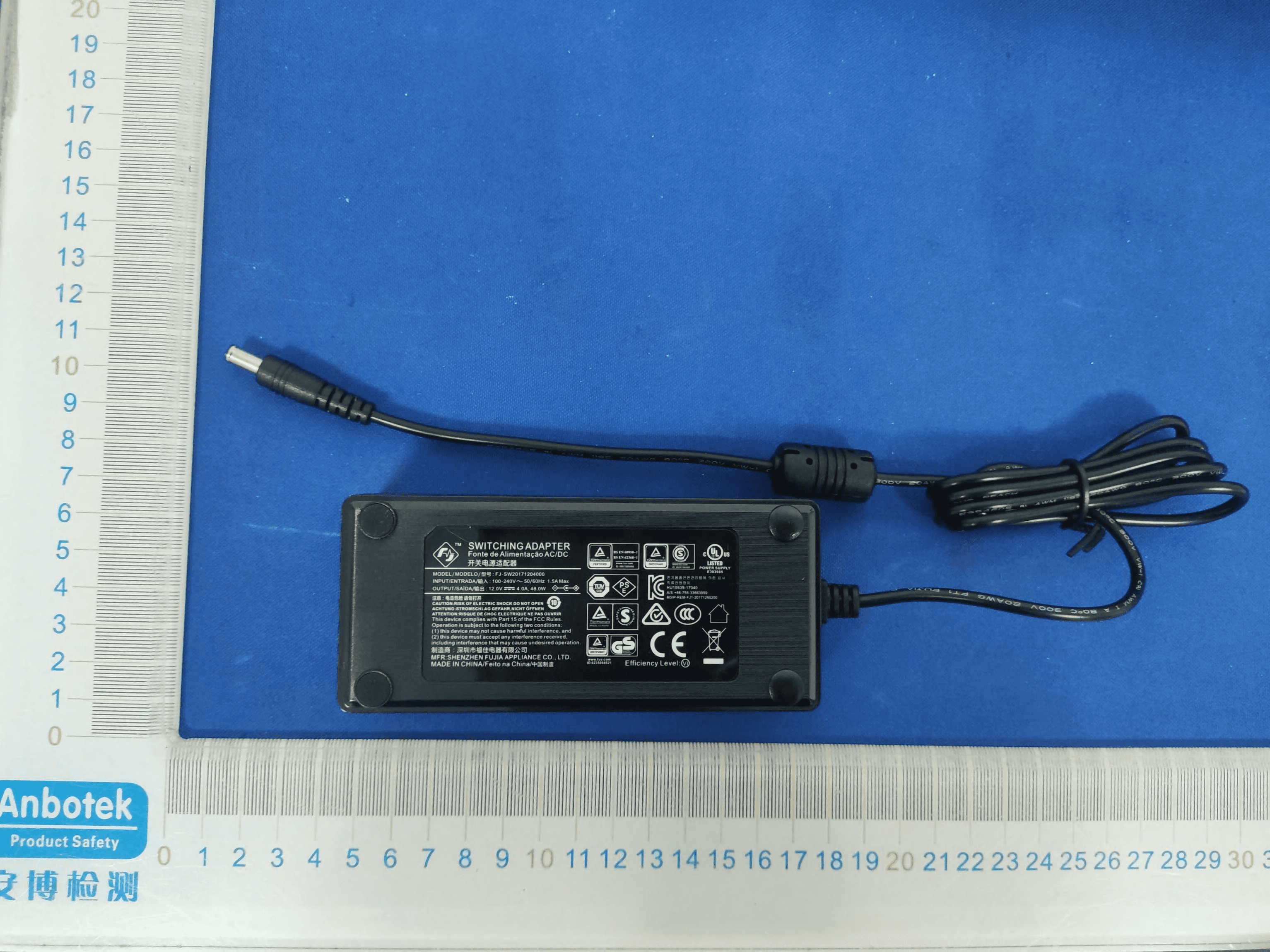

Code:AB-RF-05-b ExternalPhotograph ForModel:NW2495T,SW2495T Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b ForModel:NW3295T,SW3295T Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

LabelLocationOnEUT Label ProductName:AndroidTablet ModelNo.:SW3295T FCCID:2ABC5-E0023 ThisdevicecomplieswithPart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2) Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

Code:AB-RF-05-b InternalPhotograph ForModel:NW2495T,SW2495T Code:AB-RF-05-b WiFi2.4GANT2&WiFi5GANT2 BLE&WiFi2.4GANT1&WiFi5GANT1 Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b ForModel:NW3295T,SW3295T

Code:AB-RF-05-b WiFi2.4GANT2&WiFi5GANT2 BLE&WiFi2.4GANT1&WiFi5GANT1 Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b ForModel:NW2495T&NW3295T&SW2495T&SW3295T Code:AB-RF-05-b

Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

RFEXPOSUREEVALUATION AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF)Radiation asspecifiedin§1.1307(b) FCCID:2ABC5-E0023 EUTSpecification EUTAndroidTablet Frequencyband(Operating)WLAN:2.412GHz~2.462GHz WLAN:5.18GHz~5.24GHz WLAN:5.745GHz~5.825GHz Others:Bluetooth:2402-2480MHz DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ ExposureclassificationOccupational/Controlledexposure(S=5mW/cm2) GeneralPopulation/Uncontrolledexposure(S=1mW/cm2) AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Antennagain(Max) BLE/WiFi2.4GANT1/ANT2: 2dBi WiFi5GANT1/ANT2: 2.5dBi EvaluationappliedMPEEvaluation SAREvaluation LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) Power Density(mW/cm 2 ) Average Time (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 Friistransmissionformula:Pd=(Pout*G)\(4*pi*R2) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainMw G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdthelimitofMPE,1mW/cm2.Ifweknowthemaximumgainoftheantennaand totalpowerinputtotheantenna,throughthecalculation,wewillknowthedistance wheretheMPElimitisreached. MaxMeasurementResult Operating Mode Measured Power Tuneup tolerance Max.Tune upPower Antenna Gain Power densityat 20cm Power densityLimits (mW/cm2) (dBm)(dBm)(dBm)(dBi)(mW/cm2) BLE9.229.22±110.222 0.0033 1 WiFi2.4G18.1418.14±119.142 0.0259 1 WiFi5.2G22.00422.004±123.0042.5 0.0707 1 WiFi5.8G20.98920.989±121.9892.5 0.0560 1 TheWiFi2.4GandWiFi5.2Gcantransmitsimultaneously: =S WiFi 2.4G/Slimit-WiFi2.4G+SWiFi5.2G/Slimit-WIFI5.2G =0.0259/1+0.0707/1 =0.0966 <1.0 TheWiFi2.4GandWiFi5.8Gcantransmitsimultaneously: =S WiFi 2.4G/Slimit-WiFi2.4G+SWiFi5.8G/Slimit-WIFI5.8G =0.0259/1+0.0560/1 =0.0819 <1.0

ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] SPECIFICATIONSFORAPPROVAL CustomerName:SHENZHENELECTRONTECHNOLOGYCO.,LTD ProductName:WIFIAntenna ProductModel:NW2495 PartNumber:LJF02-22050908-R0A WriteBy:Huxuwen IssuedDate:2022-05-09 CUSTOMER ENGINEERR&DDEPTBUSSINESSDEPTAPPROVAL LEJIN R&DDEPTENGINEERDEPTAPPROVAL REVMODIFIEDDESCRIPTIONDATEREMARK V1.0InitialDraftRelease2022/05/09 ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] Index 1.Cover ································ 1 2.Index································2 3.ProductSpecification ·························· 3 4.TestEquipment&Conditions·······················3 5.TestReport ······························ 4 6.ReliabilityTest····························5 7.Assembletype ···························· 6 8.ProductDrawing···························7 ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] 3.ProductSpecification A.ElectricalCharacteristics Frequency VSWR Efficiency Impedance Polarization Gain(2.4GHz) Gain(5.8GHz) 2400MHz ~2500 MHz 5150MHz ~5850 MHz <2.0 ≥ 40% 50Ohm Linear ≤ 2.0dBi ≤ 2.5dBi B.Material&MechanicalCharacteristics MaterialofRadiatorFPC(Black),LJWF27BF CableTypeΦ1.13mm,L268mm,Black ConnectorTypeIPX1 Dimension26.0*18.8mm C.Environmental OperationTemperature-20 ̊C~+70 ̊C StorageTemperature-30 ̊C~+85 ̊C Humidity40%~95% 4.TestEquipment&Conditions 1.NetworkAnalyzersAgilent8753D/5071C 2.HSPAandLTEprotocoltestsetR&SCMW500-PT 3.CommunicationsTestSetAgilent8960 4.3DChamberTestSystem ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] Chart1Testtopology 5.TestReport 5.1VoltageStandingWaveRatio(VSWR). Chart2VSWR 5.2Efficientandgain. Passive TestFor 2.4G Freq(MHz) 24002410242024302440245024602470248024902500 Effi(%) 45.6548.1251.2051.2753.8349.5452.2351.1054.0447.2143.67 Gain(dBi) 1.961.91.9211.91.952.002.0091.961.81.935 Passive TestFor 5G Freq(MHz) 515052005250530053505400545055005550560056505700575058005850 Effi(%) 49.5850.8249.8547.9352.0852.5555.1158.1256.1252.6249.6349.6149.7250.1247.66 Gain(dBi) 2.232.502.42.2902.42.3132.382.292.482.142.252.272.502.22.482 5.3Radiationpattern. 1.95 ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] 6. ReliabilityTest TestItemTestconditionEquipmentSpecificationResult 1 LowTemp. Storage Test Temperature:-30°C，Time:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°Candhumidityis 65%foronehour,thenstep-downthetemp.to-30°Cinone hour,storeantennafor44hours;step-uptempto25°C,test antennaafter2hours. Temp.&Hum i. Tester Nomaterial deformationis allowed. Electronic Performanceis ok. PASS 2 High Temp./High Humid StorageTest Temperature:85°CHumidity:85%RHTime:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°Candhumidityis 65%foronehour,thenstep-upthetemp.to80°Candthe humidityupto85%inonehour,storeantennafor44hours; step-downtempto25°C,testantennaafter2hours. Temp.&Hum i. Tester Nomaterial deformationis allowed. Electronic Performanceis ok. PASS 3 Salt-Spray6 prayTest PlacingantennaintheSalt-SprayTester,setthetest condition，Temp:35±2°CHumidity:85%NaClsaltspray:5 ±1%.PHvalue:6.5~7.2Testtime:24hours Salt-Spray Tester Nocolorchange Noappear rusting PASS 7.Assembletype Chart3NW2495assembletype 8.ProductDrawing 2 6 8.0±2.0mm 1.37 黑 线， KCC1 代端子 ELC WIFI / B T A NT LJF02-220 5 0 9 08-R0A LJWF27BF

ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] SPECIFICATIONSFORAPPROVAL CustomerName:SHENZHENELECTRONTECHNOLOGYCO.,LTD ProductName:WIFIAntenna ProductModel:NW3295 PartNumber:LJF02-22061610-R0A WriteBy:Huxuwen IssuedDate:2022-06-16 CUSTOMER ENGINEERR&DDEPTBUSSINESSDEPTAPPROVAL LEJIN R&DDEPTENGINEERDEPTAPPROVAL REVMODIFIEDDESCRIPTIONDATEREMARK V1.0InitialDraftRelease2022/06/16 ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] Index 1.Cover ································ 1 2.Index································2 3.ProductSpecification ·························· 3 4.TestEquipment&Conditions·······················3 5.TestReport ······························ 4 6.ReliabilityTest····························5 7.Assembletype ···························· 6 8.ProductDrawing···························7 ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] 3.ProductSpecification A.ElectricalCharacteristics Frequency VSWR Efficiency Impedance Polarization Gain(2.4GHz) Gain(5.8GHz) 2400MHz ~2500 MHz 5150MHz ~5850 MHz <2.0 ≥40% 50Ohm Linear ≤ 2.0dBi ≤2.5dBi B.Material&MechanicalCharacteristics MaterialofRadiatorFPC(White),LJWF51AA CableTypeΦ1.13mm,L355mm,Black ConnectorTypeIPX1 Dimension40.0*18.0mm C.Environmental OperationTemperature-20 ̊C~+70 ̊C StorageTemperature-30 ̊C~+85 ̊C Humidity40%~95% 4.TestEquipment&Conditions 1.NetworkAnalyzersAgilent8753D/5071C 2.HSPAandLTEprotocoltestsetR&SCMW500-PT 3.CommunicationsTestSetAgilent8960 4.3DChamberTestSystem Chart1Testtopology ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] 5.TestReport 5.1VoltageStandingWaveRatio(VSWR). 5.2Efficientandgain. 5.3Radiationpattern. Chart 2 VSWR 2.00 1.99 1.96 1.97 1.89 2.50 2.50 1.94 ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] 6. ReliabilityTest TestItemTestconditionEquipmentSpecificationResult 1 LowTemp. Storage Test Temperature:-30°C，Time:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°Candhumidityis 65%foronehour,thenstep-downthetemp.to-30°Cinone hour,storeantennafor44hours;step-uptempto25°C,test antennaafter2hours. Temp.&Hum i. Tester Nomaterial deformationis allowed. Electronic Performanceis ok. PASS 2 High Temp./High Humid StorageTest Temperature:85°CHumidity:85%RHTime:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°Candhumidityis 65%foronehour,thenstep-upthetemp.to80°Candthe humidityupto85%inonehour,storeantennafor44hours; step-downtempto25°C,testantennaafter2hours. Temp.&Hum i. Tester Nomaterial deformationis allowed. Electronic Performanceis ok. PASS 3 Salt-Spray6 prayTest PlacingantennaintheSalt-SprayTester,setthetest condition，Temp:35±2°CHumidity:85%NaClsaltspray:5 ±1%.PHvalue:6.5~7.2Testtime:24hours Salt-Spray Tester Nocolorchange Noappear rusting PASS 7.Assembletype Chart3NW3295assembletype ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] Chart4NW3295WIFI1assembletypeChart5NW3295WIFI2assembletype 8.ProductDrawing LJF02-22061610-R0A ELC 3 55 .0±3.0mm Remark: 1.FPC material:Electrolytic copper. 2.Backing in behind:3M300LSE. 3.Tolerance ： Cuting die:±0.1mm;Circuit on FPC:±0.05mm ； others are ±0.05mm. 4.ROHS:(Pb,Hg,Cr+6,PBBs,PBDEs),<1000ppm; Cd,<100ppm. 1.0 1.5 1.8 Φ 1.13 coaxial cable,black, KCC-1 connector WIFI ANT NW 3 295 Revise record 2022-0 6 -1 6

ReportNo.:18220WC20136601FCCID:2ABC5-E0023Page1of39 Code:AB-RF-05-b FCCTestReport ClientName: SHENZHENELECTRONTECHNOLOGY CO.,LTD. ClientAddress: Bld.2,YingfengIndustrialZone,Tantou Community,SonggangStreet,Baoan, Shenzhen,China ProductName:AndroidTablet ReportDate:Aug.29,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20136601FCCID:2ABC5-E0023Page2of39 Code:AB-RF-05-b Contents 1.GeneralInformation............................................................................................................................................6 1.1.ClientInformation....................................................................................................................................6 1.2.DescriptionofDevice(EUT)..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest.................................................................................................8 1.4.DescriptionofTestConfiguration..........................................................................................................8 1.5.DescriptionOfTestSetup......................................................................................................................9 1.6.TestEquipmentList...............................................................................................................................10 1.7.MeasurementUncertainty....................................................................................................................11 1.8.DescriptionofTestFacility...................................................................................................................11 2.SummaryofTestResults.................................................................................................................................12 3.ConductedEmissionTest................................................................................................................................13 3.1.TestStandardandLimit........................................................................................................................13 3.2.TestSetup...............................................................................................................................................13 3.3.TestProcedure.......................................................................................................................................14 3.4.TestData.................................................................................................................................................14 4.RadiationSpuriousEmissionandBandEdge.............................................................................................19 4.1.TestStandardandLimit........................................................................................................................19 4.2.TestSetup...............................................................................................................................................19 4.3.TestProcedure.......................................................................................................................................21 4.4.TestData.................................................................................................................................................21 5.MaximumPeakOutputPowerTest...............................................................................................................34 5.1.TestStandardandLimit........................................................................................................................34 5.2.TestSetup...............................................................................................................................................34 5.3.TestProcedure.......................................................................................................................................34 5.4.TestData.................................................................................................................................................34 6.6DBOccupyBandwidthTest..........................................................................................................................35 6.1.TestStandardandLimit........................................................................................................................35 6.2.TestSetup...............................................................................................................................................35 6.3.TestProcedure.......................................................................................................................................35 6.4.TestData.................................................................................................................................................35 7.PowerSpectralDensityTest...........................................................................................................................36 7.1.TestStandardandLimit........................................................................................................................36 7.2.TestSetup...............................................................................................................................................36 7.3.TestProcedure.......................................................................................................................................36 7.4.TestData.................................................................................................................................................36 8.100kHzBandwidthofFrequencyBandEdgeRequirement......................................................................37 8.1.TestStandardandLimit........................................................................................................................37 ReportNo.:18220WC20…

Text truncated - open the document above for the full version.

Page1of22 AppendixTestData ReportNo.:18220WC20136601TestSampleNo.:1-2-2 StartTestDate:2022.6.28FinishTestDate:2022.7.5 TestEngineer:Auditor: Temperature:24.3 °C RelativeHumidity:57.1% Pressure:1012hPa AppendixA:DTSBandwidth TestResult TestModeAntennaChannelDTSBW[MHz]FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24020.7002401.6322402.332≥0.5PASS 24400.6802439.6402440.320≥0.5PASS 24800.7042479.6162480.320≥0.5PASS Page2of22 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page3of22 Page4of22 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaChannelOCB[MHz]FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24021.05972401.4762402.536---PASS 24401.06112439.4672440.528---PASS 24801.05412479.4662480.520---PASS Page5of22 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page6of22 Page7of22 AppendixC:Maximumconductedoutputpower TestResult TestModeAntennaChannelResult[dBm]Limit[dBm]Verdict BLE_1MAnt1 24026.57≤30PASS 24407.64≤30PASS 24809.22≤30PASS Page8of22 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page9of22 Page10of22 AppendixD:Maximumpowerspectraldensity TestResult TestModeAntennaChannelResult[dBm/3kHz]Limit[dBm/3kHz]Verdict BLE_1MAnt1 2402-9.63≤8PASS 2440-8.43≤8PASS 2480-6.49≤8PASS Page11of22 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page12of22 Page13of22 AppendixE:Bandedgemeasurements TestResult TestModeAntennaChNameChannelRefLevel[dBm]Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 Low24025.01-56.57≤-14.99PASS High24808.19-58.74≤-11.81PASS Page14of22 TestGraphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Page15of22 AppendixF:ConductedSpuriousEmission TestResult TestModeAntennaChannel FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 2402 Reference5.325.32---PASS 30~10005.32-69.73≤-14.68PASS 1000~265005.32-46.37≤-14.68PASS 2440 Reference6.236.23---PASS 30~10006.23-69.45≤-13.77PASS 1000~265006.23-49.48≤-13.77PASS 2480 Reference8.078.07---PASS 30~10008.07-69.94≤-11.93PASS 1000~265008.07-51.45≤-11.93PASS Page16of22 TestGraphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Page17of22 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 Page18of22 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 Page19of22 BLE_1M_Ant1_2480_1000~26500 Page20of22 AppendixG:DutyCycle TestResult Test Mode AntennaChannel ONTime [ms] Period [ms] XDC [%] X Factor LimitVerdict BLE_1MAnt1 24020.380.630.603260.322.20---PASS 24400.370.620.596859.682.24---PASS 24800.380.630.603260.322.20---PASS Page21of22 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page22of22 ---End---

ReportNo.:18220WC20136602F…

Text truncated - open the document above for the full version.
