2ABC5-W0553Wifi Digital photo frame

ENDEIT FRES ENDE ITFRES EN FR EN FCC compliance statement ISED compliance statement Radiation Exposure statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. te the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Cet équipement est conforme aux limites d'exposition aux radiations FCC/IC CNR-102 établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. 27

SHENZHEN ELECTRON TECHNOLOGY CO.,LTD. Date: 20210827 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID 2ABC5-W0553 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch and Kobe Jian in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with SHENZHEN ELECTRON TECHNOLOGY CO.,LTD. This authorization is valid until further written notice from the applicant. Print Name: Yonghong Li Title: Head of engineer Signature: On behalf of Company: SHENZHEN ELECTRON TECHNOLOGY CO.,LTD. Telephone: 86-13714585875 E-mail: [email protected]

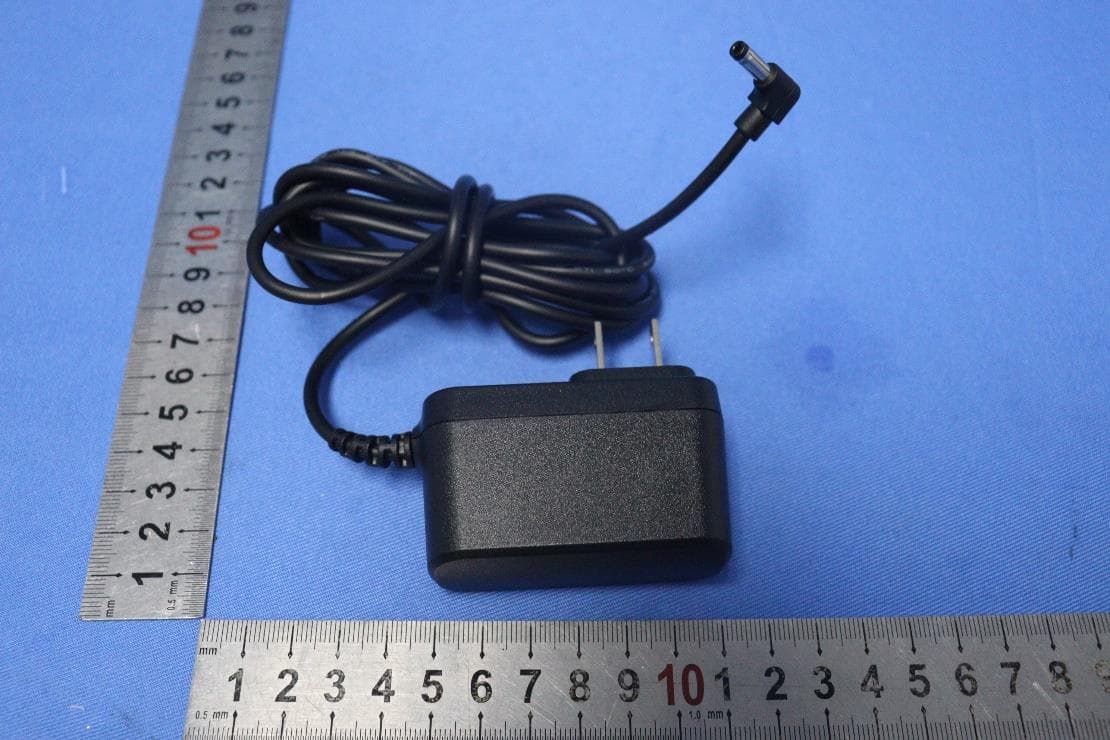

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.0 Page: 1 of 7 Appendix External Photos for GZCR2109021042AT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 2 of 7 EMC-ARF-02 Rev 1.0 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 3 of 7 EMC-ARF-02 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 4 of 7 EMC-ARF-02 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 5 of 7 EMC-ARF-02 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 6 of 7 EMC-ARF-02 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 7 of 7 EMC-ARF-02 Rev 1.0

1. Select Settings with the remote control in the main interface below. 2. After ente ring Sett ings, select Inf ormatio nto see th e FCC ID numbe r and statement as shown be low. W13D-06 W13D-06 2ABC5-W0553 11693A-W0343

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 1 of 11 Appendix Internal Photos for GZCR2109021042AT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 2 of 11 EMC-ARF-03 Rev 1.0 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 3 of 11 EMC-ARF-03 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 4 of 11 EMC-ARF-03 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 5 of 11 EMC-ARF-03 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 6 of 11 EMC-ARF-03 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 7 of 11 EMC-ARF-03 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 8 of 11 EMC-ARF-03 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 9 of 11 EMC-ARF-03 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 10 of 11 EMC-ARF-03 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 11 of 11 EMC-ARF-03 Rev 1.0

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.0 Report No.: GZCR210902104202 Page: 1 of 9 FCC ID: 2ABC5-W0553 Kobe Jian EMC Laboratory Manager RF EXPOSURE EVALUATION REPORT Application No.: GZCR2109021042AT Applicant: SHENZHEN ELECTRON TECHNOLOGY CO., LTD. Address of Applicant: Bld.2, Yingfeng Industrial Zone, Tantou Community, Songgang Street, Bao’an, Shenzhen, China. Manufacturer: SHENZHEN ELECTRON TECHNOLOGY CO., LTD. Address of Manufacturer: Bld.2, Yingfeng Industrial Zone, Tantou Community, Songgang Street, Bao’an, Shenzhen, China. Factory: SHENZHEN ELECTRON TECHNOLOGY CO., LTD. Address of Factory: Bld.2, Yingfeng Industrial Zone, Tantou Community, Songgang Street, Bao’an, Shenzhen, China. Equipment Under Test (EUT): EUT Name: Wifi Digital photo frame Model No.: W13D-06, W13D-07/W13D-08/ W13D-09/W13D-10/W13D-11/ W13D-12/W13D-13/W13D-14/W13D-15 ♣ ♣ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade Mark: Standard(s) : 47 CFR PART 1, Subpart I, Section 1.1310 47 CFR PART 2, Subpart J, Section 2.1091 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: 2021-09-01 Date of Evaluation: 2021-09-01 to 2021-09-13 Date of Issue: 2021-09-15 Evaluation Result: Pass* * In the configuration evaluated, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104202 EMC-TRF-03 Rev 1.0 Page: 2 of 9 Revision Record Version Chapter Date Modifier Remark 01 2021-07-28 Original Authori zed for issue by: Tested By Curry Wu/Project Engineer Reviewed By Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104202 EMC-TRF-03 Rev 1.0 Page: 3 of 9 2 Evaluation Summary Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. Declaration of EUT Family Grouping: Model No.: W13D-06, W13D-07/W13D-08/ W13D-09/W13D-10/W13D-11/W13D-12/W13D-13/W13D-14/W13D-15 Only the model W13D-06 was tested, since according to the declaration from the applicant, the electrical circuit design, PCB layout, components used and internal wiring and functions were identical for the above models, with only difference on model No.. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104202 EMC-TRF-03 Rev 1.0 Page: 4 of 9 3 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Evaluation Summary .......................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 5 4.1 Details of E.U.T. ........................................................................................................................... 5 4.2 Evaluating Location ...................................................................................................................... 5 4.3 Facility ......................................................................................................................................... 6 4.4 Deviation from Standards ............................................................................................................. 6 4.5 Abnormalities from Standard Conditions ....................................................................................... 6 5 Technical Requirements Specification .............................................................................................. 7 5.1 RF Exposure Compliance Requirement ........................................................................................ 7 5.1.1 Limits ....................................................................................................................................... 7 5.1.2 Test Procedure ........................................................................................................................ 7 5.2 EUT RF Exposure Evaluation ....................................................................................................... 8 6 EUT Constructional Details (EUT Photos) ......................................................................................... 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104202 EMC-TRF-03 Rev 1.0 Page: 5 of 9 4 General Information 4.1 Details of E.U.T. Power supply: DC 12V from adapter Input 120V/60Hz Adapter model: S012-1B120100VU Input:100~240V, 50/60Hz, 0.3A Output: DC 12V, 1.0A Remote: 3V DC(3V x 1 "CR2032" Button Cells) Cable(s): Adapter DC Cable length: 200cm unshielded Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz;802.11n(HT40): 2422MHz to 2452MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK);802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11;802.11n(HT40):7 Channel Spacing: 5MHz Antenna Type: FPC Antenna Antenna Gain: 1.5 dBi 4.2 Evaluating Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China 510663 Tel: +86 20 82155555 Fax: +86 20 82075059 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104202 EMC-TRF-03 Rev 1.0 Page: 6 of 9 4.3 Facility The facility is recognized, certified, or accredited by the following organizations: ● NVLAP (Lab Code: 200611-0) SGS-CSTC Standards Te…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 1.0 Report No.: GZCR210902104201 Page: 1 of 125 FCC ID: 2ABC5-W0553 Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZCR2109021042AT Applicant: SHENZHEN ELECTRON TECHNOLOGY CO., LTD. Address of Applicant: Bld.2, Yingfeng Industrial Zone, Tantou Community, Songgang Street, Bao’an, Shenzhen, China. Manufacturer: SHENZHEN ELECTRON TECHNOLOGY CO., LTD. Address of Manufacturer: Bld.2, Yingfeng Industrial Zone, Tantou Community, Songgang Street, Bao’an, Shenzhen, China. Factory: SHENZHEN ELECTRON TECHNOLOGY CO., LTD. Address of Factory: Bld.2, Yingfeng Industrial Zone, Tantou Community, Songgang Street, Bao’an, Shenzhen, China. Equipment Under Test (EUT): EUT Name: Wifi Digital photo frame Model No.: W13D-06, W13D-07/W13D-08/ W13D-09/W13D-10/W13D-11/ W13D-12/W13D-13/W13D-14/W13D-15 ♣ ♣ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade Mark: Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2021-09-01 Date of Test: 2021-09-01 to 2021-09-13 Date of Issue: 2021-09-15 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 2 of 125 Revision Record Version Chapter Date Modifier Remark 01 2021-09-16 Original Authorize d for issue by: Curry Wu/Project Engineer Ricky Liu/Reviewer EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 3 of 125 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power ANSI C63.10 (2013) Section 11.9.1.3 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions (Below 1GHz) ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions (Above 1GHz) ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. Declaration of EUT Family Grouping: Model No.: W13D-06, W13D-07/W13D-08/ W13D-09/W13D-10/W13D-11/W13D-12/W13D-13/W13D-14/W13D-15 Only the model W13D-06 was tested, since according to the declaration from the applicant, the electrical circuit design, PCB layout, components used and internal wiring and functions were identical for the above models, with only difference on model No.. EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 4 of 125 3 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Test Summary ..................................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 6 4.1 Details of E.U.T. ........................................................................................................................... 6 4.2 Description of Support Units ......................................................................................................... 6 4.3 Measurement Uncertainty ............................................................................................................ 7 4.4 Test Location ............................................................................................................................... 8 4.5 Test Facility .................................................................................................................................. 8 4.6 Deviation from Standards ............................................................................................................. 9 4.7 Abnormalities from Standard Conditions ....................................................................................... 9 5 Equipment List ..................................................................................................................................10 6 Radio Spectrum Technical Requirement ..........................................................................................13 6.1 Antenna Requirement .................................................................................................................13 6.1.1 Test Requirement: ..................................................................................................................13 6.1.2 Conclusion .....................................................................................................…

Text truncated - open the document above for the full version.

EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 66 of 125 Test Mode: 00; Polarity: Horizontal; Modulation:802.11n; Bandwidth:20MHz; Channel:middle EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 67 of 125 Test Mode: 00; Polarity: Vertical; Modulation:802.11n; Bandwidth:20MHz; Channel:middle EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 68 of 125 Test Mode: 00; Polarity: Horizontal; Modulation:802.11n; Bandwidth:20MHz; Channel:High EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 69 of 125 Test Mode: 00; Polarity: Vertical; Modulation:802.11n; Bandwidth:20MHz; Channel:High EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 70 of 125 Test Mode: 00; Polarity: Horizontal; Modulation:802.11n; Bandwidth:40MHz; Channel:Low EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 71 of 125 Test Mode: 00; Polarity: Vertical; Modulation:802.11n; Bandwidth:40MHz; Channel:Low EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 72 of 125 Test Mode: 00; Polarity: Horizontal; Modulation:802.11n; Bandwidth:40MHz; Channel:middle EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 73 of 125 Test Mode: 00; Polarity: Vertical; Modulation:802.11n; Bandwidth:40MHz; Channel:middle EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 74 of 125 Test Mode: 00; Polarity: Horizontal; Modulation:802.11n; Bandwidth:40MHz; Channel:High EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 75 of 125 Test Mode: 00; Polarity: Vertical; Modulation:802.11n; Bandwidth:40MHz; Channel:High EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 76 of 125 8 Test Setup Photo Conducted Emissions at AC Power Line (150kHz-30MHz) Radiated Spurious Emissions (Below 1GHz) EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 77 of 125 Radiated Spurious Emissions (Above 1GHz) Radiated Emissions which fall in the restricted bands EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 78 of 125 9 EUT Constructional Details (EUT Photos) Refer to Appendix - Photographs of EUT Constructional Details for GZCR2109021042AT EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 79 of 125 10 Appendix 1. Duty Cycle 1.1 Ant1 1.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 12.417 12.580 98.70 0.06 0.92 2437 12.420 12.580 98.73 0.06 0.84 2462 12.420 12.580 98.73 0.06 0.98 802.11g SISO 2412 2.061 2.235 92.21 0.35 5.11 2437 2.063 2.227 92.64 0.33 3.52 2462 2.063 2.235 92.30 0.35 5.93 802.11n (HT20) SISO 2412 1.919 2.092 91.73 0.37 5.02 2437 1.918 2.073 92.52 0.34 4.63 2462 1.917 2.092 91.63 0.38 4.57 802.11n (HT40) SISO 2422 0.941 1.097 85.78 0.67 9.39 2437 0.942 1.097 85.87 0.66 10.25 2452 0.942 1.115 84.48 0.73 10.78 EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 80 of 125 1.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 81 of 125 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 82 of 125 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 83 of 125 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 84 of 125 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 85 of 125 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 86 of 125 2. Bandwidth 2.1 OBW 2.1.1 Test Result Mode TX Type Frequency (MHz) Ant 99% Occupied Bandwidth (MHz) Verdict Result 802.11b SISO 2412 1 13.868 Pass 2437 1 13.906 Pass 2462 1 13.812 Pass 802.11g SISO 2412 1 17.693 Pass 2437 1 17.587 Pass 2462 1 17.622 Pass 802.11n (HT20) SISO 2412 1 18.534 Pass 2437 1 18.472 Pass 2462 1 18.501 Pass 802.11n (HT40) SISO 2422 1 37.522 Pass 2437 1 36.927 Pass 2452 1 36.714 Pass EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 87 of 125 2.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 Page: 88 of 125 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210902104201 …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.0 Page: 1 of 3 Appendix Test Setup Photo for GZCR2109021042AT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 2 of 3 EMC-ARF-04 Rev 1.0 Test Setup Photo Conducted Emissions at AC Power Line (150kHz-30MHz) Radiated Spurious Emissions (Below 1GHz) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Page: 3 of 3 EMC-ARF-04 Rev 1.0 Radiated Spurious Emissions (Above 1GHz)
