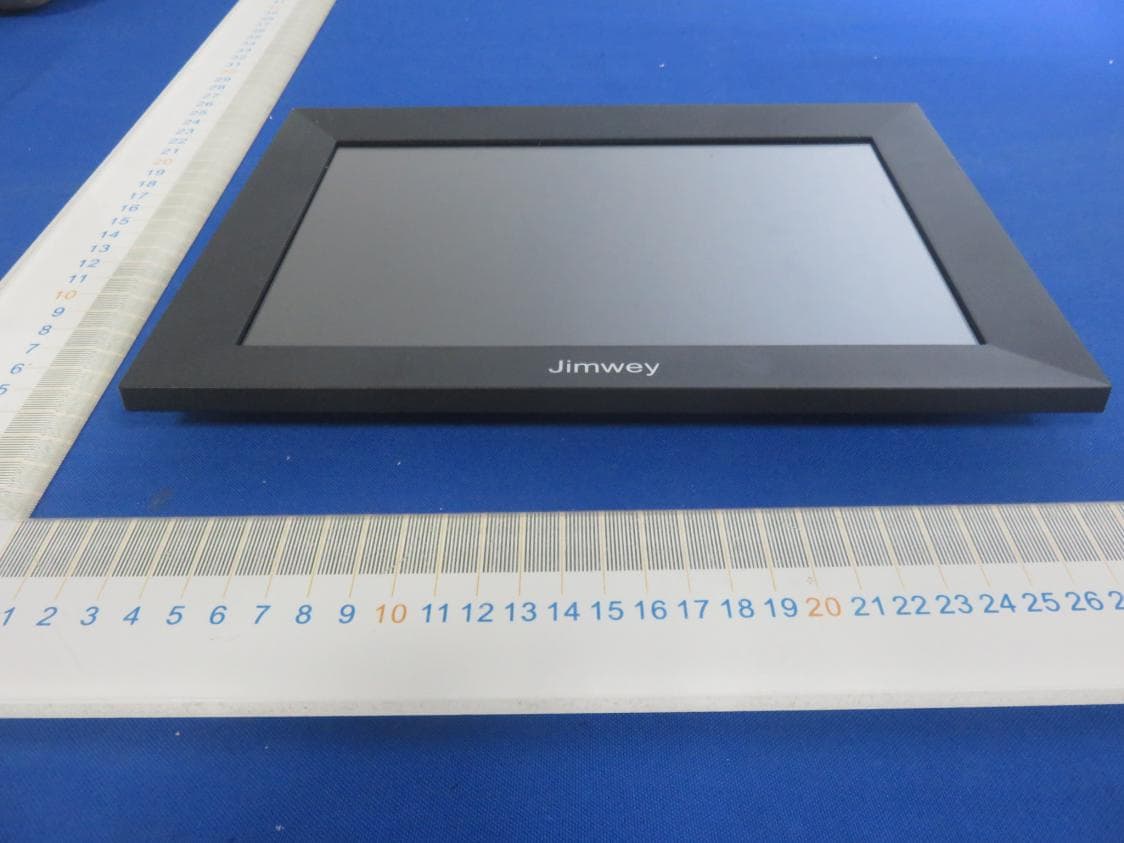

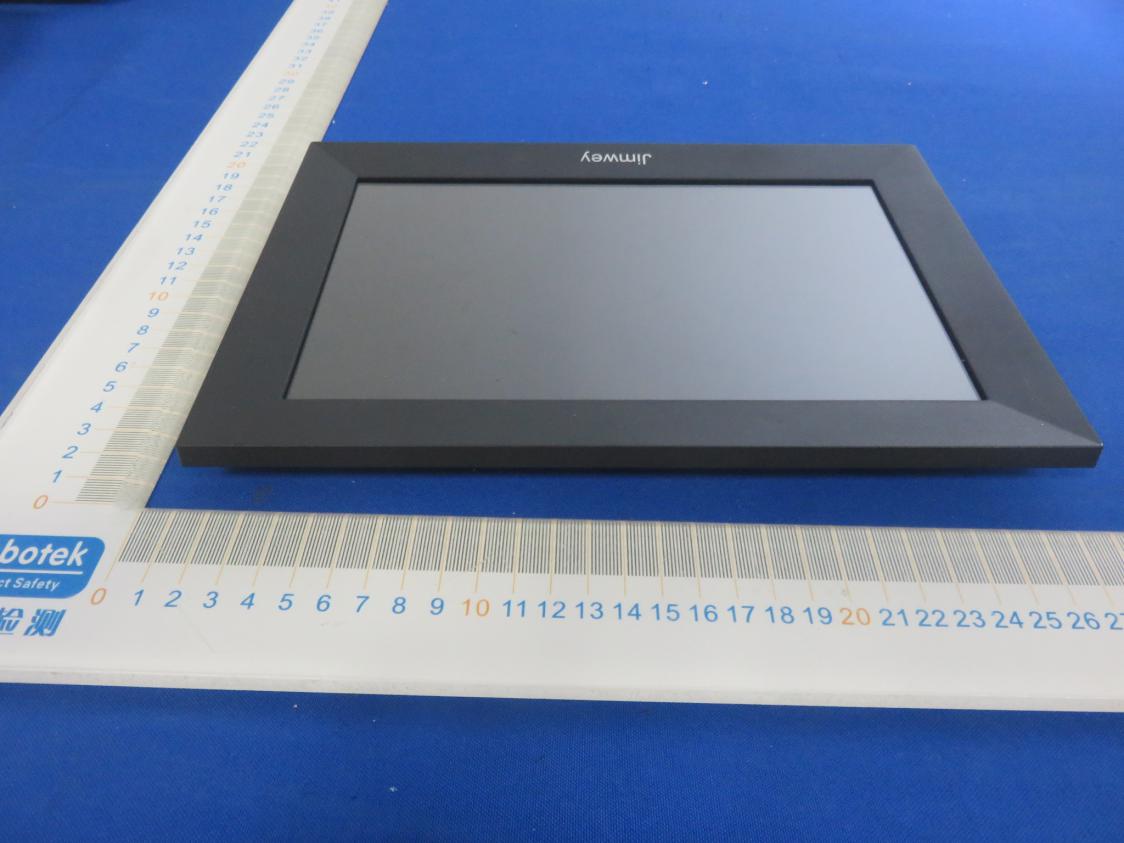

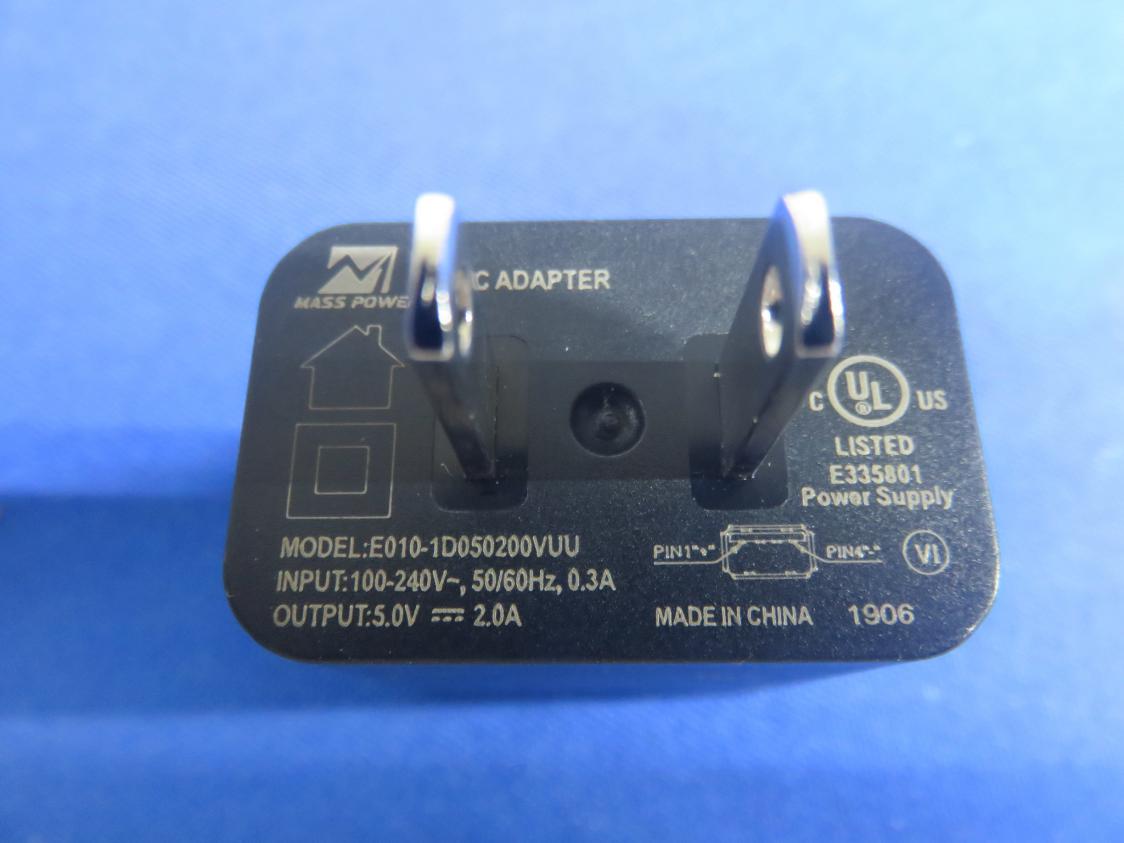

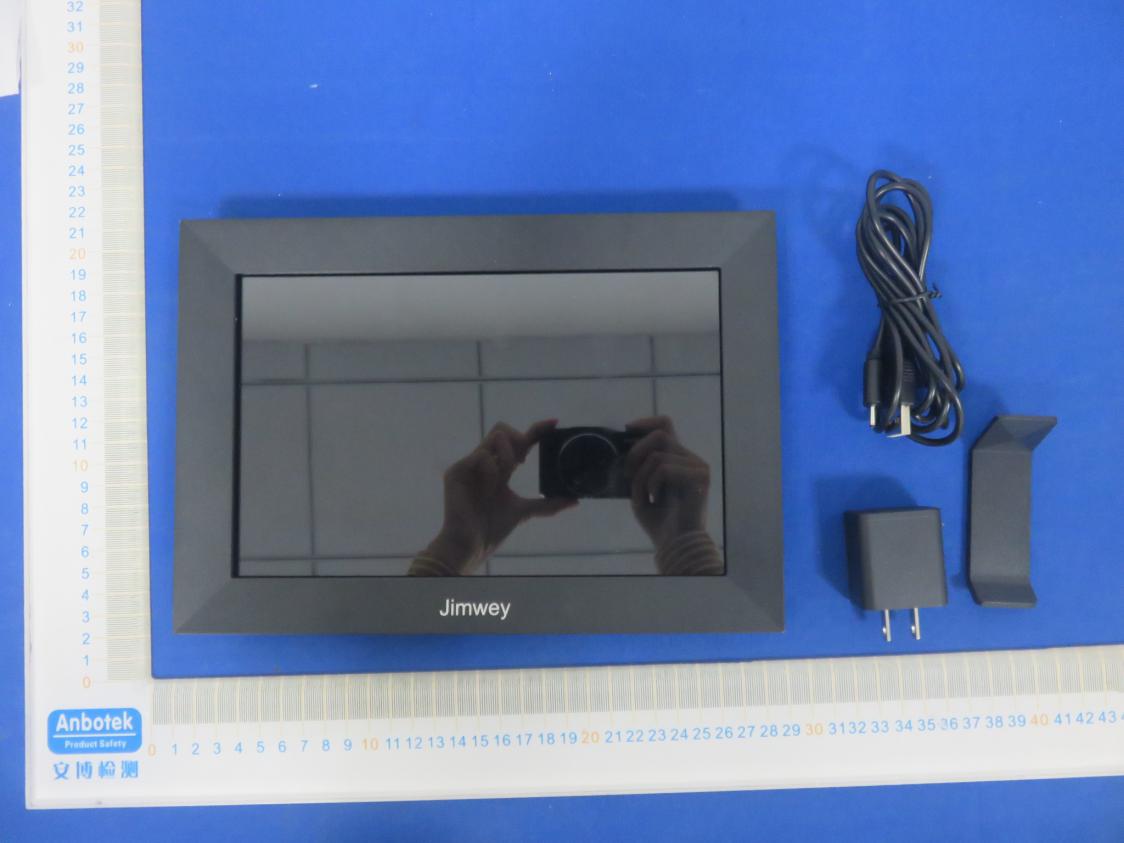

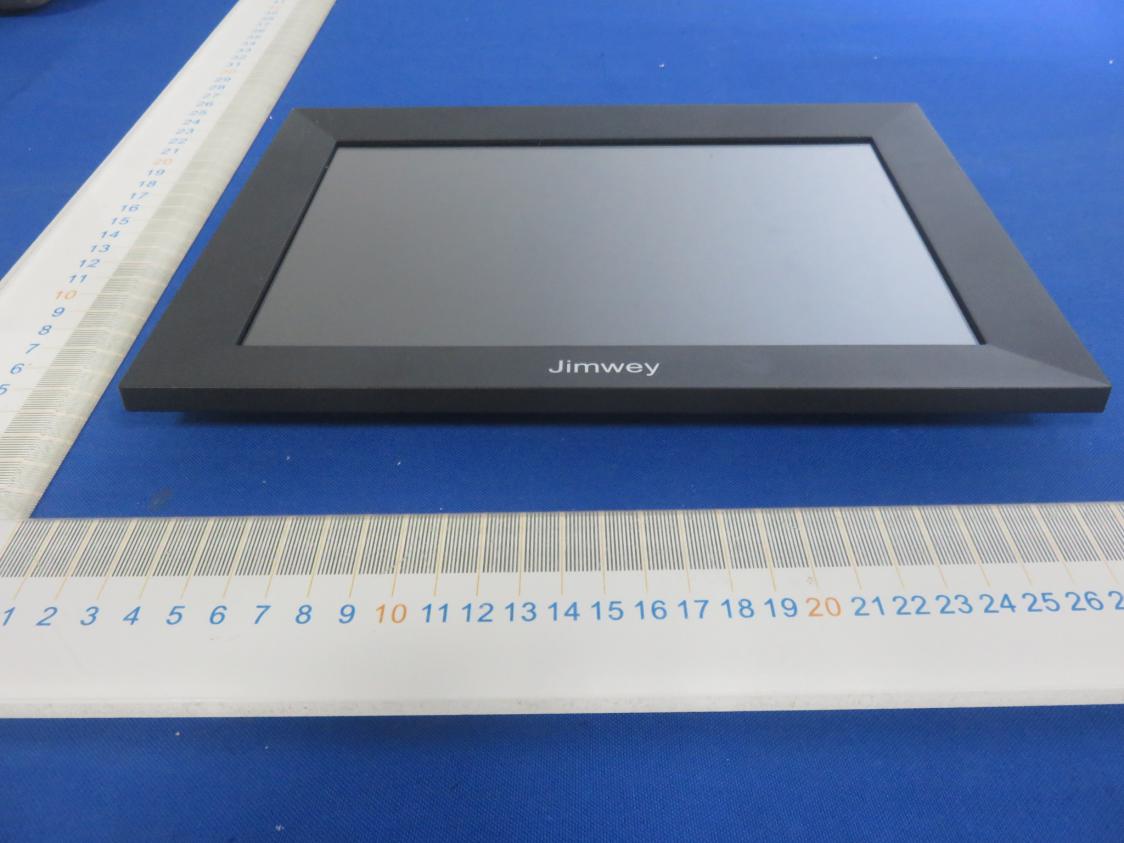

2ABC5-WF1036TWifi Digital Photo Frame

Wi-Fi Photo Frame User Manual English: P1-P13 German: P14-P26 Model：WF1036T 1 Preliminary notes These instructions are for reference only. The interface may change due to software occasional updates. If you need an updated version manual, you can contact our customer service or download it from our official website. You can also watch the operation video on our website. The following is the QR code and contact information of our official website. We are always at your service. www.jimwey.net www.facebook.com/jimwey.jimwey Email for customer service： [email protected] Contact directly via Facebook：m.me/Jimwey.net 2 Getting started Congratulations with your brand new digital photo frame! If you are new to using photo frame then start by following the Frameo quick setup or follow the on-screen guide when powering it on for the first time. Once you have set up your photo frame, you can start connecting it to your friends and family. Frameo app To send photos to your frame, use the Frameo app for iOS or Android. Find the Frameo app by scanning this code: F or Android: Search for “Frameo” on Google Play. For iOS: Search for “Frameo” on App Store. Frameo quick setup When starting your frame for the first time, you will need to setup the frame. ●Select a language. This will be the language used on the photo frame . ●Connect your frame to the internet by connecting it to a Wi-Fi. ●Photo frame may ask you to update to the latest version. It is recommende d t o update your frame before continuing if asked to. ●Enter your name and the location where you have placed your frame e.g. “John”, “Kitchen” or “Office”. Finally set the timezone if not already correct. 3 Start using photo frame Next step is to connect Frameo with your friends and family by providing them with a code from your frame. If you want to be able to send photos to the frame yourself, start by downloading the app for iOS or Android on App Store or Google Play . Then use the code to connect your frame and app as described below. Connecting a new friend Make sure that your friend has downloaded and installed the Frameo app. Click the add friend icon on your frame . A dialog will appear showing a connection code, which is valid for 12 hours. Now share this code in whatever fashion you prefer e.g. SMS, E-Mail, IM, phone call, to your friend. Once your friends have added the code in their Frameo app, they will automatically appear on your frame and be able to send you photos. Read chapter Change options for a friend to allow connected friends, to retrieve and share the connection code via the smartphone app. Navigating your photo frame Swipe left or right to go through your photos. To access the menu, simply tap once on the screen. 4 In the menu you will find the most used features. Add friend This will generate a code that you can share with your friends and family so they can connect and send photos to your frame. Gallery Opens a gallery which allows for easy and fast navigation through your photos. Settings Opens the Settings . Hide photo Hides the current photo. This means that the photo will no longer be shown in the slideshow. If needed the photo can be shown again through the settings menu. Fit to frame/Fill frame This toggles how the photo is shown. The Fill frame option is the default. The photo is scaled so that it fills the whole screen. It will be centered around what is selected as the most important part. See the first picture below. Fit to frame will make sure that the entire photo is shown on the screen. See the second picture below. 5 Adjust photo The adjust photo feature is only available when the photo is set to fill frame. It allows you to adjust the position of photo in the frame for an even better fit. Interacting with videos When a video is shown two additional controls are shown. One for play/pause of the video and one for mute/unmute of the video. Press to start the video playback. Pressing will pause the video playback. Pressing will mute the video while pressing will unmute the video. If you need to adjust the video volume, you need to adjust through the following settings: Settings -- Slideshow-- Video volume. Power menu Click on the screen, the power icon will appear in the top right corner of the screen, tap it to access the power menu. Here you can power off using , restart your frame using or enter sleep mode using . NB . Make sure to use the power off button on the device or in the power menu to turn photo frame off. Never disconnect power when photo frame is running. 6 Settings Through the settings, you can personalize your frame to your needs. My frame Frame name Changes the name of your frame. This is also the name that connected friends and family will see in their list of connected frames in the smartphone app. Frame location Changes the location of your frame. This is the location displayed on your friends' and family's list of connected frames which can help to distinguish frames from each other. Set language Sets the language used on the frame. Set time zone Sets the time zone used on the frame. Use 24-hour format Enables /disables 24-hour time format. Manage photos In the manage photos menu you can see how many photos are on your frame and the storage they use. You can also see the amount of storage left available on your device for storing new photos. Show/hide photos Select which photos to hide by tapping them. Hidden photos will NOT be deleted from your frame and you can always select them to be shown again. Use to hide or show all photos. Delete photos Select photos that you want to permanently delete from your frame by tapping the photo. Use to select or deselect all and to permanently delete the selected photos. 7 Import photos Allows you to import photos from a micro SD card. Before you try to import photos, make sure you have a micro SD card inserted into your frame with the photos you wish to import. Start by selecting the photos that you want to import onto your frame. Once selec…

Text truncated - open the document above for the full version.

SHENZHENELECTRONTECHNOLOGYCO.,LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/04/27 Subject; Request for Confidentiality FCC ID: 2ABC5-WF1036T To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description FCC Software Configuration Control Declaration In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yonghong Li Title: Manager

SHENZHEN ELECTRON TECHNOLOGY CO.,LTD. Letter of Authorization Company: SHENZHEN ELECTRON TECHNOLOGY CO.,LTD. Address: Building 2, Yingfeng Industrial Zone, Tantou Community, Songgang Street, Bao'an, Shenzhen, China Product Name: Wifi Digital Photo Frame Model Number(s): WF1036T Product Description: Wifi Digital Photo Frame We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 29/04/2020 Name:Yonghong Li Title:Manager Company: SHENZHEN ELECTRON TECHNOLOGY CO.,LTD.

FCC ID: 2ABC5-WF1036T

Label Location:

Product Name: Wifi Digital Photo Frame Model No.: WF1036T FCC ID: 2ABC5-WF1036T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2ABC5-WF1036T ANT

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2ABC5-WF1036T EUT Specification EUTWifi Digital Photo Frame Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.24GHz WLAN: 5.745GHz ~ 5.825GHz Others: 2.402GHz~2.480GHz (BLE) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classificationOccupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversitySingle antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power15.28 dBm (0.0337W) Antenna gain (Max)1.5 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500----F/3006 1500-100000----56 (B) Limits for General Population/Uncontrol Exposures 300-1500----F/15006 1500-100000----130 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result 2.4GHz WiFi: Operating Mode Channel Frequency Measured Power Tune up tolerance Max. Tune up Power Antenna Gain Power density at 20cm Power density Limits (mW/cm 2 ) (MHz)(dBm)(dBm)(dBm)(dBi)(mW/ cm 2 ) 802.11b 241214.70 14.70±115.701.50.01041 243715.28 15.28±116.281.50.01191 246215.20 15.20±116.201.50.01171 802.11g 241211.93 11.93±112.931.50.00551 243712.47 12.47±113.471.50.00621 246212.93 12.93±113.931.50.00691 802.11n (HT20) 241211.88 11.88±112.881.5 0.0055 1 243712.36 12.36±113.361.50.00611 246212.62 12.62±113.621.50.00651 802.11n (HT40) 2422 12.86 12.86±113.861.50.00681 2437 12.78 12.78±113.781.50.00671 2452 13.15 13.15±114.151.50.00731

Report No.: 18220WC00022801FCC ID: 2ABC5-WF1036TPage 1 of 72 Code:AB-RF-05-a FCC TEST REPORT Client Name: SHENZHEN ELECTRON TECHNOLOGY CO.,LTD. Address: Building 2, Yingfeng Industrial Zone, Tantou Community, Songgang Street, Bao'an, Shenzhen, China Product Name: Wifi Digital Photo Frame Date: Apr. 29, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00022801FCC ID: 2ABC5-WF1036TPage 2 of 72 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 5 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 7 1.6. Description Of Test Setup ......................................................................................................................... 8 1.7. Test Equipment List .................................................................................................................................... 9 1.8. Measurement Uncertainty ....................................................................................................................... 10 1.9. Description of Test Facility ...................................................................................................................... 10 2. Summary of Test Results ................................................................................................................................... 11 3. Conducted Emission Test ................................................................................................................................... 12 3.1. Test Standard and Limit .......................................................................................................................... 12 3.2. Test Setup .................................................................................................................................................. 12 3.3. Test Procedure .......................................................................................................................................... 12 4. Radiation Spurious Emission and Band Edge ................................................................................................ 17 4.1. Test Standard and Limit .......................................................................................................................... 17 4.2. Test Setup .................................................................................................................................................. 17 4.3. Test Procedure .......................................................................................................................................... 18 4.4. Test Data .................................................................................................................................................... 19 5. Maximum Peak Output Power Test .................................................................................................................. 29 5.1. Test Standard and Limit .......................................................................................................................... 29 5.2. Test Setup .................................................................................................................................................. 29 5.3. Test Procedure .......................................................................................................................................... 29 5.4. Test Data .................................................................................................................................................... 29 6. 6DB Occupy Bandwidth Test ............................................................................................................................. 33 6.1. Test Standard and Limit .......................................................................................................................... 33 6.2. Test Setup .................................................................................................................................................. 33 6.3. Test Procedure ............................................................................................................................... ........... 33 6.4. Test Data .................................................................................................................................................... 33 7. Power Spectral Density Test .............................................................................................................................. 41 7.1. Test Standard and Limit .......................................................................................................................... 41 7.2. Test Setup .................................................................................................................................................. 41 7.3. Test Procedure .......................................................................................................................................... 41 7.4. Test Data .....................................................................................................................…

Text truncated - open the document above for the full version.

PHOTOSOFTESTSETUP FCC ID: 2ABC5-WF1036T Photo of PowerLine Conducted Emission Test Photo of Radiation Emission Test
