2ABC8-PP200850SEDUAL TEC Motion Sensor

DT8035 DUAL TEC ® Motion Sensor - Installation Instructions QUICK LINKS Mounting Location Guidelines Open the Sensor Mount the Sensor Sensor Components and Settings Wire the Sensor Walk Test the Sensor Detection Patterns Relay Operation Troubleshooting Sensor Specifications Accessories Approval / Listings Mounting location guidelines: • The optimal range is obtained at a mounting height of 7’ 6” (2.3 m). • Allow a clear line-of-sight to all areas to protect. • Do not directly face windows. • Avoid close proximity to moving machinery, fluorescent lights, and heating/cooling sources. • For use in applications with pets up to 100 pounds. 1. Turn the arrow to point to the Unlock symbol. 2. Press firmly on housing latch. 3. Gently separate the front and rear housing. ↑ Top ↑ Top - 2 - • [A] = Wall mounting holes. • [B] = Corner mounting holes. • The rear tamper plate MUST be mounted to a stud, solid wood, or with a robust wall anchor. ↑ Top ↑ Top ↑ Top - 3 - LED Power Up Walk Test Normal Trouble Red Slow Blink ON Alarm ON Alarm Fast Blink Yellow OFF ON Microwave ON Microwave OFF Green OFF ON PIR ON PIR OFF Zones A 2 Look-down B 18 Lower C 46 Intermediate D 36 Long 1. Close the sensor and apply power to the sensor. Initialization is complete when the LED stops flashing slowly (about 30 seconds). 2. Walk through the detection area and observe the LED. 3. Adjust the microwave range as necessary to meet installation requirements. Walk test mode is active for 10 minutes, then automatically exits test mode, disables the LED and enters normal operation mode. For an additional 10 minute walk test, enable Walk Test mode again with the Flashlight feature: Note: In Walk Test mode the LED is active regardless of the LED Enable/Disable Dip switch setting. Flashlight Feature: 1. Use a flashlight with a bright light beam, and stand within 4’ (1.2 m) of the sensor. 2. Swing past the light beam across the sensor IR window 3-5 times, holding the beam on the window for 0.5 second each pass. The flashlight feature is only available for the first 24 hours after installation. ↑ Top ↑ Top - 4 - RELAY OPERATION SENSOR STATUS Normal Intrusion Trouble 1 Alarm Relay Closed Open Open 1 For information on Trouble conditions, see the Troubleshooting section. TROUBLESHOOTING TROUBLE* NORMAL Self-Test Failure 1 Alarm Relay Closed Closed Red LED Off Flashing *TROUBLE CONDITIONS: 1 Self-Test Failure conditions: • Microwave supervision failure: The sensor is operating in PIR mode only. • PIR self-test failure: The sensor is disabled. • Temperature compensation failure: The temperature compensation is disabled. Depending on the Trouble condition, take the following corrective actions: • Verify the power supply is sufficient (at least 9V at the sensor). • Cycle power to the sensor. • Walk test the sensor. If the Trouble condition does not clear, replace the sensor. SPECIFICATIONS Range: 40’ x 60’ / 12 m x 20 m Power: 9.0 - 15 VDC; 15 mA typical, 17 mA maximum, 12 VDC; AC Ripple: 3 V peak-to-peak at nominal 12 VDC Alarm Relay: Energized Form A; 30 mA, 25 VDC, 22 Ohms resistance maximum. Alarm Relay Duration: 3 seconds Tampers: Cover & Wall; (NC with cover installed) Form A; 30 mA, 25 VDC Microwave Frequencies: 10.525 GHz RFI Immunity: 20V/m 10-1000MHz, 15V/m 1000-2700MHz PIR White Light Immunity: 6,500 Lux typical Fluorescent light filter: 50 Hz / 60 Hz. Operating Temperature: 14° to 131° F / -10° to 55° C Relative Humidity: 5 to 95%; non-condensing Temperature Compensation: Advanced Dual Slope Dimensions: 4.57” H x 2.76” W x 1.69” D / 9.8 cm H x 5.7 cm W x 4.35 cm D Weight: 3.6 oz / 102 g (net weight) ACCESSORIES SMB-10 (P/N 0-000-110-01) Swivel Mount Bracket SMB-10C (P/N 0-000-111-01) Swivel Mount Ceiling Bracket SMB-10T (P/N 0-000-155-01) Swivel Mount Bracket w/Tamper DT8-G2 Lens Kit (P/N DT8G2LENS5PK) Replacement Fresnel Lens Kit – 5 Pack APPROVAL / LISTINGS: • FCC part 15, Class B verified • IC ICES-003, Class B verified • UL 639 • ULC S306-03 • SIA-PIR-01 Passive Infrared detector standard features for false alarm immunity. Product must be tested at least once each year. For appropriate wiring methods, refer to the National Electrical Code NFPA 70 and the Canadian Electrical Code (where applicable). Power must be provided by a power-limited UL603 Listed burglar alarm power supply with minimum 4 hours of standby power capability, or from a power-limited output of a UL Listed burglar alarm control unit with minimum 4 hours of standby power capability. Accessories not evaluated by UL. For UL applications, enable look down and disable pet immunity. For the latest documentation and online support information, please go to: http://www.security.honeywell.com/hsc/resources/MyWebTech/ For the latest U.S. warranty information, please go to: www.honeywell.com/security/hsc/resources/wa or Please contact your local authorized Honeywell representative for product warranty information.  2013 Honeywell International Inc. Honeywell and DUAL TEC are registered trademarks of Honeywell International Inc. All other trademarks are the properties of their respective owners. All rights reserved. Made in China. P/N 800-16553 12/13 Rev A 2 Corporate Center Drive, Suite 100 P.O. Box 9040, Melville, NY 11747 www.honeywell.com/security FEDERAL COMMUNICATIONS COMMISSION STATEMENTS The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. CLASS B DIGITAL DEVICE STATEMENT This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information: This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to com…

Text truncated - open the document above for the full version.

DT8050 DUAL TEC ® Motion Sensor - Installation Instructions QUICK LINKS Mounting Location Guidelines Open the Sensor Mount the Sensor Sensor Components and Settings Wire the Sensor Walk Test the Sensor Detection Patterns Relay Operation Troubleshooting Sensor Specifications Accessories Approval / Listings Mounting location guidelines: • The optimal range is obtained at a mounting height of 7’ 6” (2.3 m). • Allow a clear line-of-sight to all areas to protect. • Do not directly face windows. • Avoid close proximity to moving machinery, fluorescent lights, and heating/cooling sources. 1. Turn the arrow to point to the Unlock symbol. 2. Press firmly on housing latch. 3. Gently separate the front and rear housing. - 2 - • [A] = Wall mounting holes. • [B] = Corner mounting holes. • The rear tamper plate MUST be mounted to a stud, solid wood, or with a robust wall anchor. - 3 - LED Power Up Walk Test Normal Trouble Red Slow Blink ON Alarm ON Alarm Fast Blink Yellow OFF ON Microwave ON Microwave OFF Green OFF ON PIR ON PIR OFF Zones A 2 Look-down B 18 Lower C 46 Intermediate D 36 Long 1. Close the sensor and apply power to the sensor. Initialization is complete when the LED stops flashing slowly (about 30 seconds). 2. Walk through the detection area and observe the LED. 3. Adjust the microwave range as necessary to meet installation requirements. Walk test mode is active for 10 minutes, then automatically exits test mode, disables the LED and enters normal operation mode. For an additional 10 minute walk test, enable walk test mode again with the flashlight feature: Note: During power up and walk test modes the LED is active regardless of the LED Enable/Disable Dip switch setting. Flashlight Feature: 1. Use a flashlight with a bright light beam, and stand within 4’ (1.2 m) of the sensor. 2. Swing the light beam past the sensor IR window 3-5 times, holding the beam on the window for 0.5 second each pass. The flashlight feature is only available for the first 24 hours after the first power up. - 4 - RELAY OPERATION SENSOR STATUS Normal Intrusion Trouble 1 Alarm Relay Closed Open Open 1 For information on Trouble conditions, see the Troubleshooting section. TROUBLESHOOTING TROUBLE* NORMAL Self-Test Failure 1 Alarm Relay Closed Closed Red LED Off Flashing *TROUBLE CONDITIONS: 1 Self-Test Failure conditions: • Microwave supervision failure: The sensor is operating in PIR mode only. • PIR self-test failure: The sensor is disabled. • Temperature compensation failure: The temperature compensation is disabled. Depending on the Trouble condition, take the following corrective actions: • Verify the power supply is sufficient (at least 9V at the sensor). • Cycle power to the sensor. • Walk test the sensor. If the Trouble condition does not clear, replace the sensor. SPECIFICATIONS Range: 53’ x 60’ / 16 m x 18 m Power: 9.0 - 15 VDC; 15 mA typical, 17 mA maximum, 12 VDC; AC Ripple: 3 V peak-to-peak at nominal 12 VDC Alarm Relay: Energized Form A; 30 mA, 25 VDC, 22 Ohms resistance maximum. Alarm Relay Duration: 3 seconds Tampers: Cover & Wall; (NC with cover installed) Form A; 30 mA, 25 VDC Microwave Frequencies: 10.525 GHz RFI Immunity: 20V/m 10-1000MHz, 15V/m 1000-2700MHz PIR White Light Immunity: 6,500 Lux typical Fluorescent light filter: 50 Hz / 60 Hz. Operating Temperature: 14° to 131° F / -10° to 55° C Relative Humidity: 5 to 95%; non-condensing Temperature Compensation: Advanced Dual Slope Dimensions: 4.57” H x 2.76” W x 1.69” D / 9.8 cm H x 5.7 cm W x 4.35 cm D Weight: 3.6 oz / 102 g (net weight) ACCESSORIES SMB-10 (P/N 0-000-110-01) Swivel Mount Bracket SMB-10C (P/N 0-000-111-01) Swivel Mount Ceiling Bracket SMB-10T (P/N 0-000-155-01) Swivel Mount Bracket w/Tamper DT8-G2 Lens Kit (P/N DT8G2LENS5PK) Replacement Fresnel Lens Kit – 5 Pack APPROVAL / LISTINGS: • FCC part 15, Class B verified • IC ICES-003, Class B verified • UL 639 • ULC S306-03 • SIA-PIR-01 Passive Infrared detector standard features for false alarm immunity. Product must be tested at least once each year. For appropriate wiring methods, refer to the National Electrical Code NFPA 70 and the Canadian Electrical Code (where applicable). Power must be provided by a power-limited UL603 Listed burglar alarm power supply with minimum 4 hours of standby power capability, or from a power-limited output of a UL Listed burglar alarm control unit with minimum 4 hours of standby power capability. Accessories not evaluated by UL. For UL applications, enable look down. For the latest documentation and online support information, please go to: http://www.security.honeywell.com/hsc/resources/MyWebTech/ For the latest U.S. warranty information, please go to: www.honeywell.com/security/hsc/resources/wa or Please contact your local authorized Honeywell representative for product warranty information.  2013 Honeywell International Inc. Honeywell and DUAL TEC are registered trademarks of Honeywell International Inc. All other trademarks are the properties of their respective owners. All rights reserved. Made in China. P/N 800-16696 12/13 Rev A 2 Corporate Center Drive, Suite 100 P.O. Box 9040, Melville, NY 11747 www.honeywell.com/security FEDERAL COMMUNICATIONS COMMISSION STATEMENTS The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. CLASS B DIGITAL DEVICE STATEMENT This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information: This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15 of F…

Text truncated - open the document above for the full version.

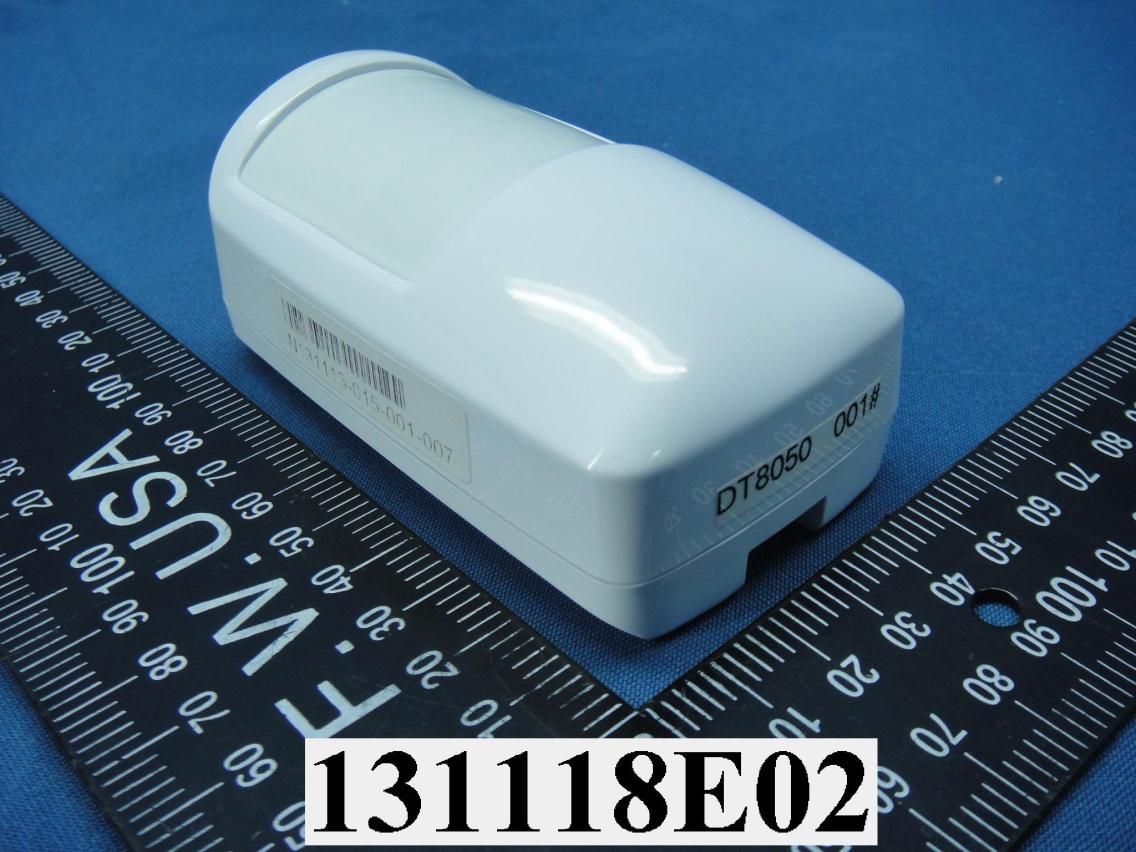

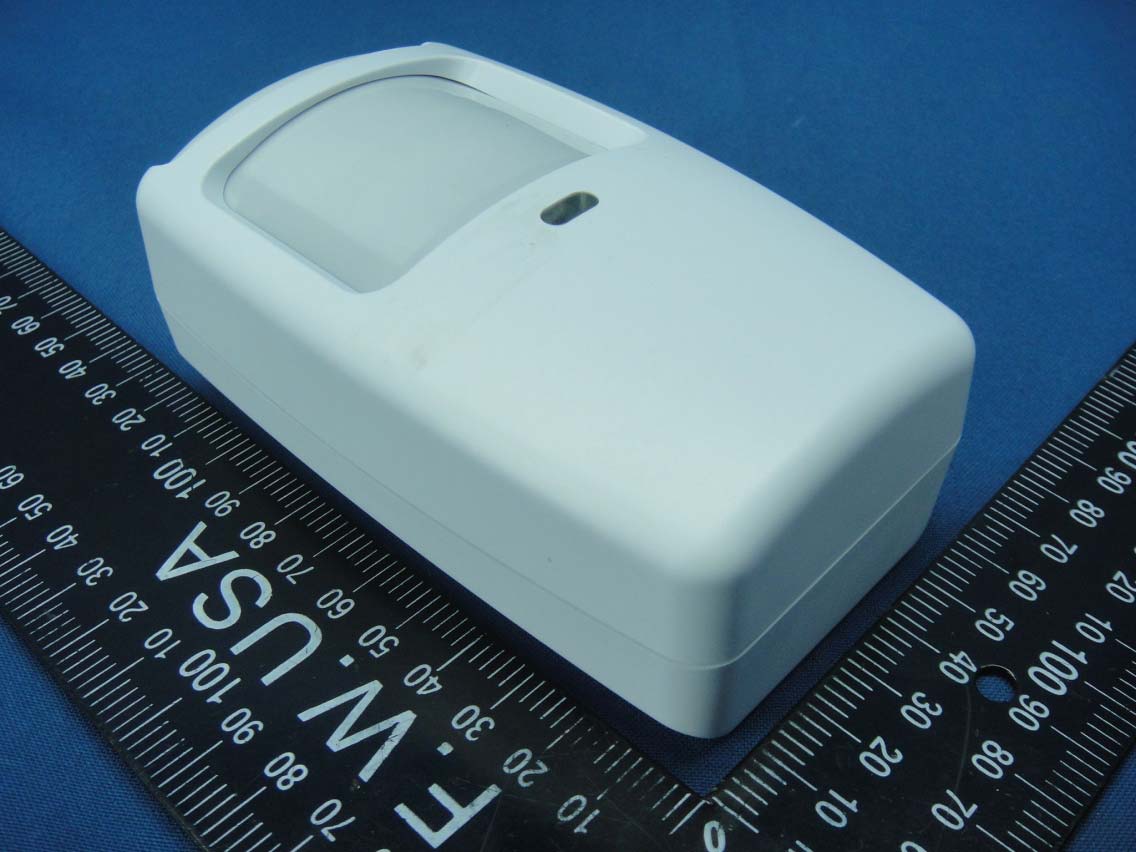

Report No.: 131118E02A 1 of 2 Report No.: 140128E01 CONSTRUCTION PHOTOS OF EUT Model No.: DT8050 Report No.: 131118E02A 2 of 2 Report No.: 140128E01 Model No.: DT8035

(Fig.1) FCC ID: 2ABC8-PP200850SE PROPOSED FCC ID LABEL AND LOCATION The label will be permanently affixed at a conspicuous location on the device.

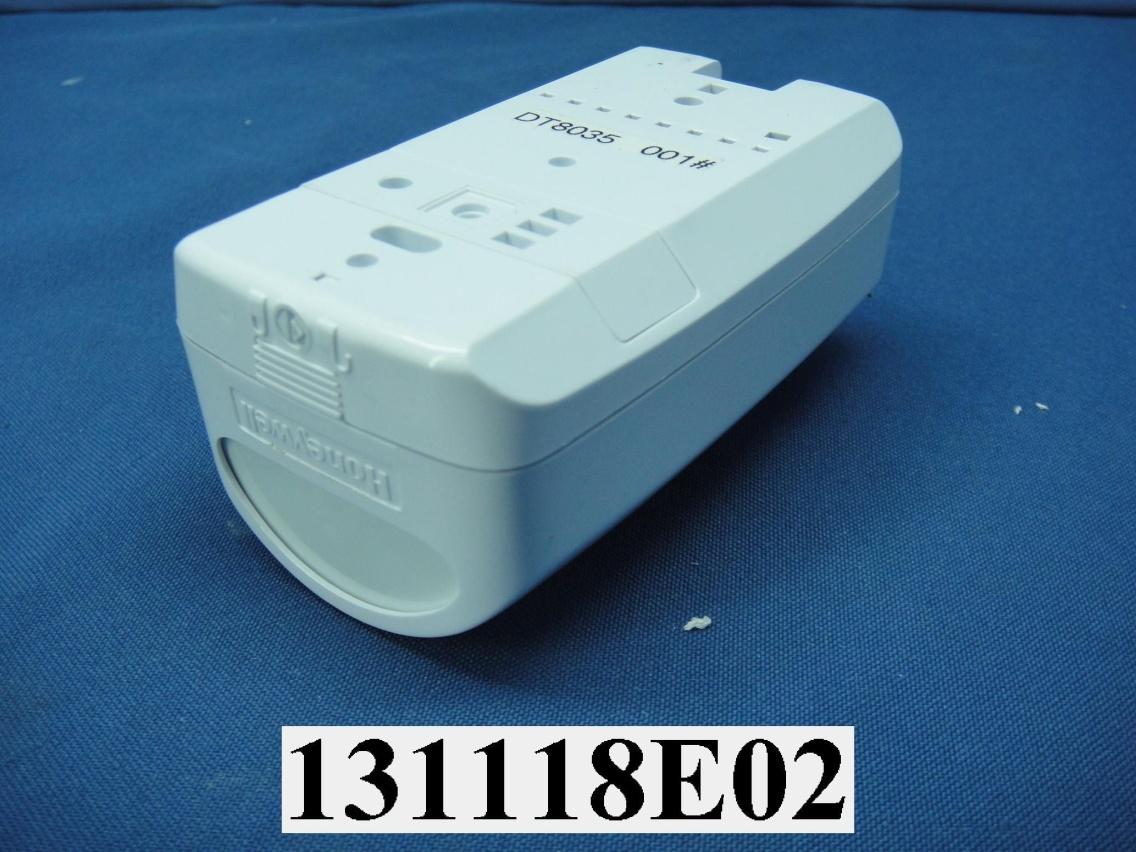

Report No.: 131118E02A 1 of 10 Report No.: 140128E01 CONSTRUCTION PHOTOS OF EUT Model No.: DT8050 Report No.: 131118E02A 2 of 10 Report No.: 140128E01 Report No.: 131118E02A 3 of 10 Report No.: 140128E01 Report No.: 131118E02A 4 of 10 Report No.: 140128E01 Report No.: 131118E02A 5 of 10 Report No.: 140128E01 Report No.: 131118E02A 6 of 10 Report No.: 140128E01 Model No.: DT8035 Report No.: 131118E02A 7 of 10 Report No.: 140128E01 Report No.: 131118E02A 8 of 10 Report No.: 140128E01 Report No.: 131118E02A 9 of 10 Report No.: 140128E01 Report No.: 131118E02A 10 of 10 Report No.: 140128E01

Report No.: RF131118E02A 1 of 33 Report Format Version 5.0.0 Reference No.: 140128E01 FCC TEST REPORT REPORT NO.: RF131118E02A MODEL NO.: DT8050, DT8035 FCC ID: 2ABC8-PP200850SE RECEIVED: Nov. 18, 2013 TESTED: Nov. 19 to 22, 2013 and Feb. 05 to 06, 2014 ISSUED: Feb. 13, 2014 APPLICANT: Honeywell Security Sensor CoE ADDRESS: 38F, Block A of Galaxy Century Building, No.3069 Caitian Road, Fu Tian District, Shenzhen, China ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF131118E02A 2 of 33 Report Format Version 5.0.0 Reference No.: 140128E01 Table of Contents RELEASE CONTROL RECORD................................................................................. 3 1 CERTIFICATION ............................................................................................. 4 2 SUMMARY OF TEST RESULTS ..................................................................... 5 2.1 MEASUREMENT UNCERTAINTY .................................................................. 5 3 GENERAL INFORMATION ............................................................................. 6 3.1 GENERAL DESCRIPTION OF EUT ................................................................ 6 3.2 DESCRIPTION OF TEST MODES .................................................................. 7 3.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .................. 7 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................. 9 3.5 DESCRIPTION OF SUPPORT UNITS .......................................................... 10 3.6 CONFIGURATION OF SYSTEM UNDER TEST ............................................11 4 TEST PROCEDURES AND RESULTS ......................................................... 12 4.1 CONDUCTED EMISSION MEASUREMENT ................................................ 12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 12 4.1.2 TEST INSTRUMENTS .................................................................................. 12 4.1.3 TEST PROCEDURES ................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD ......................................................... 13 4.1.5 TEST SETUP ................................................................................................ 13 4.1.6 EUT OPERATING CONDITIONS .................................................................. 14 4.1.7 TEST RESULTS (MODE 1) ........................................................................... 15 4.1.8 TEST RESULTS (MODE 2) ........................................................................... 17 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ........................ 19 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ..... 19 4.2.2 TEST INSTRUMENTS .................................................................................. 20 4.2.3 TEST PROCEDURES ................................................................................... 21 4.2.4 DEVIATION FROM TEST STANDARD ......................................................... 22 4.2.5 TEST SETUP ................................................................................................ 23 4.2.6 EUT OPERATING CONDITIONS .................................................................. 23 4.2.7 TEST RESULTS (MODE 1) ........................................................................... 24 4.2.8 TEST RESULTS (MODE 2) ........................................................................... 27 4.3 BANDEDGE MEASUREMENT ..................................................................... 28 4.3.1 LIMITS OF BANDEDGE................................................................................ 28 4.3.2 TEST INSTRUMENTS .................................................................................. 28 4.3.3 TEST PROCEDURE ..................................................................................... 28 4.3.4 DEVIATION FROM TEST STANDARD ......................................................... 28 4.3.5 EUT OPERATING CONDITION .................................................................... 28 4.3.6 TEST RESULTS ..........................................................................…
