Internet Radio User Manual Please read this user manual carefully before using the receiver. MA-80 Contents Location of Controls ...................................1 Remote control........................................2 Enter encryption code of the Wi-Fi router..................3 Connect the radio with your Wi-Fi Router . ................5

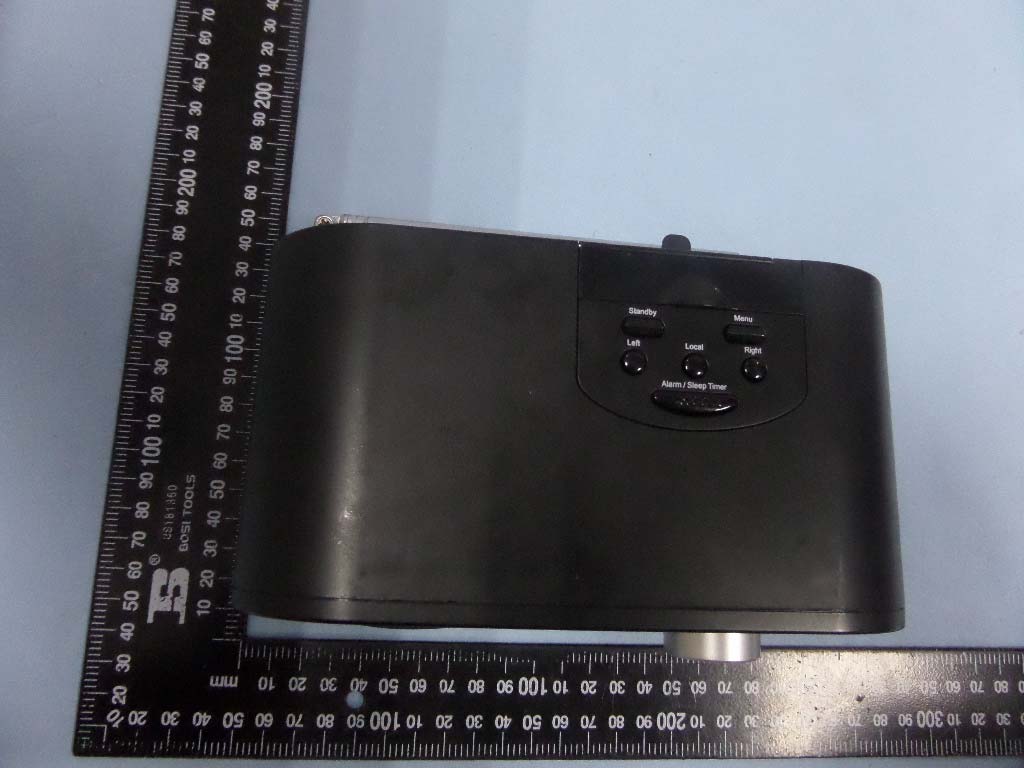

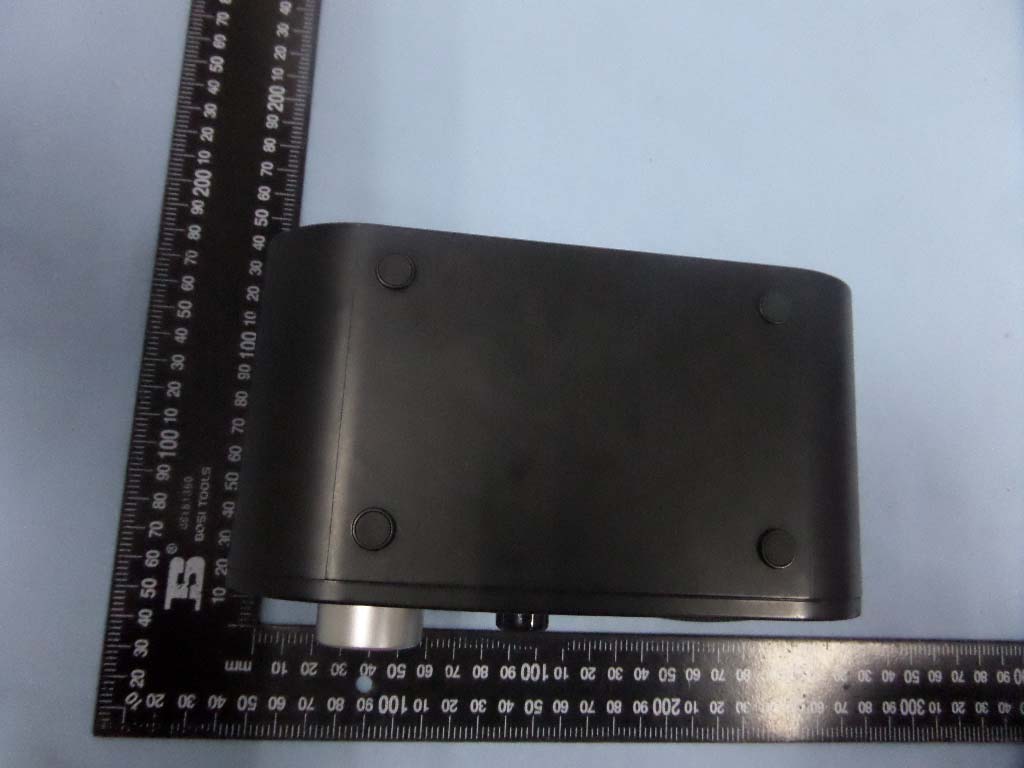

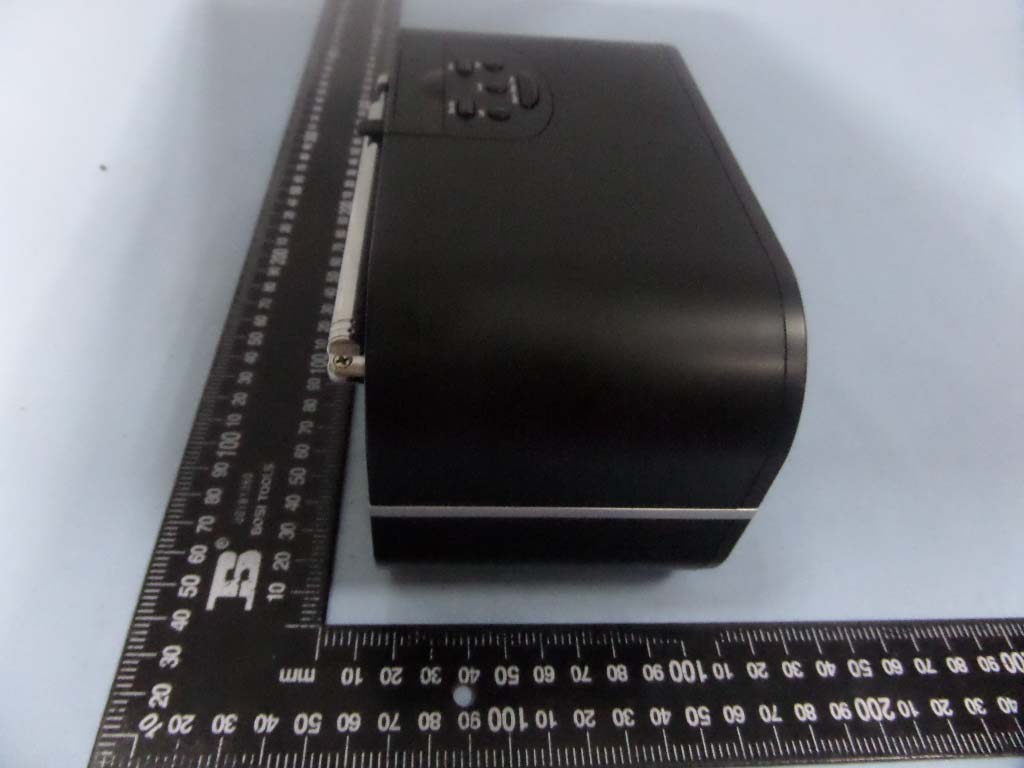

Ethernet connection ...................................6 Start using internet radio ...............................6 My Favorite .......................................6 Internet Radio.....................................7 Media Centre......................................8 Alarm Setting.....................................11 Snooze. . . . ......................................12 Sleep Timer......................................12 Configuration . . . . . . ..............................12 Add your favorite URL.................................14 Music Streaming from mobile devices ...................15 Helpful Tips..........................................16 Technical Specification. . ..............................17 Front Back Location of Controls 1 Tune / Select Volume 12 13 1415 Ethernet Line Out 1618171920 To p 3214 LocalRight FAV.+ StandbyMenu Left Alarm / Sleep Timer 2345617 8910 11 1. Standby - Press to turn on the radio/standby 2-5. Individual favourite keys no. 1-4 Long press to preset; short press to recall 6. FAV - Recall list of favorite stations 7. Menu – Press to enter menu 8. Left - Back to previous menu - Left cursor 9. Alarm / Sleep Timer / Snooze - Press briefly to set the Sleep Timer - Long pressing to set Alarm - When alarm sounds, press to stop the alarm for 9 minutes 10. Local - Quick access the local station in your country 11. Right - Right cursor - Under Favorite list, press to enter the edit menu 12. Speaker 13. Volume control 14. LCD display - On Standby mode, rotate the Tune/Select knob to adjust the brightness level 15. Tune/ Select control - Rotate to tune and push to select 16. Ethernet port - plug in the LAN cable and the radio will switch to Ethernet from Wi-Fi in seconds 17. 3.5 mm Line out jack 18. Telescopic antenna for FM 19. 3.5 mm Earphone jack 20. DC jack 5V IN Remote Control 2 1. Power: Standby on/off 2. Mute: Speaker on/off 3. 0-9: Input numbers for encryption code, recall favorite stations, enter index number to select item from the list. Toggle the same numeric key gives you a choice to input letters 4. : Return to Main Menu 5. Mode: Switch between Internet radio/FM Radio / Media Centre 6. Alarm: Alarm Setting 7. : Preset the current playing station to Favorite 8. : Recall the favorite list 9. Local: Access radio stations in your local country 10. Last: Switch between the current listening station and the last listened station 11. ↑: Cursor up 12. ↓: Cursor down 13. ←: Cursor left/Back 14. →: Cursor right 15. Info: Quick access the network and system information 16. Enter: Confirm selection 17. : Next (next item in the list: next station, next track) 18.  : Previous (Previous item in the list: previous station, previous track) 19. Volume +: Increase volume 20. Volume -: Decrease volume 21. Sleep: Sleep Timer setting  Mode Alarm Sleep Enter Info Local Last Enter encryption code of the Wi-Fi router Using remote control When you want to enter the letters, numbers or symbols for the encryption code, using remote control would be easy to complete the job. Here is the definition of each key and press the same button to cycling through different letters / symbol available After each entry, press the right key to input the next. When it is done, press Enter to confirm. Key 1: 1 and different kind of symbols !@#$%^&*()_+[]{};:'”\|,./<>? Key 2: 2ABCabc Key 3: 3DEFdef Key 4: 4GHIghi Key 5: 5JKLjkl Key 6: 6MNOmno Key 7: 7PQRSpqrs Key 8: 8TUVtuv Key 9: 9WXYZwxyz Key 0: 0 Using buttons on the radio Use the Dial control to scroll through the letters or symbols, press right key to input the next entry. Press the Dial knob when it is done. 3 Before you start Please ensure the following is ready: You have a broadband internet connection. A wireless broadband router is connected to the internet successfully. The radio supports Wireless B, G and N connection (Wireless N router can also be used with the setting on B or G). You know the Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access (WPA) data encryption code/password. You need to key in the correct code when the radio is connected to the wireless router for network connection. If you do not know the code/password, please contact the person /technician who set up the router/network for you. The radio can work via Wireless network connection (Wi-Fi connection) Precautions The radio should not be used in a high temperature or high humidity environment over prolonged periods of time as this may damage the unit. Keep the radio away from liquids as it may get damaged. Please switch off the radio immediately if water or liquids is spilled into the radio. Consult with the shop you bought this radio for any question. Avoid using or storing the unit in dusty or sandy environment. Do not open and repair the radio by yourself. Use only the AC adaptor supplied with the radio. Connecting a power supply with a different rating will cause permanent damage to the radio and may be hazardous. Clean only with dry cloth. 4 Connect the radio with your Wi-Fi Router 1. Use the AC adaptor supplied with the product, one end to the DC socket located at the rear side of the radio and the other end to the wall socket outlet. Caution: Use only the adaptor supplied with the radio. Connecting a power supply with a different rating will cause permanent damage to the radio and may be hazardous. 2. The radio will power on and display as follow. Choose <Yes> to start configuring network. 3. Select <Add/Remove AP> and <Add AP>: 4. It will start scanning the available AP (Access points /Wi-Fi routers) nearby. Choose to connect your AP and enter the encryption code. Press 'Enter' to confi…
