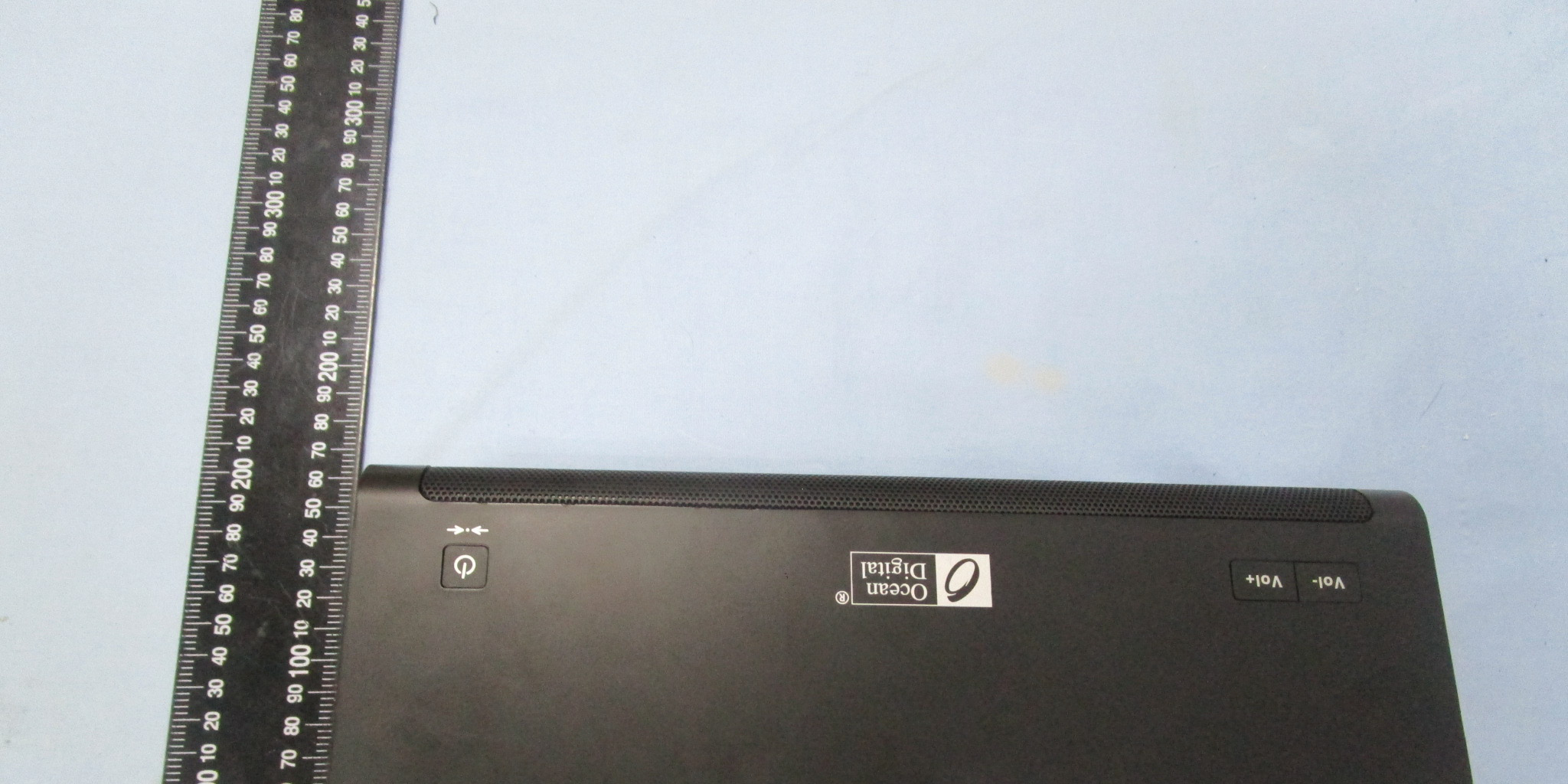

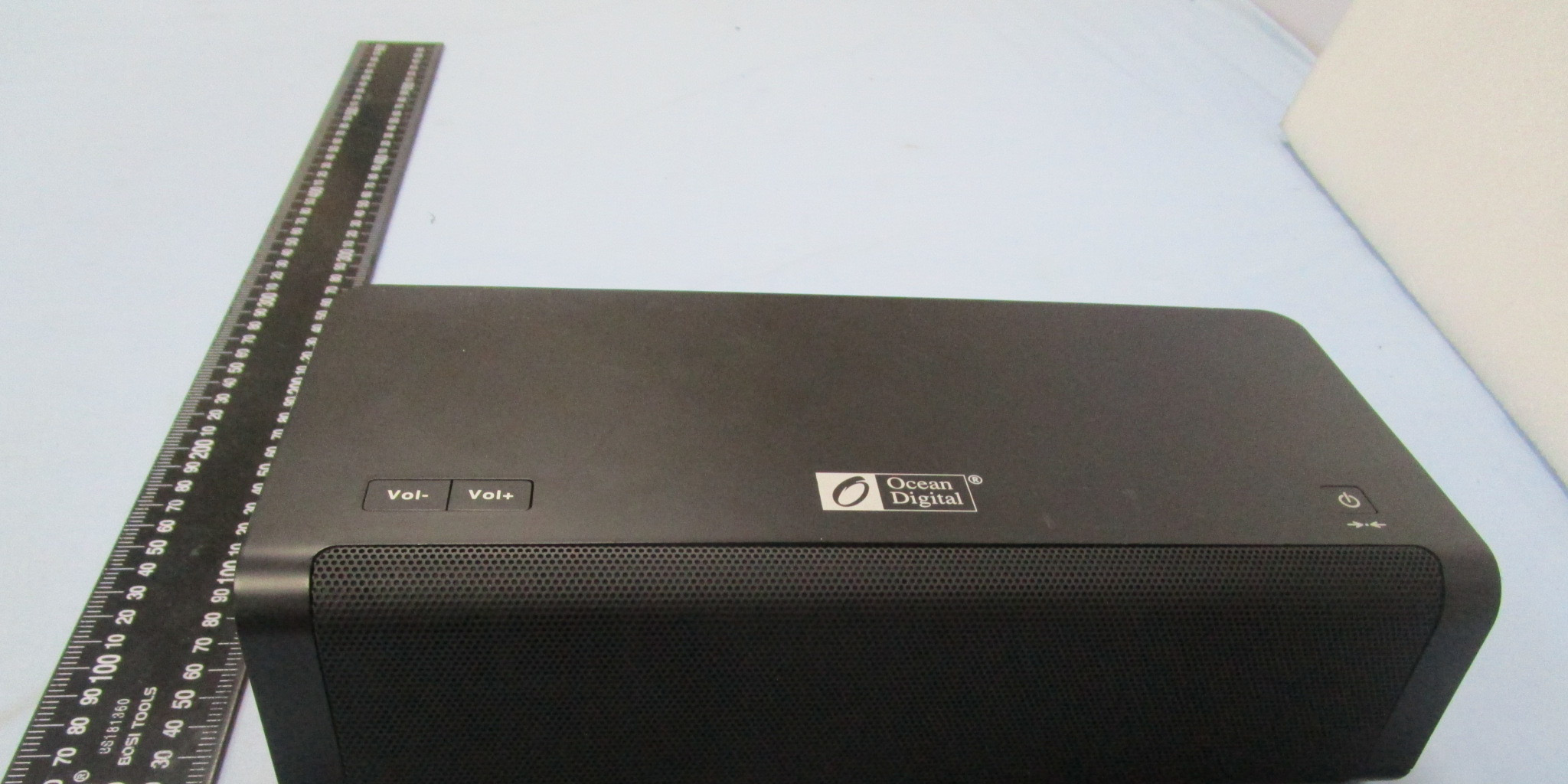

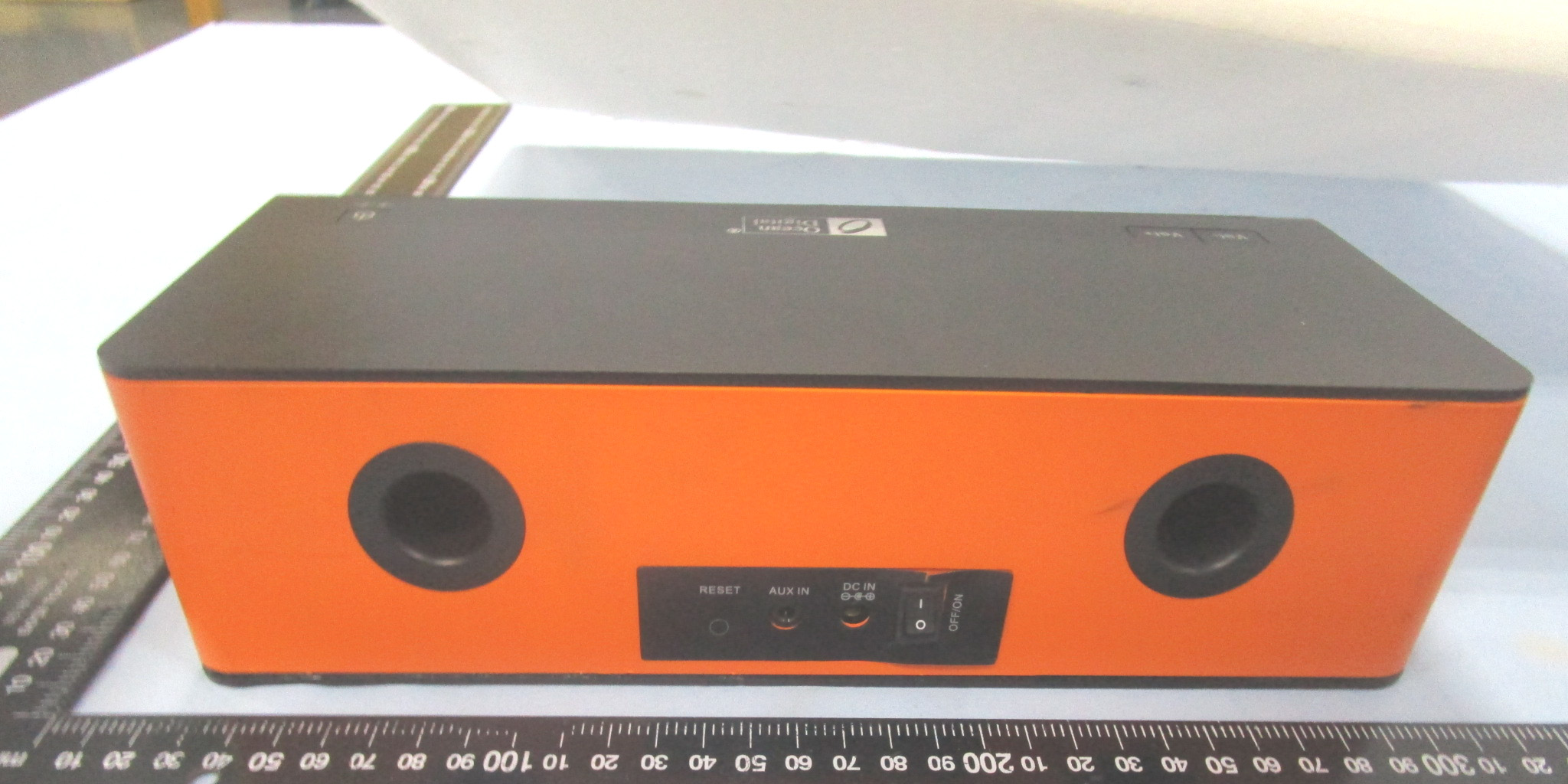

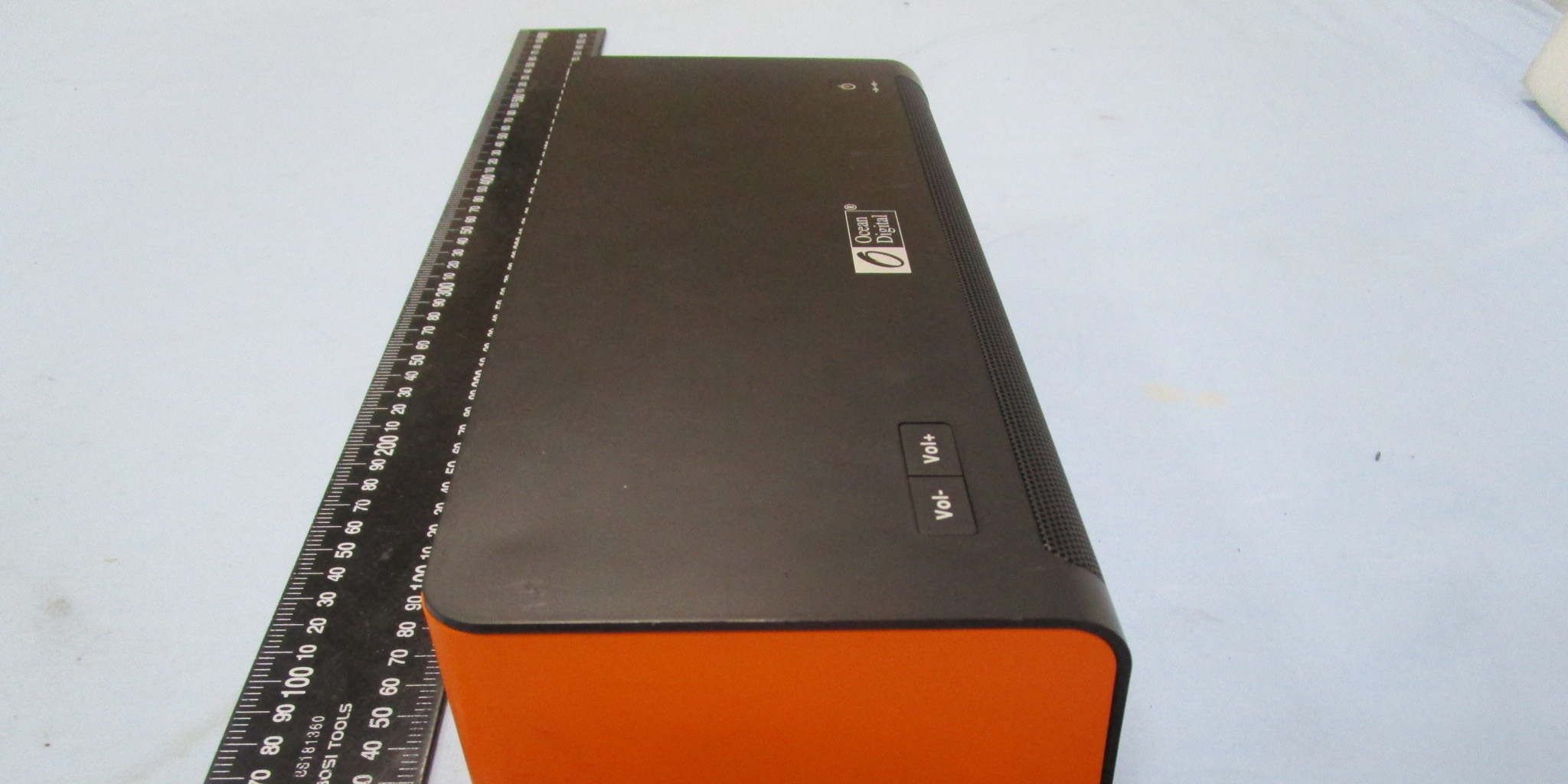

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15078186I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15078186I FCC PART 15.247 EUT View 3 EUT View 4 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15078186I FCC PART 15.247 EUT View 5 EUT View 6 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15078186I FCC PART 15.247 EUT View 7

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15078186I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ABD3-MASON00000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15078186I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 WiFi Ant. Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15078186I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15078186I FCC PART 15.247 Solder Board-Component View 4 Solder Board-Component View 5

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.2 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.3 MPE Calculation Result Wifi: Since the maximum eirp power is used as the output power to antenna, so the Gain of the antenna can be assumed as 0dBi. Maximum peak output power: 15.23 (dBm) Maximum peak output power at antenna input terminal: 33.343(mW) Prediction distance: >20(cm) Prediction frequency: 2462 (MHz) Antenna gain (typical): 0 (dBi) Antenna gain (typical): 1 (numeric) The worst case is power density at prediction frequency at 5cm: 0.0066(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) 0.0066(mw/cm 2 ) < 1 (mw/cm 2 ) Result: Pass

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15078186I PAGE 1 OF 75 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Ocean Digital Technology Ltd. Flat 12B, Yeung Yiu Chung (No.8) Ind. Bldg., 20 Wang Hoi Road, Kowloon Bay, Hong Kong FCC ID: 2ABD3-MASON00000 FCC Rule(s): FCC Part 15C Product Description: Multiroom Speaker Tested Model: Mason Report No.: STR15078186I Tested Date: 2015-07-11 to 2015-11-11 Issued Date: 2015-11-11 Tested By: Jason Su / Engineer Reviewed By: Silin Chen / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15078186I PAGE 2 OF 75 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 1.6 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. RF EXPOSURE ......................................................................................................................................................... 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT .................................................................................................................................. 8 4.1 STANDARD APPLICABLE ......................................................................................................................................... 8 4.2 EVALUATION INFORMATION .................................................................................................................................. 8 5. POWER SPECTRAL DENSITY ............................................................................................................................. 9 5.1 STANDARD APPLICABLE ......................................................................................................................................... 9 5.2 TEST PROCEDURE ................................................................................................................................................... 9 5.3 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 5.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 6. 6DB BANDWIDTH ................................................................................................................................................. 17 6.1 STANDARD APPLICABLE ....................................................................................................................................... 17 6.2 TEST PROCEDURE ................................................................................................................................................. 17 6.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 6.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 17 7. RF OUTPUT POWER ............................................................................................................................................ 24 7.1 STANDARD APPLICABLE ....................................................................................................................................... 24 7.2 TEST PROCEDURE ................................................................................................................................................. 24 7.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 24 7.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 25 8. FIELD STRENGTH OF SPURIOUS EMISSIONS ............................................................................................. 32 8.1 MEASUREMENT UNCERTAINTY ..............................................................................…
