2ABD9W880HS1.9GHz Digital Modulation Cordless Headset

IPN W880 Operation Manual 1 Headset ‘ON/OFF’ LED 2 Headset ‘ON/OFF’ button 3 Power LED 4 Headset charge LED 5 Headset ‘IN USE’ LED 6 Battery LED indicator 7 Microphone volume up 8 Microphone volume down 10 Power socket 11 Handset connector 9 Telephone connector (‘TEL’ port) 13 Wiring switch 14 Receive volume up/down 15 Mute button 16 Battery charging slot 17 Battery remove button 18 Headset registration button 12 Auto answer disable button BEFORE OPERATING THE IPNW880 IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THE ENCLOSED 1 2 15 14 13 16 17 6 5 4 3 18 12 7 8 10 11 9 18 12 6 5 4 3 1 2 15 14 13 16 17 6 5 4 3 18 12 7 8 10 11 9 Contents: 1. Product description 2. Setup 2.1 Connecting to a telephone or ter minal with a headset port 2.2 Connection to a telephone or ter minal without a headset port 2.3 Wearing style 3. Operation 3.1 Making and receiving calls 3.1.1 Making an outgoing call 3.1.2 Receiving an outgoing call 3.2 Adjusting the ring volume 3.3 Muting the headset microphone 3.4 Headset transmitting volume setting 3.5 Adjusting headset receive volume 3.6 Batt ery hotswap 3.7 Batt ery level indication 3.8 Making a confer ence call 3.9 Overview of audio signals 3.10 Register ing a new headset to the base 4. Troubleshooting 1. Product description The Emotion DECT is a fully wireless headset ‘handsfree’ with true wireless mobility. Main features: • DECT wireless headset solution • Convertible into two wearing styles: headband and earhook • Up to 6.5 hours talk time without recharging • Noise cancelling microphone for reduced background noise • Secure high quality audio • Receive volume contr ol on headset • Mute button on headset • Talk button with LED on headset • Range up to 400m • ‘Out of range’ war ning • DECT/GAP compatible • Second batt ery storage/charging point on base 2. Setup • Connect the power adaptor supplied with the product to the base unit (10). The base power LED (3) will light. The little line on the batt ery has to match the line on the batt ery slot, otherwise the batt ery • The headset LED (1) will turn on for about standby mode. recommended that the headset is charged for a minimum of 4 hours before use. 2.1 Connecting to a telephone or ter minal with a headset port • Using the headset cord supplied with the product, connect the ‘TEL’ port (9) on the headset base with the headset port on your telephone. • Use the power adaptor supplied with the product to connect the headset base (10) to a power socket. • You may need to adjust the wiring switch (13) that is located on the side of the headset base 2.2 Connecting to a telephone or ter minal without a headset port • Using the headset cord supplied with the product, connect the ‘TEL’ port (9) on headset base with the ‘handset’ port on your telephone. • Connect the telephone handset cord to the handset (11) port on the headset base. • Use the power adaptor supplied with the product to connect the headset base (10) to a power socket. • You may need to adjust the wiring switch (13) that is located on the side of the headset base 2.4 Wearing style Your Emotion DECT headset is supplied with a headband and an earhook. • Headband This can be attached to the headset to allow for either left or right ear wearing and the size • Earhook This can also be used on either the left or right ear. To remove the headband or earhook: put your thumb on the speaker and carefully pull the headband or earhook with your other hand towar ds you. 3. Operation 3.1 Making and receiving calls 3.1.1 Making an outgoing call • Lift the headset from the base to answer the call. I f you are already wearing the headset press the headset’s ‘ON/OFF’ button (2). The base ‘IN USE’ LED (5) will light. • Dial the telephone number on the telephone ter minal the base or press the ON/OFF button (2) to 3.1.2 Receiving an incoming call • Lift the headset from the base to answer the call. I f you are already wearing the headset press the headset’s ‘ON/OFF’ button (2). The base ‘IN USE’ LED (5) will light. • To end the call, r eplace the headset on the base or press the headset ON/OFF button (2). 3.2 Adjusting the ringing volume When the headset is ringing to indicate an incoming call, you can adjust the ring volume by moving the rocker switch (14) at the back of the headset. 3.3 Muting the headset microphone To mute the headset microphone when on a call, press the mute button (15) on the back of the headset. While the headset is in mute mode, a short beep will be heard on the headset every 8 seconds. Press the Mute button (15) again to release the mute. 3.4 Headset transmitting volume setting During a call you can adjust the transmit volume of the headset by using the two buttons (7 and 8) located on the back of the headset base. 3.5 Adjusting headset receive volume Use the rocker switch (14) at the back of the headset to adjust the receive volume on your headset. You will hear a beep sound for each volume step up or down. 3.6 Battery – hotswap The user can “hotswap” the headset battery while on a call. When the battery is removed from the headset, the base unit will put the call on hold for a maximum of 5 minutes. When the new battery is ¡ tted to the headset, the ‘IN USE’ LED (1) will turn on and the call will be active again. Put the second battery in the battery charging slot (16) on the top side of the base. The battery can be removed by sliding the battery remove button (17) sidewards. 3.7 Battery level indication The four LEDs (6) on the front of the headset base indicate the battery level of your headset battery. IndicationBattery level One LED ¥ ashing< 20% One LED on20%-40% Two LEDs on40%-60% Three LEDs on60%-80% Four LEDs on80%-100% 3.8 Making a conference call Your Emotion DECT headset allows a second headset to be temporarily connected to the base so that you can have a three way conference call. • Setup the call using the primary headset unit. • Once on the call, place the second Emotion DECT headset unit on the base charger. • After about one second, th…

Text truncated - open the document above for the full version.

Under FCC Part 15 Certification

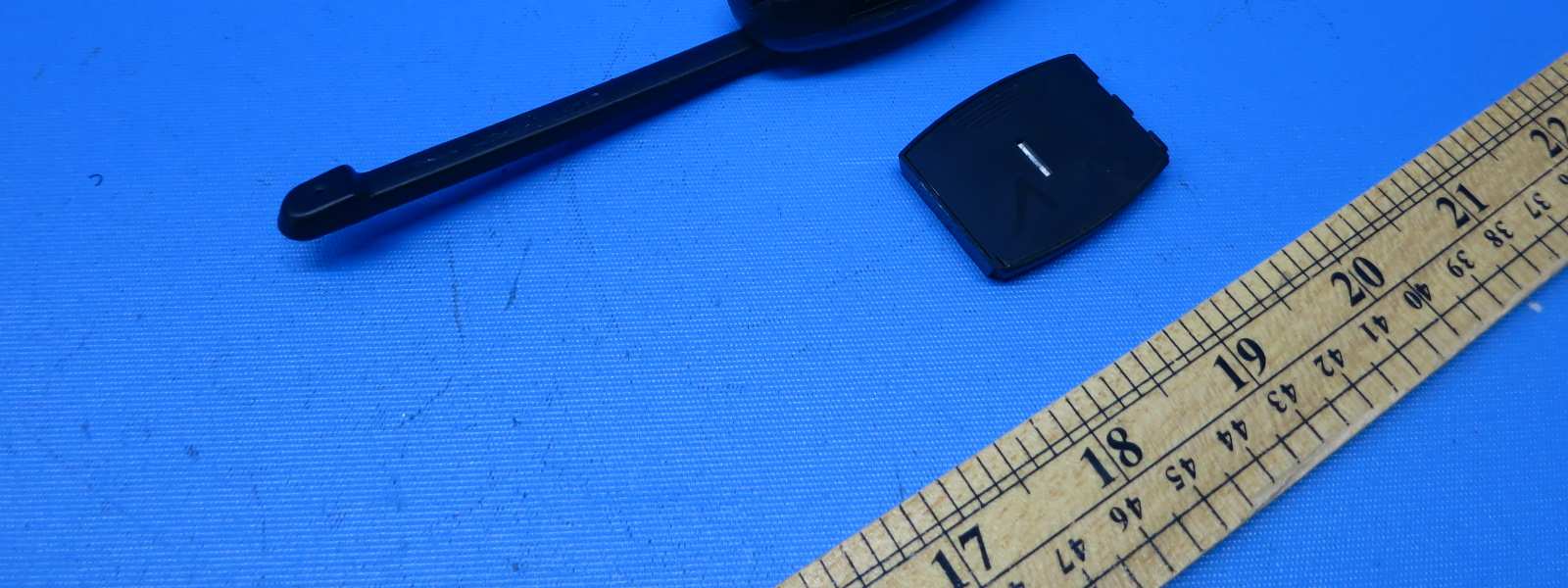

INTERTEK TESTING SERVICES External Photos FCC ID: 2ABD9W880HS external photos - 1 of 2 HK13051652 Job Number HK13051652 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: 2ABD9W880HS external photos - 2 of 2 HK13051652 Job Number HK13051652 Job Number

FCC ID: 2ABD9W880HS 22.0 mm 4 . 0 m m CM US I.T.E. Intertek 4008039 L I D S T E THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CM US I.T.E. Intertek 4008039 L I D S T E THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 3 4 . 0 0 m m 52.00 mm HAC Model No.: IPN W880 FCC ID: 2ABD9W880BS COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: 82HKXNAN880 RINGER EQUIVALENCE: NAN JACK: RJ 9 7.2VDC 500mA HAC Model No.: IPN W880 FCC ID: 2ABD9W880BS COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: 82HKXNAN880 RINGER EQUIVALENCE: NAN JACK: RJ 9 7.2VDC 500mA FCC ID: 2ABD9W880HS

INTERTEK TESTING SERVICES Internal photos FCC ID: 2ABD9W880HS internal photos - 1 of 4 INTERTEK TESTING SERVICES Internal photos FCC ID: 2ABD9W880HS internal photos - 2 of 4 INTERTEK TESTING SERVICES Internal photos FCC ID: 2ABD9W880HS internal photos - 3 of 4 INTERTEK TESTING SERVICES Internal photos FCC ID: 2ABD9W880HS internal photos - 4 of 4

INTERTEK TESTING SERVICES FCC ID: 2ABD9W880HS RF exposure - 1 of 1 For Standalone SAR test exclusion consideration, when the corresponding SAR Exclusion Threshold requirement in KDB 447498 is satisfied, standalone SAR evaluation for general population exposure conditions, by measurement or numerical simulation is not required. Description the tested model: W880 EUT Description : 1.9GHz DECT 6.0 Cordless Headset Model : W880 Operating Configuration(s) : Next to ear Operating mode (s) : Voice call Device Category : Portable Device Tx Frequency : 1921.536 – 1928.448 MHz Production tolerance : 19 dBm (Minimum) to 21 dBm (Maximum) Antenna gain : 0 dBi = 1.00 (num gain) Maximum source-based time- averaging duty factor : 4.2% = (1/24 x100%) Minimum separation distance : 5 mm Applicable FCC KDB : FCC KDB 447498 D01 FCC KDB 865664 D02 From above data, the source-based time-averaging output power is as follow: The Maximum Conducted Power = 21 dBm = 125.9 mW The Maximum conducted Power source-based time-averaging output power = (125.9 * 0.042) mW = 5.29 mW In the frequency range of 100MHz to 6GHz and test separation distance ≤ 50mm, the SAR Exclusion Threshold will be determined as follow, The SAR exclusion threshold = () )(/0.3GHzFTD× = 10.80 mW where TD = 5 mm and F(GHz) = 1.928 GHz Conclusion Since the calculated conducted source-based time-averaged output power is 5.29 mW, which is less than the SAR Exclusion Threshold at 5mm test separation distance 10.80 mW for general population and uncontrolled exposure, standalone SAR evaluation for general population exposure conditions, by measurement or numerical simulation is not required.

- Intertek’s standard Terms and Conditions can be obtained at our website: http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: 13051652HKG-002 Application For Original Grant of 47 CFR Part 15 Certification Unlicensed Personal Communication Service Devices FCC ID: 2ABD9W880HS Prepared and Checked by: Approved by: Signed on File Jess Tang Nip Ming Fung, Melvin Lead Engineer Assistant Manager June 16, 2014 INTERTEK TESTING SERVICES Test Report Number: 13051652HKG-002 Page 1 of 51 FCC ID: 2ABD9W880HS GENERAL INFORMATION Applicant Name: IPN ADDCOM Applicant Address: Bijsterhuizen 2414, 6604 LL Wijchen, The Netherlands FCC Specification Standard: FCC Part 15, October 1, 2012 Edition FCC ID: 2ABD9W880HS FCC Model(s): W880, W860, AD670, AD680 Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Digital Modulation Cordless Headset Serial Number: N/A Sample Receipt Date: May 30, 2013 Date of Test: June 20, 2013 to July 31, 2013 Report Date: June 16, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: 13051652HKG-002 Page 2 of 51 FCC ID: 2ABD9W880HS Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 6 2.0 General Description................................................................................................. 8 2.1 Product Description ................................................................................................. 8 2.2 Technical Description .............................................................................................. 8 2.3 Test Methodology.................................................................................................... 8 2.3 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration .................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Accessories...................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 12 4.0 Measurement Results............................................................................................ 14 4.1 Antenna Requirement........................................................................................... 14 4.2 Digital Modulation Techniques............................................................................... 14 4.3 Emission Bandwidth.............................................................................................. 15 4.4 Directional Gain of the Antenna ............................................................................. 17 4.5 Peak Transmit Power ............................................................................................ 18 4.6 Power Spectral Density ......................................................................................... 20 4.7 Automatic Discontinuation of Transmission............................................................ 22 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 23 4.9 Emissions Outside the Sub-Band .......................................................................... 25 4.9.1 Radiated Emissions Configuration Photographs ................................................. 26 4.9.2 Radiated Emissions Data ................................................................................... 26 4.9.3 Field Strength Calculation................................................................................... 30 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 31 4.10 AC Power Line Conducted Emissions ................................................................. 32 4.11 Frame Repetition Stability .................................................................................. 33 4.12 Frame Period…

Text truncated - open the document above for the full version.

headset M L declared by manufacturer is 30dB. Reaction of headset NA C C A NA NA

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: 2ABD9W880HS config photos (radiated emission - Headset unit) - 1 of 1 Radiated Emission – Headset Unit Front View Rear View
