2ABDO-A001Proximity Tag

Amber Innovation CO., LTD. A001 Bluetooth Security Tag USER’S GUIDE Amber Innovation CO., LTD. FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. Tested to comply with FCC standard. FOR HOME OR OFFICE USE. Warning : This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. & This device and its antenna(s) must not be co-located or conjunction with any other antenna or transmitter Amber Innovation CO., LTD. A B Button Buzzer A B Use a sharp object such as a small stationary knife to open one side of the front cover Put in the battery Installation of battey Components guide Amber Innovation CO., LTD. Using the tag 1. Getting Started Please search for MIMU on Apple’s App Store and install the application. 2. The first time to use the tag Launch the MIMU application on your iOS device. Press ”add device” button. Press the button on the device. The device will be discovered by the application. You can press the right button to change its name. The device is remembered and connected with your iOS device. 3. Stop Alarm When your iOS device is separated from the tag for a certain distance and the link between them is lost, both your iOS device and the tag will start to generate alarm. To stop the alarm on your iOS device, press the radar icon in the main page of the application. To stop the alarm on the tag, press the button . 4. reconnect the tag to your iOS device Press the button on the tag. Open the application on your iOS device, select the item with the right name and slide the switch to the right to connect the tag. Note: The tag will maintain connectable for 1 minute after it losses link. During that 1 minute, you don’t have to press the button to connect. You can just slide the switch to connect. 5. delete a device Open the application on your iOS device. Swipe on the item you want to delete and confirm to remove the device from the list. Amber Innovation CO., LTD. Specification Bluetooth specification Version 4.0 compliant Bluetooth Profile supported GATT/Proximity/Immediate Alert Frequency Range 2.4GHz spectrum Working Distance Range 10 meters (class 2) Weight 129g Operating time Up to 6 months Standby Time Up to 12 months Battery CR2032 Lithium 3V

Amber Innovation 1301, No.271 Hushu South Rd.,HangZhou,ZheJiang,China Date: 11/22/2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: 2ABDO-A001 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Amber Innovation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Jie Liu

Amber Innovation 1301, No.271 Hushu South Rd.,HangZhou,ZheJiang,China Date:11/26/2013 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, The testing model of our Amber Innovation brand of FCC approval is A001 and we have models or brands for listed. We hereby certify that the electrical circuit and schematics of the listed models are the same as the testing model except enclosure and the below list. And just for the marketing requirement. Our listed models is as follows: Product name: Proximity Tag Model: A001, A002 FCC ID: 2ABDO-A001 Your assistance on this mater is highly appreciated. Company Officer: Jie Liu

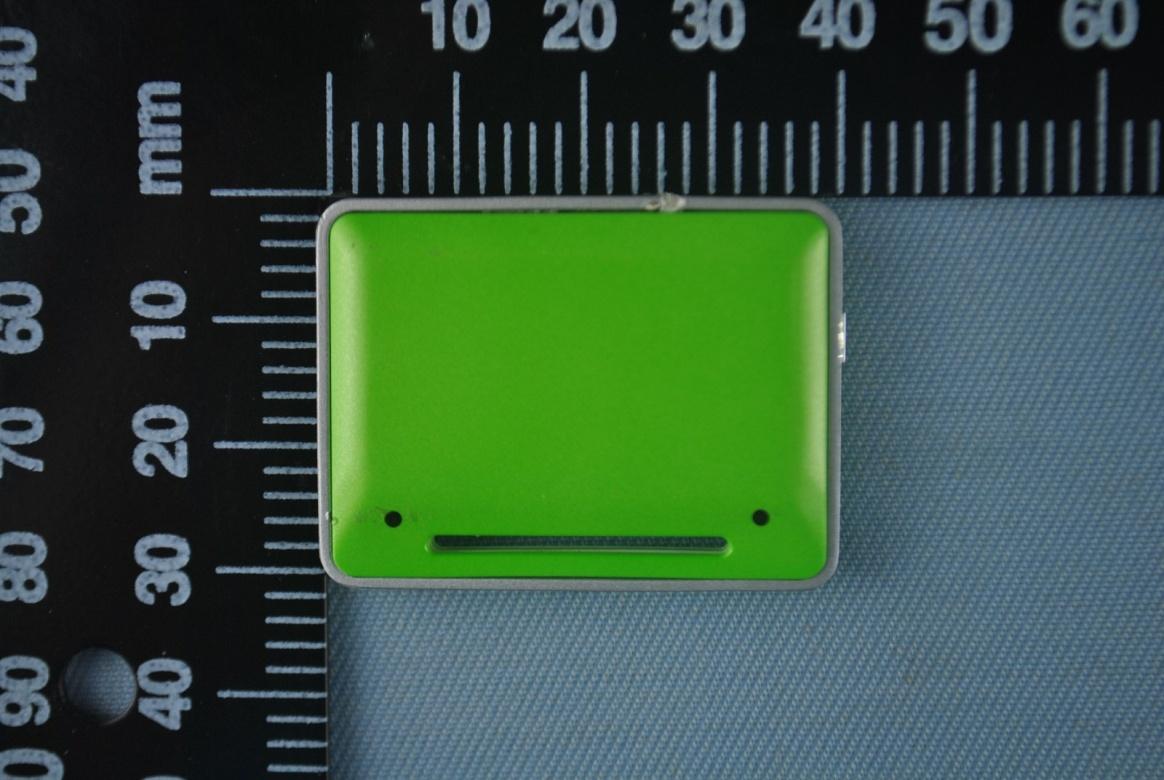

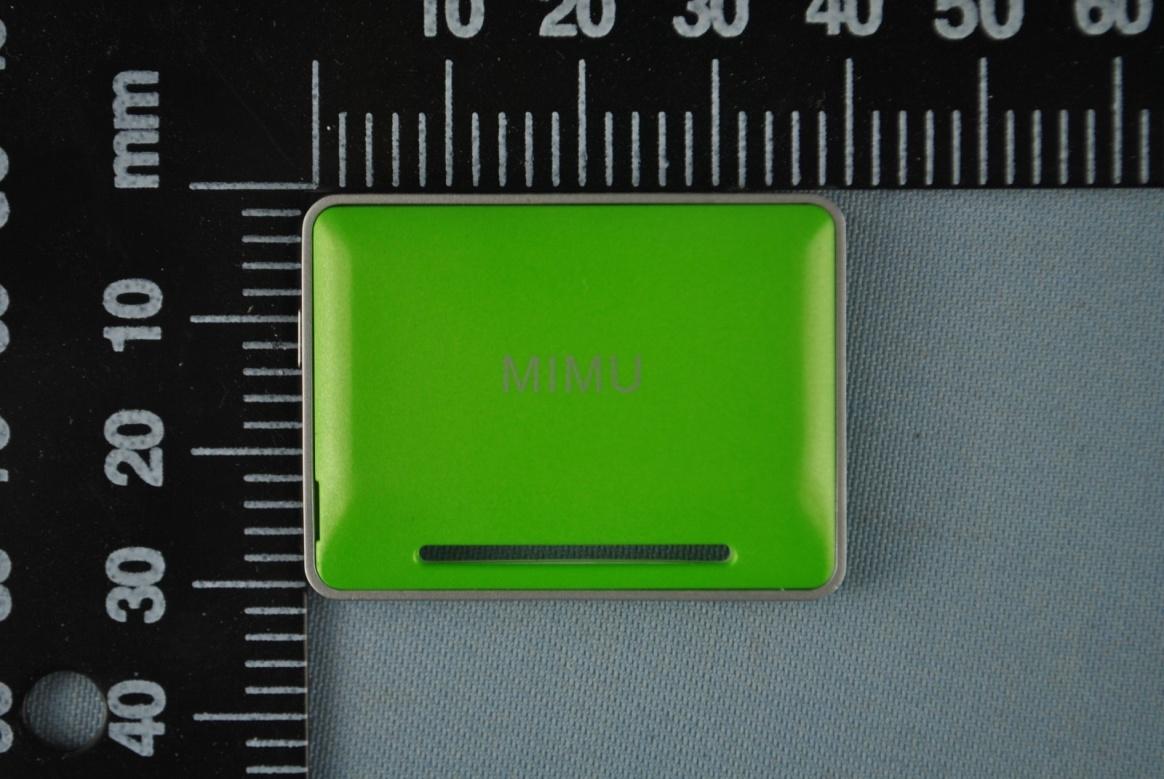

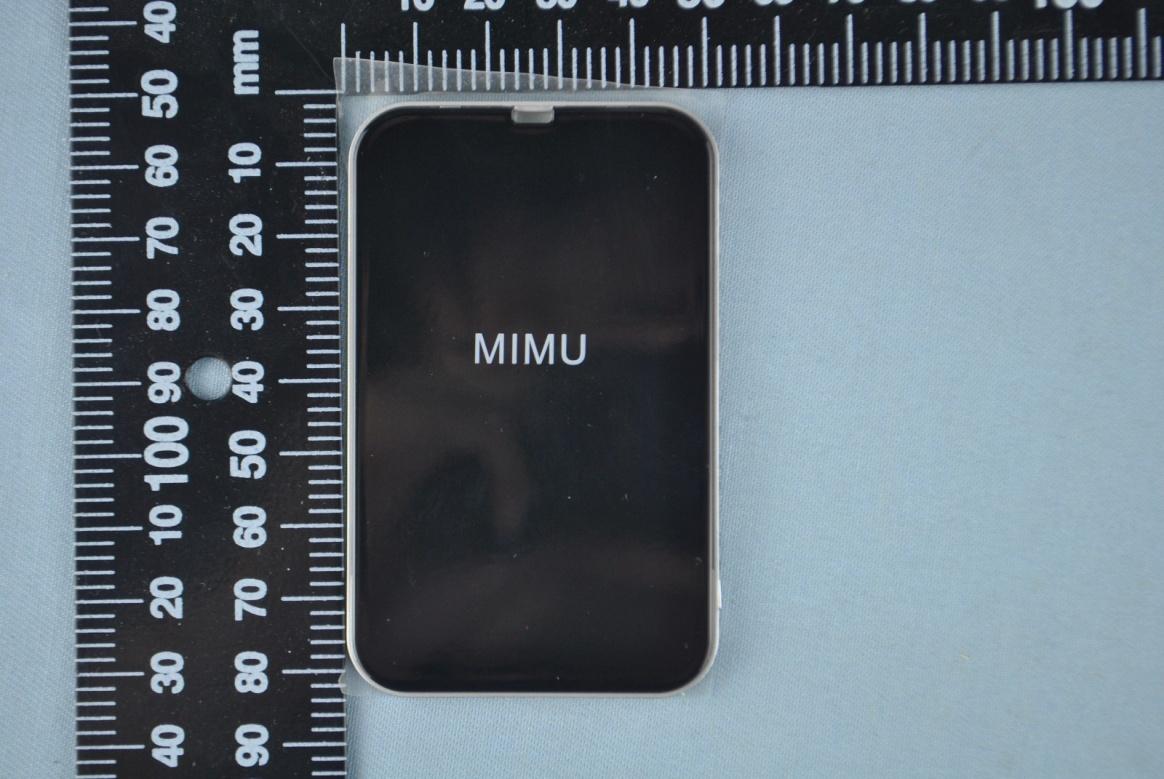

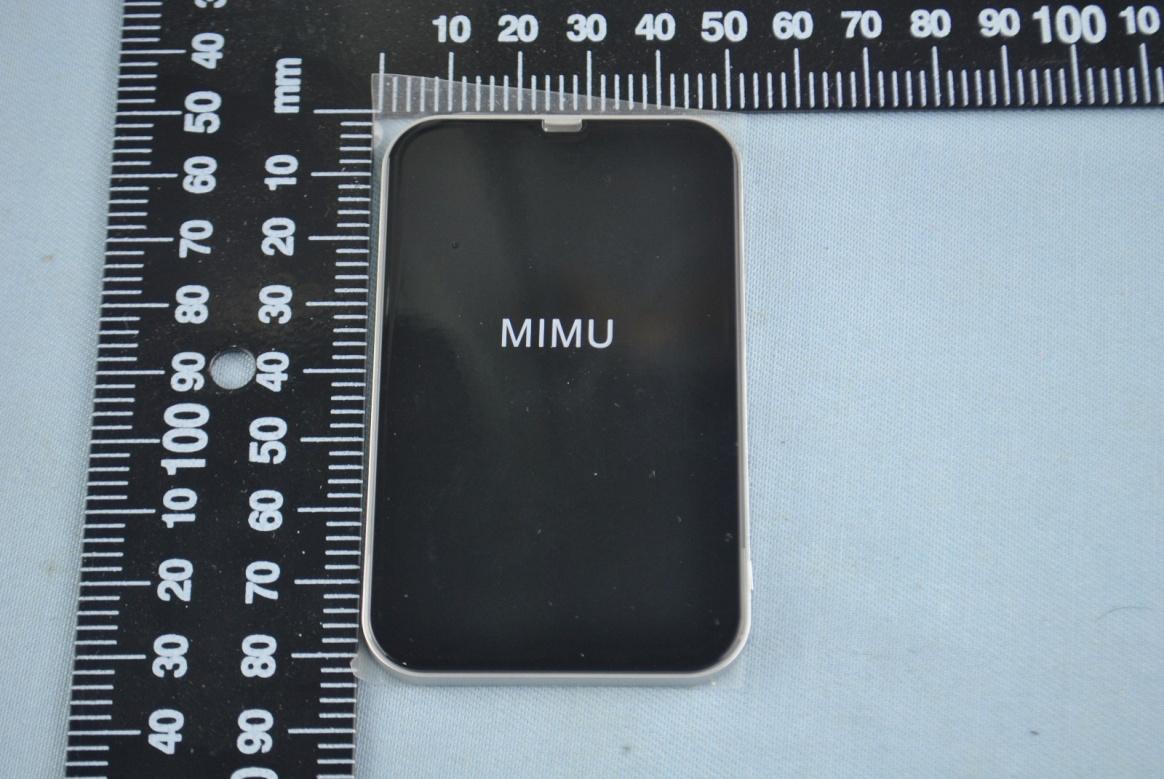

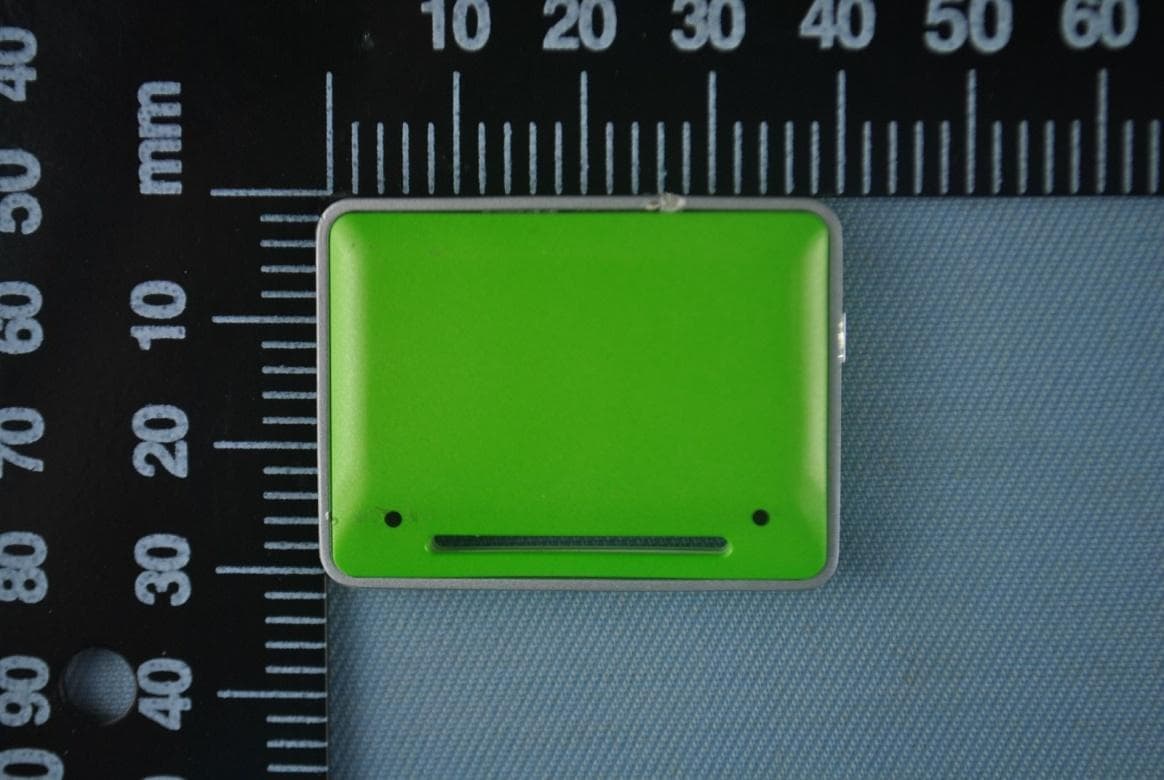

A001 EUT top view EUT bottom view A002 EUT top view EUT bottom view

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: 2ABDO-A001

EUT inside whole view Main board component side Main board solder side

Amber Innovation FCC ID: 2ABDO-A001 7. RF Exposure Requirements 7. 1 Test Equipment Please refer to Section 10 this report. 7. 2 Limit According to FCC 15.247(e)(i) and FCC 1.1307(b)(1), Systems operating under provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commissions guidelines. According to KDB 447498 D01 General RF Exposure v05, section 4.3.1 SAR Test Exclusion Thresholds for 100 MHz-6GHz and <=50mm Frequency Range Maximum measured transmitter power frequency(MHz) SAR Limitation (mW) Low Frequency(MHz) High Frequency(MHz) 2402 2480 2402 10 7. 3 Test Result Product : Proximity Tag Test Mode : Bluetooth 4.0 LE Test Item : RF Exposure Temperature : 25 °C Test Voltage : DC 3V(By battery) Humidity : 56%RH Test Result : PASS Model : RF Exposure Requirements Compliance with FCC Rules EIRP=PxG Where: P=Power input to antenna G=Power gain of the antenna relative to an isotropic radiator Maximum output power at antenna input terminal: 1.69 dBm = 1.48 mW (Bluetooth 4.0 LE, 2402MHz) Prediction distance: <=50mm Antenna gain : 2.0 dBi SAR Test Exclusion Threshold is 10 mW Bluetooth 4.0 LE : 2.35 mW The max. output power E.I.R.P < 10 mW Conclusion: No SAR is required.

The test report consists 36 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.247 Operating in 2400 ~ 2483.5 MHz Band Prepared For : Amber Innovation 1301, No.271 Hushu South Rd.,HangZhou,ZheJiang,China FCC ID: 2ABDO-A001 EUT: Proximity Tag Model: A001 October 31, 2013 Issue Date: Original Report Report Type: Test Engineer: Eric Guo Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. E506, 5th Floor, No.39 Keji Middle 2nd Rd, Science & Technology Park, Nanshan District, Shenzhen, P. R. China Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com Amber Innovation FCC ID: 2ABDO-A001 KMO FCC ID Report Report #: KSZ2013092301J01 Page 2 of 36 TABLE OF CONTENTS 1. General Information ........................................................................................................................................................... 3 1. 1 Notes ............................................................................................................................................................................... 3 1. 2 Testing Laboratory .......................................................................................................................................................... 3 1. 3 Details of Applicant ........................................................................................................................................................ 3 1. 4 Application Details ......................................................................................................................................................... 3 1. 5 Test Item ......................................................................................................................................................................... 3 1. 6 Test Standards ................................................................................................................................................................. 3 2. Technical Test ....................................................................................................................................................................... 4 2. 1 Summary of Test Results ................................................................................................................................................ 4 2. 2 Antenna Requirement ..................................................................................................................................................... 4 3. EUT Modifications .............................................................................................................................................................. 4 4. Conducted Power Line Test ................................................................................................................................................ 5 4. 1 Test Equipment ............................................................................................................................................................... 5 4. 2 Test Procedure ................................................................................................................................................................ 5 4. 3 Test Setup ....................................................................................................................................................................... 5 4. 4 Configuration of the EUT ............................................................................................................................................... 6 4. 5 EUT Operating Condition ............................................................................................................................................... 8 4. 6 Conducted Power Line Emission Limits ........................................................................................................................ 8 4. 7 Conducted Power Line Test Result ................................................................................................................................. 9 5. FCC Part 15.247 Requirements for DTS Systems ............................................................................................................ 9 5. 1 Test Equipment ............................................................................................................................................................. 10 5. 2 Test Procedure .............................................................................................................................................................. 10 5. 3 Test Setup ..................................................................................................................................................................... 10 5. 4 Configuration of the EUT ............................................................................................................................................. 10 5. 5 EUT Operating Condition ............................................................................................................................................. 10 5. 6 Limit ..............................................................................................................................................................................11 5. 7 Test Result .....................................................................................................................................................................11 6. Transmitter Spurious Radiated Emission at 3 Meters .................................................................................................... 20 6. 1 Test Equipment ................…

Text truncated - open the document above for the full version.

Radiated emission test view
