2ABDZ61HD99AWC02401Action Cam

0 1 EN Table of Contents 1. Introduction............................................... 2  System Requirements............................. 3 2. Preparation............................................... 4  Component & Accessories...................... 4  Part Names................................................ 5  Indicator LED....................................... 6 3. Charging........................................................ 7 4. Recording........................................................ 9  Car Mode............................................. 9  Sporty Mode......................................... 13  Time Lapse Mode.................................... 15 5. Wireless........................................................... 16  Wireless On............................................ 16  Control via App............................................ 17  Wireless Off................................................ 17 6. Download..................................................... 18  Download from Sport DV........................... 18  Download from Card Reader................... 19 7. Playback....................................................... 20  Playback from PC................................... 20  Playback from Mac................................. 20 8. Expert Mode............................................. 21  Load from Sport DV................................ 21  Load from microSD Card Reader.............. 22  Adjust Sport DV Settings............................. 23  Expert Mode Settings.................................. 25 9. Appendix................................................... 27  Specification........................................ 27  SMC (Smart Camera)............................. 30 2 1. Introduction Welcome to the world of digital imaging. The following information will help you to use your Action Cam HD-99AW (product name used for short as Sport DV below) to its full capabilities. Before you install and operate the product, please take a few minutes to read through this manual. It provides proper instructions for you to install and operate the product. The electronic device may be affected by static electricity interference. Please plug-in / out and wait a few minutes to start this function. 3 EN  System Requirements PC System Requirements  Intel® Core2Duo 1.8G or AMD equivalent CPU  Hi-speed USB2.0 port  1 GB RAM internal memory minimum  nVIDIA GeForce MX440 or above, AMD (ATi) Radeon 9200 or above  DirectX 9.0 or higher  Windows® XP (SP2 or higher) / Windows Vista™ / Windows 7™, Windows 8™ Note: If your system is Windows XP Service Pack I, please go to www.microsoft.com. It’s free to update your system to Windows XP Service Pack II. Mac System Requirements  Power PC G5 or Intel Core Duo processor recommended  USB2.0 port  1 GB RAM internal memory minimum  Mac OS 10.5 or above 4 2. Preparation  Component & Accessories Sport DV User Manual USB Cable AC Adaptor Camera Holder Tripod Mount Base Mount Bracket External Front Glass micro SD Card Power Cable (spare part) (optional) 5 EN  Part Names 6  Indicator LED Front LED Rear LED Power Off Off - On Blue, On - Record Off Off - On Blue, Slow Blink- Wireless Off - Off Booting - Red, Slow Blink On - Red, On Battery Low Blue, Quick Blink- Charge - Green, On Full - Off SD Card No Card - Red, Quick Blink Card Full - Red, Quick Blink 7 EN 3. Charging 1. Remove the Rear Protective Cap of the Sport DV and connect the supplied mini USB cable into the Sport DV. 2. Plug the USB cable into the AC wall adaptor, car adaptor, or a PC / Mac USB port. 8 3. The Rear LED of the Sport DV will illuminate with Green to tell you it’s charging. 4. When the Green LED turns off, the battery is full and charging is complete. Please disconnect the USB cable. Note: The Front LED will blink Blue and auto stop record, save file and power off after 10 seconds when the battery power is low. Please reference the charging procedure to recharge it. 9 EN 4. Recording  Car Mode  Circulated Recording 1. Remove the Rear Protective Cap of The Sport DV and insert a microSD card (optional) in the microSD Card Slot. 2. Slide the Mode Switch to the Left side. Note: 1. In Circulate Record Mode, the Sport DV circulate record video and overwrite the oldest recorded file first. 2. The recorded file divides automatic and user can define each 1, 3, 5 minutes per file. (Please refer to page 21 "8 Expert Mode".) 10 3. Hold down the Power Button for 3 seconds then release, the Sport DV illuminates the Blue Front LED and vibrates 3 times. The Rear LED illuminates with Red and boot the wireless module. 4. The Sport DV start recording automatic. The Blue Front LED blinking slowly and vibrates 1 time. 5. To stop record, press and release the Power Button. The Sport DV stops record, save file and vibrates 1 time. The Front LED illuminate with Blue. 11 EN 6. Hold down the Power Button for 3 seconds and release. The Front LED of the Sport DV turns off and vibrates 3 times then power off. Note: 1. The Rear LED will blink quickly with RED when the micro SD card has full or here is no micro SD card insert into the micro SD card slot. The Sport DV vibrates until power off. 2. The wireless module will boot at the same time when power on. The Rear LED illuminate with Red. Please refer the page 16 "5 Wireless" for more information. 3. The file named format is CAR_0001.AVI. 4. Always check the SD card space and make sure the car has enough space to save new files. 5. The camera will auto power on and record when plug-in the mini USB cable with an external power supply. 6. The camera will auto stop record, save file and power off when the external power break off from the mini USB port. 12  Accidental Record The built-in 3-axis G-force Sensor always detects strong forces from any directions. When a rapidly variational force (like a collided accident) was be detected during the video record. The current recording file will be lo…

Text truncated - open the document above for the full version.

SALIX TECHNOLOGY CO., LTD. USA address: 5F, NO. 16, LANE 77, HSING AI RD., NEI-HU,Taipei Taiwan 114 Date: 15/1/2015 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: 2ABDZ61HD99AWC02401 To Whom It May Concern: We, SALIX TECHNOLOGY CO., LTD. hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Company name: SALIX TECHNOLOGY CO., LTD. Contact Name/title: David Lee/ Engineer Address: 5F, NO. 16, LANE 77, HSING AI RD., NEI-HU,Taipei Taiwan 114 Telephone No: 886-2-27921512 Email: [email protected] Certification / Registration Number: 2ABDZ61HD99AWC02401 Model Number: 61HD99AWC02401

Example of Agents letter (for TCB – TCB approval): SALIX TECHNOLOGY CO., LTD. Date (9/1/2015.) BABT FCB Forsyth House, Churchfield Road, Walton-on- Thames, Surrey, KT12 2TD Dear Sir or Madam, We, SALIX TECHNOLOGY CO., LTD. hereby authorize Compliance Certification Services Inc./David.Wang/Vice President to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 8.04.2015 Sincerely, Company name: SALIX TECHNOLOGY CO., LTD. Contact Name/title: David Lee/ Engineer Address: 5F, NO. 16, LANE 77, HSING AI RD., NEI-HU,Taipei Taiwan 114 Telephone No: 886-2-27921512 Email: [email protected] Certification / Registration Number: 2ABDZ61HD99AWC02401 Model Number: 61HD99AWC02401

SALIX TECHNOLOGY CO., LTD. Date (9/1/2015) BABT TCB Forsyth House, Churchfield Road, Walton-on- Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: 2ABDZ61HD99AWC02401 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, SALIX TECHNOLOGY CO., LTD. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company name: SALIX TECHNOLOGY CO., LTD. Contact Name/title: David Lee/ Engineer Address: 5F, NO. 16, LANE 77, HSING AI RD., NEI-HU,Taipei Taiwan 114 Telephone No: 886-2-27921512 Email: [email protected] Certification / Registration Number: 2ABDZ61HD99AWC02401 Model Number: 61HD99AWC02401

SALIX TECHNOLOGY CO., LTD. BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Model Difference To whom it may concern, Due to the business consideration, we hereby declare that our product of Action Cam Model: HD-99AW, V1 PLUS, HD-95AW have as following difference Model Description: MODEL NAME BRAND NAME difference HD-99AW SALIX Aluminium shell difference V1 PLUS NECKER Marketing purpose only HD-95AW SALIX Plastic housing difference Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely yours, Sincerely, Company name: SALIX TECHNOLOGY CO., LTD. Contact Name/title: David Lee/ Engineer Address: 5F, NO. 16, LANE 77, HSING AI RD., NEI-HU,Taipei Taiwan 114 Telephone No: 886-2-27921512 Email: [email protected] Certification / Registration Number: 2ABDZ61HD99AWC02401 Model Number: 61HD99AWC02401

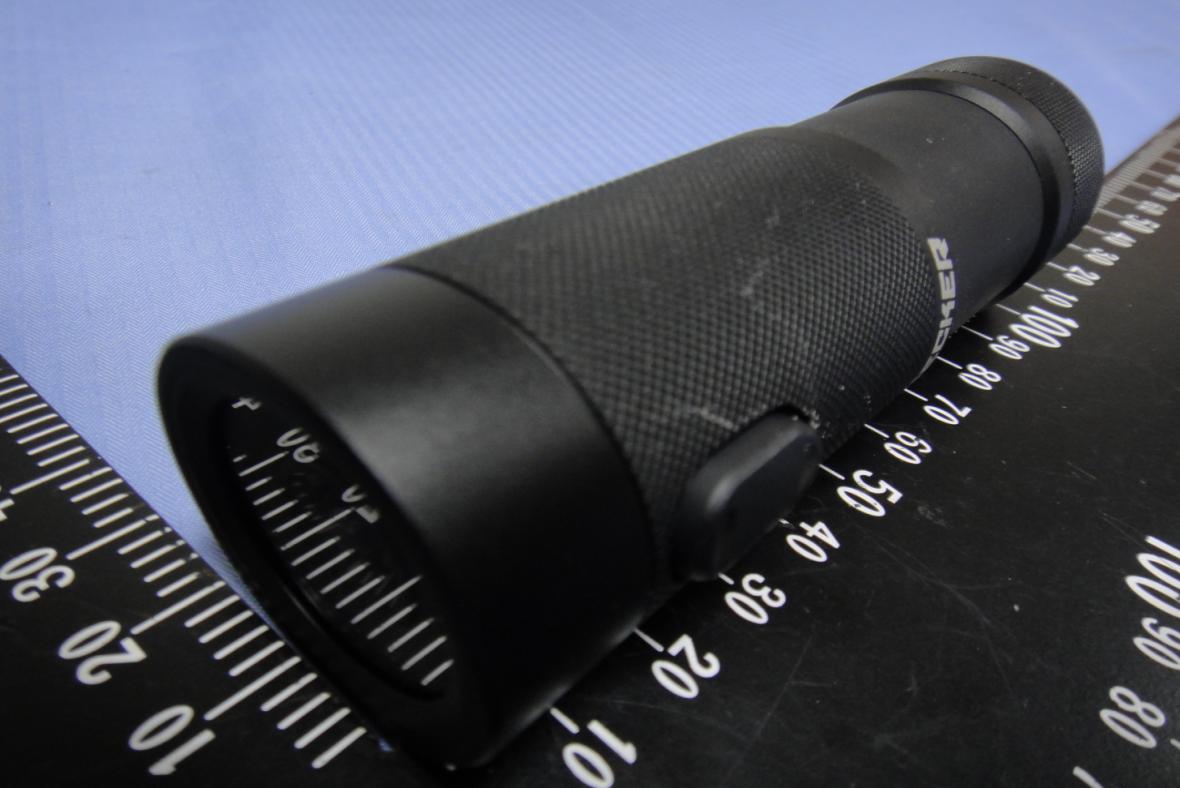

Compliance Certification Services Inc. Report No.: T141215W03 Date of Issue: December 29, 2014 A1 - 1 / 8 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T141215W03 Date of Issue: December 29, 2014 A1 - 2 Rev. 00

Label

Label Location

Compliance Certification Services Inc. Report No.: T141215W03 Date of Issue: December 29, 2014 A1 - 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T141215W03 Date of Issue: December 29, 2014 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T141215W03 Date of Issue: December 29, 2014 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T141215W03 Date of Issue: December 29, 2014 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T141215W03 Date of Issue: December 29, 2014 A1 - 7 Rev. 00 Battery Antenna Antenna Compliance Certification Services Inc. Report No.: T141215W03 Date of Issue: December 29, 2014 A1 - 8 Rev. 00 RF IC

Compliance Certification Services Inc. Report No.: T141215W03-MF Date of Issue: January 6, 2015 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Action Cam Trade Name / Model: Model Trade Name HD-99AW SALIX HD-95AW V1 PLUS NECKER Model Discrepancy Model Difference HD-99AW Aluminium shell difference HD-95AW Plastic housing difference V1 PLUS Marketing purpose only Frequency band (Operating) Bluetooth 2.1 + EDR / 4.0: 2402 ~ 2480 MHz 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna Gain :-0.50 dBi (Numeric gain:0.89) Maximum Average output power IEEE 802.11b Mode: 14.67 dBm(29.309 mW) IEEE 802.11g Mode: 14.68 dBm(29.376 mW) IEEE 802.11n HT 20 Mode: 14.32 dBm(27.040 mW) Maximum Tune up Power IEEE 802.11b Mode: 16.50 dBm(44.668 mW) IEEE 802.11g Mode: 16.50 dBm(44.668 mW) IEEE 802.11n HT 20 Mode: 16.00 dBm(39.811 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T141215W03-MF Date of Issue: January 6, 2015 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/01/06 Initial Issue ALL Doris Chu Compliance Certification Services Inc. Report No.: T141215W03-MF Date of Issue: January 6, 2015 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T141215W03-MF Date of Issue: January 6, 2015 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246244.6680.89200.00791 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246244.6680.89200.00791 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246239.8110.89200.00711

Compliance Certification Services Inc. FCC ID: 2ABDZ61HD99AWC02401 Report No.: T141215W03-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 89 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Action Cam Model / Trade Name: Model Trade Name HD-99AW SALIX HD-95AW V1 PLUS NECKER Issued to SALIX TECHNOLOGY CO., LTD. 5F, NO. 16, LANE 77, HSING AI RD., NEI-HU, TAIPEI 114, TAIWAN, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: December 29, 2014 Compliance Certification Services Inc. FCC ID: 2ABDZ61HD99AWC02401 Report No.: T141215W03-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 29, 2014 Initial Issue ALL Doris Chu Compliance Certification Services Inc. FCC ID: 2ABDZ61HD99AWC02401 Report No.: T141215W03-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ............................................................................................................................. 14 7.2 PEAK POWER .................................................................................................................................... 25 7.3 AVERAGE POWER ............................................................................................................................ 27 7.4 BAND EDGES MEASUREMENT ................................................................................................ 29 7.5 PEAK POWER SPECTRAL DENSITY .................................................................................................... 49 7.6 SPURIOUS EMISSIONS ................................................................................................................. 60 7.7 RADIATED EMISSIONS .............................................................................................................. 70 7.8 POWERLINE CONDUCTED EMISSIONS ............................................................................................... 84 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................... 87 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: 2ABDZ61HD99AWC02401 Report No.: T141215W03-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SALIX TECHNOLOGY CO., LTD. 5F, NO. 16, LANE 77, HSING AI RD., NEI-HU, TAIPEI 114, TAIWAN, R.O.C. Equipment Under Test: Action Cam Trade Name / Model: Model Trade Name HD-99AW SALIX HD-95AW V1 PLUS NECKER Date of Test: December 22 ~ 25, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified i…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: 2ABDZ61HD99AWC02401 Report No.: T141215W03-RP Page 87 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: 2ABDZ61HD99AWC02401 Report No.: T141215W03-RP Page 88 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: 2ABDZ61HD99AWC02401 Report No.: T141215W03-RP Page 89 Rev. 00 Powerline Conducted Emissions Setup Photos
