2ABDZ62HD160AW00001Action Camera

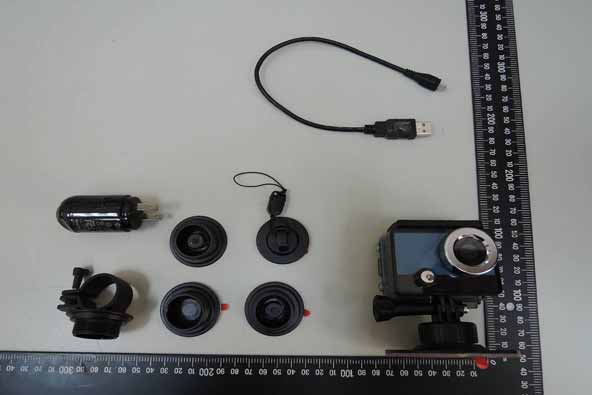

0 EN 1 EN Table of Contents 1. Introduction........................................................ 2  System Requirement..................................... 3 2. Preparation........................................................ 4  Component & Accessories............................. 4  Part Name......................................................5 3. Install.................................................................. 6  Take Out the Action Camera.......................... 6  Memory Card Install....................................... 9  Install the Action Camera............................... 9  Base Mount Install.......................................... 12 4. Charge............................................................... 13 5. Record............................................................... 15  Car Mode.......................................................15  Sporty Mode...................................................18 6. Wireless............................................................. 21  Wireless On............................................... 21  Control via App...............................................22  Wireless Off...................................................22 7. Download........................................................... 23  Download from Camera............................... 23  Download from Card Reader......................... 24 8. Playback............................................................ 25 9. Appendix............................................................ 26  Specification................................................... 26  Waterproof Case Maintenance...................... 27  SMC (Smart Camera).................................... 30 2 EN 1. Introduction Welcome to the world of digital imaging. The following information will help you to use your Action Camera HD-160AW to its full capabilities. Before you install and operate the product, please take a few minutes to read through this manual. It provides proper instructions for you to install and operate the product. The electron device may be affected by static electricity interference. Please plug-in / out and wait a few minutes to start this function. 3 EN  System Requirement PC System Requirements  Intel® Core2Duo 1.8G or AMD equivalent CPU  Hi-speed USB2.0 port  1 GB RAM internal memory minimum  500MB free hard disk space  800 x 600 pixel color monitor  nVIDIA GeForce MX440 or above, AMD (ATi) Radeon 9200 or above  DirectX 9.0 or higher  Windows® XP (SP2 or higher) / Windows Vista™ / Windows 7™, Windows 8™ Note: If your system is Windows XP Service Pack I, please go to www.microsoft.com. It’s free to update your system to Windows XP Service Pack II. Mac System Requirements  Power PC G5 or Intel Core Duo processor recommended  Free USB2.0 port  1 GB RAM internal memory minimum  500MB free hard disk space  800 x 600 color monitor  Mac OS 10.5 or above 4 EN 2. Preparation  Component & Accessories Action Camera Waterproof Case User Manual Base Mount Bike Mount Tripod Mount micro USB Cable AC Wall Adaptor micro SD Card (Optional) 5 EN  Part Name 6 EN 3. Install  Take Out the Action Camera 1. Release the latch of the Waterproof Case. 2. Open and push the latch to the end. 7 EN 3. Release the hook of the latch and open the case cover. 4. Dismount the case cover. 8 EN 5. Take out the Action Camera from the Waterproof Case. 9 EN  Memory Card Install 1. Make sure the Action Camera has powered off. 2. Insert a compatible micro SD card into the memory card slot of the Action Camera.  Install the Action Camera 1. Put the Action Camera back in the Waterproof Case. 10 EN 2. Push the Action Camera to the end of the case. 3. Hook up the case cover and close it then push the latch down and lock the case cover. 11 EN 4. Force the latch down to the end. 5. Make sure the latch has locked and the case cover has closed completely. 12 EN  Base Mount Install 1. Clean the flat surface where you want to fix the Base Mount. 2. Remove the protected membrane of adhesive on the Base Mount. 3. Put and compress the Base Mount on where you want to install and keep it for at least 24 hours to make sure the adhesive has firmly stuck on. 13 EN 4. Charge 1. Open the Waterproof Case and take out the Action Camera. 2. Plug the micro USB cable into the supplied AC Wall Adaptor or a PC / Mac USB 2.0 port. 14 EN 3. The Status LED at the left side of the Action Camera light on in Green to tell you it’s charging. When the Status LED turns off, the battery is full and charge completely. Note: The Action Camera vibrates 3 times and power off when the battery power is low and need to recharge it. 15 EN 5. Record  Car Mode  Circulated Recording 1. Slide the Mode Switch down to the Car Mode. 2. The Video Record supports 2 resolutions. Slide the Resolution Switch up for Full HD 1080p and slide down for HD 720p. 16 EN 3. Press and hold the Power / REC Button for 3 seconds then release to turn on the Action Camera. The Action Camera vibrates 3 times and the Power LED light on in Blue. The Wireless Function active at the same time. 4. The Action Camera vibrates 1 time and start recording automatic. The Record LED light on in Red and The Wireless LED light on in Blue when ready. 5. Press the Power / RED Button then release. The Action Camera vibrates 1 time, stop record, turn off the Record LED and save file. 17 EN 6. Press and hold the Power / RED Button for 3 seconds then release again. The Action Camera vibrates 3 times, the Power LED turn off and power off. Note: 1. Don’t take out the micro SD card during the video record. 2. The Status LED will flash the RED if no microSD card insert into the microSD card slot and power off after 10 seconds automatic. 3. In Circulate Record Mode, the camera circulate record video and overwrite the oldest recorded file first. 4. The recorded file divides each 3 minutes per file. 5. The file name format is CAR_0001.MOV. 6. A…

Text truncated - open the document above for the full version.

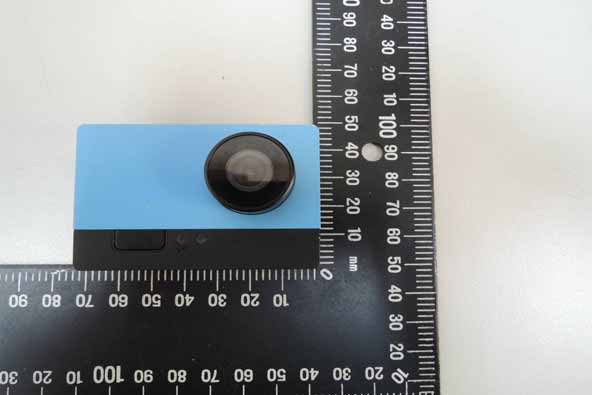

Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (8862) 22993279 f (8862) 22980488 www.tw.sgs.com Member of SGS Group APPENDIX 2 EXTRENAL PHOTOGRAPHS OF EUT Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (8862) 22993279 f (8862) 22980488 www.tw.sgs.com Member of SGS Group All View of EUT - 1 Front View of EUT Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (8862) 22993279 f (8862) 22980488 www.tw.sgs.com Member of SGS Group Back View of EUT Side View of EUT – 1 Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTa…

Text truncated - open the document above for the full version.

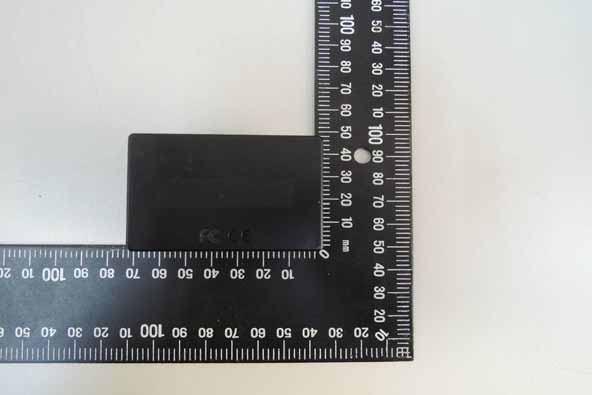

Label Location Back View of EUT

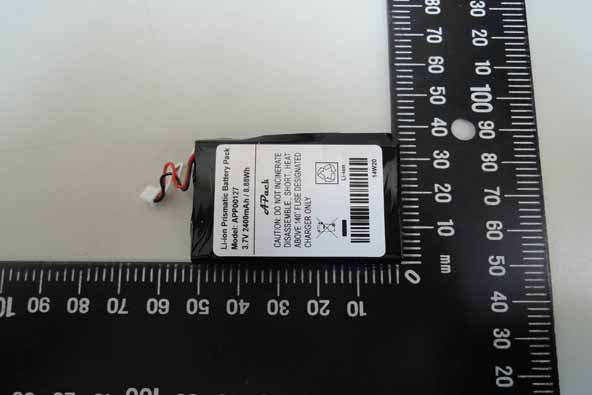

Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (8862) 22993279 f (8862) 22980488 www.tw.sgs.com Member of SGS Group APPENDIX 3 INTRENAL PHOTOGRAPHS OF EUT Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (8862) 22993279 f (8862) 22980488 www.tw.sgs.com Member of SGS Group Open View of EUT – 1 Open View of EUT – 2 Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (8862) 22993279 f (8862) 22980488 www.tw.sgs.com Member of SGS Group Open View of EUT – 3 Internal View of EUT – 1 Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDi…

Text truncated - open the document above for the full version.

承認書 零件製造商: MAGIC 零件料號 : 053-2450B-M0320 零件名稱 : Multilayer Chip Antenna 零件規格 : 2.4G/50ohm/2.82dBi(PCA2450-502010) 適用機種 : HD-99CW 承認日期 : 12 / 30 / 2013 承認者 確認者 承辦人 12 / 30 / 2013 勁儀科技股份有限公司 Salix Technology Co.,Ltd. 5F,No.16 ,Lane 77,Hsing Ai Rd., Nei-Hu ,Taipei 114,Taiwan R.O.C . 台北市內湖區行愛路 77 巷 16 號 5 樓 TEL:02-27921512 Ext:515 FAX:02-27921526 V2.1 美桀電科技股份有限公司 Magic Wireless Technology CO., LTC. Website : http://www.magictec.com.tw (TEL)+886-2-82273366 15-5, No.716, Chung Cheng Rd., Chung Ho District, New Taipei City, Taiwan, R.O.C 1 DATASHEET PCA2450-502010(MW 2412)  Application 2 .4GHz Wireless Devices WLAN (IEEE 802.11 b/g) Bluetooth Zigbee  Features Compact Size (5.0*2.0*1.0mm 3 Use matching circuit to get high efficiency ) SMT processes compliance RoHS Compliant 2.0 5.0 1.0 Unit: mm ※ The direction of white dot forwards to feed point V2.1 美桀電科技股份有限公司 Magic Wireless Technology CO., LTC. Website : http://www.magictec.com.tw (TEL)+886-2-82273366 15-5, No.716, Chung Cheng Rd., Chung Ho District, New Taipei City, Taiwan, R.O.C 2 Table of Content page 1. Specifications 3 2. Appearance 3 3. PCB Design for Measurement 4 3.1 Test Board Dimension 4 3.2 PCB Design Guide 4 4. Measurement Result 5 4.1 Matching circuit 5 4.2 Return loss(S11 / VSWR) 5 4.3 Radiation Pattern 6 5. Package 7 5.1 Dimension 7 5.2 Reel & Packing Specification 7 V2.1 美桀電科技股份有限公司 Magic Wireless Technology CO., LTC. Website : http://www.magictec.com.tw (TEL)+886-2-82273366 15-5, No.716, Chung Cheng Rd., Chung Ho District, New Taipei City, Taiwan, R.O.C 3 1. Specifications No Item SPEC. Unit 1 Dimensions (LxWxH) 5.0*2.0*1.0 mm 2 Operating Frequency Range 2.4~2.5 GHz 3 VSWR 2 max. 4 Impedance 50 Ω 5 Polarization Linear 6 Peak gain 2.82 dBi 7 Efficiency 71 % 8 Operating Temperature -40~85 °C ※ The antenna performance is measured on 40*20mm test Board. 2. Appearance Unit:mm V2.1 美桀電科技股份有限公司 Magic Wireless Technology CO., LTC. Website : http://www.magictec.com.tw (TEL)+886-2-82273366 15-5, No.716, Chung Cheng Rd., Chung Ho District, New Taipei City, Taiwan, R.O.C 4 GND GND GND 3. PCB Design for Measurement 3.1 Test Board Dimension ※ Test Board size is 40*20mm ※ Ground plane size is 30*20mm 3.2 PCB Design Guide SMA Connector Matching Circuit Chip Antenna V2.1 美桀電科技股份有限公司 Magic Wireless Technology CO., LTC. Website : http://www.magictec.com.tw (TEL)+886-2-82273366 15-5, No.716, Chung Cheng Rd., Chung Ho District, New Taipei City, Taiwan, R.O.C 5 4. Measurement Result 4.1 Matching circuit 4.2 Return Loss (S11 / VSWR) 2.4GHz 2.45GHz 2.5GHz S11(dB) -19 -29 -25 VSWR 1.3 1.1 1.1 System Matching Circuit Component Location Description Vendor Antenna 502010 MW 1 NC 2 2.7nH 0402 TDK 3 1.2pf 0402TDK Antenna V2.1 美桀電科技股份有限公司 Magic Wireless Technology CO., LTC. Website : http://www.magictec.com.tw (TEL)+886-2-82273366 15-5, No.716, Chung Cheng Rd., Chung Ho District, New Taipei City, Taiwan, R.O.C 6 4.3 Radiation Pattern(@2450MHz) X-Y plane Y-Z plane X-Z plane Avg. gain(dBi) -4.04 -2.61 -2.10 Peak gain(dBi) -2.96 2.82 2.60 Y Z X XY YZ XZ V2.1 美桀電科技股份有限公司 Magic Wireless Technology CO., LTC. Website : http://www.magictec.com.tw (TEL)+886-2-82273366 15-5, No.716, Chung Cheng Rd., Chung Ho District, New Taipei City, Taiwan, R.O.C 7 5. Package 5.1 Dimension (Unit: mm) 5.2 Reel & Packing Specification Product code: 1101 - Polycarbonate natural transparent. 1201 - Polycarbonate conductive black. Surface resistivity 10E4 to E6 ohm/sq. Item Specifications Tolerances W 16.00 ±0.30 E 1.75 ± 0.10 F 7.50 ± 0.10 P 8.00 +0.10 P0 4.00 ± 0.10 P2 2.00 ± 0.10 D0 1.50 ± 0.10 T 0.30 ± 0.05 A0 2.30 ± 0.10 B0 5.30 ± 0.10 K0 1.30 ± 0.10 Reel Dimensions A 100 mm B 330 mm C 12 mm Reel 5000 pcs Packing Length / Roll 48.6 meters Each Carton 19 rolls 95000 pcs Carton Dimension (mm) V 350(L)*350(W)*350(H)

Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 台灣檢驗科技股份有限公司台灣檢驗科技股份有限公司 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group 1 MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Com- mission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 台灣檢驗科技股份有限公司台灣檢驗科技股份有限公司 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group 1.2 Maximum Permissible Exposure (MPE) Evaluation 802.11b Power Table Max. Rated Avg. Power + Max. Tolerance (± 1dBm): 9.48 dBm Frequency (MHz) Reading Power (dBm) Cable Loss Output Power (dBm) Output Power (W) Limit (W) 2412.00 8.48 0.00 8.48 0.0070 1 2437.00 8.27 0.00 8.27 0.0067 1 2462.00 8.09 0.00 8.09 0.0064 1 MPE Prediction (802.11b) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum average output power at antenna input terminal: 9.48 (dBm) Maximum average output power at antenna input terminal: 8.87156012 (mW) Duty cycle: 97.9 (%) Maximum Pav : 8.685257358 (mW) Antenna gain (typical): 2.82 (dBi) Maximum antenna gain: 1.914255925 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm2) Power density at predication frequency at 20 (cm) distance 0.003309 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.003309mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 2412MHz. Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification a…

Text truncated - open the document above for the full version.

Report No.: E2/2014/80069 FCC ID: 2ABDZ62HD160AW00001 Issue Date: Feb. 16, 2015 Page: 1 of 83 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 台灣檢驗科技股份有限公司台灣檢驗科技股份有限公司 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Action Camera Brand Name: N/A Model No.: HD-160AW Model Difference: N/A FCC ID: 2ABDZ62HD160AW00001 Report No.: E2/2014/80069 Issue Date: Feb. 16, 2015 FCC Rule Part: §15.247, Cat: DTS Prepared for: SALIX TECHNOLOGY CO., LTD. 5F, NO. 16, LANE 77, HSING AI RD., NEI- HU, TAIPEI 114, TAIWAN, R.O.C. Prepared by: SGS Taiwan Ltd. Electronics & Communication Laboratory No.2, Keji 1st Rd., Guishan Township, Taoyuan Count…

Text truncated - open the document above for the full version.
