2ABEPTA2511-7MID760RK WITH WIFI

Shenzhen Tianzheng Hongye Technology Co. Ltd. Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China TA2511-7 User Manual Thanks for buying this Tablet PC. This manual will introduce you to the functions of your device and make you aware of anything requiring attention. Please read this manual carefully before using the device. Shenzhen Tianzheng Hongye Technology Co. Ltd. Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Shenzhen Tianzheng Hongye Technology Co. Ltd. may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Shenzhen Tianzheng Hongye Technology Co. Ltd. Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China 1. Power button 2. VOL+ 3. VOL- 4. Earphone jack 5. OTG USB Port 6. DC Socket 7. TF card slot 8. Reset 9. Speaker ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Shenzhen Tianzheng Hongye Technology Co. Ltd. Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China Content 1. Notifications ........................................................................1 2. Introduction ..............................................................................2 2.1 Key Functions...................................................................................2 2.2 Features Overview. ..............................................................................2 2.3 Technical Specifications................................................................................3 3. Quick Guide ...........................................................................3 3.1 About the Touch screen...............................................................................3 3.2 Switch On/Off. ................................................................................................3 3.3 Power Save Modes and lock screen.........................................................3 3.4 Battery management and charging. ...............................................................3 3.5 Explanation of Function items...................................................................4 3.6 USB HOST Function......................................................................................4 3.7 TF Card Storage............................................................................................5 4. Network Access ...........................................................................5 4.1 Wi-Fi Network Access .............................................................................5 4.2 3G Network Access ...................................................................................5 5. Storage File Copy.......................................................................5 6. Main Functions ...................................................................6 6.1 Audio Function....................................................................................6 6.2 Video Function.......................................................................................7 6.3 Picture Function.................................................................................7 6.4 Record Function....................................................................................7 6.5 File Manager...........................................................................................8 6.6 E-book Function....................................................................................8 6.7 Internet Browser.................................................................................8 6.8 E-mail Function....................................................................................9 6.9 Calendar...................................................................................................9 6.10 Calculator...............................................................................................9 6.11 Alarm Clock...........................................................................................9 6.12 APK Installer........................................................…

Text truncated - open the document above for the full version.

Shenzhen Tianzheng Hongye Technology Co. Ltd. Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China Tel: 86-755-36697316 Fax: 86-755-36697317 AGENCY AUTHORIZATION LETTER FCC ID: 2ABEPTA2511-7 Date: Nov. 27, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Electromagnetic Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Electromagnetic Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on Nov. 26, 2014. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Shenzhen Tianzheng Hongye Technology Co. Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ------------------------------ Quanxing.Huang / Manager

Shenzhen Tianzheng Hongye Technology Co. Ltd. Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China Tel: 86-755-36697316 Fax: 86-755-36697317 DoC ATTESTATION LETTER FCC ID: 2ABEPTA2511-7 Date: Nov. 27, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the personal computer portion of the device. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely, ------------------------------ Quanxing.Huang / Manager Shenzhen Tianzheng Hongye Technology Co. Ltd. Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China Tel: 86-755-36697316 Fax: 86-755-36697317

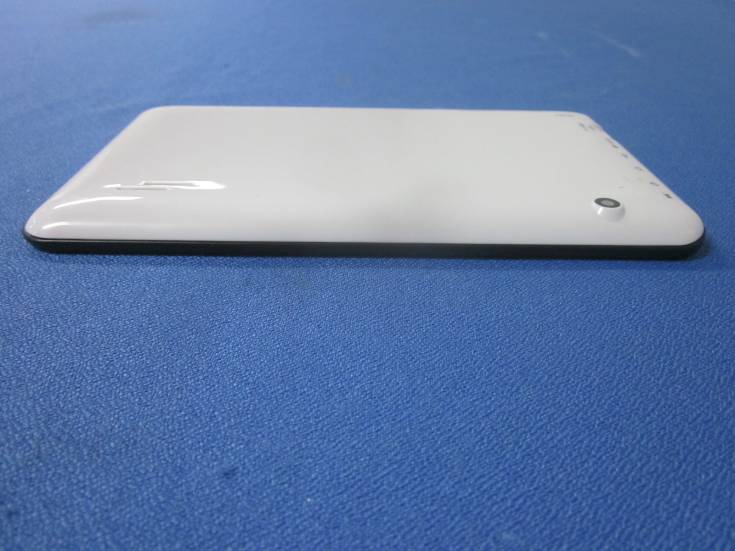

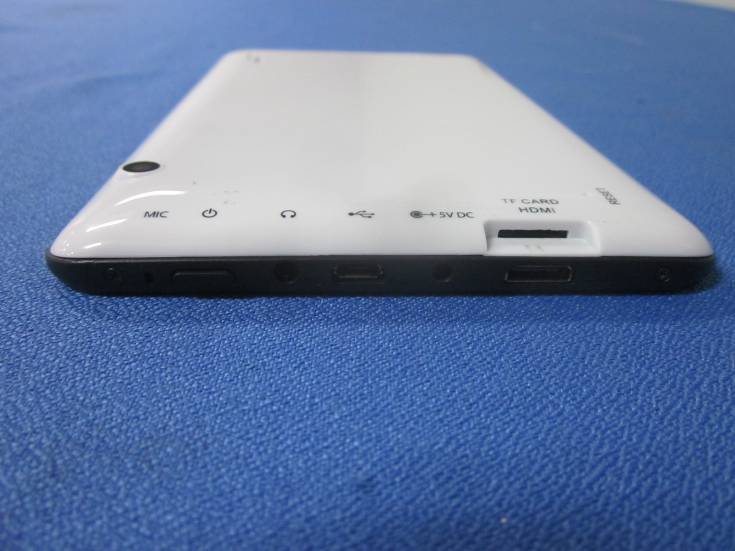

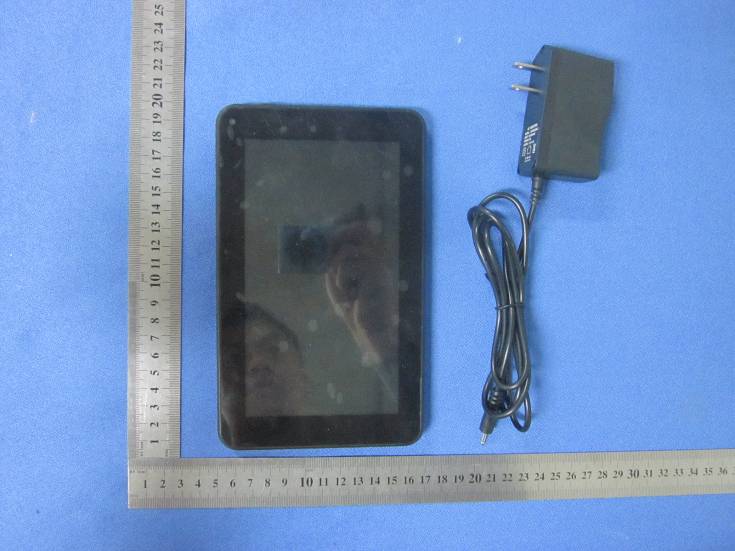

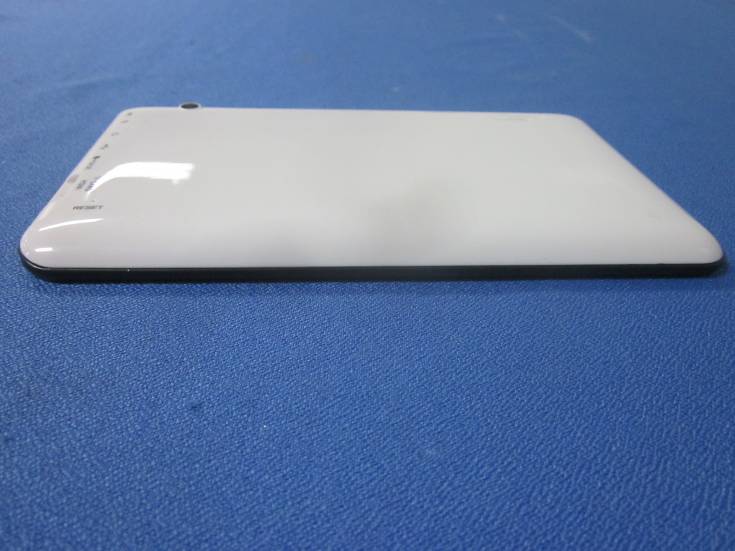

6. External and Internal Photos of the EUT External Photos of EUT

FCC ID Label Information 1. Label location: 2. FCC ID Label: Shenzhen Tianzheng Hongye Technology Co. Ltd. MID760RK Model: TA2511-7 FCC ID: 2ABEPTA2511-7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Operation Description Device Overall Description The wifi product of the MID provides the highest level of integration and most aggressive BOM cost by integrating IEEE 802.11b/g/n into a single MAC/Baseband chip utilizing a single 2.4GHz transceiver. Integrated on-chip power amplifier and LNA reduce external component count, while still able to deliver ample transmit power for most applications. Wifi product utilizes RTL8188EUS’s patent pending technologies to fundamentally solve the interference and performance issues existed during 802.11b/g/n coexistence, thus improving both 802.11b/g/n performance and link stability in real environment. As a result, it enhances user experience in a totally wireless environment, where all devices are connected wirelessly through 802.11b/g/n link. The single installation package allows for easy setup and configuration of 802.11b/g/n devices. Combined user interface is intuitive to use. Once configured, both wireless links operate transparently in the background. Features - Single-band 2.4GHz 802.11b/g/n (HT40) with up to 150Mbps data rate - Single installation package for both WLAN device setup - Single user interface for both WLAN device configuration and operation - Programmable RTL8188EUS based solution easily upgradable to future standards as well as supporting additional wireless technologies . - Host Interface supports PCI-E - Work frequency 2412-2462MHz, DC 3.7V

Shenzhen CTL Electromagnetic Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 MPE TEST REPORT FCC Per 47 CFR 2.1093 Report Reference No......................: CTL1311111736-WM FCC ID..............................................: Compiled by ( position+printed name+signature)..: File administrators Jennifer NI Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Jacky Chen Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Nov. 21, 2013 Representative Laboratory Name.: Shenzhen CTL Electromagnetic Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test Firm : Bontek Compliance Testing Laboratory Ltd Address.............................................: 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name............................: Shenzhen Tianzheng Hongye Technology Co. Ltd. Address.............................................: Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China Test specification: Standard ...........................................: FCC Per 47 CFR 2.1093 TRF Originator ..................................: Shenzhen CTL Electromagnetic Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Electromagnetic Technology Co., Ltd. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electromagnetic Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electromagnetic Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader’s interpretation of the reproduced material due to its placement and context. Test item description .................... : MID760RK Trade Mark .......................................: 2ABEPTA2511-7 Model/Type reference.......................: TA2511-7 Work frequency ................................: 802.11b/g/n: 2412~2462MHz, 802.11n(40MHz): 2422~2452 Type of modulation ...........................: 802.11b DSSS, 802.11g/n: OFDM Data Rate..........................................: 802.11b: 1/2/5.5/11 Mbps, 802.11g: 6/9/12/18/24/36/48/54 Mbps 802.11n: up to 150 Mbps Antenna Gain ...................................: -0.5 dBi Antenna type ....................................: Internal Power Supply..............................: DC3.7V from battery Result................................................: Positive V1.0 Page 2 of 7 Report No.: CTL1311111736-WM Test Report Test Report No. : CTL1311111736-WM Nov. 21, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : MID760RK Model /Type : TA2511-7 Listed Models : / Applicant : Shenzhen Tianzheng Hongye Technology Co.Ltd. Address : Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China Manufacturer : Shenzhen Tianzheng Hongye Technology Co.Ltd. Address : Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 7 Report No.: CTL1311111736-WM Content 1. SUMMARY............................................................................. 4 1.1. EUT configuration 4 1.2. Equipment Under Test 4 1.3. Description of the test mode 4 1.4. NOTE 4 2. TEST ENVIRONMENT ............................................................... 5 2.1. Address of the test laboratory 5 2.2. Environmental conditions 5 2.3. Statement of the measurement uncertainty 5 3. METHOD OF MEASUREMENT..................................................... 6 4. TEST RESULTS ...................................................................... 7 V1.0 Page 4 of 7 Report No.: CTL1311111736-WM 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer o - supplied by the lab 1.2. Equipment Under Test Power supply system utilised Power supply voltage : „ 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC „ Other (specified in blank below) DC 3.7V from battery 1.3. Description of the test mode IEEE 802.11b/g/n: Thirteen channels are provided to the EUT, only eleventh channels used for USA. Channel Frequency(MHz) Channel Frequency(MHz) 1 2412 8 2447 2 2417 9 2452 3 2422 10 2457 4 2427 11 2462 5 2432 6 2437 7 2442 1.4. NOTE The EUT is an 802.11b/g/n tablet PC. The functions of the EUT listed as below: Test Standards Reference Report WLAN 802.11b/g, 802.11n FCC Part 15 Subpart C (Section15.247) CTL1311111736-WF WLAN 802.11b/g, 802.11n FCC Per 47 CFR 2.1093 CTL1311111736-WM The frequency bands used in this EUT are listed as follows Frequency Band(MHz) 2400-2483.5 5150-5350 5470-5725 5725-5850 802.11b √ - - - 802.11g √ - - - 802.11n(20MHz) √ - - - 802.11n(40MHz) √ - - - Modulation Mode TX Function 802.11b 1 TX 802.11g 1 TX 802.11n(20MHz) 1 TX 802.11n(40MHz) 1 TX V1.0 Page 5 of 7 Report No.: CTL1311111736-WM 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China There is one 3m semi-anechoic chamber and two line conducted labs for final test. The Test Sites meet the requirements in documents ANSI C63.4 and CISPR 22/EN 55022 requirements 2.2. Environmental c…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA RK3188_H Note :PLS design the RF under RK RF LAYOUT guide; For more suggestions, please refer to the SPEC of the wireless IC W IFI_REG_ON W IFI_REG_ON _RF W IFI_RF HOST_DM HOST_DP _RF W IFI_RF VCCIO_W L VCC_IOVCCIO_W L W IFI-3V3 W IFI-3V3 HOST_DM HOST_DP U1H RK3188 BGA453-19X19 GPIO1_A0/UART0_RX L20 GPIO1_A1/UART0_TX L19 GPIO1_A2/UART0_CTS L21 GPIO1_A3/UART0_RTS L23 GPIO3_C5/SDMMC1_CLKO/RMII_CLKO K21 GPIO3_C0/SDMMC1_CMD/RMII_TX_EN L22 GPIO3_C1/SDMMC1_D0/RMII_TX_D1 K22 GPIO3_C2/SDMMC1_D1/RMII_TX_D0 K23 GPIO3_C3/SDMMC1_D2/RMII_RX_D0 K19 GPIO3_C4/SDMMC1_D3/RMII_RX_D1 K20 GPIO3_C6/SDMMC1_DET/RMII_RX_ERR J21 GPIO3_C7/SDMMC1_WP/RMII_CSR_VALID J22 GPIO3_D0/SDMMC1_PWR/MII_MD G23 GPIO3_D1/SDMMC1_BACKEND/MII_MDCLK H22 GPIO3_D2/SDMMC1_INT H23 AP0_VCC V17 J27 ANT1 wifiant 1 2 R459 47K R0402 Q23 W PM2341 SOT23 1 23 L16 NC L0402 P74TEST 1 C686 2.2uF C0402 L18 NC L0402 L15 NC L0402 C293 0RC0402 P65TEST 1 U80 W IFI D+ 3 GND 4 GND 5 RF 6 3V3 1 D- 2 GND 11 WIFI RF 12 SYNC 9 CLK 10 GND 7 WIFI RF 8 P64TEST 1 T199 TEST T-1.0 1 L17 NC L0402 C183 10uF C0805 J29 ANT1 wifiant 1 2 C294 0RC0402 C297 0.1uF C0402 UnRegistered 5 5 4 4 3 3 2 2 1 1 DD CC BB AA TOUCH PANEL VCC_TP VCCIO_WL POWER DIAGRAM LCD PANEL VP4SW4 VDD_LOG VDD_ARMCPU Core PMU_IO/USB POWER PATH+CHARGER SW1 DCDC SW2VP2 SW3VP3 VCC_18 VSYS RK610 OUT5 OUT6 VCCA_33 REG7 REG8 REG9 REG10 REG11 REG12 VCC_IO VCC_DDR RK3188_IO NANDFLASH VCC_IO AC Adapter 5V Battery ACT8846 VP1 Low Votage Detection Interrupt to CPU DDR3-Device RK3188_DDR-Ctrl VCC_TP VCCA_33 Power-Up Timing VDD_10 VCC_18 VCC18_CIF VCCDR VDD_ARM PWRON SYS VCC_IO VCC28_CIF OUT9 OUT10 INL3 OUT11 OUT12 INL2 OUT8 INL1 OUT7 VRTC RTC_1.8V VCC_RTC VDD_LOG VDC Vbat DPLL/CPLL/GPLL_1.0V USB_PHY_1.0V VDD_10 REG5 REG6 WIFI VDD_12 CAMERA _2.8V VCC28_CIF Camera _1.8V VCC18_CIF WIFI/FLASH IO USB_PHY_1.8V RK3188_SAR-ADC_1.8V VDD_12 VCCIO_WL RESET Saturday, December 1, 2012 MIPI RK610 福州瑞芯微电子有限公司 REV: Create Date: Title: File: Page Num: Page Total: Modify Date: System power diagram Thursday, July 04, 2013 17 4 1.0 RK3188&68_RK610_V1.0 福州瑞芯微电子有限公司 REV: Create Date: Title: File: Page Num: Page Total: Modify Date: System power diagram Thursday, July 04, 2013 17 4 1.0 RK3188&68_RK610_V1.0 福州瑞芯微电子有限公司 REV: Create Date: Title: File: Page Num: Page Total: Modify Date: System power diagram Thursday, July 04, 2013 17 4 1.0 RK3188&68_RK610_V1.0 UnRegistered 5 5 4 4 3 3 2 2 1 1 DD CC BB AA DC IN POWER CONTROL BATTERY CHARGE No indicate Under needs above 12 miles above 50 miles above 30 miles PCB POWER WIRE WIDTH INDICATE above 80 miles Saturday, December 1, 2012 OPTION BATTERY 1.5K Note: Please use a 5V DC. DC IN USB充电贴Q21,R466,D13,R232 DC座充电贴R468 DC座和USB都可以充电贴Q21,D15,D13,R232 USB充电此部分元件NC I2C0_SDA I2C0_SCL I2C0_SCL I2C0_SDA ALRT_N ALRT_N LCD_EN DC5V DC_EN VSYS VCC50 VCC_IO VBATT DC5V VBATT VSYS VBATT VCC_IO VBATT DC5V VCC_IO VDC DC5V DC5V DCIN VBUS0 VDC USB_OTG PWR_HOLD7 PWR_EN6 PMIC_PWRON6 I2C0_SCL10,15 I2C0_SDA10,15 ALRT_N7 BAT_DET7 CHG_DET 9 LCD_EN DC_DET10 福州瑞芯微电子有限公司 REV: Create Date: Title: File: Page Num: Page Total: Modify Date: DC/Charge Thursday, July 04, 2013 17 5 1.0 RK3188&68_RK610_V1.0 福州瑞芯微电子有限公司 REV: Create Date: Title: File: Page Num: Page Total: Modify Date: DC/Charge Thursday, July 04, 2013 17 5 1.0 RK3188&68_RK610_V1.0 福州瑞芯微电子有限公司 REV: Create Date: Title: File: Page Num: Page Total: Modify Date: DC/Charge Thursday, July 04, 2013 17 5 1.0 RK3188&68_RK610_V1.0 R154 2.49K R0402 L19 4.7uH/1.5A IND-4X4 R142 2R R0402 R232 10K R0402 R271 43K R0402 Q12 8050 SOT23 1 3 2 C307 10uF Q5 SI2305 SOT23 1 23 R20 10K R0402 R8 56K R0402 Q3 2N3906 1 2 3 D15 1N5819 SOD123 C285 22pF C0402 P75 TEST 1 D10 1N5819 SOD123 Q14 8050 SOT23 1 3 2 D31SS32 SOD128 C6 4.7uF C0805 R152 2.49K R0402 U23 AP2004 SOT26 LX 1 NC 6 FB 3 GND 2 EN 4 VIN 5 R102 NC/1K R0402 R153 1k R0402 R150 10K R0402 R157 10K R0402 D14 BAT54C SOT23 1 3 2 R4680R/NC R0603 P6 BATT- R4651K R0402 Q8 WPM2341 SOT23 1 23 R28 200K R0402 C18 0.1uF C0402 R147 220R R0402 C161 NC/10nF C0402 R86 NC/1K R0402 C162 NC/1uF C0402 C1 4.7uF C0805 R269 330K R0402 R4660R/NC R0603 R464 47K R0402 R5 51K R0402 R61K R0402 P77TEST 1 T16 TEST 1 U37 NC/CW2013 CW2013 CTG 1 CELL 2 VDD 3 GND 4 ALRT_N 5 QSTRT 6 SCL 7 SDA 8 GNDPAD 9 POWER SW10 IT_1207SMD 1 1 3 3 2 2 4 4 C305 10uF D13 1N5819 SOD123 Q21 WPM2341 SOT23 1 23 R155 10K R0402 U10 AP5057 TEMP 1 PROG 2 GND 3 VCC 4 BAT 5 STDBY 6 CHRG 7 CE 8 R101 NC/150R R0402 D6SS32 SOD128 C17 10uF C0805 R10 100K R0402 R146 47K R0402 D7 5.1V C690 10uF C0805 C113 10uF C0805 J3 DC-1520-A 757dc 3 2 1 45 67 P5 BATT+ R149 47K R0402 R30 120K R0402 UnRegistered 5 5 4 4 3 3 2 2 1 1 DD CC BB AA Saturday, December 1, 2012 3.3V 3.3V 1.8V 3.3V 2.8V 1.1V 1.8V 3.0V 2.5V Rset(KΩ)=2336 x (1V/Ichg(mA))-0.205 3.3V 1.5V 3.3V 1.25V 1.2V AVDD_COM RESET PMIC_PW RON I2C0_SDA I2C0_SCL VDD_FB PMIC_SLEEP PW R_EN RESET VCCIO_W LVCCIO VDD_JETTA AVDD_COM VCC_TP VDD_ARM VCC18_CIF VCC_RTC VCC_IO VCCA_33 VSYS VSYS VSYS VCC_IO VCC_RTC VSYS VSYS VDD_LOG VDD_LOG VCC_DDR VCC_18 VSYS VCC28_CIF VCC_IO VSYS VCC_IO VSYS VCC_SD VDD_10 VCC_IO AVDD_COM6 DVS0_CTL5 RESET7 PMIC_PW RON5 I2C0_SDA7,10 I2C0_SCL7,10 RTC_CLKOUT7 RESET7 PMIC_SLEEP 7 PMIC_INT7 I2C1_SCL10 I2C1_SDA10 PW R_EN5 PMIC_PW RON5 PMIC_SLEEP10 福州瑞芯微电子有限公司 REV: Create Date: Title: File: Page Num: Page Total: Modify Date: System power Thursday, July 04, 2013 17 6 1.0 RK3188&68_RK610_V1.0 福州瑞芯微电子有限公司 REV: Create Date: Title: File: Page Num: Page Total: Modify Date: System power Thursday, July 04, 2013 17 6 1.0 RK3188&68_RK610_V1.0 福州瑞芯微电子有限公司 REV: Create Date: Title: File: Page Num: Page Total: Modify Date: System power Thursday, July 04, 2013 17 6 1.0 RK3188&68_RK610_V1.0 C1001uF C0402 C1454.7uFC0603 C118 1uF C0402 C190 1nF C0402 C1644.7uF C0603 C15610uF/6.3V C0805 C854.7uF C0603 T14 TEST T_1 C1664.7uF C0603 R2134K7 R0402 L12 2.2uH/1.5A IND_4X4 C14310uF/6.3V C0805 C99 10uF/6.3V C0805 C1324.7uF C0603 C8212pFC0402 C7210uFC0805 C101 10uF/6.3V C0805 C881uF C0402 C1274.7uFC0603 RSTSW 12 SW -PB3 1 1 3 3 2 2 4 4 C934.…

Text truncated - open the document above for the full version.

Shenzhen CTL Electromagnetic Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.247 Report Reference No......................: CTL1311111736-WF Compiled by ( position+printed name+signature) .: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature) .: Test Engineer Tracy Qi Approved by ( position+printed name+signature) .: Manager Tracy Qi Date of issue.....................................: Nov. 21, 2013 Representative Laboratory Name.: Shenzhen CTL Electromagnetic Technology Co., Ltd. Address ............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test Firm.........................................: Bontek Compliance Testing Laboratory Ltd Address ............................................: 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name............................: Shenzhen Tianzheng Hongye Technology Co. Ltd. Address ............................................: Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China Test specification: Standard ...........................................: FCC Part 15.247: Operation within the bands 902–928 MHz, 2400– 2483.5 MHz, and 5725–5850 MHz. TRF Originator..................................: Shenzhen CTL Electromagnetic Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Electromagnetic Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electromagnetic Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electromagnetic Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: MID760RK FCC ID.......................................: 2ABEPTA2511-7 Trade Mark ....................................... : TBA Model/Type reference ......................: TA2511-7 Work frequency ................................: 802.11b/g/n: 2412~2462MHz, 802.11n(40MHz): 2422~2452 Type of modulation ...........................: 802.11b DSSS, 802.11g/n: OFDM Data Rate ......................................... : 802.11b: 1/2/5.5/11 Mbps, 802.11g: 6/9/12/18/24/36/48/54 Mbps 802.11n: up to 150 Mbps Antenna Gain ...................................: -0.5 dBi Antenna type ....................................: Internal Result ............................................... : Positive V1.0 Page 2 of 79 Report No.: CTL1311111736-WF T E S T R E P O R T Test Report No. : CTL1311111736-WF Nov.21, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : MID760RK Model /Type : TA2511-7 Applicant : Shenzhen Tianzheng Hongye Technology Co.Ltd. Address : Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China Manufacturer : Shenzhen Tianzheng Hongye Technology Co.Ltd. Address : Building C, Guancheng Science and Technology Park, Zhenxing Road, Carp River Industrial Zone, Gongming, Shenzhen City, Guangdong Province, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 79 Report No.: CTL1311111736-WF Contents 1. TEST STANDARDS................................................................. 4 2. SUMMARY............................................................................ 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 6 2.6. NOTE 6 2.7. Related Submittal(s) / Grant (s) 6 2.8. Modifications 6 3. TEST ENVIRONMENT ............................................................. 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 9 3.7. Summary of Test Result 10 4. TEST CONDITIONS AND RESULTS.......................................... 11 4.1. Conducted Emissions Test 11 4.2. Radiated Emission Test 14 4.3. 6dB Bandwidth Measurement 22 4.4. Maximum Peak Output Power 31 4.5. Band Edge Measurement 32 4.6. Power Spectral Density Measurement 49 4.7. Spurious RF Conducted Emission 58 4.8. Operation Frequency Range of 20dB Bandwidth 66 4.9. Antenna Requirement 71 5. TEST SETUP PHOTOS OF THE EUT ........................................ 72 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ..................... 74 V1.0 Page 4 of 79 Report No.: CTL1311111736-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices. ANSI C63.4-2003 KDB Publication No. 558074 D01 v03r01 Guidance on Measurements for Digital Transmission Systems V1.0 Page 5 of 79 Report No.: CTL1311111736-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Nov. 13, 2013 Testing commenced on : Nov. 13, 2013 Testing concluded on : Nov. 20, 2013 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ● 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ○ Other (specified in blank below) Description of t…

Text truncated - open the document above for the full version.

5. Test Setup Photos of the EUT
