2ABEYRF-V9Real time tracker & alarm

Product view: *Photos are for reference only. Actual products may differ. Usage: Please choose GSM network-based SIM card for the product. All the functions of this product can be set via SMS instructions. Boot: Please insert the SIM card into the card slot as directed. A quick flash of the blue light one time indicates the power supply has been turned on. The light will flash 3 times about 30 seconds later to signal successful access to the network. Language switching ¾ Send LAG1 to change the language to Chinese (factory default). ¾ Send LAG2 to change the language to English. ¾ Send LAG3 to change the language to Russian. Emergency contact function: ¾ This product can bind up to five emergency contact numbers. The five emergency contact numbers can monitor this product remotely and receive SOS reports. ¾ Bind emergency contact numbers: send SMS HM1 (2,3,4,5) to set the emergency contact numbers. For instance, sending HM1 in an SMS via phone A will set the number of phone A for emergency contact 1. This product will reply with an SMS: The emergency number 1(2,3,4,5) has been set successfully! ¾ SOS function: Press the SOS button for 5 seconds to make this product send an SMS to the emergency contacts: SOS! Help! It will call all the emergency contacts 2 times. If the call is answered, the contact can listen to the sound around V9. ¾ Remote listening function: The product will automatically answer calls by emergency contacts for you to listen to sound around the product for safety. (In response to calls by other numbers, the product will say: The number you dialed is not answered for the moment so as to protect personal privacy) AGPS function: ¾ Send LBS in an SMS to V9 for a report of base station code information including address description and map site URL. (Please make sure GPRS function is available.) Alarm function: ¾ Sound sensor alarm: Send GDM1 in an SMS to turn on sound sensor alarm. V9 will reply with network signal: (strong, good, fair, poor); Battery left: **%; Sound sensor alarm on, vibration alarm off! The product will inform you of an over-50-db sound around immediately. ¾ Send GDM2 to turn off sound sensor alarm. V9 will reply with: Network signal: (strong, good, fair, poor); Battery left: **%; Sound sensor alarm off, vibration alarm off! ¾ Send TIM** to set sound sensor scan time delay. For example: TIM05 means that the product will delay 5 mins after last sound alarm. You will receive an SMS: The interval time of alarm has been set for 5 minutes. ¾ Vibration sensor alarm: Send GDM3 to turn on vibration sensor alarm. V9 will reply with: Network signal: (strong, good, fair, poor); Battery left: **%; Sound sensor alarm turned off, vibration alarm on! This product will inform you of any shock or move immediately. ¾ Send GDM4 to turn off vibration sensor alarm. You will receive an SMS: Network signal: (strong, good, fair, poor); Battery left: **%; Vibration sensor turned off, sound sensor alarm off! Change alarm mode: ¾ send MOD1 to change the alarm mode to: SMS before call (factory default). ¾ send MOD2 to change the alarm mode to: call only. ¾ send MOD3 to change the alarm mode to: SMS only. ¾ send MOD4 to change the alarm mode to: alarm report to platform only. GSM Alarm tracking online: Send GON for a regular uploading of position and product status to the platform. Please visit www.gps123.org , use the IMEI number login to the platform with the default password of 123456. Please complete your user information and change your password after the login. Please experience functions like trace, electronic fences, remote alarm and emergency contacts on the platform. Send GOFF to stop an uploading of positioning data to the website. Note:This function need open GPRS and set APN with SIM card. Other functions: ¾ Current status check: send DSP to check the current state of the network, battery life, and security alarm conditions. ¾ Low battery alert: When the battery life is less than 10%, you will receive an SMS: Battery is too low, please charge the product immediately! V9 will continue with the unfinished task after it restarts work. The product comes with a DC12V/24V to 5V power supply. You can connect the power supply with the battery of the vehicle for a constant power supply. Notes: ¾ This product will turn on automatically after inserted with a SIM card. ¾ Please make sure the product is turned on during a charge. ¾ Please use the product in places where the network signal is better. ¾ A new product needs to be charged for 3-4 hours before use in order to achieve the best performance. Please use our charger to avoid possible damages to the alarm host. ¾ Standby time: 200-300 hours. Working time: 5-8 hours (subject to network signal intensity). ¾ A regular uploading of data consumes more power and cuts stand-by time by a half. Accessories: ¾ Host 1 GSM850/900MHz/DCS180 0/1900MHz ¾ AC 110V-230V charger 1 ¾ 12~24V/DC car charger ¾ 12~24V power adapter ¾ USB charging cable 1 ¾ User manual 1 FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types Real time tracker & alarm (FCC ID: 2ABEYRF-V9) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the body is 1.3419W/kg. This device was tested for typical body operations with the back of the handset kept 5mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 5mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not caus…

Text truncated - open the document above for the full version.

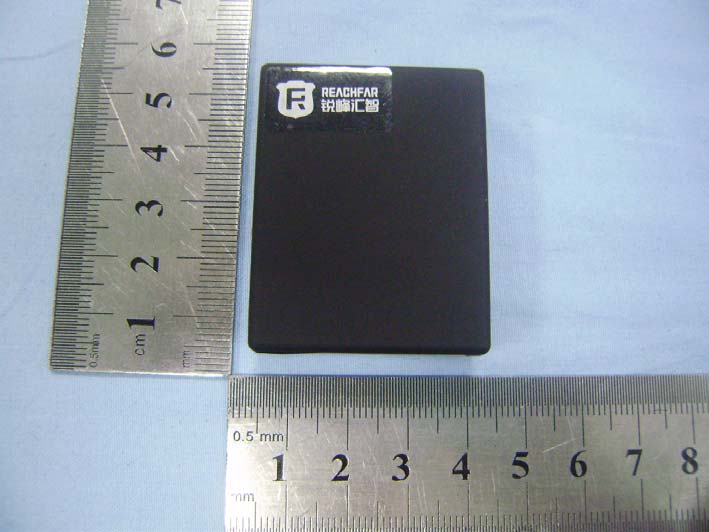

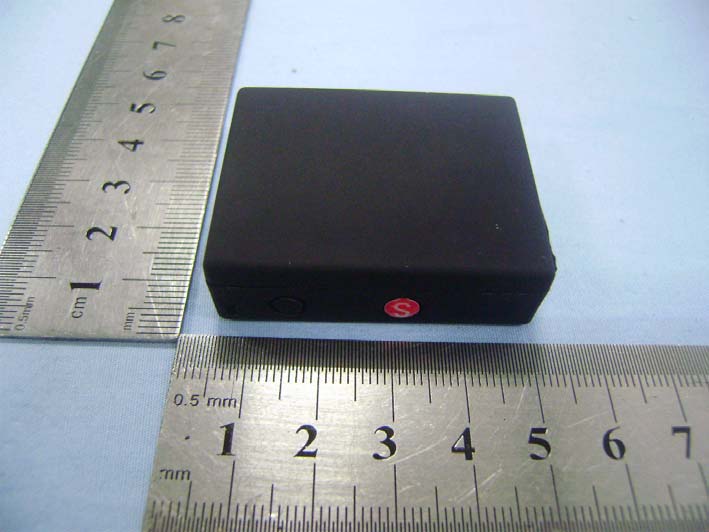

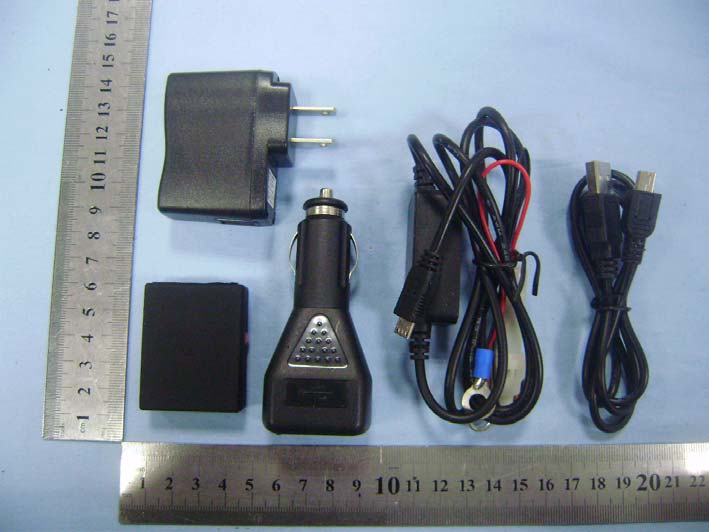

Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I -1 FCC PART 22H&24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I -1 FCC PART 22H&24E EUT View 3 EUT View 4 Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I -1 FCC PART 22H&24E EUT View 5 EUT View 6 Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I -1 FCC PART 22H&24E EUT View 7 EUT View 8 Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I -1 FCC PART 22H&24E Adding Model: RF-V6 Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I -1 FCC PART 22H&24E Adding Model: RF-V11

Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I -1 FCC PART 22H&24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ABEYRF-V9 IC: 11992A-CAT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. FCC ID Label Location

Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I -1 FCC PART 22H&24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ABEYRF-V9 IC: 11992A-CAT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. FCC ID Label Location

Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I -1 FCC PART 22H&24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I -1 FCC PART 22H&24E Solder Board-Component View 1 Solder Board-Component View 2 Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I -1 FCC PART 22H&24E Antenna View Antenna Contactor GSM Antenna

第 1 页，共 1 页 Region Part No. Description(CN) Description(EN) Reference No. Q'ty Value Package F009V10MB F009V10MB,4 layer, F009V10MB,4layers, 1 F009V01MB-CAN F009V01MB; F009V01MB SHIELDING33.48*27.9*1.85 C7521 T0.2 ,C7521,T0.2 1 BL-HB536G-TRB SMD LED Blue SMD LED D5 1 1608 MT6252A IC BB CHIP U1 1 MT6252A 11.6*12.1mm 305Ball TFBGA MX25U6435EZNI-10G IC,64Mbit MCP BB CHIP U1005 1 64Mbit 6*5mm 8PIN WSON RDA623 2 IC IC,RF PA Module for Quad-Band GSM U5 1 RDA623 2 6.63*5.24mm 22PIN QFN SAWEN1G84CW0F00 IC 1800/1900MHz IC, SAW filter, 1800/1900MHz U1003 1 1814 SAWEN881MCY0F00 IC 850/900MHz IC, SAW filter, 850/900MHz U1004 1 1814 7M26000028 crystal, 26MHz, ±10ppm/ 10pF Crystal, 26M, ±10ppm, Load Cap 10pF X1 1 26MHz ,±10ppm 3.2*2.5*0.85mm MC146 crystal,32.768KHz±20ppm/12.5pF Crystal, 32.768kHz ± 20ppm /12.5pF U203 1 32.768kHz ,±20ppm 7.0*1.5*1.4mm PT236T30E2 PNPTriode PNP TRANSISTOR Q201 1 SOT-23-6L C1005NP0180JGT Chip capacitors CAP-SMT-COG-18pF-±5%-50V-1005 C229 C230 2 18pF/50V, ±5% 1005 C1005NP0220JGT Chip capacitors CAP-SMT-COG-22pF-±5%-50V-1005 C702 C709 C712 C708 C714 C717 6 22pF/50V, ±5% 1005 C1005NP0330JGT Chip capacitors CAP-SMT-COG-33pF-±5%-50V-1005 C64 C65 C47 C49 C51 C52 C54 C55 C715 C716 10 33pF/50V, ±5% 1005 C1005NP0229CGT Chip capacitors CAP-SMT-COG-2.2PF-±0.25PF-50V-1005 C728 C729 2 2.2pF/50V,±0.25pF 1005 C1005NP0399CGT Chip capacitors CAP-SMT-COG-3.9PF-±0.25PF-50V-1005 C721 C725 2 3.9pF/50V,±0.25pF 1005 C1005NP0509CGT Chip capacitors CAP-SMT-COG-5PF-±0.25PF-50V-1005 C738 C741 2 5pF/50V,±0.25pF 1005 C1005NP0609CGT Chip capacitors CAP-SMT-COG-6PF-±0.25PF-50V-1005 C701 1 6pF/50V,±0.25pF 1005 C1005NP0809CGT Chip capacitors CAP-SMT-COG-8PF-±0.25PF-50V-1005 C732 C734 2 8pF/50V,±0.25pF 1005 C1005NP0560JGT Chip capacitors CAP-SMT-COG-56pF-±5%-50V-1005 C713 1 56pF/50V, ±5% 1005 C1005NP0101JGT Chip capacitors CAP-SMT-COG-100pF-±5%-50V-1005 C43 C48 C61 C63 4 100pF/50V, ±5% 1005 C1005NP0221JGT Chip capacitors CAP-SMT-COG-220pF-±5%-50V-1005 C710 1 220pF/50V, ±5% 1005 C1005X7R104KET Chip capacitors CAP-SMT-X7R-0.1uF-±10%-16V-1005 C44 C46 C50 C41 C703 5 100nF/16V, ±10% 1005 C1005X5R105KDT Chip capacitors CAP-SMT-X5R-1uF-±10%-10V-1005 C103 C227 C231 C201 C225 C68 C71 C1024 8 1uF/10V, ±10% 1005 C1608X5R105KDT Chip capacitors CAP-SMT-X5R-1uF-±10%-10V-1608 C220 C207 C18 3 1uF/10V, ±10% 1608 C1608X5R225KCT Chip capacitors CAP-SMT-X5R-2.2uF-±10%-6.3V-1608 C221 C1013 C224 3 2.2uF/6.3v, ±10% 1608 C1608X5R475KCT Chip capacitors CAP-SMT-X5R-4.7uF-±10%-6.3V-1608 C218 C228 C203 3 4.7uF/6.3v, ±10% 1608 F930J476MAA SMD tantalum capacitor CAP-ELECTRO-SMT-47uF-±20%-6.3V-3216 C705 1 47uF/6.3v, ±20% 3216*1.6 C2012X5R106KCT Chip capacitors CAP-SMT-X5R-10uF-±10%-6.3V-2012 C42 C45 C53 C56 C704 5 10uF/6.3v, ±10% 2012 RK1005000J2ST Chip resistor RES-SMT-FILM-0R-±5%-1/16W-1005 L101 R21 R1645 R1646 R63 R64 R82 R100 R102 R85R715 R717 R14 R20 R224 15 0 Ω , ±5% 1005 RK1608000J2ST Chip resistor RES-SMT-FILM-0R-±5%-1/16W-1608 R211 1 0 Ω , ±5% 1608 RL0805FR-7W0R2L Chip resistor 0.20OHM-±1% R226 1 0.2 Ω / 1% 2012 RK1005102J2ST Chip resistor RES-SMT-FILM-1K-±5%-1/16W-1005 R25 R59 R60 R69 R70 R73 R61 R62 R702 R707 R708R50 R11 13 1K Ω , ±5% 1005 RK1005101J2ST Chip resistor RES-SMT-FILM-100R-±5%-1/16W-1005 R55 R71 R72 R89 4 100 Ω , ±5% 1005 RK1005152J2ST Chip resistor RES-SMT-FILM-1.5K-±5%-1/16W-1005 R65 R66 R68 3 1.5K Ω , ±5% 1005 RK1005104J2ST Chip resistor RES-SMT-FILM-100K-±5%-1/16W-1005 R146 R149 R151 3 100K-±5% 1005 RK1005103J2ST Chip resistor RES-SMT-FILM-10K-±5%-1/16W-1005 R704 R1 2 10K Ω , ±5% 1005 RK1005243J2ST Chip resistor RES-SMT-FILM-24K-±1%-1/16W-1005 R24 R706 2 24K Ω , ±1% 1005 RK1005393J2ST Chip resistor RES-SMT-FILM-39K-±5%-1/16W-1005 R216 1 39K Ω , ±5% 1005 RK1005752J2ST Chip resistor RES-SMT-FILM-7.5K-±5%-1/16W-1005 R219 1 7.5K Ω , ±5% 1005 RK1005334J2ST Chip resistor RES-SMT-FILM-330K-±5%-1/16W-1005 R214 1 330K Ω , ±5% 1005 SDV1005E5R5C450NPT The varistor RES-VARISTOR-45pF-5.5V-1005 T4 T5 VAR6 VAR7 VAR8 VAR9 6 5.5V/45pF 1005 MMSZ5231B Zener diode 500mW DIODS D7 1 500mW SOD123 HI10052N0JT SMD inductor IND-SMT-2.0NH-±0.3NH-1005 L709 1 2.0nH, ± 0.3nH 1005 HI10054N3JT SMD inductor IND-SMT-4.3NH-±0.3NH-1005 L704 1 4.3nH ,±0.3nH 1005 HI10053N9JT SMD inductor IND-SMT-3.9NH-±0.3NH-1005 L710 L712 2 3.9nH ,±0.3nH 1005 HI100515NJT SMD inductor IND-SMT-15NH-±5%-1005 L703 1 15nH, ±5% 1005 HI100518NJT SMD inductor IND-SMT-18NH-±5%-1005 L706 1 18nH, ±5% 1005 HI10052N7JT SMD inductor IND-SMT-2.7NH-±5%-1005 R716 1 2.7NH, ±5% 1005 BLM15BB750SN1 SMD beads BLM15BB750SN1 L5 L6 L1 3 1005 BLM18PG221SH1 SMD beads BLM18PG221SH1 L8 L10 2 1608 BLM18BD252SN1 SMD beads BLM18BD252SN1 L2 L3 2 1608 MUP-C745 15.7*16.4*2.6H mm sim 16.8*17.1*3.7 H3.7mm ,simcard socket J3 1 UAF04-10374-1507 10 PIN IO 10 PIN IO J4 1 STP 1100 SIDE SWITCH SWITCH,2.3*4.5*H1.7 S2 1 RK1005000J2ST Chip resistor RES-SMT-FILM-0R-±5%-1/16W-1005 R200 1 0 Ω , ±5% 1005 Main Board

Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage (3.4 ~ 4.2V DC) to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator (CMU 200) measures the Real time tracker & alarm device specific RF characteristics. 3. The maximum gains of each individual device are adjusted until the target value met. z For GSM850 824-849MHz: PWR = 31.5dBm± 1dBm z For GSM1900 1850-1910MHz: PWR = 28.0dBm± 1dBm Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a CMU 200 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 Report No.: STR14048358H Page 1 of 86 SAR Report FCC SAR Measurement and Test Report For Shenzhen Ruifenghuizhi Technology Co., Ltd. Room 607B, East Block, NanFang Building, Futian District, Shenzhen, China. FCC ID: 2ABEYRF-V9 FCC Rules: FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 KDB 865664 D01 v01r03 KDB 865664 D02 v01r01 Product Description: Real time tracker & alarm Tested Model: RF-V9 Report No.: STR14048358H Max. SAR Values: Body: 1.3419 W/kg(1g) Tested Date: 2014-05-08 to 2014-05-10 Issued Date: 2014-05-14 Tested By: Silin Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 Report No.: STR14048358H Page 2 of 86 SAR Report TABLE OF CONTENTS 1. General Information ................................................................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ......................................................................................... 3 1.2 Test Standards .................................................................................................................................................... 4 1.3 Test Methodology ................................................................................................................................................ 4 1.4 Test Facility ......................................................................................................................................................... 5 2. Summary of Test Results .......................................................................................................................................... 6 3. Specific Absorption Rate (SAR) ................................................................................................................................ 7 3.1 Introduction .......................................................................................................................................................... 7 3.2 SAR Definition ..................................................................................................................................................... 7 4. SAR Measurement System ........................................................................................................................................ 8 4.1 The Measurement System .................................................................................................................................. 8 4.2 Probe ................................................................................................................................................................... 8 4.3 Probe Calibration Process ................................................................................................................................. 10 4.4 Phantom ............................................................................................................................................................ 11 4.5 Device Holder .................................................................................................................................................... 11 4.6 Test Equipment List ........................................................................................................................................... 12 5. Tissue Simulating Liquids ....................................................................................................................................... 13 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 13 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 14 5.3 Tissue Calibration Result ................................................................................................................................... 15 6. SAR Measurement Evaluation ................................................................................................................................ 16 6.1 Purpose of System Performance Check ............................................................................................................ 16 6.2 System Setup .................................................................................................................................................... 16 6.3 Validation Results .............................................................................................................................................. 17 7. EUT Testing Position ............................................................................................................................................... 18 7.1 Body Worn Position ........................................................................................................................................... 18 7.5 EUT Antenna Position ....................................................................................................................................... 18 7.6 EUT Testing Position ......................................................................................................................................... 19 8. SAR Measurement Procedures ...........................................................................................…

Text truncated - open the document above for the full version.

UnRegistered UnRegistered

CAM350 V 9.1 : Fri Sep 28 13:54:33 2012 - (Untitled) : BOTTOM.pho CAM350 V 9.1 : Fri Sep 28 13:54:34 2012 - (Untitled) : L2.pho CAM350 V 9.1 : Fri Sep 28 13:54:34 2012 - (Untitled) : L3.pho CAM350 V 9.1 : Fri Sep 28 13:54:34 2012 - (Untitled) : TOP.pho

Ref : ACR.88.1.13.SATU.A SEM TEST COMPLIANCE SERVICE CO., LTD. 3/F, JINGBAO COMMERCE BUILDING, XIN'AN FANSHEN ROAD, BAO'AN DISTRICT SHENZHEN (518101), CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 09/13 EP168 Calibrated at SATIMO US 2105 Barrett Park Dr. - Kennesaw, GA 30144 03/21/2014 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in SATIMO USA using the CALISAR / CALIBAIR test bench, for use with a SATIMO COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 2/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 3/28/2014 Checked by : Jérôme LUC Product Manager 3/28/2014 Approved by : Kim RUTKOWSKI Quality Manager 3/28/2014 Customer Name Distribution : SEM Test Compliance Service Co., Ltd. Issue Date Modifications A 3/28/2014 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 3/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. TABLE OF CONTENTS 1 Device Under Test ................................................................................................. 4 2 Product Description ................................................................................................ 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ............................................................................................. 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty ...................................................................................... 5 5 Calibration Measurement Results ........................................................................... 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ................................................................................................ 10 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 4/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer Satimo Model SSE5 Serial Number SN 09/13 EP168 Product Condition (new / used) new Frequency Range of Probe 0.7 GHz-3GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.225 M Dipole 2: R2=0.235 M Dipole 3: R3=0.229 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION Satimo’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – Satimo COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 5/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid, with the plastic box i…

Text truncated - open the document above for the full version.

Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I-1 PAGE 1 OF 55 FCC PART 22H&24E FCC Part 22H & 24E Measurement and Test Report For Shenzhen Ruifenghuizhi Technology Co., Ltd. Room 607B, East Block, NanFang Building, Futian District, Shenzhen, China. FCC ID: 2ABEYRF-V9 FCC Rules: FCC Part 22H, FCC Part 24E Product Description: Real time tracker & alarm Tested Model: RF-V9 Report No.: STR14048358I-1 Tested Date: 2014-04-24 to 2014-05-12 Issued Date: 2014-05-14 Tested By: Silin Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. Shenzhen Ruifenghuizhi Technology Co., Ltd. Model: RF-V9 REPORT NO.: STR14048358I-1 PAGE 2 OF 55 FCC PART 22H&24E TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 7 3. RF EXPOSURE ......................................................................................................................................................... 8 3.1 STANDARD APPLICABLE ......................................................................................................................................... 8 3.2 TEST RESULT.......................................................................................................................................................... 8 4. ANTENNA REQUIREMENT .................................................................................................................................. 9 4.1 STANDARD APPLICABLE ......................................................................................................................................... 9 4.2 EVALUATION INFORMATION ..................................................................…
