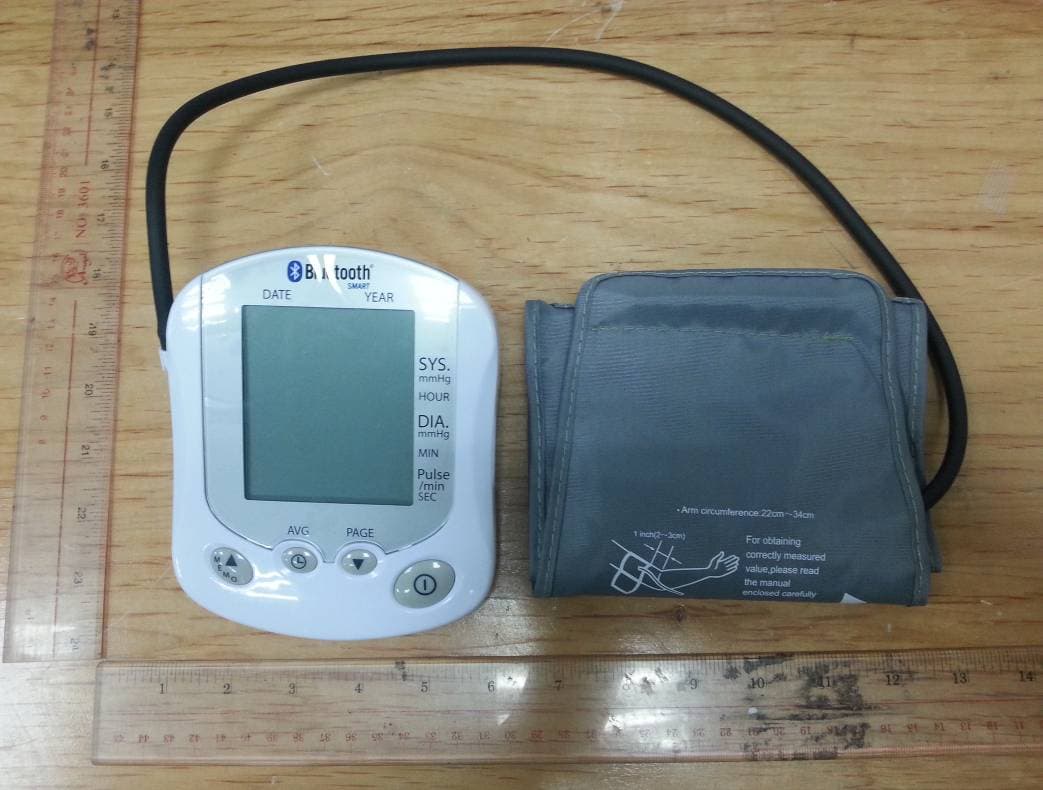

2ABG7-DB62BLOOD PRESSURE MONITOR

6. To disable Alarm, Press the ” MEMO ” or ”PAGE ” button to select “OFF” and press the ” AVG” button to confirm. 7. To set 1st Alarm, Press the ” MEMO” or ”PAGE ” button to select “ON”. Press the “ AVG” button to confirm. 8. When Hour digit flashes, press the “ MEMO” or “ PAGE ” button to select Hour. Press the “ AVG”button to confirm. 9. When Minute digit flashes, press the “ MEMO” or “PAGE ” button to select Minute. Press the “ AVG” button to confirm. 10. Follow the same steps to set the 2nd, 3rd, and 4th Alarm 16 1718 Keep away the unit from direct sunlight, extreme temperatures, humidity or moisture. Use a dry, soft cloth to clean the unit, or if desired, use a cloth lightly dampened with water. Do not use alcohol, benzene, thinner or other volatile liquids to clean the unit. Do not wash or expose the arm cuff to liquid. Remove batteries from the unit when it will not be used for more than 3 months. STORAGE & MAINTENANCE Note: If your problem cannot be solved by the above, consult your store of purchase. Do not disassemble the unit. 4.3 Delete Past Readings User can delete all the past readings stored in each User Page. TROUBLESHOOTING Check if the cuff is properly connected. Replace the air tube if it is broken. Fail to inflate “Err P” displayed “Err 1” displayed “Err 2” displayed “Err 3” displayedIncorrect resultsMeasure again. Remove interfering source e.g. mobile phones, magnets. Do not move during measurement Return for servicing.Deflate too rapidly Movement during measurement Signal interference Problem Cause Solution No display when you press the Power/Start button Have the batteries run out? Are the battery polarities wrong? Replace new batteries. Re-align batteries in correct polarities. 1. Press the “PAGE ” button to select the User Page you want to delete. 2. Press and hold the “ MEMO” & “PAGE ” button simultaneously for 5 seconds. Symbol of “ALL EE” will be displayed and all past readings stored in that User Page will be deleted. 4.2 View Average Readings 1. Press the “ AVG” button to enter Average function. 2. If the User Page is not what you want to view, press the “PAGE ” button to select. 3. Press the “ AVG” button to view different Average Values. 5 different Average Values are available: Symbol on Display Average Values of 1 h One Hour 1 d One Day 7 d One Week 30 d One Month ALL All Readings 19 SPECIFICATIONS 1112 13 1415 Note: - Avoid smoking, eating or exercising for 30 minutes before taking measurement. - Do not move or talk during measurement. - Measurement can be taken on either arm. 1. Place your elbow on a table and palm facing upward, and wrap the arm cuff around the upper left arm. 2. Pull on the end of the cuff until it wraps securely around your upper arm. Do not over tighten the cuff. Allow 1-2 cm or ½ inch between the bottom of the cuff and your elbow joint. 3. Make sure the cuff is at the same level as your heart. 3.1 Sitting Correctly 1. Relax 2. Sit upright in a chair with your both feet on the floor. 3. Remove tight fitting clothing from you upper arm and thick clothing. Do not roll up your sleeve if it is too tight. 4. Place your arm on a table so that the cuff will be at the same level as your heart. 3.2 Applying the Arm Cuff 3.3 User Setting This unit allows a maximum of 4 users to store measurement records in different User Pages. 3.5 Heartbeat Readings Besides Systolic and Diastolic values, Pulse will also be displayed after a measurement Press “PAGE ” button to switch between User Page 1, 2, 3 and 4. 3.4 Taking Measurement 1. Press the “ ” button. The cuff will automatically inflate and the measurement will start. 2. When the measurement is complete, the cuff will automatically deflate and your systolic and diastolic pressure values and pulse rate will display. 3. Remove the arm cuff and take note of your measurement results. 4.1 View Past Readings 1. Press the “ MEMO” button to enter memory function. 2. If the User Page is not what you want to view, press the “PAGE ” button to select. 3. Press the “ MEMO” button to display the next sets of values. Past readings are displayed from the most recent to the oldest. 4. This can stored up to 99 sets of past readings for each user (4 x 99). After measurement, the last set of measured values will be saved automatically after measurement when the unit is turned off by pressing “ ” button or by automatic power off after 3 minutes. Note：You can press the “ ” button to stop measurement at any time. This unit features a 6-color LED light indicator to display blood pressure level in accordance with the WHO (World Health Organization) classification. 3.6 WHO Light Indicator mmHg mmHg 120 130 140 150 160 170 180 110 105 100 95 90 85 80 Grade 3 hypertension(severe) (Red) Grade 2 hypertension(moderate) (Yellow) Grade 1 hypertension(mild) (Purple) High- normal(Green) Normal (Sky Blue) Optimal(Blue) Systolic Pressure Diastolic Pressure WHO Light Indicator Pulse Irregular Heartbeat This unit has a unique feature that alerts user of irregular heartbeat detection during measurement. Note：An irregular heartbeat is defined as a heartbeat rhythm that has a variation of more than25% from the average rhythm detected during measurement. If such irregular rhythm occurs twice or more during the same measurement, the display screen will show the pulse value and “IH” symbol alternately. Example: (90 / IH) Note：Please consult your doctor if irregular heartbeat occurs often. Regular but Below Normal Heartbeat If the monitor detects a pulse rate below 60 beats per minute during measurement, the monitor will display the pulse value and “LO” symbol alternately.Example: (58 / LO) Regular but Above Normal Heartbeat If the monitor detects a pulse rate above 100 beats per minute during measurement, the monitor will display the pulse value and “HI” symbol alternately.Example: (102 / HI) WHO Classification Color Optimal --------------------Blue Normal ---------------------Sky Blue High-normal --------------Green Mild hypertension -----…
