2ABG7-DB85BLOOD PRESSURE MONITOR

6 2.1 Battery Installation 1. Pull and lift on the lock to remove the battery cover. 2. Insert 4 AA batteries with the polarities in correct direction. 3. Replace the battery cover. Press it lightly until the lock securely clicks into place. Note: Replace batteries when the battery indicator “ ” shows low voltage. PREPARATION 2.2 Date & Time Setting Note: - Set the correct date and time before taking a measurement. - Date and time should be reset after replacing new batteries. 1. Press and hold the “ AVG” button for a few seconds until the Year display flashes. 4. Follow the same steps to set the Month, Date, Hour and Minute. 3. Press the “ AVG” button to confirm Year Setting. 2. Press the“M ” or “P ” button to select the current year. Manufactured in accordance with International Standards Manufacturer： Truly Instrument Ltd. 2/F, Chung Shun Knitting Centre, 1-3 Wing Yip St., Kwai Chung, N.T., Hong Kong TEL： （852） 24879803 FAX： （852） 21465756 EC-Representative：Wellkang Ltd t/a Wellkang Tech Consulting Suite B, 29 Harley Street, LONDON W1G 9QR, United Kingdom 0123 Rev.0 2013/11/11 11 3.4 Heartbeat Readings Besides Systolic and Diastolic values, Pulse will also be displayed after a measurement 3.3 Taking Measurement 1. Press the “ ” button. The cuff will automatically inflate and the measurement will start. 2. When the measurement is complete, the cuff will automatically deflate and your systolic and diastolic pressure values and pulse rate will display. 3. Remove the arm cuff and take note of your measurement results. Note：You can press the “ ” button to stop measurement at any time. Pulse 3245 Babies, young children or individuals who cannot express their consent are not suitable to take blood pressure measurement. Individuals with serious arteriosclerosis are not suitable to take blood pressure measurement. Blood pressure readings may change in case of pregnancy. Pregnant women can consult their doctor before taking measurement. Self-measurement is not medical treatment. If there are unusual values, please consult your doctor. Handling batteries properly: - As soon as old batteries run out, replace with new batteries. - Do not use old and new batteries together. - Align the polarities of batteries correctly. - When the unit will not be used for more than 3 months, remove the batteries. Otherwise, batteries may leak and cause damage to the unit. Handling AC adapter properly: - Never unplug the power cord with wet hands. - Use only the original AC adapter designed for this unit. Blood Pressure Monitor DB85 Instruction Manual SAFETY PRECAUTIONS QUICK START GUIDE OVERVIEW Monitor Cuff Outlet Display Package Contents Main Unit Arm Cuff 4 x AA Batteries SIZE：84*145MM 正面 SIZE：84*145MM 反面 Avoid smoking, eating or exercising for 30 minutes before taking measurement 2. Remove tight fitting clothing from you upper arm and thick clothing. 1. Sit upright in a chair with your both feet on the floor. 3. Pull on the end of the cuff until it wraps securely around your upper arm. Place your arm on a table so that the cuff will be at the same level as your heart. 7. When the measurement is complete, the cuff will automatically deflate and your systolic and diastolic pressure values and pulse rate will display on Blood Pressure monitor & save on iOS application screen. 8. After that check the measurement history on History screen or chart screen by iOS application. Memory Systolic Diastolic Pulse Low Battery Indicator Memory No. (4-99 readings) Pulse Symbol Date & Time User 1~4 Memory Recall (Up) Average Values (Set) Page Select (Down) Power (Start) 6. Press the “ ” button. The cuff will automatically inflate and the measurement will start. 6. To disable Alarm, Press the ” M ” or ”P ” button to select “OFF” and press the ” AVG” button to confirm. 7. To set 1st Alarm, Press the ”M ” or ”P ” button to select “ON”. Press the “ AVG” button to confirm. 8. When Hour digit flashes, press the “M ” or “ P ” button to select Hour. Press the “ AVG”button to confirm. 9. When Minute digit flashes, press the “M ” or “P ” button to select Minute. Press the “ AVG”button to confirm. 10. Follow the same steps to set the 2nd, 3rd, and 4th Alarm 78 2.3 Date & Time Setting Note: - Set the correct date and time before taking a measurement. - Date and time should be reset after replacing new batteries. 1. Press and hold the ” AVG” button for a few seconds until the Year display flashes. 2. Press the“M ” or ”P ” button to select the current year. 3. Press the “ AVG” button to confirm Year Setting. 4. Follow the same steps to set the Month, Date, Hour and Minute. 5. You can choose Clock Function “ON” or “OFF” while the monitor is not in use. Press “M ” or ” P ” button to select. Press the ” AVG ” button to confirm. Noted: If you select Clock Function “ON”, you will continue at the Alarm Setting section. Otherwise, setting will end. 2.4 Alarm Setting Note: - You will not be able to set alarm clock if Clock Function is set to “OFF”. - You can set a maximum of 4 alarms. Note: - Press the “ ” button anytime during clock setting/ alarm setting to start over if an error occurs. - Each alarm clock lasts 45 seconds, or you can turn it off by pressing the “ ” button. 12 13 14 Irregular Heartbeat This unit has a unique feature that alerts user of irregular heartbeat detection during measurement. Note：An irregular heartbeat is defined as a heartbeat rhythm that has a variation of more than25% from the average rhythm detected during measurement. If such irregular rhythm occurs twice or more during the same measurement, the display screen will show the pulse value and “IH” symbol alternately. Example: (90 / IH) Note：Please consult your doctor if irregular heartbeat occurs often. Regular but Below Normal Heartbeat If the monitor detects a pulse rate below 60 beats per minute during measurement, the monitor will display the pulse value and “LO” symbol alternately.Example: (58 / LO) Regular but Above Normal Heartbeat If the monitor detects a puls…

Text truncated - open the document above for the full version.

THIS MUST BE SIGNED BY THE APPLICANT AND SHOULD BE PLACED ON APPLICANTS LETTERHEAD ONLY IF AGENT IS SUBMITTING APPLICATION 022311 – 6 Authority to Act as Agent Date: Dec 20,2013 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Shenzhen Huatongwei International Inspection Co., Ltd is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 20th day of Dec , 2014 By: Jianhao Yang (Signature 1 ) (Print name) Title: Development Manager On behalf of: Truly Instrument Ltd (Company Name) Telephone: +86-0660-3380070 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD 022311 – 6 Request for Confidentiality Date: _ Dec 20,2013 Subject: Confidentiality Request for: 2ABG7-DB85 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: (Insert Explanation as Necessary) Truly Instrument Ltd has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of (specify number of days not to exceed 180 ) 3 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Jianhao Yang (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

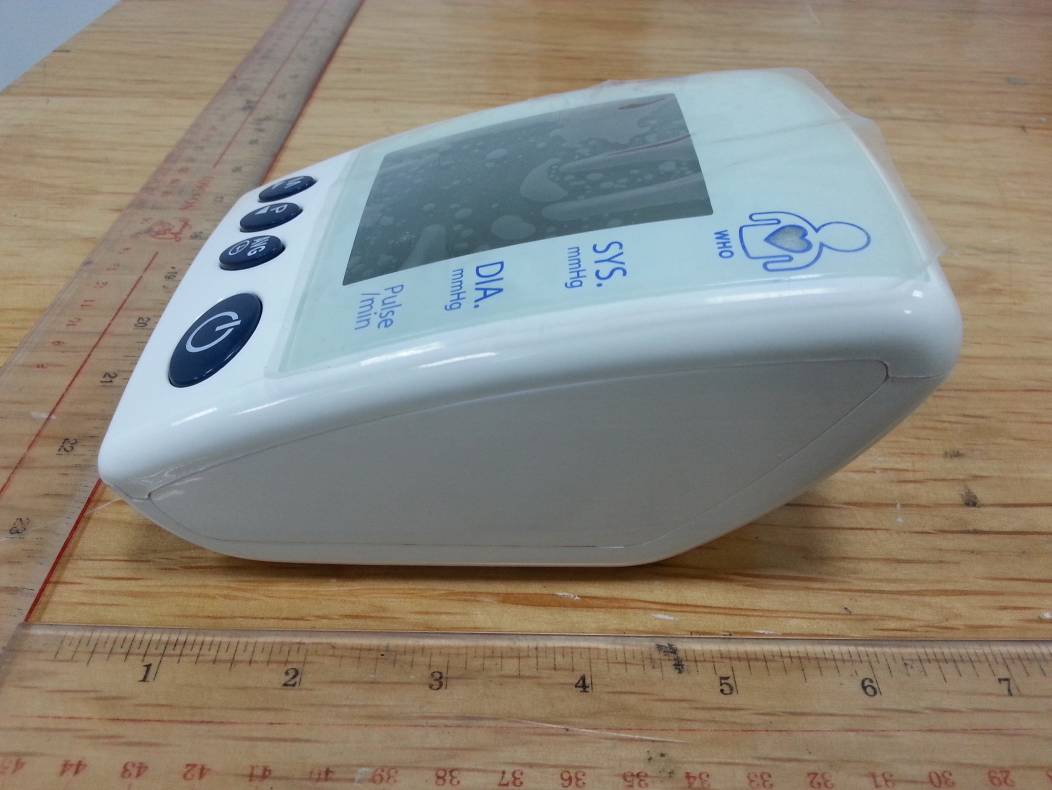

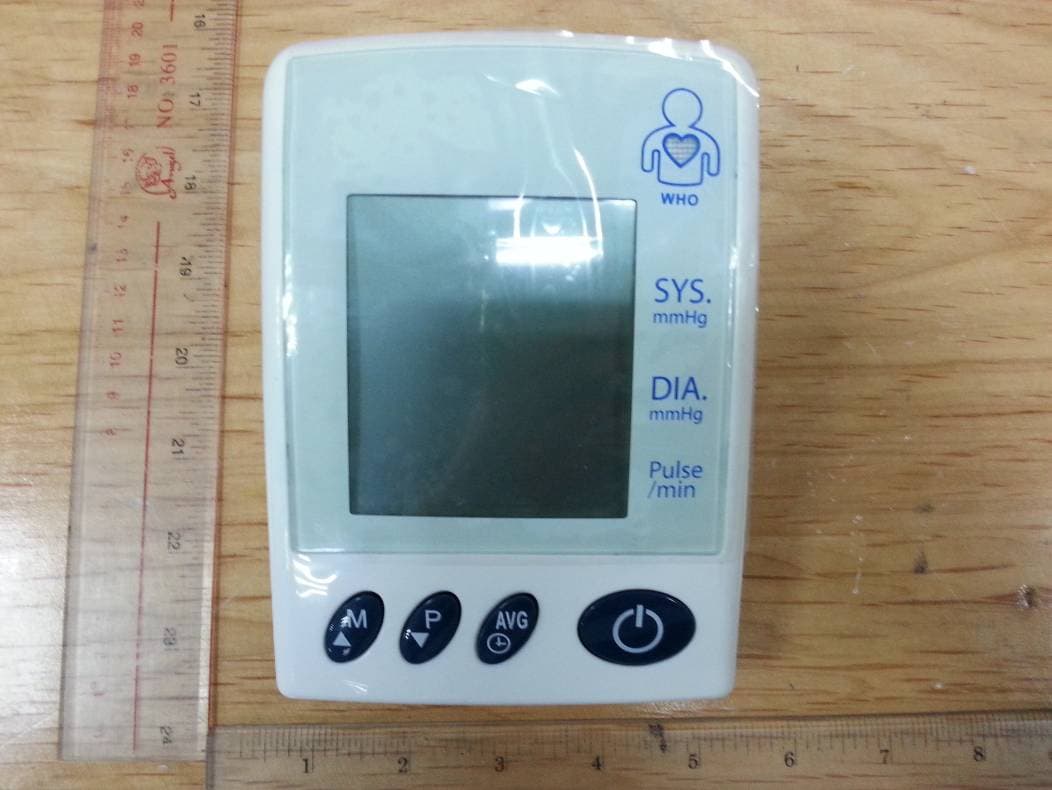

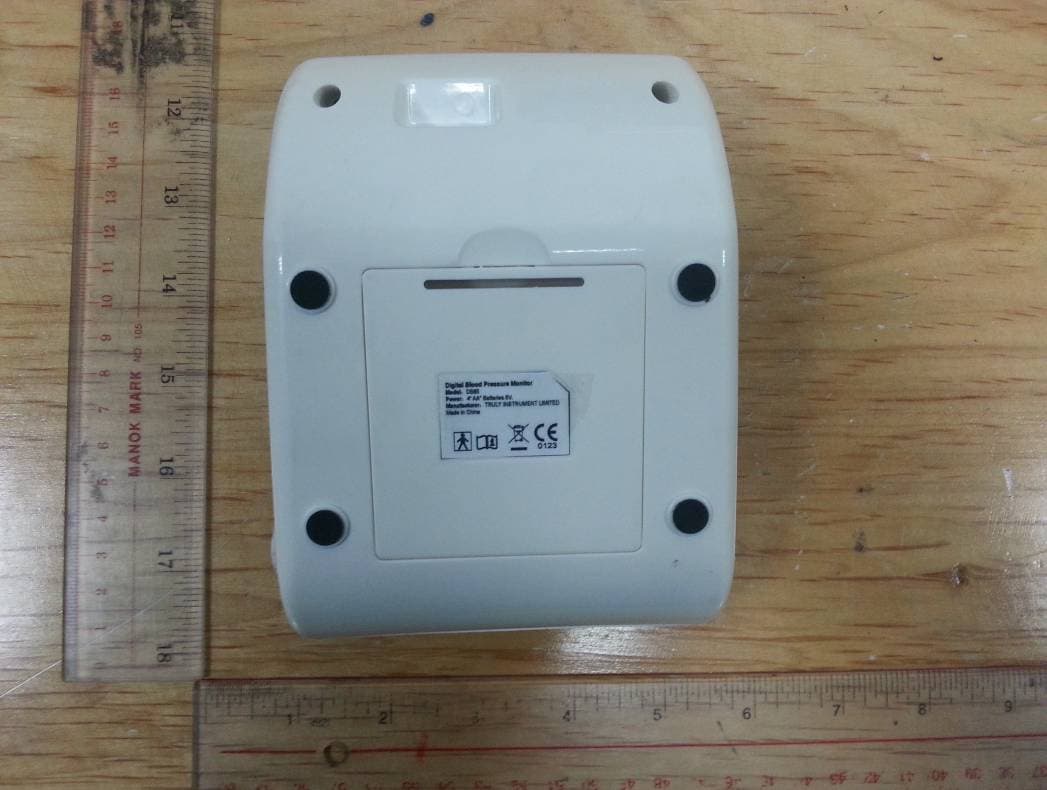

External photos of the EUT

Internal photos of the EUT

RF EXPOSURE REPORT FCC Per 47 CFR 2.1093(d) Report Reference No. ..................... : FCC ID. ............................................ : TRE1311004702 R/C: 47516 2ABG7-DB85 Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Dec,13 2013 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Truly Instrument Ltd Address ............................................. : Truly Industrial Area,Shanwei City,Guangdong Province,China Test specification .......................... : Standard ........................................... : FCC Per 47 CFR 2.1093(d) TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : BLOOD PRESSURE MONITOR Trade Mark ....................................... : TRULY Manufacturer .................................. : Truly Instrument Ltd Model/Type reference ....................... : DB85 Listed Models .................................. : / Operation Frequency ........................ : From 2402MHz to 2480MHz Modulation Type ............................... : GFSK Rating ............................................... : 4”AA” Battery 6V Result ................................................ : PASS Report No.: TRE1311004702 Page 2 of 7 Issued:2013-12-13 RF EXPOSURE REPORT Test Report No. : TRE1311004702 Dec 13 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : BLOOD PRESSURE MONITOR Model /Type : DB85 Listed Models : / Applicant : Truly Instrument Ltd Address : Truly Industrial Area,Shanwei City,Guangdong Province,China Manufacturer : Truly Instrument Ltd Address : Truly Industrial Area,Shanwei City,Guangdong Province,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1311004702 Page 3 of 7 Issued:2013-12-13 Contents 1. SUMMARY 4 1.1. EUT configuration 4 1.2. NOTE 4 2. TEST ENVIRONMENT 5 2.1. Address of the test laboratory 5 2.2. Environmental conditions 5 2.3. Statement of the measurement uncertainty 5 3. METHOD OF MEASUREMENT 5 3.1. Applicable Standard 5 3.2. Limit 6 3.3. RF Exposure 6 4. CONCLUSION 7 Report No.: TRE1311004702 Page 4 of 7 Issued:2013-12-13 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 1.2. NOTE 1. The EUT is a Blood Pressure Monitor with Bluetooth function,The functions of the EUT listed as below: Test Standards Reference Report Bluetooth FCC Part 15 Subpart C TRE1311004701 RF Exposure FCC Per 47 CFR 2.1093(d) TRE1311004702 2. The frequency bands used in this EUT are listed as follows: Frequency Band(MHz) 2400-2483.5 5150-5350 5470-5725 5725-5850 EUT √ － － － Report No.: TRE1311004702 Page 5 of 7 Issued:2013-12-13 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Phone: 86-755-26715686 Fax: 86-755-26748089 The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2009) and CISPR Publication 22. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to TR-100028-01” Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 1” and TR-100028-02 “Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 2 “ and is documented in the Shenzhen Huatongwei International Inspection Co., Ltd quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Hereafter the best measurement capability for Shenzhen Huatongwei laboratory is reported: Test Items Measurement Uncertainty Notes Transmitter power conducted 0.57 dB (1) (1) This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=1.96. 3. Method of measurement 3.1. Applicable Standard According to §1.1307(b)(1), systems operating …

Text truncated - open the document above for the full version.

FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : TRE1311004701 R/C: 47516 2ABG7-DB85 Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Dec,13 2013 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................ : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Truly Instrument Ltd Address ............................................ : Truly Industrial Area,Shanwei City,Guangdong Province,China Test specification ...........................: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : BLOOD PRESSURE MONITOR Trade Mark ....................................... : TRULY Model/Type reference....................... : DB85 Listed Models .................................. : / Manufacturer .................................. : Truly Instrument Ltd Modulation Type ............................... : GFSK Operation Frequency ........................ : From 2402MHz to 2480MHz Rating ............................................... : 4”AA” Battery 6V Result................................................ : PASS Report No.: TRE1311004701 Page 2 of 44 Issued:2013-12-13 T E S T R E P O R T Test Report No. : TRE1311004701 Dec,13 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : BLOOD PRESSURE MONITOR Model /Type : DB85 Listed Models : / Applicant : Truly Instrument Ltd Address : Truly Industrial Area,Shanwei City,Guangdong Province,China Manufacturer : Truly Instrument Ltd Address : Truly Industrial Area,Shanwei City,Guangdong Province,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1311004701 Page 3 of 44 Issued:2013-12-13 Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY ............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. Block Diagram of Test Setup 5 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 2.8. NOTE 6 3. TEST ENVIRONMENT ............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Test Description 8 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. AC Power Conducted Emission(Not Applicable) 10 4.2. Radiated Emission 11 4.3. Maximum Peak Output Power 16 4.4. Power Spectral Density 18 4.5. 6dB Bandwidth 21 4.6. Band Edge Compliance of RF Emission 23 4.7. Spurious RF Conducted Emission 27 4.8. Antenna Requirement 34 5. TEST SETUP PHOTOS OF THE EUT .......................................... 35 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 36 Report No.: TRE1311004701 Page 4 of 44 Issued:2013-12-13 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.247 : Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009 : American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V03: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: TRE1311004701 Page 5 of 44 Issued:2013-12-13 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Nov 25, 2013 Testing commenced on : Dec 05, 2013 Testing concluded on : Dec 13, 2013 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) 4”AA” Battery 6V 2.3. Short description of the Equipment under Test (EUT) 2.4GHz (BLOOD PRESSURE MONITOR (M/N:DB85)) For more details, refer to the user’s manual of the EUT. 2.4. EUT operation mode The EUT has been tested under 100% duty cycle operation condition. The Applicant provides communication tools software to control the EUT for staying in continous transmitting and receiving mode for testing. There are 40 channels of EUT, and the test carried out at the lowest channel, middle channel and highest channel . Channel Frequency(MHz) Channel Frequency(MHz) 00 2402 20 2442 01 2404 21 2444 02 2406 22 2446 03 2408 23 2448 04 2410 24 2450 05 2412 25 2452 06 2414 26 2454 07 2416 27 2456 08 2418 28 2458 09 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 243…

Text truncated - open the document above for the full version.

Test setup photos of the EUT
