2ABGKRECONX5TXWIRELESS TRANSMISSION SYSTEM

Important Information Read this user ’s manual carefully before use. It contains important information and notes regarding operating. The RECON X5 may not apply to the below cases: ■ Repairs or product modification and alterations have been executed by unauthorized service personnel. ■ Damages is caused by accidents including but not limited to lighting, water, fire, or moisture. ■ Do not use power with specific power rating not compliant in the specification. ■ The serial number on the product has been altered, deleted, removed or made illegible. Danger: Be careful with electricity. ■ Power to the units must be switched off before any work is undertaken. ■ When the unit is not used for a long period, disconnect them from the power source. Warning ■ Do not open the product. ■ Indoor use only. ■ Do not block the ventilation slots on the product. ■ Put the product away from direct sunlight or any source of heat. ■ Do not spill liquid on the product, especially with corrosive liquids. ■ To reduce the risk of fire or electric shock, do not expose the RECON X5TX and RECON X5RX to rain or moisture. Special Notice ■ Never use this product nearby an aircraft or high-accuracy electronic instrument, It will cause an interference and wrong effect on the operation. ■ Never use this product in the following location where wireless wave will cause the abnormal video and audio (noise, blocked image...etc,). 1. Installed in the walls with hard accessible material. 2. This device should be situated away from the refrigerator or metal fitment. 3. Crowded place. ■ This product has been tested and manufactured to comply with each country’s safety rules. However, there is no guarantee that interference will not occur in a few particular installation. If the interference is happened, increase the separation distance between RECON X5TX and RECON X5RX. ■ RECON X5 is susceptible to interference from 5GHz wireless device, such as router or other wireless device. ■ Do not put RECON X5TX and RECON X5RX in a metal rack, which may hinder the wireless communication. ■ When wireless transmission is beginning, the product takes about 15-20 seconds to start the system, the media receiver can not be operated during this time. ■ Do Install the external antennas before use.

Company Name: PRO-X Co., Ltd Address: Unit 9, Building 6, No.289 West Third Ring Road, Zhengzhou, Henan Tel: 86-371-67896572, Fax: 86-371-67896575 ATTESTATION LETTER FCC ID: 2ABGKRECONX5TX, Model: Recon X5-TX We, Pro-X Co., Ltd. declare that the certified Broadcom module (BCM 943224HMS, FCC ID: QDS-BRCM1041) was built into our product of Wireless transmission system. Broadcom module supports 802.11a/b/g/n in 4 frequency bands (2.4 GHz, 5.2 GHz, 5.3 GHz, 5.6 GHz and 5.8 GHz) with 20 MHz and 40 MHz bandwidths. We build the module into our product without any modification except for the software/firmware. We disabled 2.4 GHz, 5.3 GHz and 5.6 GHz bands. Only these radio mode and channels listed below are allowed to operate. 5.2 GHz band: 802.11n-HT20 with 5180 MHz & 5220 MHz and 802.11n-HT40 with 5190 MHz & 5230 MHz. 5.8 GHz band: 802.11n-HT20 with 5745 MHz & 5785 MHz and 802.11n-HT40 with 5755 MHz & 5795 MHz. Except for the manufacturer, the end user do not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Signature: Typed of Printed Name: Li Wenjun Title: Technology Manager

PRO-X Co., Ltd A A d d d d r r e e s s s s : : Unit 9, Building 6, No. 289 West Third Ring Road. T T e e l l : : 0371-67896572, Fax:0371-67896579 FCC Authorization Date: 2013-12-16 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, PRO-X Co., Ltd the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corp. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Typed or Printed Name: Li Wenju Title: Manager

PRO-X Co., Ltd A A d d d d r r e e s s s s : : Unit 9, Building 6, No. 289 West Third Ring Road. T T e e l l : : 0371-67896572, Fax:0371-67896579 FCC Confidential Authorization Date: 2013-12-16 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: 2ABGKRECONX5TX Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ƒ Detailed Circuit Schematics of EUT --- (Long term) ƒ Circuit Diagram --- (Long term) ƒ Block Diagram --- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Typed or Printed Name: Li Wenju Title: Manager

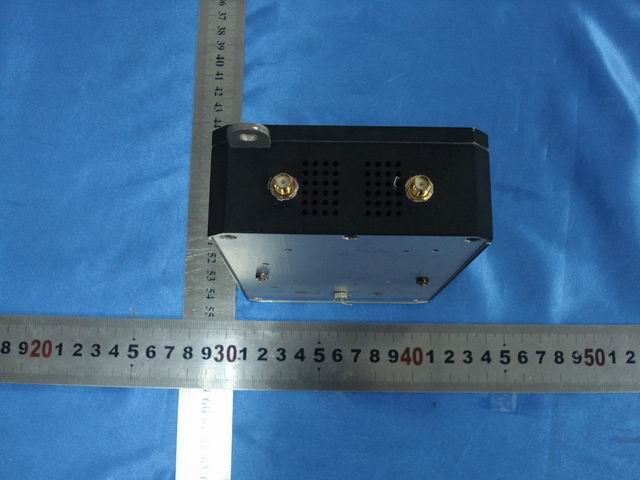

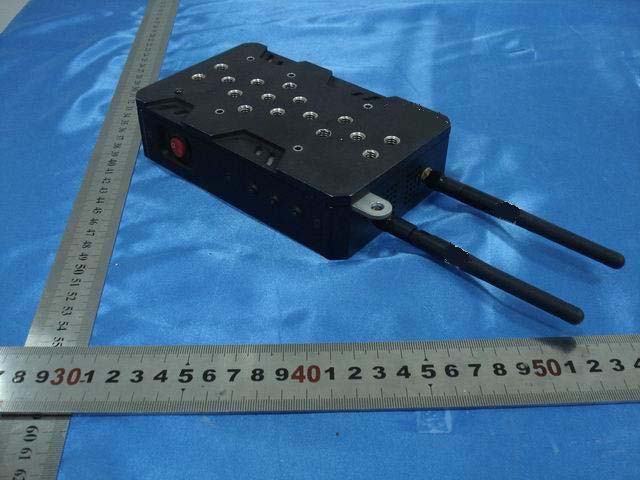

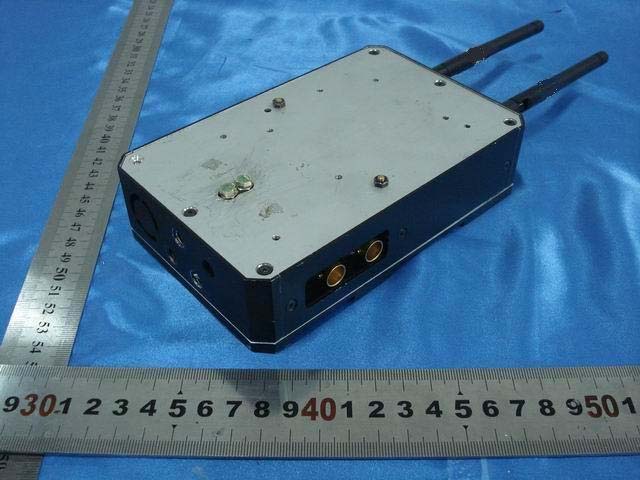

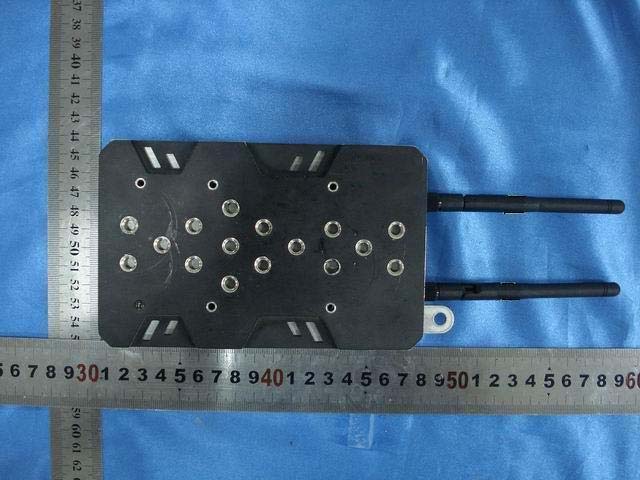

EXHIBIT B – EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Front View Antenna 1 Antenna 2 EUT – Rear View EUT – Left View EUT – Right View Antenna Port View Antenna View

EXHIBIT A – FCC LABELING AND LABEL LOCATION FCC ID Label FCC ID Label Location

EXHIBIT C – EUT INTERNAL PHOTOGRAPHS EUT – Cover off 1 View EUT – Cover off 2 View EUT – Cover off 3 View EUT – Interior 1 View EUT – Interior 2 View EUT – PCB 1 Top View EUT – PCB 1 Bottom View EUT – PCB 2 Top View EUT – PCB 2 Bottom View EUT – Wifi Module Board Top View Wifi Module Lable EUT – Wifi Module Board Bottom View EUT – Junction Plate Board Top View EUT – Junction Plate Board Bottom View EUT – Fan View

Bay Area Compliance Laboratories Corp. (Chengdu) Report No.: RSC140102003 Page 9 of 21 FCC §15.407(f) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.407(f)and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode FrequencyAntenna Gain Conducted Power Evaluation Distance Power Density Limit MHz dBi numericdBm mW cm mW/cm 2 mW/cm 2 5G-802.11n HT20 5150-52500 1.00 10.5011.22 20 0.002 1.0 5G-802.11n HT40 5150-52500 1.00 14.3026.92 20 0.005 1.0 Result: The device meet FCC MPE at 20 cm distance

Note: This test report was prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Chengdu). Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. This report was valid only with a valid digital signature. FCC PART 15.407 TEST REPORT For PRO-X Co., Ltd Unit 9, Building 6, No.289 West Third Ring Road, Zhengzhou, Henan Report Type: Original Report Product Type: WIRELESS TRANSMISSION SYSTEM Test En gineer: Tob y Ren Report Number: RSC140102003 Re port Date: 2014-06-19 Reviewed By: Henry Ding EMC En gineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Chengdu) 5040, HuiLongWan Plaza, No. 1, ShaWan Road, JinNiu District, ChengDu, China Tel: 028-65523123, Fax: 028-65525125 www.baclcorp.com FCC ID: 2ABGKRECONX5TX Bay Area Compliance Laboratories Corp. (Chengdu) Report No.: RSC140102003 Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ........................................................................................................................................ 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................ 3 OBJECTIVE .................................................................................................................................................................. 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 TEST METHODOLOGY ................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION ........................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ................................................................................................................... 5 EUT EXERCISE SOFTWARE ........................................................................................................................................ 5 EQUIPMENT UNDER TEST (EUT) GENERAL DESCRIPTION ........................................................................................ 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 5 EXTERNAL I/O CABLE ................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.407(f) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §15.203 – ANTENNA REQUIREMENT ......................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................. 10 FCC §15.407 (b) (6) §15.207 (a) – CONDUCTED EMISSIONS ......................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY ................................................................................................................................. 11 EUT SETUP ............................................................................................................................................................... 11 EMI TEST RECEIVER SETUP .................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 12 TEST EQUIPMENT LIST AND DETAILS ....................................................................................................................... 12 TEST PROCEDURE .................................................................................................................................................... 13 TEST RESULTS SUMMARY ........................................................................................................................................ 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.209, §15.205 & §15.407(b) (1) (4) (6) (7) – UNDESIRABLE EMISSION & RESTRICTED BANDS ......................................................................................................................................................................... 16 APPLICABLE STANDARD .............................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D – TEST SETUP PHOTOGRAPHS Conducted Emissions Test Setup – Front View Conducted Emissions Test Setup – Side View Spurious Emissions Test Setup - Front View (Below 1GHz) Spurious Emissions Test Setup - Rear View (Below 1GHz) Spurious Emissions Test Setup - Front View (Above 1GHz) Spurious Emissions Test Setup - Rear View (Above 1GHz)
