2ABGM-UPT001dianxiaobao

Instructions for usage of Wireless Charger: O Use a micro USB data cable or standard USB cable to charge the wireless charger O System is applied with 5V input, which is through adapter or computer USB port. But due to the limit of input current in USB port, there may be occasions that chargers restart repeatedly. It’s recommended to use an adapter of 5V/2A. O Wireless charger has two lights, red light means standby mode or fault mode, the blue flashing light indicates normal charging mode O Wireless charger with buzzer: It will beep once when the phone is placed in the correct position and ready to be charged. Parameters： Input voltage and current : 5V 2A RF output power: ﹤5W The working frequency range of wireless charger： 110KHZ-205KHZ The Standby power consumption of wireless charger： less than 10mA The range: 5~8mm Conversion efficiency: 75%（MAX） Surface temperature: 55°C（MAX） Charging and discharging cue: LED、Buzzer Working TEMP: 0°C（32）F-40°C（104） Storage TEMP: -20°C（-4）F-60°C（140） Defencive function:Over voltage protection,overload proteciton, short circuit proteciton,over temperature protecito，Foreign body detection. Indications： Wireless charging indication： Mode LED1（blue） LED2（red） buzzer standby off on silent charging flashing（0.5HZ） off Buzz 0.2 secs charged on off silent error off flashing（1HZ） silent Note: ★ do not tear if unauthorized ★ use indoors and on the desk ★ Placing a metal object on surface is prohibited ★ Keep it 20CM away from human body when working ★ Away from fire or shock ★ Away from moisture or water Accessories: ★Wirelesscharger ★Micro USB cable ★Power adapter ★Manual and warranty card Warranty: Dear customers： Thanks for choosing the products of Yupin technology. Quality products, reasonable price and attentive serviceare our company spirit. We strictly follow national “Three Guarantees Policy” (Refund, Replacement and Repair). Guarantee becomes valid since the date of invoice. 1. Within 7 days from date of sale, customer can choose to return, replace or repair the product if any functional failure occurs. A valid invoice and warranty card is needed. 2. Within 15 days from date of sale, customer can choose to replace or repair the product if any functional failure occurs. A valid invoice and warranty card is needed. 3. One year warranty on all products under normal conditions The following conditions are not within the scope of warranty service: ① Products without warranty card and purchasing invoice. No user info archived either. ② The warranty card or purchase info does not match return product model. Or there are traces of altered data on card and invoice. ③ Damage caused by man-made error, including operating the products under prohibited environment or against operation instructions. ④ Disassemble the products without permission. ⑤ If any damage is made to product appearance, we can only accept repairing. ⑥ Improper use under certain conditions, such as power input, working temperature, humidity etc. ⑦ Damage caused by force majeure, such as fire, flood, lightning, traffic accidents etc. ⑧ Special offers with non-return notes. We only offer repair service. Warranty Card Product Info Model No.：__________________________________ Series No.：__________________________________ User Info Name：__________________________________ Phone：__________________________________ Address：______________________________________________________________________________________ Purchase info Seller：__________________________________ Phone：__________________________________ Address：______________________________________________________________________________________ Purchase date：__________________________________ Valid No.：__________________________________ Stamp VI. Contact Us: Manufacturer：Shenzhen Yupin Technology Co.,LTD Address：4 th floor, 2 nd building, Dongpeng Industrial Zone, Shi’yan District, Bao’anDistrict,Shenzhen P. O .：518100 Number：+86755-61821296 Fax：+86755-61821292 Website：http://www.yupin.com Certificate of conformity: Model： Date：

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013-12-5 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shenzhen Yupin Technology Co.,Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description： model name： UP2 FCC ID: 2ABGM-UPT001 We affirm that between SIEMIC and ____ Shenzhen Yupin Technology Co.,Ltd ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Contact information / address : 4th Floor, Building Two, Dongpeng Industrial Park, Second Industrial District, Mabu New Village, Shiyan Street, Shenzhen City Shenzhen Yupin Technology Co.,Ltd dianxiaobao Wenying Zhong / Manager

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Contact information / address: Shenzhen Yupin Technology Co.,Ltd 2013-12-5 2ABGM-UPT001 Wenying Zhong /Manager 4th Floor, Building Two, Dongpeng Industrial Park, Second Industrial District, Mabu New Village, Shiyan Street, Shenzhen City

Coupling surface area For Model Number: UP2 FCC ID: 2ABGM-UPT001 d= 6.4 cm, S=π(d/2) 2 = 32.17 cm 2 Accord QI certification requirements below: d=44mm+20mm

Shenzhen Yupin Technology Co.,LTD Cover Letter ‐ Wireless Charger Approval FCC ID: 2ABGM‐UPT001 Data: Nov. 12, 2013 Gentlemen: There’s a Wireless dianxiaobao that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below, Wireless dianxiaobao with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5.2 requirements. Company : Shenzhen Yupin Technology Co.,LTD Product Name : Wireless dianxiaobao Model Number : UP2 FCC ID : 2ABGM‐UPT001 KDB 680106 D01 Section 5.2 Requirements: Product Technical Specification： Result: a) Power transfer frequency is less that 1 MHz 110~205kHz Complied b) Output power from each primary coil is less than 5 Watts <5Watts Complied c) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils --- Complied d) Client device is inserted in or placed directly in contact with the transmitter --- Complied e) The maximum coupling surface area of the transmit (charging) device is between 60 cm2 and 400 cm2. Please reference report of SIEMIC See attached f) Aggregate leakage fields at 10 cm surrounding the device from all simultaneous transmitting coils are demonstrated to be less than 30% of the MPE limit. Please reference RF exposure report.pdf Complied Sincerely, By: Wenyin Zhong (Signature1) (Print name) Title: Director On behalf of: Shenzhen Yupin Technology Co.,LTD (Company Name) Telephone: (+86)075561821296

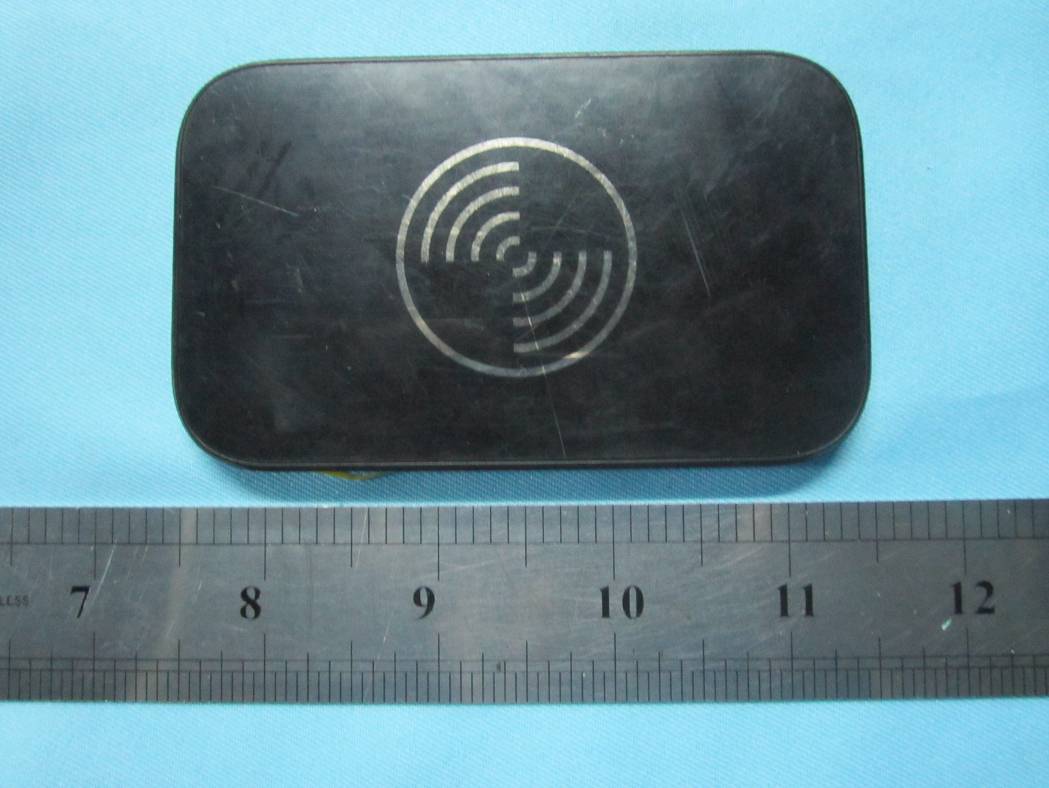

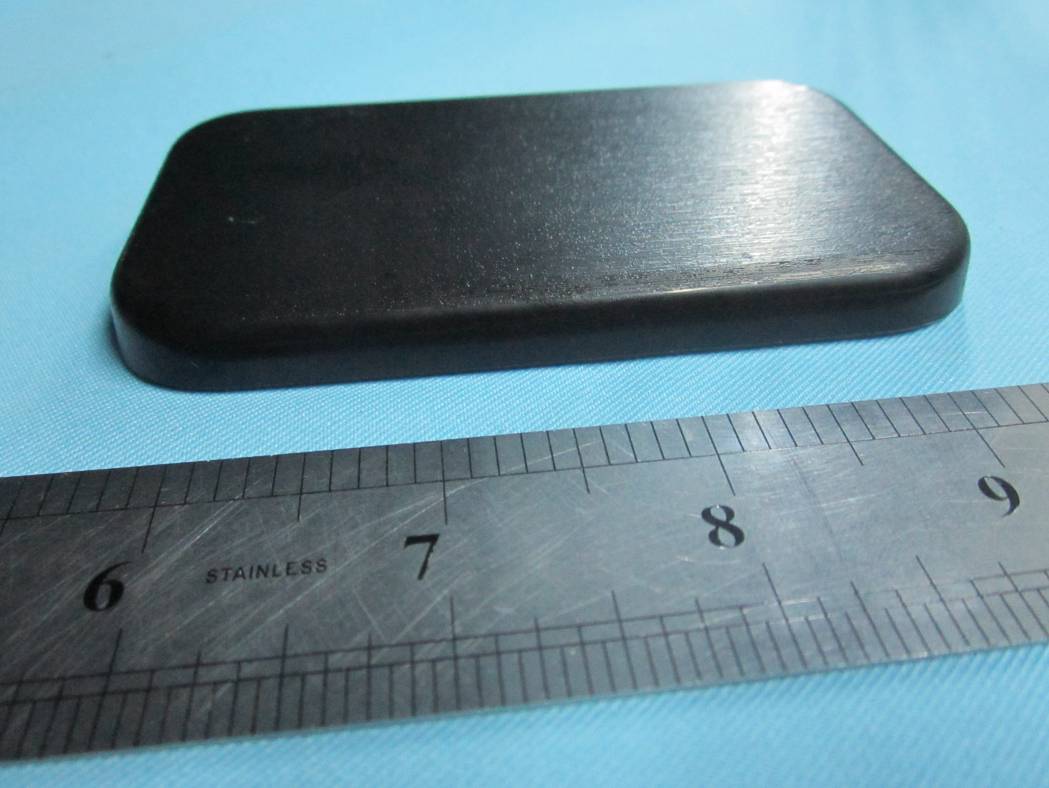

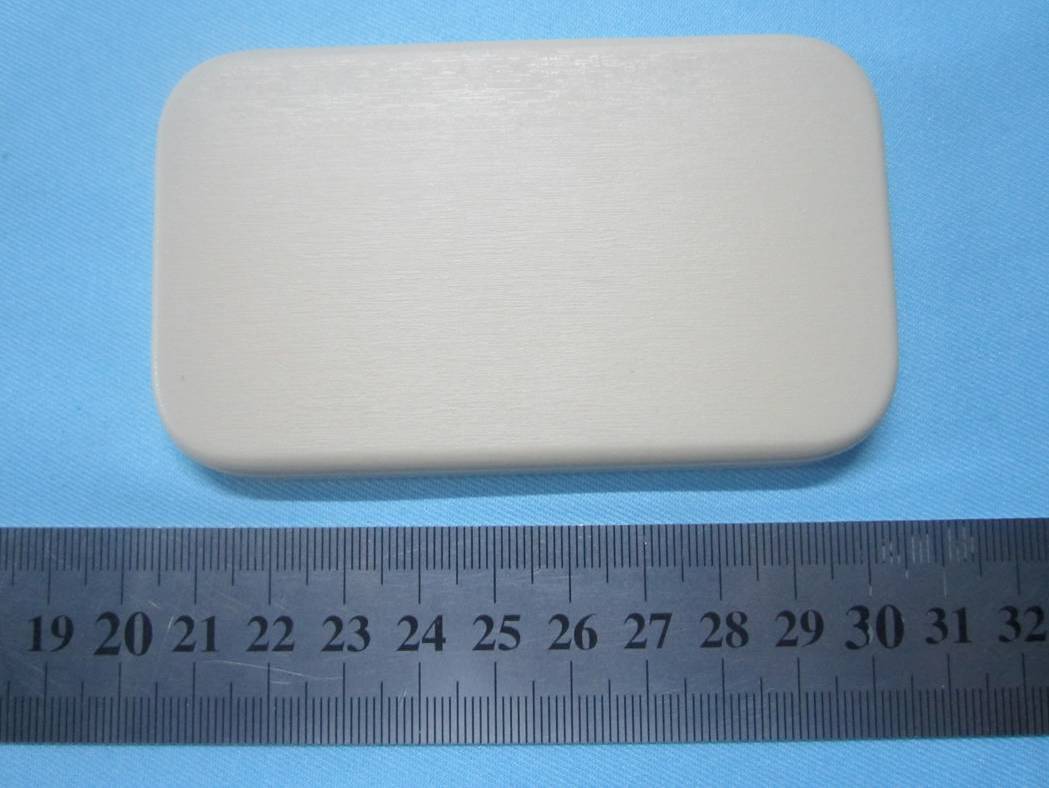

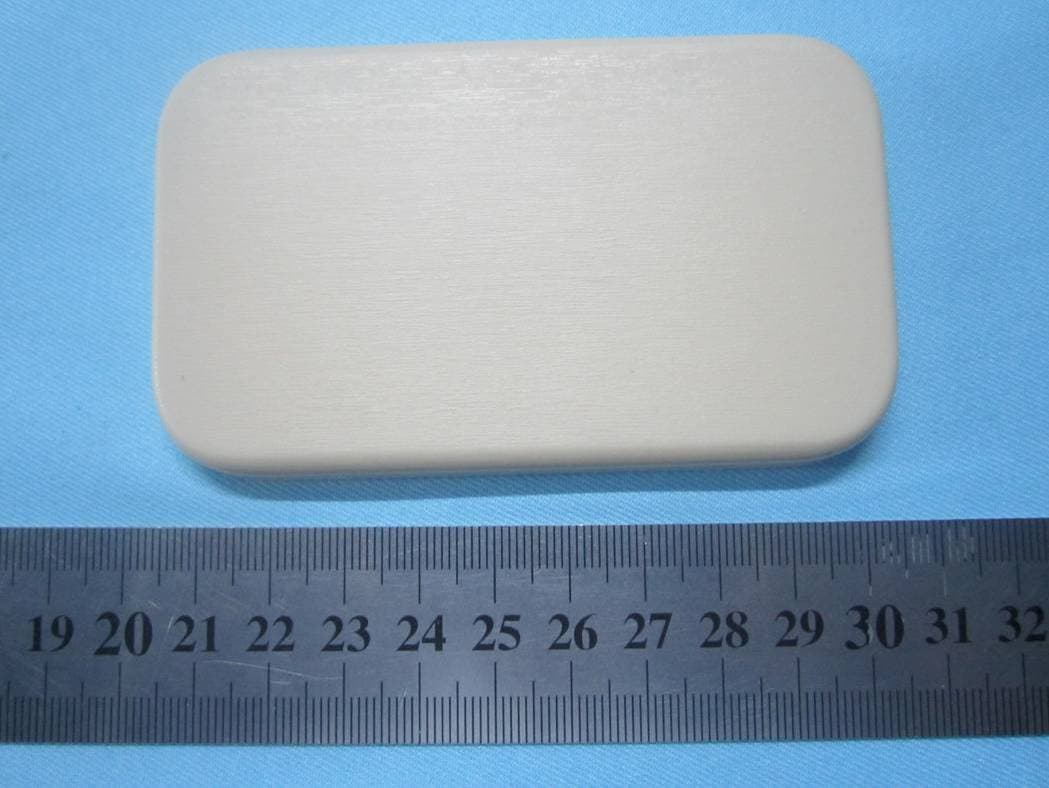

Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 21 of 37 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B. i. Photograph 1: EUT External Photo (there are two colour for the EUT’s appearance: black and colourful) Whole Package – Top View Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 22 of 37 www.siemic.com.cn EUT - Top View(Black) EUT - Bottom View(Black) Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 23 of 37 www.siemic.com.cn EUT - Front View(Black) EUT - Rear View(Black) Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 24 of 37 www.siemic.com.cn EUT - Left Side View(Black) EUT - Right Side View(Black) Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 25 of 37 www.siemic.com.cn EUT - Top View(Colourful) EUT - Bottom View(Colourful) Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 26 of 37 www.siemic.com.cn EUT - Front View(Colourful) EUT - Rear View(Colourful) Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 27 of 37 www.siemic.com.cn EUT - Left Side View(Colourful) EUT - Right Side View(Colourful)

Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 28 of 37 www.siemic.com.cn Annex B. ii. Photograph 2: EUT Internal Photo EUT-Cover Off View EUT Mainborad - Top View Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 29 of 37 www.siemic.com.cn EUT Mainborad - Bottom View

Shenzhen Yupin Technology Co., Ltd dianxiaobao Main Model: UP2 Serial Model: N/A Jan 17, 2014 Report No.: 13070483-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: David Huang Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Mode l: N/A To: FCC 47CFR Part 1 subpart I & part 2 subpart J Report No.: 13070483-FCC-R1 Issue Date: Jan 17, 2014 Page: 2 of 29 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. SIEMIC (Shenzhen-China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Mode l: N/A To: FCC 47CFR Part 1 subpart I & part 2 subpart J Report No.: 13070483-FCC-R1 Issue Date: Jan 17, 2014 Page: 3 of 29 www.siemic.com.cn This page has been left blank intentionally. Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Mode l: N/A To: FCC 47CFR Part 1 subpart I & part 2 subpart J Report No.: 13070483-FCC-R1 Issue Date: Jan 17, 2014 Page: 4 of 29 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS.......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS................................................................... 9 ANNEX A. TEST INSTRUMENTATION & GENERAL PROCEDURES ............................................................. 11 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 13 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 25 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................. 28 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 29 Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Mode l: N/A To: FCC 47CFR Part 1 subpart I & part 2 subpart J Report No.: 13070483-FCC-R1 Issue Date: Jan 17, 2014 Page: 5 of 29 www.siemic.com.cn 1 The purpose of this test programme was to demonstrate compliance of the Shenzhen Yupin Technology Co., Ltd, dianxiaobao and Model: UP2 against the current Stipulated Standards. The dianxiaobao has demonstrated compliance with the FCC 47CFR Part 1 subpart I & part 2 subpart J. EXECUTIVE SUMMARY & EUT INFORMATION EUT Information EUT Description : dianxiaobao Main Model : UP2 Serial Model N/A Input Power : DC 5V 2.0 A Antenna Type : Coil antenna Classification Per Stipulated Test Standard : Non-ISM frequency FCC 47CFR Part 1 subpart I & part 2 subpart J Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Mode l: N/A To: FCC 47CFR Part 1 subpart I & part 2 subpart J Report No.: 13070483-FCC-R1 Issue Date: Jan 17, 2014 Page: 6 of 29 www.siemic.com.cn 2 Purpose TECHNICAL DETAILS Compliance testing of dianxiaobao with stipulated standards Applicant / Client Shenzhen Yupin Technology Co.,Ltd 4th Floor, Building Two, Dongpeng Industrial Park, Second Industrial District, Mabu New Village, Shiyan Street, Shenzhen City Manufacturer Shenzhen Yupin Technology Co.,Ltd 4th Floor, Building Two, Dongpeng Industrial Park, Second Industrial District, Mabu New Village, Shiyan Street, Shenzhen City Laboratory performing the tests SIEMIC (Shenzhen-China) Laboratories Zone A, Floor 1, Building 2, Wan Ye Long Technology Park, South Side of Zhoushi Road, Bao'an District, Shenzhen, Guangdong, China Tel: +86-0755-2601 4629 / 2601 4953 Fax: +86-0755-2601 4953-810 Email: [email protected] Test report reference number 13070483-FCC-R1 Date EUT received November 04, 2013 Standard applied FCC 47CFR Part 1 subpart I & part 2 subpart J Dates of test (from – to) Jan 15, 2014 No of Units #1 Equipment Category Non-ISM frequency Trade Name Power Partner RF Operating Frequency (ies) 110 kHz – 205 kHz FCC ID 2ABGM-UPT001 Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Mode l: N/A To: FCC 47CFR Part 1 subpart I & part 2 subpart J Report No.: 13070483-FCC-R1 Issue Date: Jan 17, 2014 Page: 7 of 29 www.siemic.com.cn 3 MODIFICATION NONE Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Mode l: N/A To: FCC 47CFR Part 1 subpart I & part 2 subpart J Report No.: 13070483-FCC-R1 Issue Date: Jan 17, 2014 Page: 8 of 29 www.sie…

Text truncated - open the document above for the full version.

Shenzhen Yupin Technology Co., Ltd dianxiaobao Main Model: UP2 Serial Model: N/A November 26, 2013 Report No.: 13070483-FCC-E1-18 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: David Huang Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 2 of 37 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen-China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 3 of 37 www.siemic.com.cn This page has been left blank intentionally. Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 4 of 37 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS.......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS................................................................... 9 ANNEX A. TEST INSTRUMENTATION & GENERAL PROCEDURES ............................................................. 16 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 21 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 32 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 36 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 37 Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 5 of 37 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Shenzhen Yupin Technology Co., Ltd, dianxiaobao and Model: UP2 against the current Stipulated Standards. The dianxiaobaohas demonstrated compliance with the FCC Part 18 Subpart C, FCC Measurement Procedure MP-5 (1986). EUT Information EUT Description : dianxiaobao Main Model : UP2 Serial Model N/A Input Power : DC 5V 2.0 A Antenna Type : Coil antenna Classification Per Stipulated Test Standard : Non-ISM frequency FCC Part 18 Subpart C : 2013, FCC Measurement Procedure MP-5 (1986) Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 6 of 37 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of dianxiaobao with stipulated standards Applicant / Client Shenzhen Yupin Technology Co.,Ltd 4th Floor, Building Two, Dongpeng Industrial Park, Second Industrial District, Mabu New Village, Shiyan Street, Shenzhen City Manufacturer Shenzhen Yupin Technology Co.,Ltd 4th Floor, Building Two, Dongpeng Industrial Park, Second Industrial District, Mabu New Village, Shiyan Street, Shenzhen City Laboratory performing the tests SIEMIC (Shenzhen-China) Laboratories Zone A, Floor 1, Building 2, Wan Ye Long Technology Park, South Side of Zhoushi Road, Bao'an District, Shenzhen, Guangdong, China Tel: +86-0755-2601 4629 / 2601 4953 Fax: +86-0755-2601 4953-810 Email: [email protected] Test report reference number 13070483-FCC-E1-18 Date EUT received November 04, 2013 Standard applied FCC Part 18 Subpart C, FCC Measurement Procedure MP-5 (1986) Dates of test (from – to) November 11 to November 16, 2013 No of Units #1 Equipment Category Non-ISM frequency Trade Name Power Partner RF Operating Frequency (ies) 110 kHz – 205 kHz FCC ID 2ABGM-UPT001 Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 7 of 37 www.siemic.com.c…

Text truncated - open the document above for the full version.

Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 30 of 37 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Model: N/A To: FCC Part 18 Subpart C , FCC Measurement Procedure MP-5 (1986) Report No.: 13070483-FCC-E1-18 Issue Date: November 26, 2013 Page: 31 of 37 www.siemic.com.cn Radiated Spurious Emissions Test Setup Below 30 MHz - Front View Radiated Spurious Emissions Test Setup Above 30 MHz - Front View

Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Mode l: N/A To: FCC 47CFR Part 1 subpart I & part 2 subpart J Report No.: 13070483-FCC-R1 Issue Date: Jan 17, 2014 Page: 22 of 29 www.siemic.com.cn nnex B.iii. Photograph 3: Test Setup Photo RF expousre evaluation: Left side RF expousre evaluation: Right Side 10cm Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Mode l: N/A To: FCC 47CFR Part 1 subpart I & part 2 subpart J Report No.: 13070483-FCC-R1 Issue Date: Jan 17, 2014 Page: 23 of 29 www.siemic.com.cn RF expousre evaluation: Front side RF expousre evaluation: Rear Side Title: EMC Test Report for dianxiaobao Main Model: UP2 Serial Mode l: N/A To: FCC 47CFR Part 1 subpart I & part 2 subpart J Report No.: 13070483-FCC-R1 Issue Date: Jan 17, 2014 Page: 24 of 29 www.siemic.com.cn RF expousre evaluation: Top side RF expousre evaluation: Bottom Side
