2ABGQK0016Media Station

KS-700 Media Station ENGLISHQuick Installation Guide AREC Inc.© All Rights Reserved 2013. l www.arec.com All information contained in this document is Proprietary KS-700 Quick Installation Guide FCC Federal Communication Commission interference statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF Exposure Warning The equipment complies with RF exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. You are cautioned that changes or modications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation CE Hereby, AREC Inc., declares that this Media Station is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. 1 {šGŒ˜œ—”Œ•›Gš–œ“‹G‰ŒG•š›ˆ““Œ‹Gˆ•‹G–—Œ™ˆ›Œ‹Gž›GˆG”•”œ”G‹š›ˆ•ŠŒG –GYWGŠŒ•›”Œ›Œ™šG‰Œ›žŒŒ•G›ŒG™ˆ‹ˆ›–™Gˆ•‹G –œ™G‰–‹ U 2 KS-700 Quick Installation Guide CB CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. – the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,table-cloths, curtains, etc.: – no naked flame sources, such as lighted candles, should be placed on the apparatus; – attention should be drawn to the environmental aspects of battery disposal; – the use of apparatus in tropical climates. the instructions for use shall state that the apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be placed on the apparatus. KS-700 Quick Installation Guide 3 Introduction Specications Package Contents Featuring a compact and stand-alone design, AREC KS-700 Media Station consists of diverse features and functionality, including multi-signals capturing, recording synchronously, codec, streaming online, multi-channel split screen, live broadcasting, and web-based video switcher, providing complete lecture capture solution. Power AdapterAntenna3A Battery x4 Product CD Quick Installation Guide Remote Controller AREC Media Station Media Station KS-700 354mm(L) x 188.2mm(W) x 46mm(H) 1320g 12V/2A 24W (Max.) 0ºC ~ 50ºC / 90% Product Name Model Name Dimension Weight Power Requirement Power Consumption (Max.) Operating Temperature / Humidity KS-700 Quick Installation Guide 4 Product Appearance Front Back 1 4 62 71013151611 12 891417 53 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Remote Control receiver Led light Function key Select key: Power USB port Power port Video input source Video output source Audio input source Audio output source Hard drive port Network jack Network camera input jack Antenna keyhole DIDO Reset NO. NameBrief introduction Remote Control receiving area Bluetooth/Record/Power Record/Play/Pause/Stop/Menu/Channel/Preview Layout Up/Down/Left/Right /Back/OK Power on/ off devices Export document by driving USB flash drive into USB port /Firmware update through USB disk 12V/2A VGA/HDMI cables input source VGA/ HDMI cables output source Line/Mic audio input source Line audio output connect to amplier USB flash drive/eSATA hard drive Connect to network Network camera/Auto-Tracking Mount video input Antennas for wireless microphone receivers RS-232 Bidirectional control signal connector Restoring devices to its factory default state KS-700 Quick Installation Guide 5 Remote Controller 1 2 6 9 5 3 4 7 10 13 16 20 22 24 25 18 8 12 11 15 14 19 29 17 21 23 26 27 28 30 32 31 NO. NameBrief introduction 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 Power Resolution A/B/C/D Prev Index Info Next Index Previous Play Next Record Layout Pause Snapshot Record Menu Stop Preview Layout Aspect Select: Up/Down/Left/Right OK Back Exit Volume Channel 0-9 Mute P1 P2 P3 Reset Patrol Zoom in Zoom out Power on/ off devices Adjust the output resolution AExport the storage device B/C/DUser Dene Jump to previous index play Display the channel information Jump to next index play Jump to previous course play Start or resume video play Jump to next course play Switch record layout Pause video play/Pause video recording Take a screen shot and capture into photo Start video recording Go to main menu screen Stop video play/Stop video recording and exit Switch preview layout Switch individual channel to ll in pane with different aspects Navigate menu Select and execute option Cancel option/Return to previous view Cancel all of setting and option Change volume Switch channel 1~6Quickly switch record layout while recording Mute audio Auto-Tracking Mount (TP-100)adjust zoom…

Text truncated - open the document above for the full version.

AREC Inc. 3F, No.367, Sec.2, Wenhua Rd., Banqiao Dist., New Taipei City 220, Taiwan Date: February 07 ,2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: 2ABGQK0016 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Zippy Technology Corp. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Signature Name/Title: Mitch Sun / Manager Company Name: AREC Inc. Address: 3F, No.367, Sec.2, Wenhua Rd., Banqiao Dist., New Taipei City 220, Taiwan TEL: +886-2-8259-5060 ext.220 FAX: +886-2-8259-5050 Email: [email protected]

AREC Inc. 3F, No.367, Sec.2, Wenhua Rd., Banqiao Dist., New Taipei City 220, Taiwan Date: February 07,2014 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, AREC Inc. hereby authorize Compliance Certification Services Inc / David.Wang to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 08/07/2014 Sincerely, Name/Title: Mitch Sun / Manager Company Name: AREC Inc. Address: 3F, No.367, Sec.2, Wenhua Rd., Banqiao Dist., New Taipei City 220, Taiwan TEL: +886-2-8259-5060 ext.220 FAX: +886-2-8259-5050 Email: [email protected]

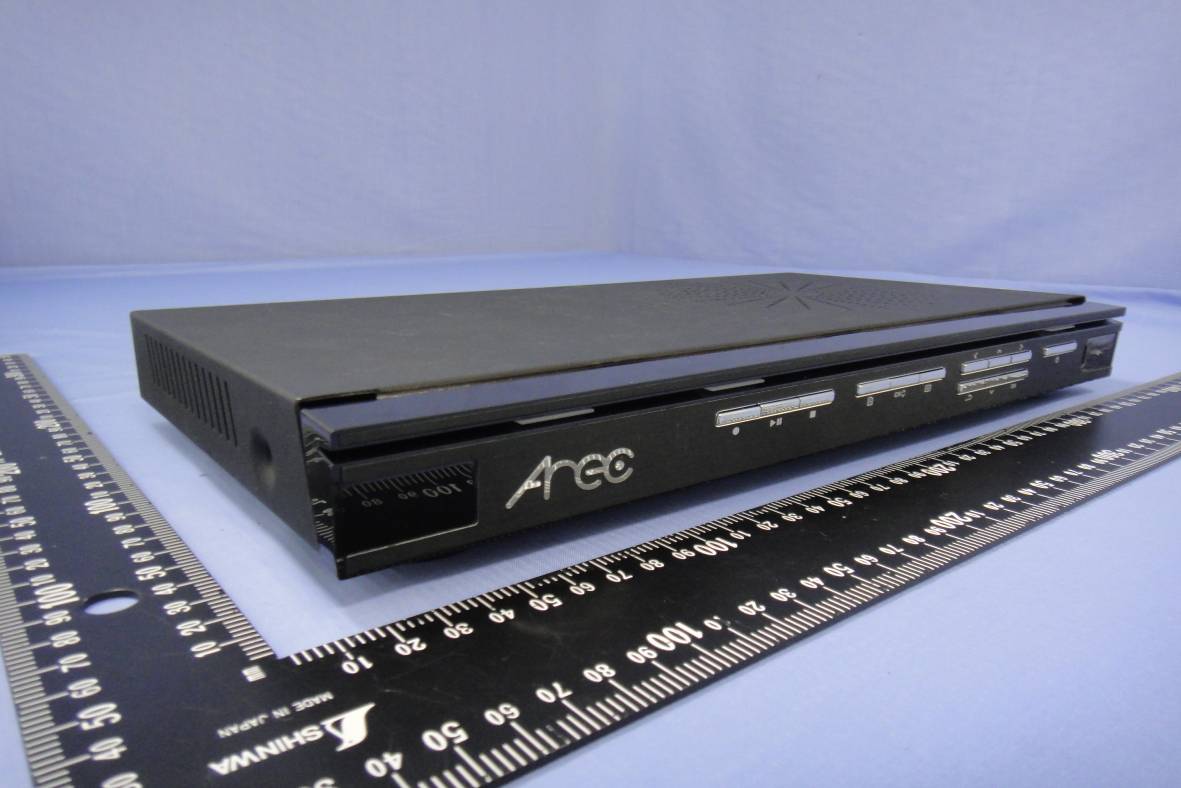

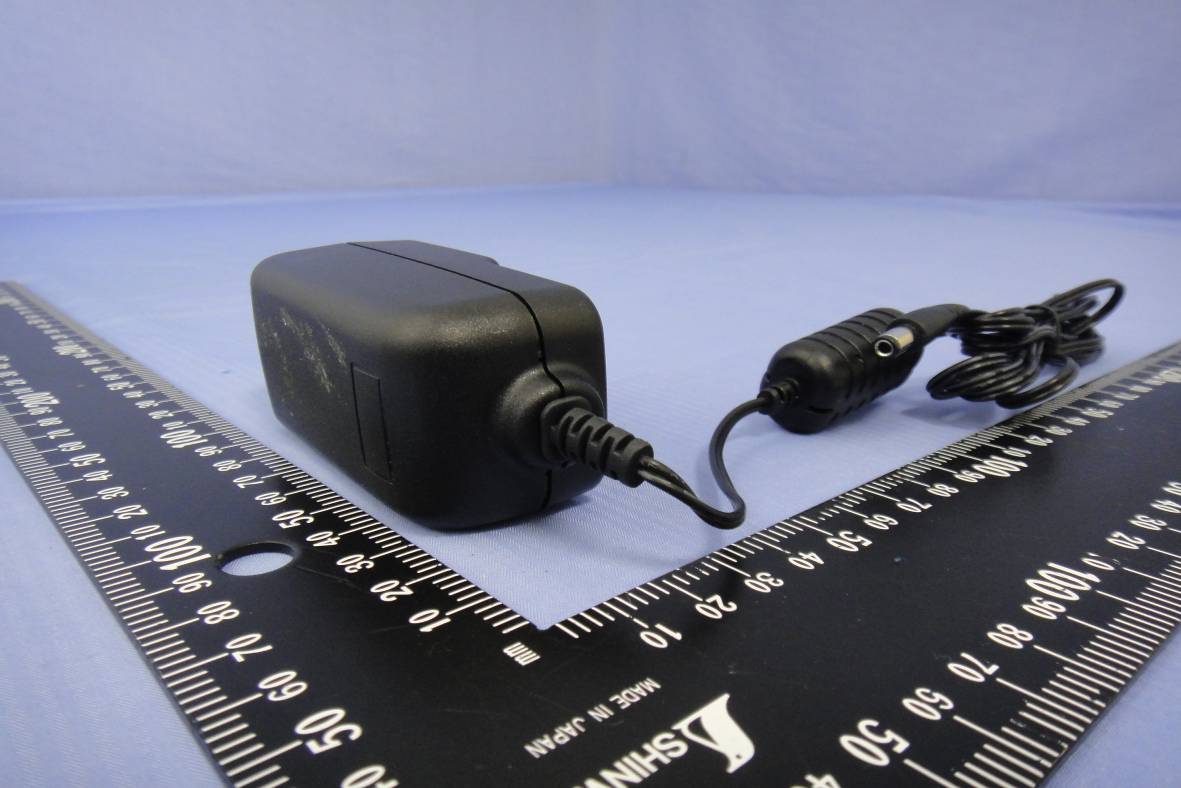

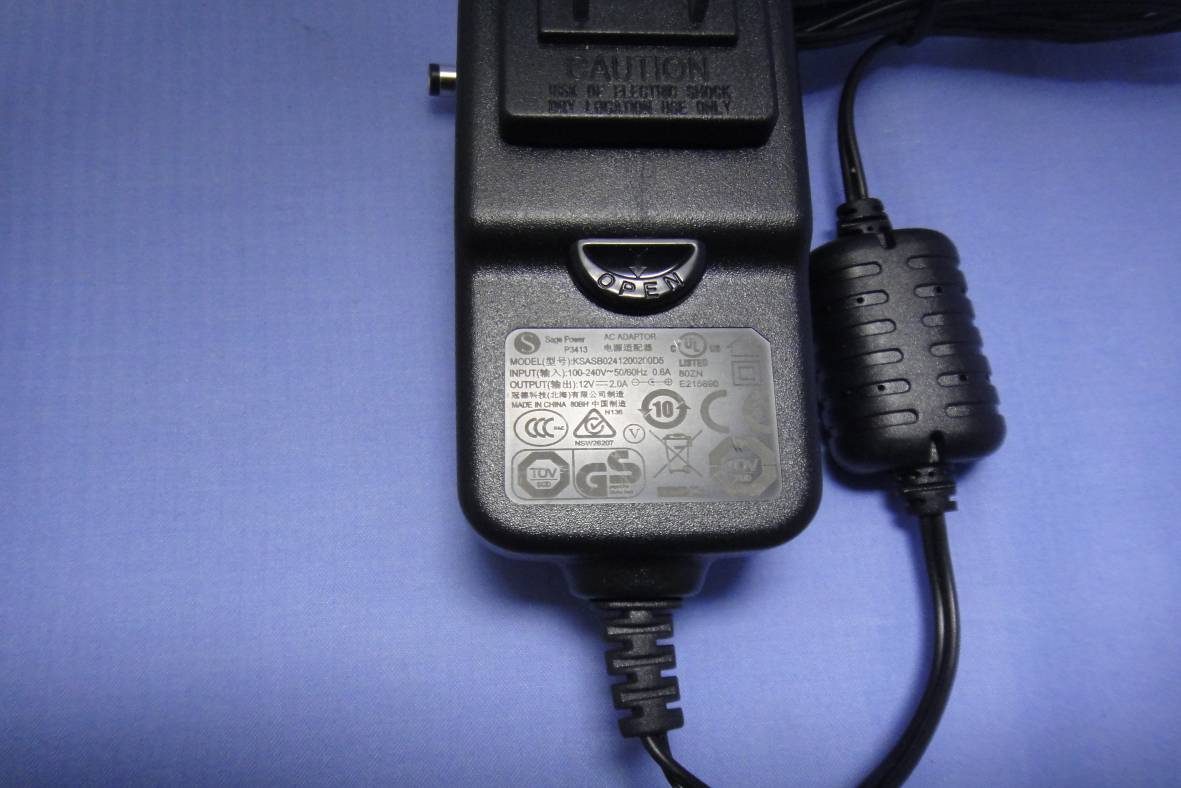

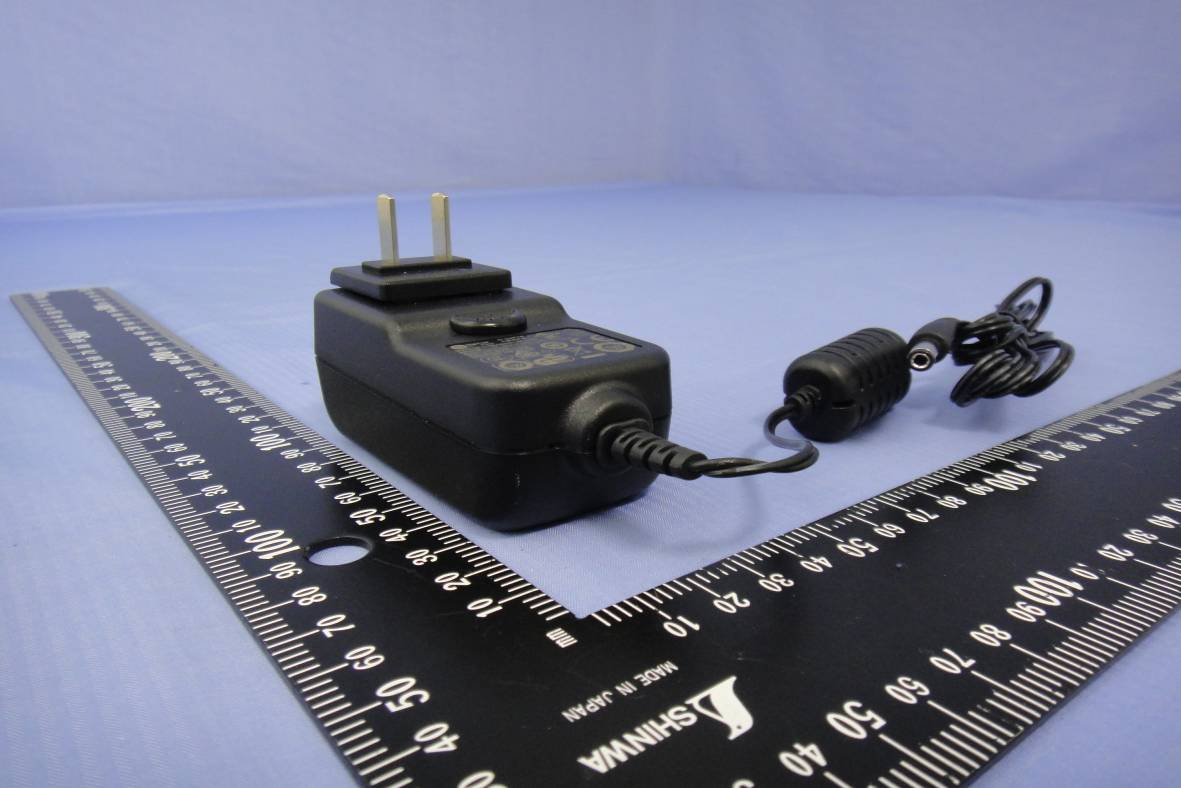

Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 1 / 15 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 2 / 15 Rev. 00 Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 5 Rev. 00 Adapter Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 7 Rev. 00

Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 8 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 11 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 15 Rev. 00 Compliance Certification Services Inc. Report No.: T130716W03 Date of Issue: November 29, 2013 A1 - 16 Rev. 00 Module

Compliance Certification Services Inc. Report No.: T131202D04 Date of Issue: January 13, 2014 Page 1 Rev.02 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Media Station Model KS-700 Trade Name Frequency band (Operating) Buetooth: 2402 ~ 2480 MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification EDI / Monopole Antenna P/N: WSS025 2.4GHz: Antenna Gain :5.5 dBi (Numeric gain:3.55) Maximum Tune up Power Bluetooth Mode : 2.60 dBm(1.820 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T131202D04 Date of Issue: January 13, 2014 Page 2 Rev.02 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T131202D04 Date of Issue: January 13, 2014 Page 3 Rev.02 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Bluetooth mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 024021.823.55200.00131

Compliance Certification Services Inc. FCC ID: 2ABGQK0016 Report No.: T130716W03-RP Page 80 Rev.00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTO Compliance Certification Services Inc. FCC ID: 2ABGQK0016 Report No.: T130716W03-RP Page 81 Rev.00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. FCC ID: 2ABGQK0016 Report No.: T130716W03-RP Page 82 Rev.00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
