2ABGXBT513Bluetooth Headset

BT513 User Manual Accessories 1. User Manual 2. Warranty Card 3. Micro USB Cable 4. 3.5mm audio cable Please read carefully the manual before using and keep it as a record. Know your headphone: 1. Volume button - a. Move Upwards: Volume + b. Move Downwards: Volume - 2. power button / Bluetooth power button 3. Micro USB slot 4. Line in slot 5. Mic ■Specification and technical features: Dimension ：170x200x75(mm) Weight ：189g（bare headphone, without packing） Charging interface： Micro USB Press buttons： two （power button + volume button ） Battery ：3.7V/250mAh Charging specification：Micro USB Charging input ：5V/1.0A Charging indication ：Red LED light is continuously on Please use standard charging accessory to charge for this headphone, the normal charging time is about 2 to 3 hours. Standby time ： more than 100 hours Successive talking time： about 8 hours Volume control：16 ranks, 3dB variation in each rank Working temperature ： -20～70°C during the charging period Storage temperature： -40～80°C ■Speaker and MIC Speaker diameter: Φ40mm Impedance：Impedance: 32Ω Sensitivity：S.P.L:110dB S.P.L.at 1KHz Rated power: 1mW Frequency Response: 100Hz-9000Hz MIC Type ： Capacitance Microphone Unit: Φ4*1.5mm Directivity: Full direction S.P.L:-42±3dB Impedance: ≤2.2KΩ Frequency Response: 30-16,000HZ ■Bluetooth Mode: Bluetooth Protocol version： CSR Ver 3.0 Profile：HSP1.2/HFP1.6 Remote control to the player： Volume up and down Device Mode Number： BT513 Matching code: 0000 RF transmit：dBm(Max) Receiving sensitivity：-90dBm Transmission Range (Hz) 20 - 20,000 Antenna Gain： above -3.5dB Human Gain： above -6.5dB Communication distance ：10m ■Mechanical Reliability Press button ：200,000 times Micro USB interface ： Pull out and pull in no less than 5000 times LED： brightness/light-leakage/luminosity must be the same. ■Operation Turn ON： In the state of power-off, press and hold the power button for 1, the headset will send out two “di-di” Prompt tones and blue LED will be on ; the blue and red LED light will glitters in turn if holding power button for 2 sec ; there will be 4 “du-du” rising Prompt tone if holding for 5 seconds. Turn OFF： In the state of power-on, press and hold power button for 5 seconds till the red LED light glitters three times. There will be four "dodo” voices from loud to low. Now the unit is turned off. Pairing： In the state of power-off , press and hold power button for 3s until red and blue LED light glitters in turn, the headphone enters into pairing mode. In this case, the headset can be paired with the Bluetooth enabled devices. ※Usually，Setup procedure relates to the “setup”,” connection” or “Bluetooth” menu in your cellphone, click “search for Bluetooth device”, your cell phone will find out headphone name ”513” or other pairing name and ask if you want to connect, then click “confirm” or “yes”. Afterwards, input pairing password or PIN code ”0000” and click ”yes” or “confirm”, the headphone will connect with your Bluetooth device successfully. ※The headphone will enter in power-on mode if releasing power button before red and blue LED light glitters in turn. In this case, please turn off the power and operate it once again. Answering calls: Press the power button once to answer the incoming calls. Dialing calls: If the headset is paired with the cell phone, dialing the numbers on the cell phone will enable the conversation on the headset automatically. Ending calls: Ongoing conversation on cell phone can be ended by pressing the power key once. . Redial latest number: The cell phone will automatically dial the last dialed phone number by double pressing power key on the Bluetooth headset. We can hear the prompt tone from the headset. Volume control: In the state of music or calls, move volume button upwards to increase the sound and move it downwards to decrease the sound. Wired headphone Function The headphone can be used as the wired headphone. Just simply attach 3.5mm audio cable. In the state of power off: It can be used as the wired stereo headphone by inserting the 3.5mm audio cable. Please adjust the volume of sound sources when it is as the wired headphone. In this case, the volume control of the headphone can' t be workable. ■Symbol of LED Light ： Charging--- The red light is on. The blue light will be on when it is full of power after charging. Standby----blue light quickly glitters once per 5 seconds Conversation/ Music---blue light glitters once per 5 seconds Power Shortage---red light glitters (with prompt tone) Pairing---red and blue light glitters in turn FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipm…

Text truncated - open the document above for the full version.

Dongguan Koppo Electronics CO.,Ltd FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name Dongguan Koppo Electronics CO.,Ltd Addresss xingyi'ning industiral Park,Hongshiqiao Industiral Area, Yantian Village, Fenggang Town City Dongguan Country China declare that the following representative (agent): Name (person) Jim.he Company name Shenzhen STONE Testing Technology Co.,Ltd. Addresss F/6, Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Bluetooth Headset Type or Model(s) BT513、BT600、BT561、BT570、BT200、BT560、BT539、BT543、BT562. BT529、BT100 Tradename or Brand(s) N/A We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Dongguan 2013.11.27 Wei yongning Manager

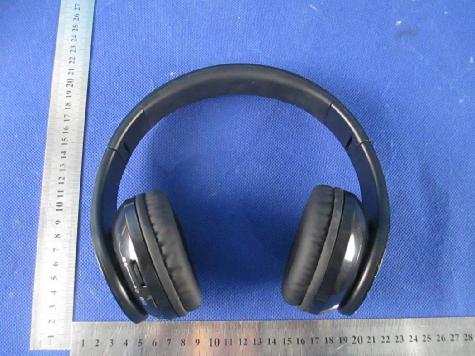

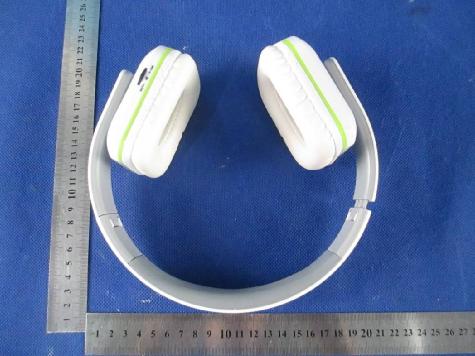

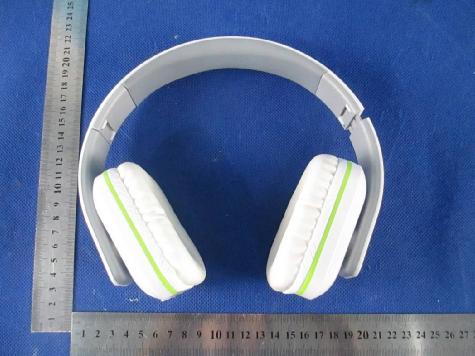

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

Bluetooth Headset M/N: BT513 FCC ID: 2AAGXBT513

Photo 11 Photo 12 ANT Photo 13 Photo 14

FCC ID: 2AAGXBT513 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Maximum measured transmitter power 1Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 -2.261 0.59 2441 0 -1.600 0.69 2480 0 -0.654 0.86 2Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 -2.680 0.53 2441 0 -1.859 0.64 2480 0 -0.780 0.83 3Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 -2.154 0.6 2441 0 -1.444 0.71 2480 0 -0.567 0.87 Refer to 447498 25 D01 General RF Exposure Guidance v05 Appendix A, you see that for Maximum Conducted AV Output Power 0.87 mW(<10mW), so no SAR is required.

FCC RADIO TEST REPORT FCC ID: 2AAGXBT513 Product： Bluetooth Headset Trade Name： N/A Model Name： BT513 Serial Model： BT600、BT561、BT570、BT200、BT560、BT539、 BT543、BT562. BT529、BT100 Prepared for Dongguan Koppo Electronics CO.,Ltd xingyi'ning industiral Park,Hongshiqiao Industiral Area, Yantian Village, Fenggang Town, Dongguan City,Guangdong Province,China Prepared by Shenzhen STONE Testing Technology Co.,Ltd. F/6, Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District Shenzhen P.R. China Page 2 of 75 Report No.:STT-2013DG1202334F TEST RESULT CERTIFICATION Applicant’s name.................: Dongguan Koppo Electronics CO.,Ltd Address.................................: xingyi'ning industiral Park,Hongshiqiao Industiral Area, Yantian Village, Fenggang Town, Dongguan City,Guangdong Province,China Manufacture's Name............: Dongguan Koppo Electronics CO.,Ltd Address.................................: xingyi'ning industiral Park,Hongshiqiao Industiral Area, Yantian Village, Fenggang Town, Dongguan City,Guangdong Province,China Product description Product name...........................: Bluetooth Headset Model and/or type reference : BT513 Serial Model： BT600、BT561、BT570、BT200、BT560、BT539、BT543、 BT562. BT529、BT100 Standards.............................: FCC Part15.247 Test procedure............................. ANSI C63.4-2003 This device described above has been tested by STT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STT, this document may be altered or revised by STT, personal only, and shall be noted in the revision of the document. Date of Test.........................................: Date (s) of performance of tests............: 19 Nov. 2013 ~04 Dec. 2013 Date of Issue........................................: 04 Dec. 2013 Test Result............................................: Pass Testing Engineer : (Polo Cha) Technical Manager : (Brown Lu) Authorized Signatory : (Bovey Yang) Page 3 of 75 Report No.:STT-2013DG1202334F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . NUMBER OF HOPPING CHANNEL 33 4.1 APPLIED PROCEDURES / LIMIT 33 4.1.1 TEST PROCEDURE 33 4.1.2 DEVIATION FROM STANDARD 33 4.1.3 TEST SETUP 33 4.1.4 EUT OPERATION CONDITIONS 33 4.1.5 TEST RESULTS 34 5 . AVERAGE TIME OF OCCUPANCY 36 5.1 APPLIED PROCEDURES / LIMIT 36 Page 4 of 75 Report No.:STT-2013DG1202334F Table of Contents Page 5.1.1 TEST PROCEDURE 36 5.1.2 DEVIATION FROM STANDARD 36 5.1.3 TEST SETUP 37 5.1.4 EUT OPERATION CONDITIONS 37 5.1.5 TEST RESULTS 38 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 44 6.1 APPLIED PROCEDURES / LIMIT 44 6.1.1 TEST PROCEDURE 44 6.1.2 DEVIATION FROM STANDARD 44 6.1.3 TEST SETUP 44 6.1.4 EUT OPERATION CONDITIONS 44 6.1.5 TEST RESULTS 45 7 . BANDWIDTH TEST 51 7.1 APPLIED PROCEDURES / LIMIT 51 7.1.1 TEST PROCEDURE 51 7.1.2 DEVIATION FROM STANDARD 51 7.1.3 TEST SETUP 51 7.1.4 EUT OPERATION CONDITIONS 51 7.1.5 TEST RESULTS 52 8 . PEAK OUTPUT POWER TEST 58 8.1 APPLIED PROCEDURES / LIMIT 58 8.1.1 TEST PROCEDURE 58 8.1.2 DEVIATION FROM STANDARD 58 8.1.3 TEST SETUP 58 8.1.4 EUT OPERATION CONDITIONS 58 8.1.5 TEST RESULTS 59 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 64 9.1 DEVIATION FROM STANDARD 64 9.2 TEST SETUP 64 9.3 EUT OPERATION CONDITIONS 64 9.4 TEST RESULTS 65 10 . ANTENNA REQUIREMENT 73 10.1 STANDARD REQUIREMENT 73 10.2 EUT ANTENNA 73 11 . EUT TEST PHOTO 74 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 75 Report No.:STT-2013DG1202334F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 75 Report No.:STT-2013DG1202334F 1.1 TEST FACILITY Shenzhen STONE Testing Technology Co.,Ltd. Add. : F/1 , Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District Shenzhen China FCC Registration No.: 323508; IC Registration No.: 11043A 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 75 Report No.:STT-2013DG1202334F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluetooth Headset Model Name BT513 Serial Model BT600、BT561、BT570、BT2…

Text truncated - open the document above for the full version.

Page 74 of 75 Report No.:STT-2013DG1202334F 11. EUT TEST PHOTO Radiated Measurement Photos Page 75 of 75 Report No.:STT-2013DG1202334F CONDUCTED EMISSION Photos

Page 74 of 75 Report No.:STT-2013DG1202334F 11. EUT TEST PHOTO Radiated Measurement Photos Page 75 of 75 Report No.:STT-2013DG1202334F CONDUCTED EMISSION Photos
