2ABGXBT565MBluetooth headset

Bluetooth headset BT565M 01 02 03 04 05 BT565M 06 07 08 Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation 0

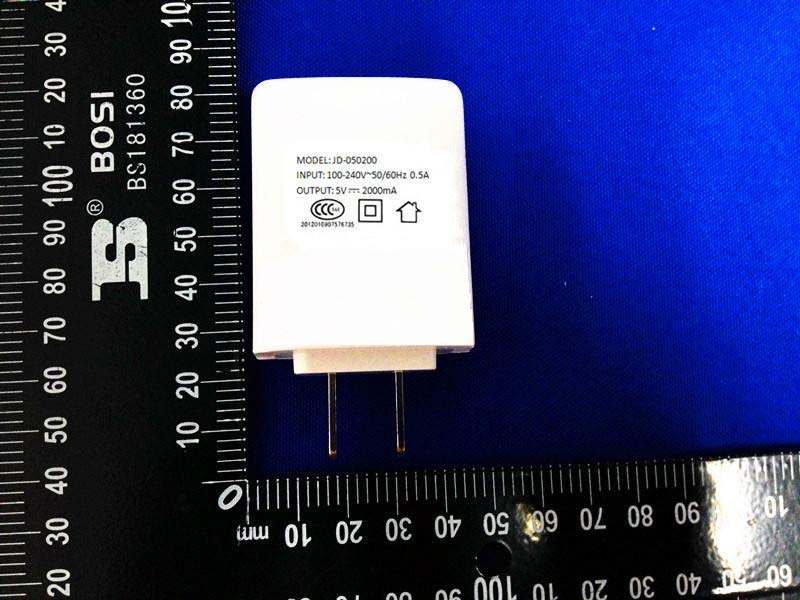

External photo (Bluetooth headset Model: BT565M) Photos of Testing Adapter

LABEL ARTWORK AND LOCATION FCC ID: 2ABGXBT565M Label Location

Internal photo (Bluetooth headset Model: BT565M) BT Antenna

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2ABGXBT565M Product: Bluetooth headset Model No.: BT565M Additional Model No.: BT508D, BT508E, BT508M, BT508PLUS, BT566, BT565S, BT565T, BT565PLUS, BT569B, BT713 Trade Mark: N/A Report No.: TCT150423E009 Issued Date: May 27, 2015 Issued for : Dongguan Koppo EIectronics Co.,Ltd. xingyi'ning industiral Park, Hongshiqiao Industiral Area, Yantian Village, Fenggang Town, Dongguan City, Guangdong Province, China Issued By: Shenzhen Tongce Testing Lab. 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT150423E009 Page 2 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. Genera Information ................................................................................... 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations ................................................................... 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ...................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 19 6.6. Test Specification ................................................................................................ 19 6.7. Conducted Band Edge and Spurious Emission Measurement ....................... 22 6.8. Radiated Spurious Emission Measurement ...................................................... 25 Report No.: TCT150423E009 Page 3 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Bluetooth headset Model No.: BT565M Additional Model No.: BT508D, BT508E, BT508M, BT508PLUS, BT566, BT565S, BT565T, BT565PLUS, BT569B, BT713 Applicant: Dongguan Koppo EIectronics Co., Ltd. Address: xingyi'ning industiral Park, Hongshiqiao Industiral Area, Yantian Village, Fenggang Town, Dongguan City, Guangdong Province, China Manufacturer: Dongguan Koppo EIectronics Co., Ltd. Address: xingyi'ning industiral Park, Hongshiqiao Industiral Area, Yantian Village, Fenggang Town, Dongguan City, Guangdong Province, China Date of Test: Apr. 23 – May 26, 2015 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 KDB 558074 D01 DTS Meas Guidance v03r02 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date:May 26, 2015 Beryl Zhao Reviewed By: Date:May 27, 2015 Joe Zhou Approved By: Date:May 27, 2015 Tomsin Report No.: TCT150423E009 Page 4 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) Pass AC Power Line Conducted Emission §15.207 Pass Conducted Peak Output Power §15.247 (b)(3) Pass 6dB Emission Bandwidth §15.247 (a)(2) Pass Power Spectral Density §15.247 (e) Pass Band Edge 1§5.247(d) Pass Spurious Emission §15.205/§15.209 Pass Note: 1. Pass: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT150423E009 Page 5 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product Name: Bluetooth headset Model : BT565M Additional Model: BT508D, BT508E, BT508M, BT508PLUS, BT566, BT565S, BT565T, BT565PLUS, BT569B, BT713 Trade Mark: N/A BT Version: V4.0(BLE) and V3.0+EDR This report is for V4.0 Hardware version: 587-8645-v1.0 Software version: V4.1 Serial Number: 20150412 Operation Frequency: 2402MHz~2480MHz Channel Separation: 2MHz Number of Channel: 40 Modulation Technology: GFSK Antenna Type: Internal Antenna Antenna Gain: 4dBi Power Supply: Rechargeable Li-ion Battery DC3.7V Operation Frequency each of chan…

Text truncated - open the document above for the full version.

Setup photo (Bluetooth headset Model: BT565M) Conducted Emission Radiated Emission
