2ABH6-GGMMWS-301M-Freedom (WiFi Digital Speaker)

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 21.06.07 Datum: 00.00.00 Seite 1 von 1 Shenzhen GGMM Industrial Company Limited Date: 2014-5-14 Subject: Ad Hoc Mode Function Declaration FCC ID: 2ABH6-GGMMWS-301 To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, (YOUR CONTACT DETAILS) Name: Will Yuan Position: Manager Company: Shenzhen GGMM Industrial Company Limited Adress: Room110, F518 Idea Land, Baoyuan Road, Baoan District, Shenzhen Tel.: 86-0755-27953188 Fax.: 86-0755-27953322 E-Mail: [email protected]

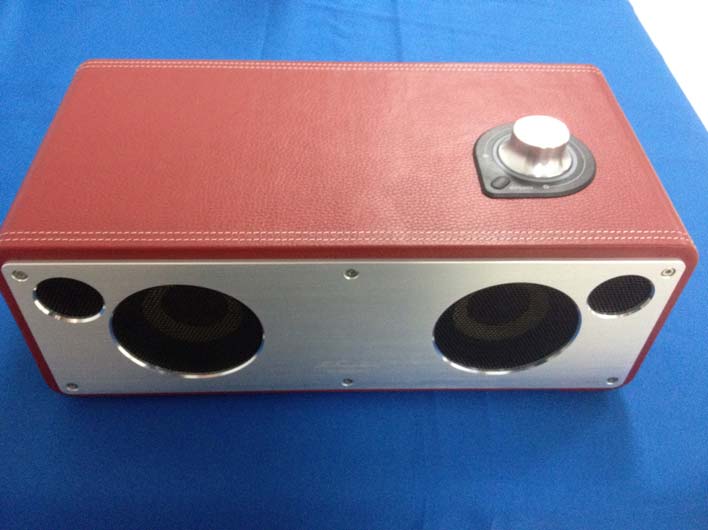

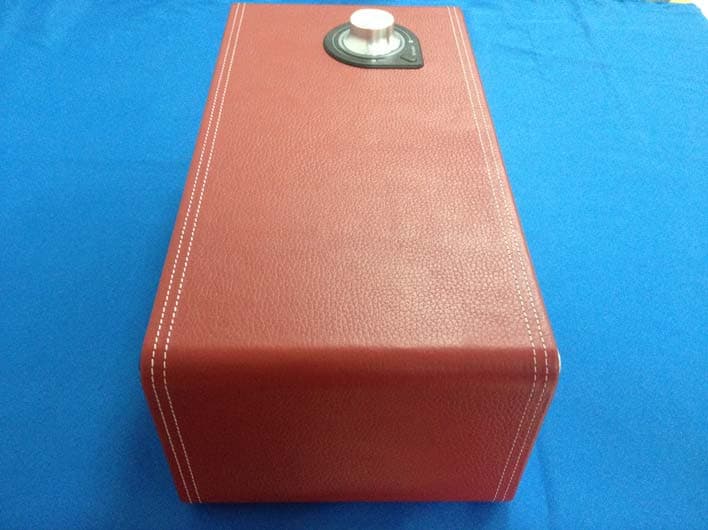

External photo

FCC ID Label Sample for Label size: L*W=40*30mm Proposed FCC ID Label Location FCC ID:2ABH6-GGMMWS-301 Trade Mark:GGMM This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

1 Internal photo 2 3 4 5 6 Crystalfrequency 40MHz

Maximum Permissible Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequencyenergy level in excess of the Commission’s guideline. This is a Portable device. Remark: 1) The maximum output power is 16.99 dBm (50mW) at 2462MHz, (with 1 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Maximum Permissible Exposure EUT output power=50mW Numeric Antenna gain=1 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm 2 →Power density=0.00995mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

FCC ID TEST REPORT for M-Freedom Model: WS-301 FCC ID: 2ABH6-GGMMWS-301 Prepared for:Shenzhen GGMM Industrial Company Limited Room110, F518 Idea Land, Baoyuan Road, Baoan District, Shenzhen Prepared by:Shenzhen TCT Testing Technology Co.,Ltd 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China TEL: +86-0755-27673339 FAX: +86-0755-27673332 Report Number：TCT140428012F2-1 Date of Test：May. 01-May.14, 2014 Date of Report：May. 15, 2014 The results detailed in this test report relate only to the specific sample(s) tested. It is the Application’s responsibility to ensure that all production units are manufactured with equivalent EMC characteristics. This report is not to be reproduced except in full, without written approval from TCT Testing Technology FCC ID: 2ABH6-GGMMWS-301Report Number:TCT140428012F2-1Page 2 of 67 Table of Contents 1.0 General Details......................................................................................................................................................3 1.1 Test Lab Details.............................................................................................................................................. 3 1.2 Applicant Details............................................................................................................................................ 3 1.3 Description of EUT........................................................................................................................................ 4 1.4 Statement........................................................................................................................................................ 4 1.5 Test Engineer.................................................................................................................................................. 4 2.0 Test equipments and Associated Equipment used during the test...................................................................5 2.1 Test Equipments..............................................................................................................................................5 2.2 AE used during the test...................................................................................................................................5 3.0 Technical Details................................................................................................................................................... 6 3.1 Summary of test results.................................................................................................................................. 6 3.2 Test Standards.................................................................................................................................................6 4.0 EUT Modification................................................................................................................................................. 6 5.0 Measurement Uncertainty（95% confidence levels, k=2)............................................................................... 6 6.0 Power Line Conducted Emission Test................................................................................................................ 7 7.0 Maximum Peak Output Power..........................................................................................................................11 8.0 6dB Bandwidth Measurement...........................................................................................................................17 9.0 Power Spectral Density Measurement..............................................................................................................25 10.0 Band age Measurement....................................................................................................................................33 11.0 Spurious Emission Test.....................................................................................................................................42 12.0 Antenna Requirement...................................................................................................................................... 67 FCC ID: 2ABH6-GGMMWS-301Report Number:TCT140428012F2-1Page 3 of 67 1.0 General Details 1.1 Test Lab Details Name :Shenzhen Tongce Testing Lab Address:1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China Telephone: 13410377511 Fax:-- The test facility is recognized, certified, or accredited by the following organizations: FCC Registration Number: 572331 Shenzhen TCT Testing Technology Co., Ltd., Shenzhen EMC Laboratory: Shenzhen Tongce Testing Lab The 3m Semi-anechoic chamber has been registered and fully described in a report with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration Number: 572331 Industry Canada (IC) The 3m Semi-anechoic chamber of Shenzhen TCT Testing Technology Co., Ltd. has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing Registration Number IC: 10668A-1 1.2 Applicant Details Applicant:Shenzhen GGMM Industrial Company Limited Address:Room110, F518 Idea Land, Baoyuan Road, Baoan District, Shenzhen Telephone:86-0755-27953188 Fax:86-0755-27953322 Manufacturer: Shenzhen GGMM Industrial Company Limited Address:Building No5, Yongxin Street, Shiyan, Baoan District, Shenzhen Telephone:86-0755-27953188 Fax:86-0755-27953322 FCC ID: 2ABH6-GGMMWS-301Report Number:TCT140428012F2-1Page 4 of 67 1.3 Description of EUT Product:M-Freedom Model No.:WS-301 Additional Model No.: N.A. Brand Name:GGMM Operation Frequency: IEEE 802.11b: 2412-2462 MHz IEEE 802.11g: 2412-2462 MHz IEEE 802.11n: 2412-2462 MHz(HT 20), 2422-2452 MHz(HT 40) Channel number:IEEE 802.11b/g: 11, IEEE 802.11n: 11(HT 20), 7(HT 40) Channel spacing:5 MHz Modulation Type:IEEE 802.11b: DSSS IEEE 802.11g: OFDM IEEE 802.…

Text truncated - open the document above for the full version.

1 Conducted Emission test view 2 Radiated Emission test view
