2ABH9-MSD1PGPRESSURE GAUGE WITH BLUETOOTH

TM OPERATION MANUAL COPYRIGHT © 2013 - APPION INC. - ALL RIGHTS RESERVED ⚠ WARNING TO REDUCE THE RISK OF INJURY OR PRODUCT DAMAGE, READ OPERATION MANUAL PRIOR TO OPERATING PRODUCT. Introduction Table of Contents Safety .....................................................................3 Display & Controls ..................................................4 Using the Pressure Gauge .....................................5 Regulatory ..............................................................6 2 P300/P500/P800 OPERATION MANU- © 2013 APPION INC. - ALL RIGHTS RESERVED Safety • Do not connect to systems exceeding rated pressure. • Do not use leaky or damaged batteries. • Use only specified batteries and cleaning agents. • Dispose of batteries in accordance with any applicable local laws and regulations. 3 P300/P500/P800 OPERATION MANU © 2013 APPION INC. - ALL RIGHTS RESERVED Display Controls 1- Battery Indicator 2- Auto Power Off 3- Bluetooth Status 4- Measurement 5- Units 123 4 5 Press a button for the “Press” function above. Hold a button for 1 second for the “Hold” function. Press both Backlight and Power to toggle APO. PressBacklightON/OFF HoldUnitsZeroConnect BT BothToggle APO Timer 4 P300/P500/P800 OPERATION MANU © 2013 APPION INC. - ALL RIGHTS RESERVED Using the Pressure Guage CAUTION: Always wear hand and eye protection when handling connections to systems under pressure. 1. Make sure that all fittings are properly tightened and sealed before connecting the P300/P500/ P800 to a system under pressure. 2. Press the Power button to turn on the P300/P500/ P800. Wait for the power on self-test to complete before using the readings from the P300/P500/ P800. Tip: Connect to the Side Access Port on a Valve Core Removal Tool with the Female Swivel Adapter. 5 P300/P500/P800 OPERATION MANU © 2013 APPION INC. - ALL RIGHTS RESERVED Regulatory Information 6 P300/P500/P800 OPERATION MANU © 2013 APPION INC. - ALL RIGHTS RESERVED This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 7 P300/P500/P800 OPERATION MANU © 2013 APPION INC. - ALL RIGHTS RESERVED Regulatory Information FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Caution To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Industry Canada Radio Equipment This device complies with Industry Canada licence- exempt RSS-210 standard. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Équipement radio d’Industrie Canada Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

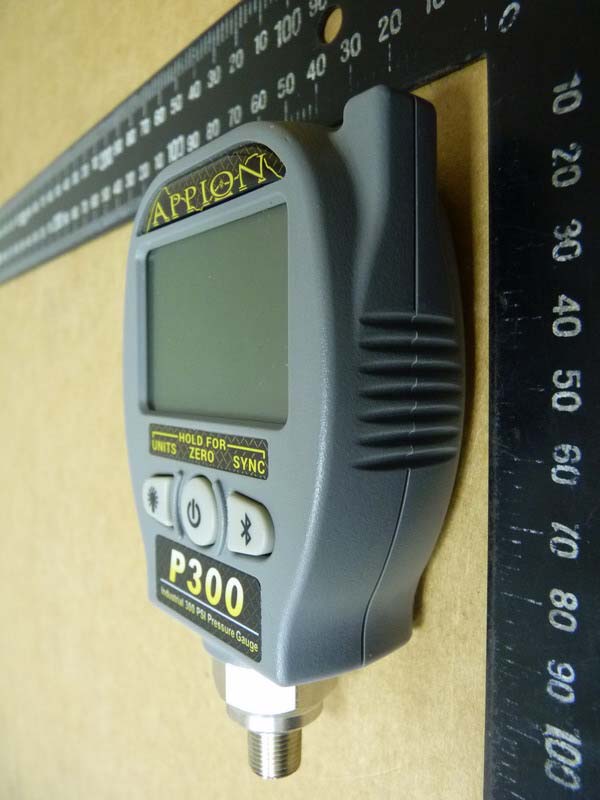

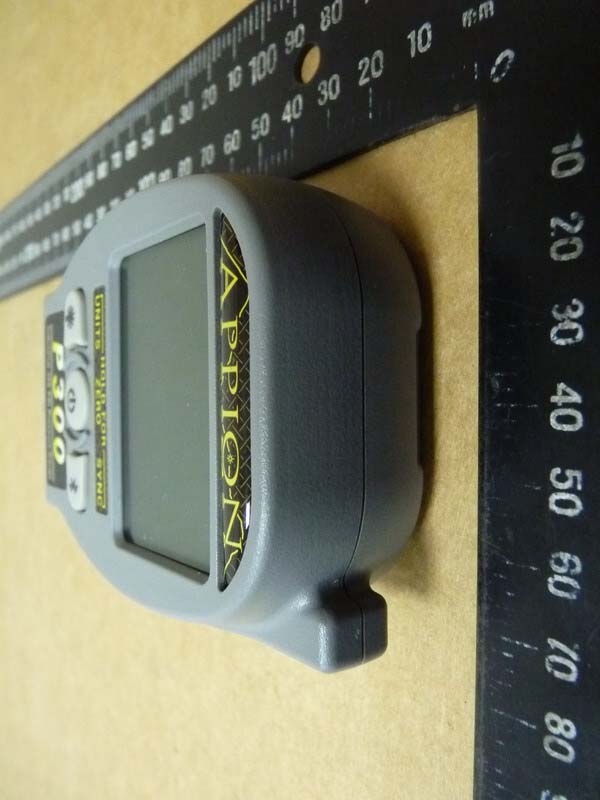

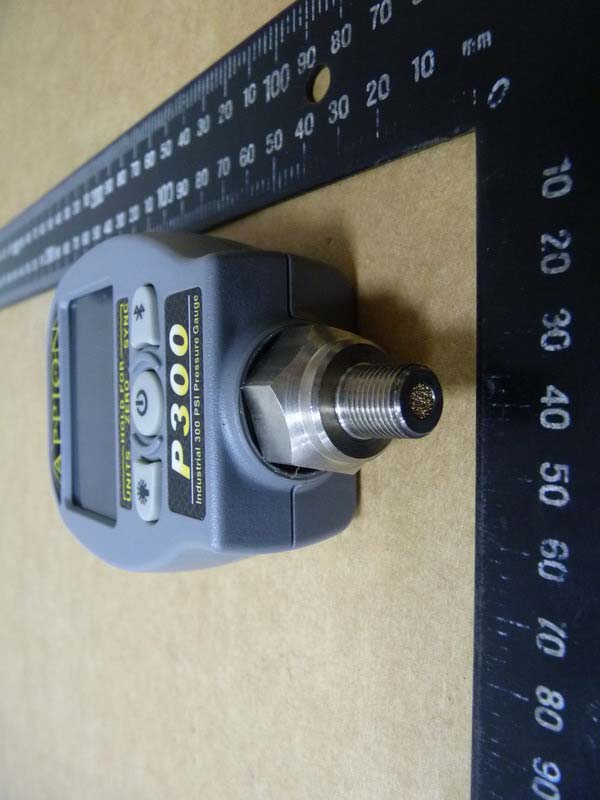

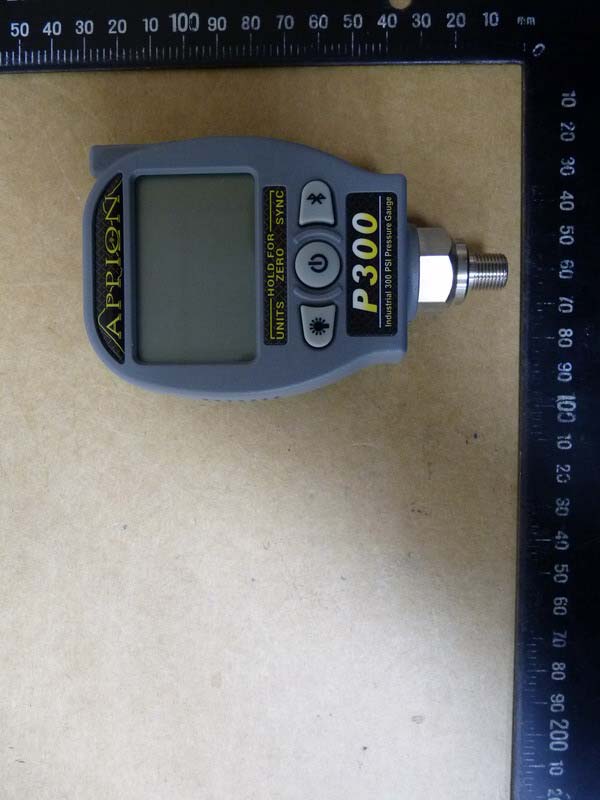

Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 15 External Photos Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 15 Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 15 Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 15 Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 15 Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 15

D C B A 4321 D C B A 4321 修訂 說明 日期 作者 Draw Check Version RAY Date 30 ‐ Dec ‐ 13 N/A Allen Unit mm N/A V1.0 Scale N.T.S. Tag Appion Drawing No. DN ‐ 31230 ‐ 003 Material Part No. Name Case No. D C B A 4321 D C B A 4321 修訂 說明 日期 作者 Draw Check Version RAY Date 30 ‐ Dec ‐ 13 N/A Allen Unit mm N/A V1.0 Scale N.T.S. Tag Appion Drawing No. DN ‐ 31230 ‐ 004 Material Part No. Name Case No.

Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 15 Internal Photos Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 15 Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 15 Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 15 Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 15

RF EXPOSURE MODEL NO.: P300 Approval holder: Appion Inc. FCC ID: 2ABH9-MSD1PG Conclusion: No Evaluation Required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Conducted Power 0.94 dBm (1.24 mW) EIRP Power 0.94 dBm (1.24 mW) ● The antenna is PCB antenna. Antenna gain is 0 dBi. Threshold for no SAR evaluation is 24.19 mW. Conclusion: No SAR evaluation required since Transmitter output power is below FCC threshold.

of Applicant: Appion Inc. Address: 2800 South Tejon Street Englewood, CO 80110 USA Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21311-13670-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for PRESSURE GAUGE WITH BLUETOOTH Model No.: P300 FCC ID: 2ABH9-MSD1PG Registration number: W6M21311-13670-C-1 FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 45 TABLE OF CONTENTS 1 GENERAL INFORMATION ...................................................................................................... 2 1.1 Notes .................................................................................................. 2 1.2 Testing laboratory .................................................................................................. 3 1.2.1 Location .................................................................................................. 3 1.2.2 Details of accreditation status .............................................................................................. 3 1.3 Details of approval holder .................................................................................................. 3 1.4 Application details .................................................................................................. 4 1.5 General information of Test item......................................................................................... 4 1.6 Test standards .................................................................................................. 5 2 TECHNICAL TEST .................................................................................................................... 6 2.1 Summary of test results .................................................................................................. 6 2.2 Test environment .................................................................................................. 6 2.3 Test Equipment List .................................................................................................. 7 2.4 General Test Procedure .................................................................................................. 9 3 TEST RESULTS (ENCLOSURE) ............................................................................................ 11 3.1 Peak Output Power (transmitter) ....................................................................................... 12 3.2 RF Exposure Compliance Requirements ........................................................................... 16 3.3 Out of Band Radiated Emissions ....................................................................................... 16 3.4 Transmitter Radiated Emissions in restricted Bands ......................................................... 17 3.5 Spurious emissions (tx) ................................................................................................ 18 3.6 Carrier Frequency Separation ............................................................................................ 22 3.7 Number of Hopping Frequencies....................................................................................... 25 3.7.1 Pseudorandom Frequency Hopping Sequence................................................................... 27 3.7.2 Coordination of hopping sequences to other transmitters ................................................. 27 3.7.3 System Receiver Hopping Capability ................................................................................ 27 3.8 Time of Occupancy (Dwell Time) ..................................................................................... 28 3.9 20dB Bandwidth ................................................................................................ 34 3.9.1 System Receiver Input Bandwidth .................................................................................... 37 3.10 Band-edge Compliance of RF Emissions .......................................................................... 38 3.11 Radiated Emissions from Receiver Section of Transceiver............................................... 43 3.12 Power Line Conducted Emission....................................................................................... 44 Appendix..........................................................................................................45 Registration number: W6M21311-13670-C-1 FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 45 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: December 24, 2013 Robert Ren Date WTS-Lab. Name Signature Technical responsibility for area of testing: December 24, 2013 Kevin Wang Date WTS Name Signature Registra…

Text truncated - open the document above for the full version.

Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 15 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 15 Above 1GHz Registration number: W6M21311-13670-FCC FCC ID: 2ABH9-MSD1PG Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 15 RF
