2ABHA-CSBTColumniform mini bluetooth speaker

Report No.: TB-FCC138998 Page: 1 of 10 TB-RF-074-1.0 Appendix IID Label FCC ID: 2ABHA-CSBT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. NINGBO CSTAR IMP&EXP CO., LTD Model: CSBT1301 Made in China Note: There are similar labels as shown above for other models, where only the model name is replaced by: CSBT13001

Report No.: TB-FCC138998 Page: 2 of 10 TB-RF-075-1.0 Appendix II ID Label Location FCC ID LOCATION

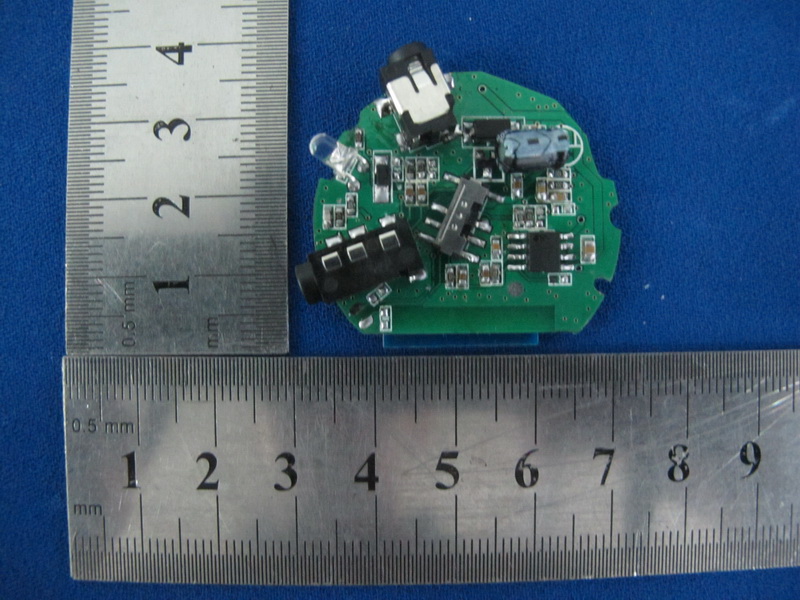

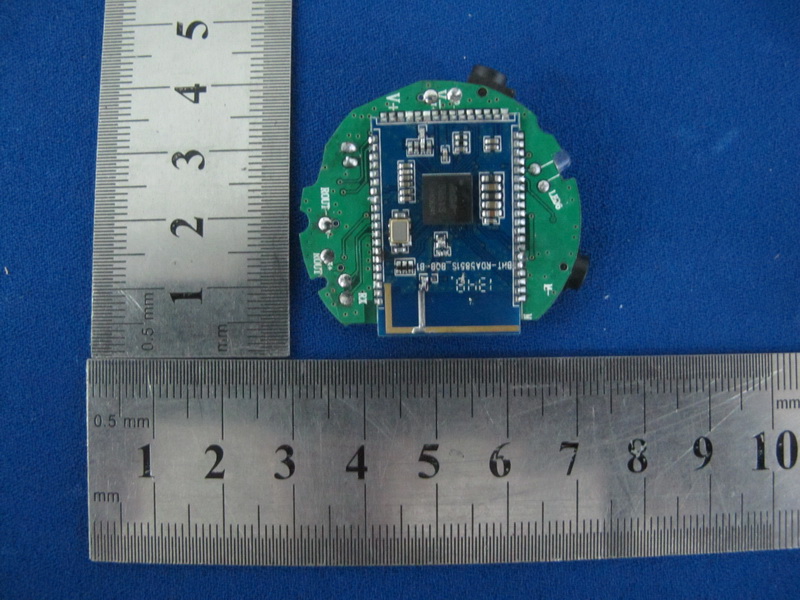

Report No.: TB-FCC138998 Page: 6 of 12 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 6 Internal of EUT Photo 7 Internal of EUT Report No.: TB-FCC138998 Page: 7 of 12 TB-RF-075-1.0 Photo 8 Appearance of PCB Photo 9 Appearance of PCB Report No.: TB-FCC138998 Page: 8 of 12 TB-RF-075-1.0 Photo 10 Appearance of PCB Photo 11 Internal of EUT BT Antenna Report No.: TB-FCC138998 Page: 9 of 12 TB-RF-075-1.0 Photo 12 Internal of EUT Photo 13 Internal of EUT Report No.: TB-FCC138998 Page: 10 of 12 TB-RF-075-1.0 Photo 14 Internal of EUT

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2441MHz -2.46dBm( 0.568mW) output power] (0.568 /5) ·[√2.441(GHz)]= 0.177 <3.0 for 1-g SAR Then SAR evaluation is not required

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC138998 Page: 1 of 67 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ABHA-CSBT Report No. : TB-FCC138998 Applicant : NINGBO CSTAR IMP&EXP CO., LTD Equipment Under Test (EUT) EUT Name : Columniform mini bluetooth speaker Model No. : CSBT1301 Serial No. : CSBT13001 Brand Name : N/A Receipt Date : 2013-12-02 Test Date : 2013-12-02 to 2013-12-12 Issue Date : 2013-12-17 Standards : FCC Part 15, Subpart C(15.247) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC138998 Page: 2 of 67 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. CONDUCTED EMISSION TEST ........................................................................................... 11 3.1 Test Standard and Limit .................................................................................................... 11 3.2 Test Setup ........................................................................................................................... 11 3.3 Test Procedure ................................................................................................................... 11 3.4 Test Equipment Used ........................................................................................................ 12 3.5 EUT Operating Mode ........................................................................................................ 12 3.6 Test Data ............................................................................................................................. 12 4. RADIATED EMISSION TEST ................................................................................................ 15 4.1 Test Standard and Limit .................................................................................................... 15 4.2 Test Setup ........................................................................................................................... 16 4.3 Test Procedure ................................................................................................................... 17 4.4 EUT Operating Condition ................................................................................................. 17 4.5 Test Equipment .................................................................................................................. 17 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 29 5.1 Test Standard and Limit .................................................................................................... 29 5.2 Test Setup ........................................................................................................................... 29 5.3 Test Procedure ................................................................................................................... 29 5.4 EUT Operating Condition ................................................................................................. 30 5.5 Test Equipment .................................................................................................................. 30 6. NUMBER OF HOPPING CHANNEL .................................................................................... 37 6.1 Test Standard and Limit .................................................................................................... 37 6.2 Test Setup ........................................................................................................................... 37 6.3 Test Procedure ................................................................................................................... 37 6.4 EUT Operating Condition ................................................................................................. 37 6.5 Test Equipment .................................................................................................................. 37 6.6 Test Data ............................................................................................................................. 37 7. AVERAGE TIME OF OCCUP…

Text truncated - open the document above for the full version.

5HSRUW1R7%)&& 3DJHRI  7%5) Appendixč EUT Test Photographs Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Bellow 1 GHz) 5HSRUW1R7%)&& 3DJHRI  7%5) Photo of Setup for Radiated Emission (Bellow 1 GHz) Photo of Setup for Conducted Emission Test
