2ABHA0002Stretch Bluetooth Selfie Stick

Stretch Bluetooth Selfie Stick User Manual Stretch Bluetooth Selfie Stick Instructions: Move the power switch to the ON position. A blue light will flash indicating the device is ready to pair with your smart phone. Loading Smartphones Into the Cradle Ensure your smart phone has Bluetooth enabled. Select “Selfie Stick” from available devices to pair. The blue light will turn off when paired successfully. Open the camera app on your smart phone and select the touch screen facing camera. Load your smart phone into the adjustable cradle. The rubber attachment maybe required for smaller smart phones. Adjust the selfie stick to a suitable length and angle. The button on the rubber portion of the handle can be used to activate the shutter. Charge: Using the Micro USB cable included connect the selfie stick to a computer’s USB port or a USB compatible AC wall adapter. A red light will glow to indicate it is charging. The light will turn off once it is fully charged. Specifications: Battery Capacity : 55mAH Charging Voltage : 5V Charging Time : 1 hour Compatibility : Android and iOS smart phones Made in China Insert mobile phone into the phone clamp by sliding or lifting the spring loaded side clamp. Follow the instructions to connect your smartphone via Bluetooth. Activate your smartphone’s camera application. When desired position is reached and in focus, press shutter button located on the extension arm handle. The clamp is then affixed to the extension arm screw. Extend the monopod via the extension arm to desired distance. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example‐ use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 NINGBO CSTAR IMP&EXP CO., LTD 2015-06-15 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ NINGBO CSTAR IMP&EXP CO., LTD _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Stretch Bluetooth Selfie Stick: SL009, 7140-51BK) FCC ID: 2ABHA0002 Sincerely, Client’s signature Client’s name / title Foster Li / Manager Contact information / address Floor 4, Building E, No. 655-90, Qiming Road, Yinzhou Investment & Innovation Center, Ningbo, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 NINGBO CSTAR IMP&EXP CO., LTD 2015-06-15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABHA0002 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Foster Li /Manager Contact information / address Floor 4, Building E, No. 655-90, Qiming Road, Yinzhou Investment & Innovation Center, Ningbo, China

Model Declaration Letter We, the undersigning company Company Name: NINGBO CSTAR IMP&EXP CO., LTD Address: Floor 4, Building E, No. 655-90, Qiming Road, Yinzhou Investment & Innovation Center, Ningbo, China Hereby confirm that the following products: Product description: Stretch Bluetooth Selfie Stick Type designation: SL009, 7140-51BK Tradename or Brand(s): Cstar That All these models are identical in the same PCB, layout and electrical circuit, the only difference is model name for commercial. City and Country: Date: Name: Function: Signature: Ningbo 15/06/2015 Foster Li Manager

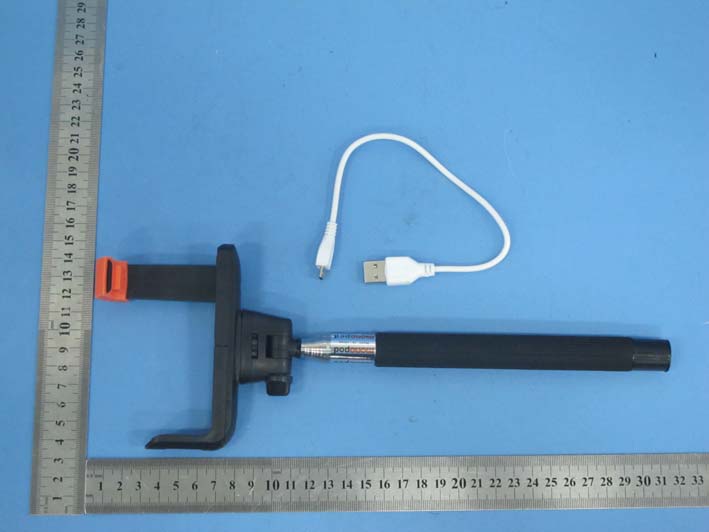

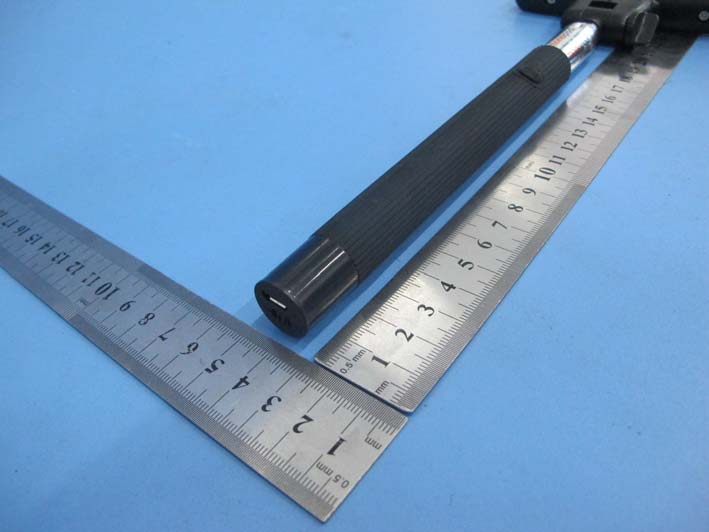

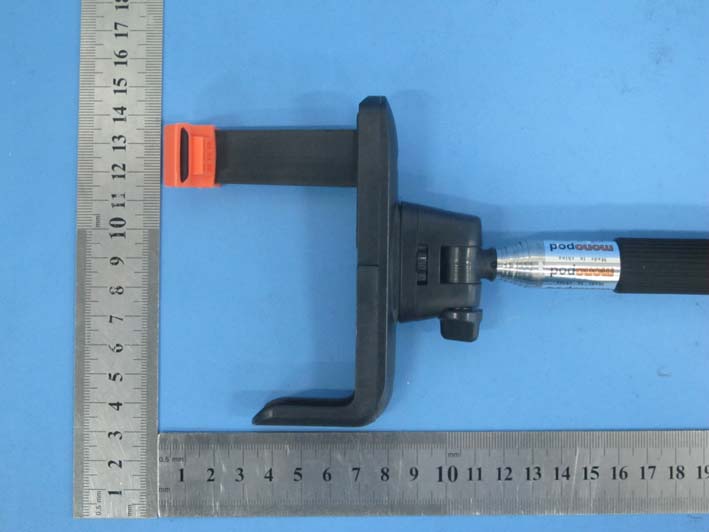

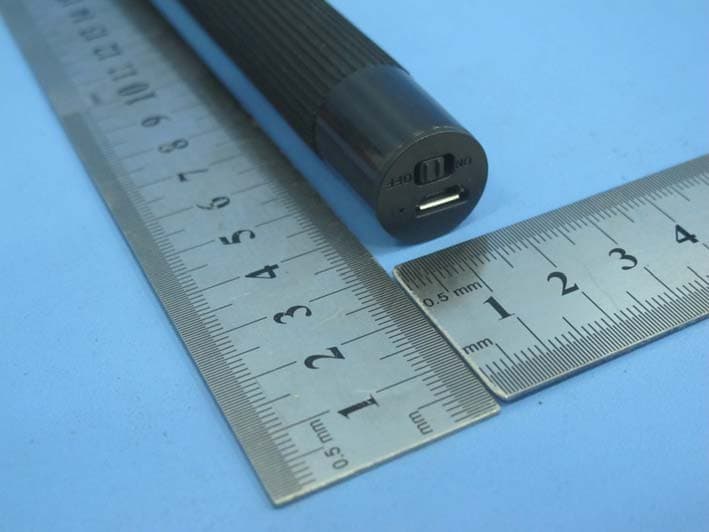

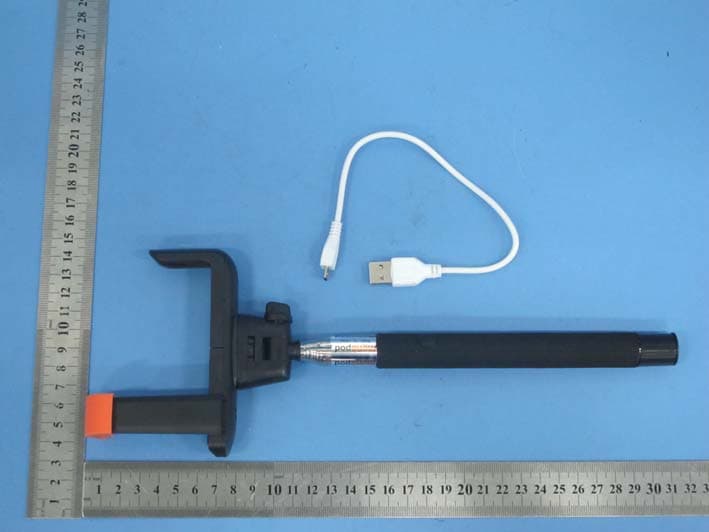

Report No.: TB-FCC144480 Page: 3 of 10 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC144480 Page: 4 of 10 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC144480 Page: 5 of 10 TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

Report No.: TB-FCC144439 Page: 1 of 10 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID : 2ABHA0002 Stretch Bluetooth Selfie Stick NINGBO CSTAR IMP&EXP CO., LTD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Model: SL009

Report No.: TB-FCC144480 Page: 2 of 10 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC144480 Page: 6 of 10 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT Report No.: TB-FCC144480 Page: 7 of 10 TB-RF-075-1.0 Photo 9 Internal of EUT Photo 10 Appearance of PCB Report No.: TB-FCC144480 Page: 8 of 10 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB 2.4G PCB Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE144481 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ABHA0002 1. Client Information Applicant : NINGBO CSTAR IMP&EXP CO., LTD Address : Floor 4, Building E, No. 655-90, Qiming Road, Yinzhou Investment & Innovation Center, Ningbo, China Manufacturer : ShenZhen C-Star Electronic Tech. co., Ltd Address : 2, 3/F, Building B, No. 2 Bada Industrial Park, Yongfu Road, Heping Community, Fuyong Town, Baoan District, Shenzhen, China 2. General Description of EUT EUT Name : Stretch Bluetooth Selfie Stick Models No. : SL009, 7140-51BK Model difference : All these models are identical in the same PCB, layout and electrical circuit, the only difference is model name for commercial. Product Description : Operation Frequency: Bluetooth:2402~2480MHz Number of Channel: Bluetooth:79 Channels Max Peak Output Power: GFSK: 1.04 dBm Antenna Gain: 2.3 dBi PCB Antenna Modulation Type: GFSK 1Mbps(1 Mbps) Power Supply : DC Voltage supplied from Host System by USB cable. DC power by Li-ion Battery. Power Rating : DC 5.0V by USB cable. DC 3.7V 55 mAh Li-ion Battery. Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE144481 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE144481 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 1.04 ±0.5 1.426 0.442 3.0 2.441 1.03 ±0.5 1.422 0.444 3.0 2.480 0.43 ±0.5 1.239 0.390 3.0 So standalone SAR measurements are not required.
