2ABHA0006Bluetooth speaker

NINGBO CSTAR IMP&EXP CO., LTD

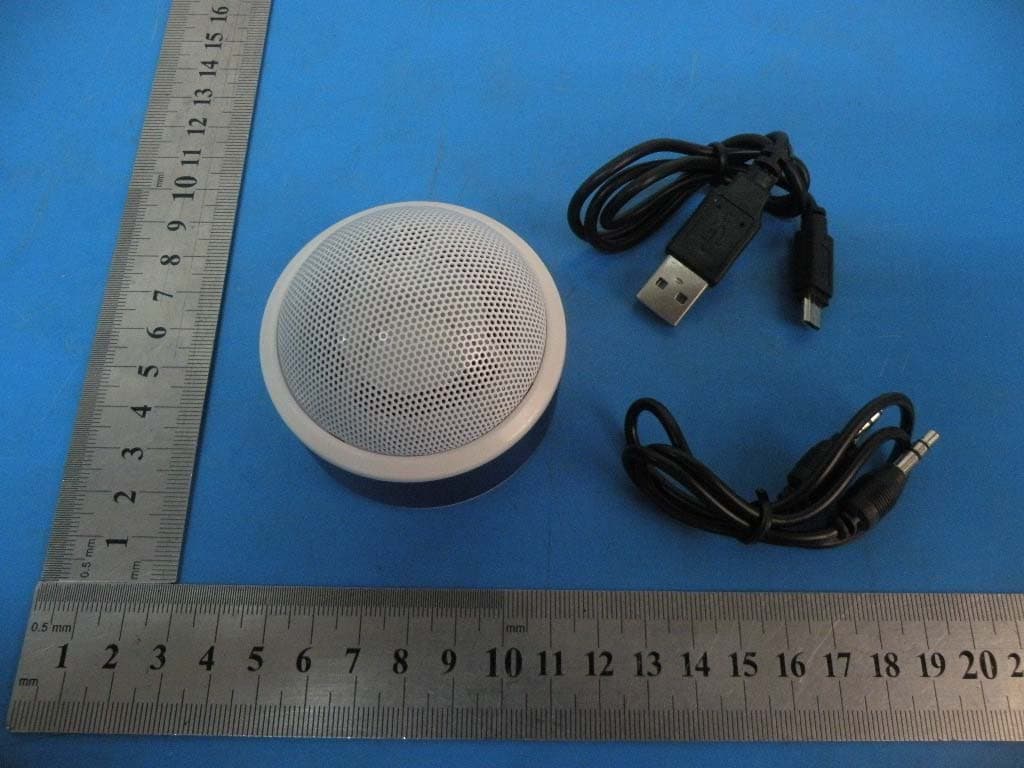

Bluetooth speaker - FCC ID 2ABHA0006 - NINGBO CSTAR IMP&EXP CO., LTD
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Nov 28, 2015
Application Purpose
Original Equipment
Date of Application
Nov 26, 2015
Equipment Note
Bluetooth speaker
Frequency Range
2402.00000000 - 2480.00000000
Company
NINGBO CSTAR IMP&EXP CO., LTD
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Cover Letter(s)

November 23, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ABHA0006 _ Product Name: Bluetooth speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics Long-term confidential • Block diagram Long-term confidential • Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Foster Li Position Manager Company Name NINGBO CSTAR IMP&EXP CO., LTD Address Floor 4, Building E, No. 655-90, Qiming Road, Yinzhou Investment & Innovation Center, Ningbo, China Tel 086-0755-2749-8332 Fax 086-0755-2749-8332 Email [email protected]

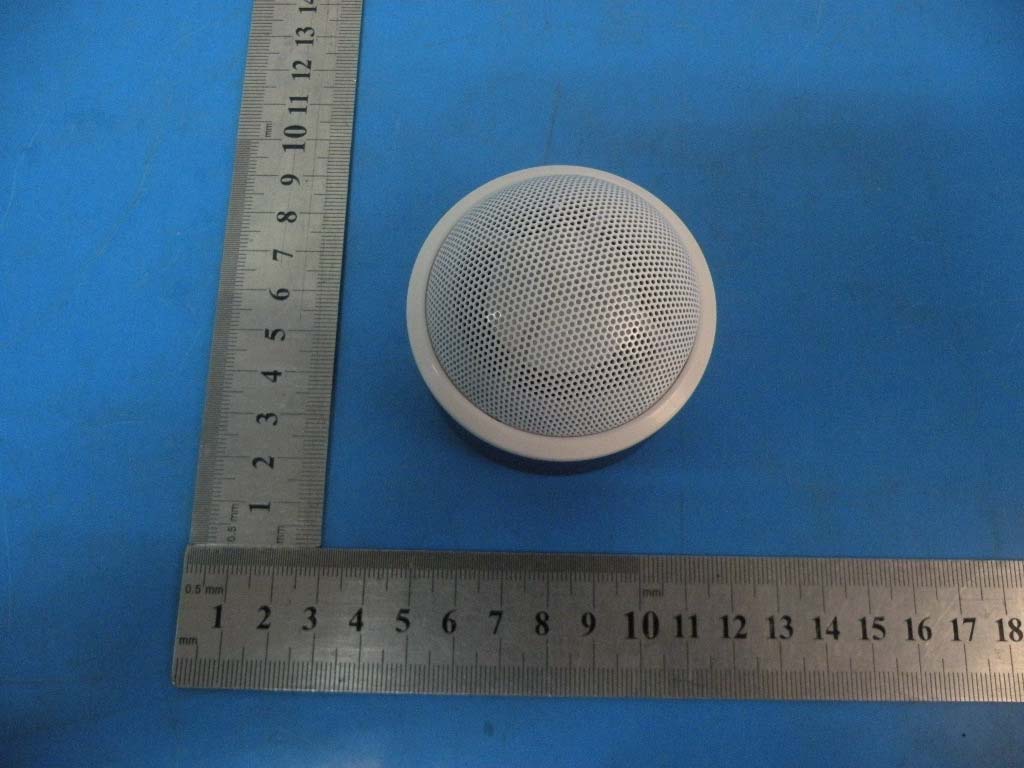

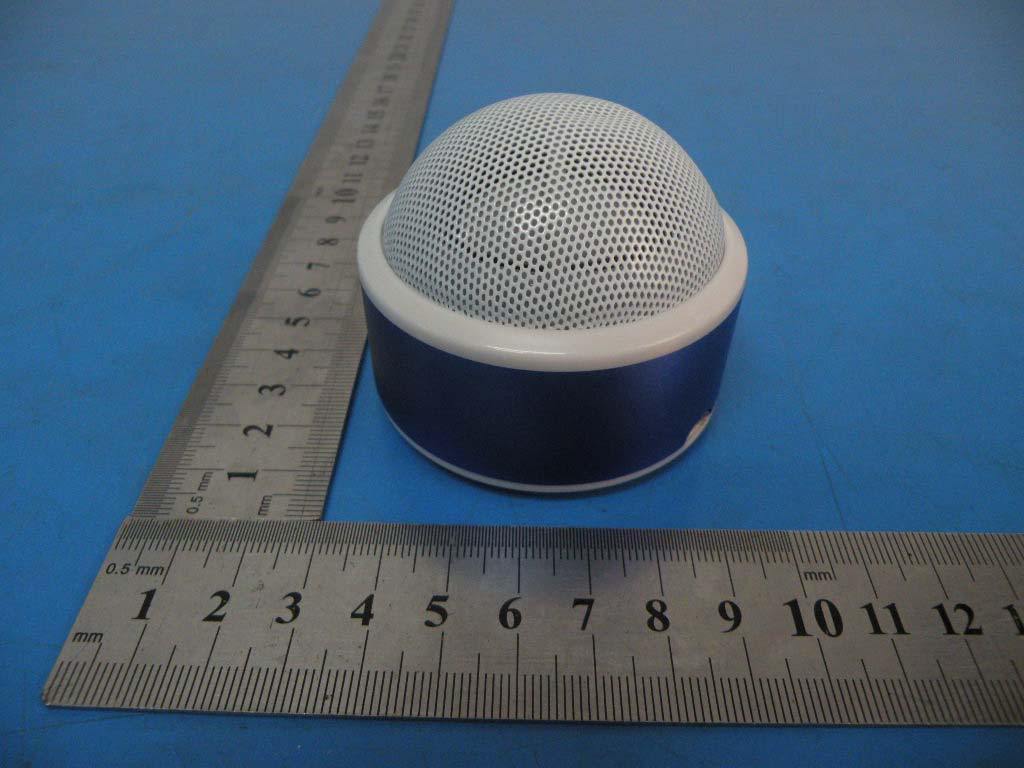

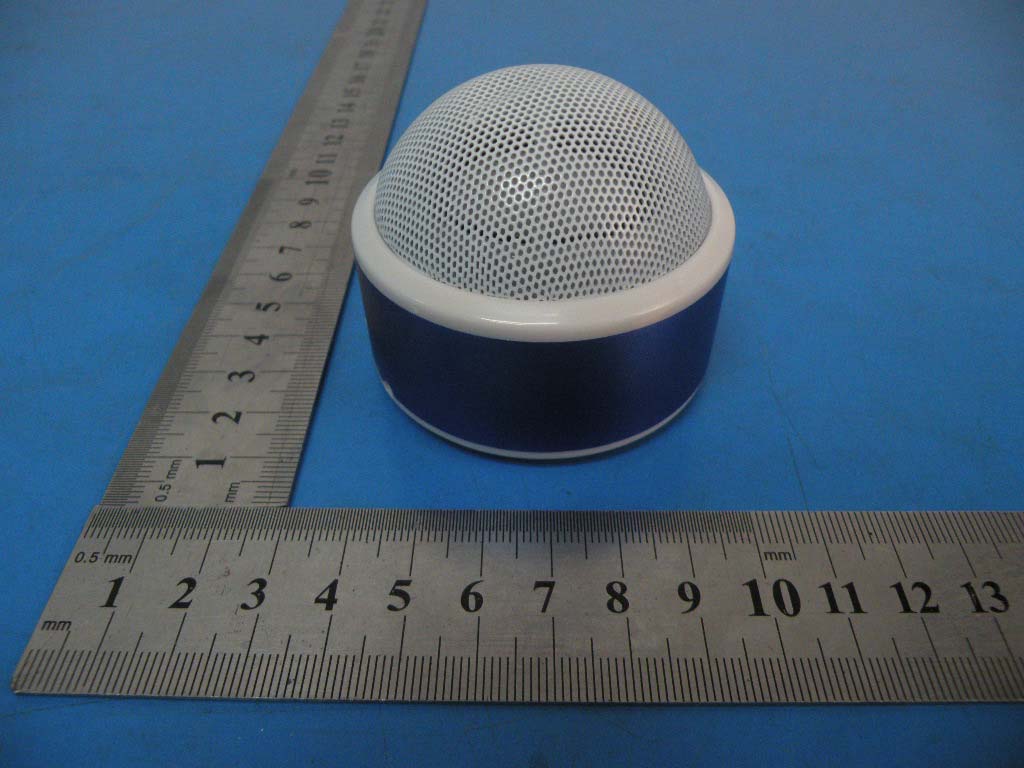

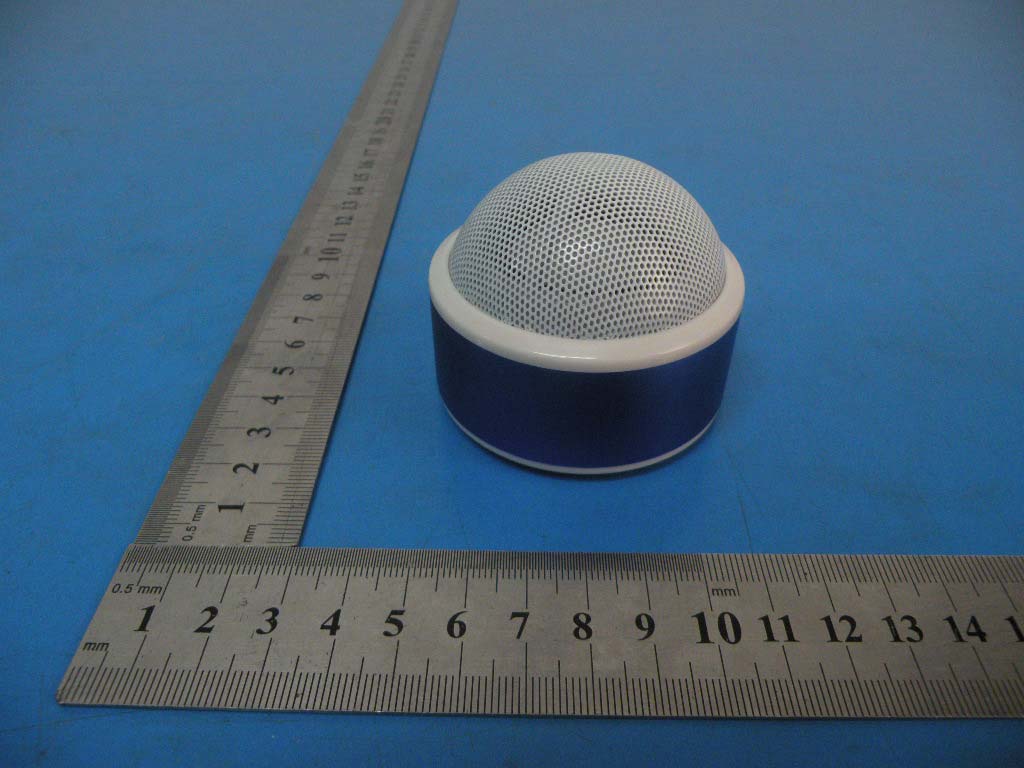

External Photos



ID Label/Location Info

Label 40mm 100mm Label FCC ID: 2ABHA0006 NINGBO CSTAR IMP&EXP CO., LTD Model name: Bluetooth speaker Model No.: #2717

Internal Photos



RF Exposure Info

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz -1.574dBm(0.696mW) output power] (0.696 mW /5mm) ·[√2.402 (GHz)]= 0.22 <3.0 for 1-g SAR Then SAR evaluation is not required

Test Report

Shenzhen Alpha Product Testing Co., Ltd. TEST REPORT FCC ID: 2ABHA0006 Applicant : NINGBO CSTAR IMP&EXP CO., LTD Address : Floor 4, Building E, No. 655-90, Qiming Road, Yinzhou Investment & Innovation Center, Ningbo, China Equipment Under Test (EUT): Name : Bluetooth speaker Model : #2717 Trade Name N/A Standards : FCC PART 15, SUBPART C : 2015 (Section 15.247) Report No :T1851686 01 Date of Test :November 13- November 23, 2015 Date of Issue :November 24, 2015 Ts e t R e s u l t : PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Alpha Product Testing Co., Ltd. Or test done by Shenzhen Alpha Product Testing Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Alpha Product Testing Co., Ltd. Approvals in writing. Page 2 of 75 Report No.: T1851686 01 Contents 1.General Information ............................................................................................................... 4 1.1.Description of Device (EUT) ...............................................................................4 1.2.Accessories of device (EUT) ...............................................................................5 1.3.Test Lab information ............................................................................................5 2.Summary of test ...................................................................................................................... 6 2.1.Summary of test result .........................................................................................6 2.2.Assistant equipment used for test .........................................................................6 2.3.Block Diagram .....................................................................................................7 2.4.Test mode .............................................................................................................7 2.5.Test Conditions .....................................................................................................8 2.6.Measurement Uncertainty (95% confidence levels, k=2) ....................................8 2.7.Test Equipment .....................................................................................................9 3.Maximum Peak Output power ............................................................................................ 10 3.1.Limit ...................................................................................................................10 3.2.Test Procedure ....................................................................................................10 3.3.Test Setup ...........................................................................................................10 3.4.Test Result ..........................................................................................................10 4.Bandwidth ............................................................................................................................. 11 4.1.Limit ................................................................................................................... 11 4.2.Test Procedure .................................................................................................... 11 4.3.Test Result .......................................................................................................... 11 5.Carrier Frequency Separation ............................................................................................. 17 5.1.Limit ...................................................................................................................17 5.2.Test Procedure ....................................................................................................17 5.3.Test Result ..........................................................................................................17 6.Number Of Hopping Channel ............................................................................................. 20 6.1.Limit ...................................................................................................................20 6.2.Test Procedure ....................................................................................................20 6.3.Test Result ..........................................................................................................20 7.Dwell Time ............................................................................................................................. 23 7.1.Test limit ............................................................................................................23 7.2.Test Procedure ....................................................................................................23 7.3.Test Results ........................................................................................................23 8.Radiated emissions ................................................................................................................ 30 8.1.Limit ...................................................................................................................30 8.2.Block Diagram of Test setup ..............................................................................31 8.3.Test Procedure ....................................................................................................32 8.4.Test Result ...............................................…

Text truncated - open the document above for the full version.

Test Report

Page 41 of 75 Report No.: T1851686 01 1GHz—25GHz Radiated emissison Test result EUT: Bluetooth speaker M/N: #2717 Power: DC 3.7V From Battery Test date: 2015-10-20 Test site: 3m Chamber Tested by: Reak Test mode: 8- DQPSK Tx CH1 2402MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 1 4804 43.77 33.95 10.1834.2653.64 74 20.36 PK 2 4804 33.67 33.95 10.1834.2643.54 54 10.46 AV 3 7206 / 4 9608 / 5 12010 / Antenna Polarity: Horizontal 1 4804 44.52 33.95 10.1834.2654.39 74 19.61 PK 2 4804 32.99 33.95 10.1834.2642.86 54 11.14 AV 3 7206 / 4 9608 / 5 12010 / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. 8- DPSK Page 42 of 75 Report No.: T1851686 01 1GHz—25GHz Radiated emissison Test result EUT: Bluetooth speaker M/N: #2717 Power: DC 3.7V From Battery Test date: 2015-10-20 Test site: 3m Chamber Tested by: Reak Test mode: 8- DQPSK Tx CH40 2441MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/ m) Margin (dB) Remark 1 4882 42.96 33.93 10.234.2952.8 74 21.2 PK 2 4882 32.08 33.93 10.234.2941.92 54 12.08 AV 3 7323 / 4 9764 / 5 12205 / Antenna Polarity: Horizontal 1 488244.59 33.93 10.234.2954.43 74 19.57 PK 2 488234.31 33.93 10.234.2944.15 54 9.85 AV 3 7323 / 4 9764 / 5 12205 / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. 8- DPSK Page 43 of 75 Report No.: T1851686 01 1GHz—25GHz Radiated emissison Test result EUT: Bluetooth speaker M/N: #2717 Power: DC 3.7V From Battery Test date: 2015-10-20 Test site: 3m Chamber Tested by: Reak Test mode: 8- DQPSK Tx CH79 2480MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/ m) Margin (dB) Remark 1 4960 44.95 33.98 10.2234.2554.9 74 19.1 PK 2 4960 34.19 33.98 10.2234.2544.14 54 9.86 AV 3 7440 / 4 9920 / 5 12400 / Antenna Polarity: Horizontal 1 4960 45.38 33.98 10.22 34.25 55.33 74 18.67 PK 2 4960 34.11 33.98 10.22 34.25 44.06 54 9.94 AV 3 7440 / 4 9920 / 5 12400 / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. 8- DPSK Page 44 of 75 Report No.: T1851686 01 9. Band Edge Compliance 9.1. Block Diagram of Test Setup  9.2. Limit All the lower and upper band-edges emissions appearing within restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 9.3. Test Procedure All restriction band and non- restriction band have been tested ˈonly worse case is reported. 9.4. Test Result PASS. (See below detailed test data) Page 45 of 75 Report No.: T1851686 01 Radiated Method GFSK ( CH Low ) Band Edge Test result EUT: Bluetooth speaker M/N: #2717 Power: DC 3.7V From battery Test date: 2015-10-21 Test site: 3m Chamber Tested by: Reak Test mode: Tx CH Low 2402MHz Antenna polarity: Vertical Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 2390 41.01 27.62 3.9234.9737.5874 36.42 PK Antenna Polarity: Horizontal 2390 43.6627.623.9234.9740.2374 33.77 PK Note: 1, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. Page 46 of 75 Report No.: T1851686 01 GFSK (CH High) Band Edge Test result EUT: Bluetooth speaker M/N: #2717 Power: DC 3.7V From battery Test date: 2015-10-21 Test site: 3m Chamber Tested by: Reak Test mode: Tx CH High 2480MHz Antenna polarity: Vertical Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 2483.5 44.39 27.89 434.9741.3174 32.69 PK Antenna Polarity: Horizontal 2483.5 48.23 27.89 434.9745.1574 28.85 PK Note: 1, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. Page 47 of 75 Report No.: T1851686 01 GFSK ( Hopping Low) Band Edge Test result EUT: Bluetooth speaker M/N: #2717 Power: DC 3.7V From battery Test date: 2015-10-21 Test site: 3m Chamber Tested by: Reak Test mode: Tx Antenna polarity: Vertical Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 2390 41.03 27.62 3.9234.9737.674 36.4 PK Antenna Polarity: Horizontal 2390 43.4227.623.9234.9739.9974 34.01 PK Note: 1, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW…

Text truncated - open the document above for the full version.

Test Setup Photos

Photos of Radiated emission Photos of Conducted Emission test

Contact Information

Applicant

Foster Li(Manager)
[email protected]086-0755-2749-8332Fax: 086-0755-2749-8332

Test Firm

Shenzhen Alpha Product Testing Co., Ltd.Mark Zhu
[email protected]86-755-86375552Fax: 86-755-26736857

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz696.00 µW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted.
