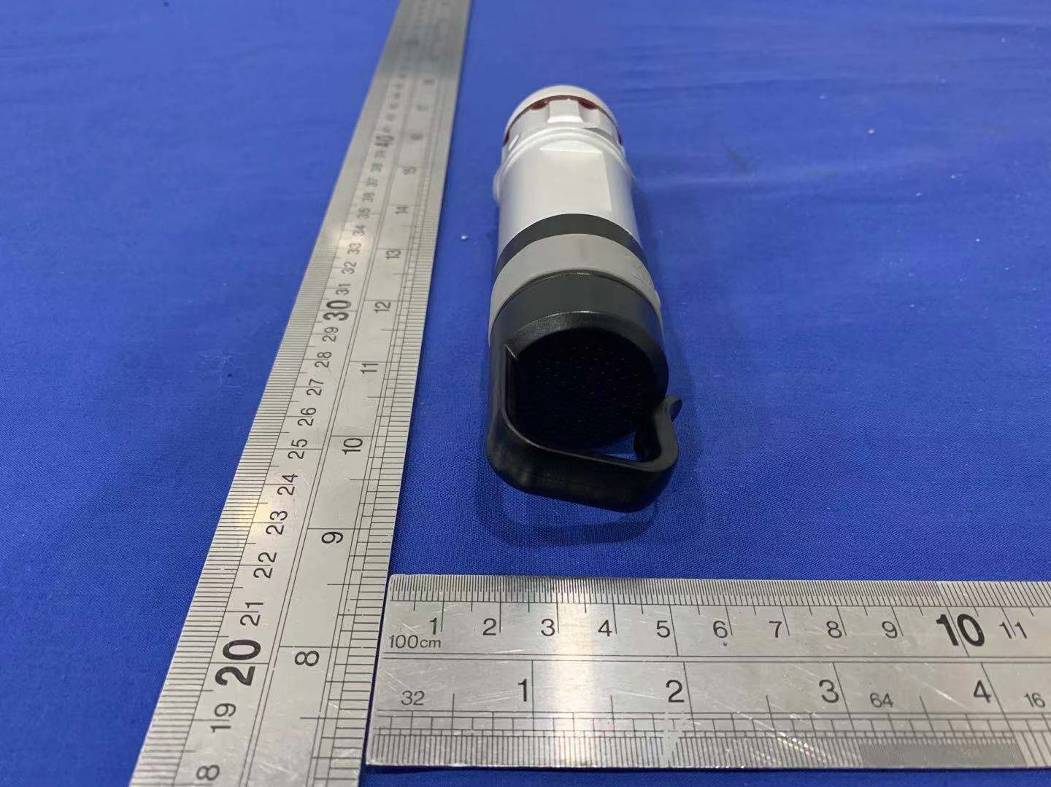

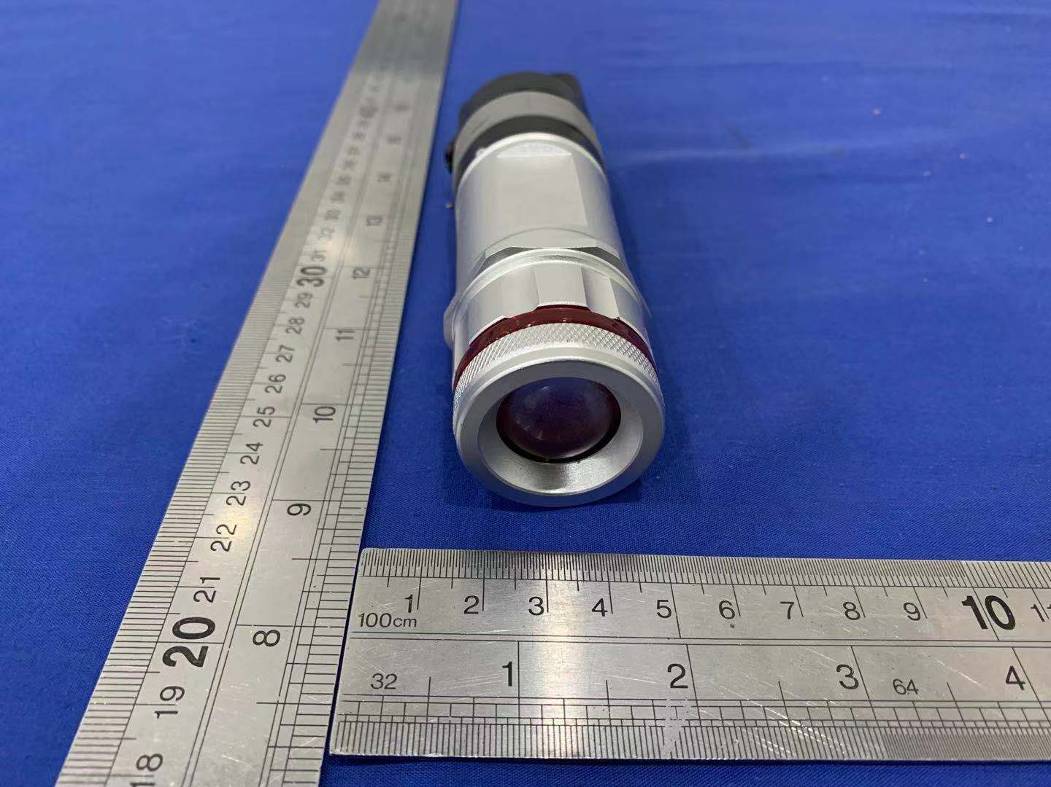

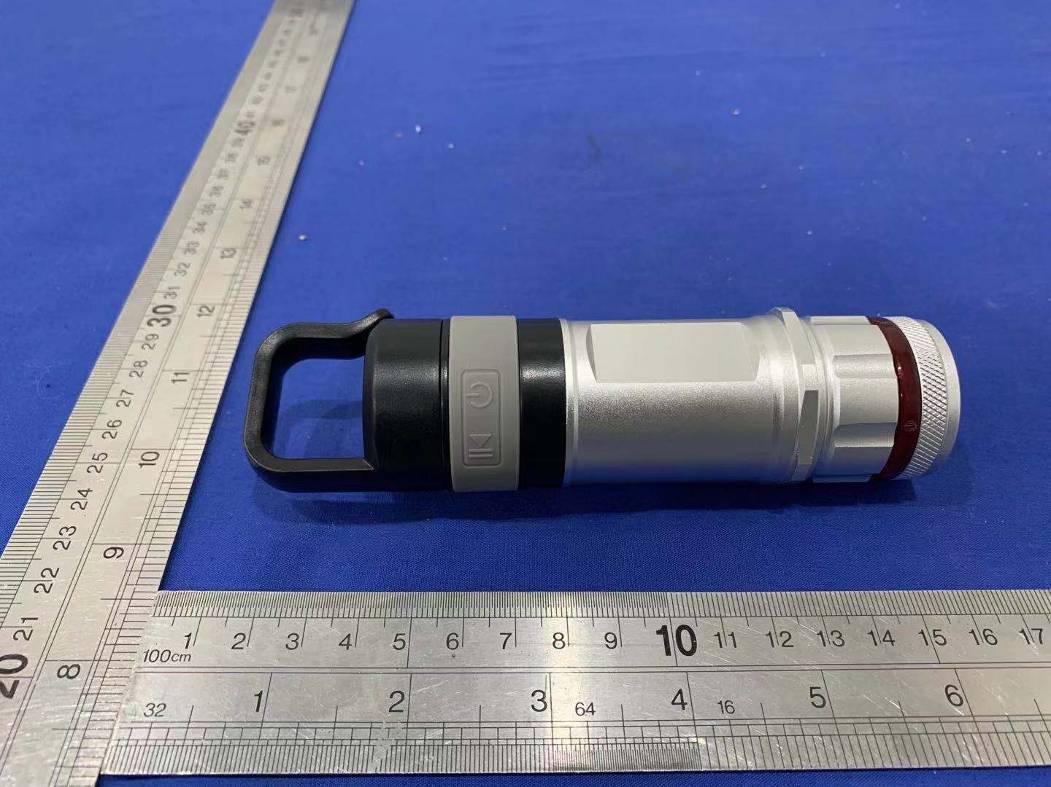

2ABHA0086Flashlight speaker lantern

MADE IN CHINA 1. Bluetooth speaker On / Off / Pause / Play button 2. Flashlight On / Off / Switch Mode button 3. Micro USB Charging Port 4. Bluetooth / Charging indicator 5. Flashlight lamp bulb 6. Zoom in / Out Model: SL335 Item No.: 2411 Input: 5V / 1.2A Bluetooth range10M Capacity6.66Wh, 3.7V / 1800mAh Frequency200Hz - 20KHZ Speaker output power: 3W Flashlight luminous (lm): 90lm Specification: SAFETY PRECAUTIONS: Operation Instruction: 165mm 90mm Power on: To turn on the Bluetooth device, press the Bluetooth speaker button for two seconds, and the indicator will flash blue light. Pairing: Turn on speaker, when you see the indicator light flashes blue, device is ready to pair. Follow the Bluetooth instruction for your mobile device and allow your device to search for Bluetooth device. Once your device found “XXXX”, select this device. Prompt will signify when paired successfully. Your device is now paired and your blue indicator light will keep on. Power Off: To turn off, long press the Bluetooth speaker on / off button, then the speaker will power off and the indicator light will turn off. Charging: Insert Micro USB cable that provided into the port on speaker. Once the device is charging, the red indicator light will keep on, and red light will turn off once it is fully charged. Flashlight Switch Mode Function: •Do not place this device to heat sources or moisture area. •This device is not a toy for children. •Do not drop this device from a height. •Do not put the device into water or other liquids. Bluetooth Speaker & flashlight 1 3 6 2 4 5 twist out / in Zoom in / out function: when you twist left and fully pull out the front part of the device, then twist right to lock the front part of device, it will turn to the soft camp light. If you want to make the device back to flashlight, then twist left and then push back for the flashlight function. Playing music: press once Bluetooth on / off button to play or pause music. Press the flashlight button first time (brightness) Press it second times (low light) Press it third times ( flashlight) Press it again (Off) FCC STATEMENT This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undesired operation. • Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC ID: 2ABHA0086

Rev 11/20/07 Ningbo Cstar Imp & Exp CO., LTD Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ABHA0086 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Block SCH Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, We also requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations. Exhibit Type File Name Manual User manual Sincerely, Foster Li

Ningbo Cstar Imp & Exp CO., LTD Declaration on model difference We the undersigned hereby confirm that these models are identical, and all models have the same RF module and antenna, PCB layout , schematics and component. Only different on model number. Production name Trademark FCC Model no. Flashlight speaker lantern N/A 2ABHA0086 SL335,2411 Confirmed by: Foster Li 2020-01-09

Ningbo Cstar Imp & Exp CO., LTD Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020/01/09 SUBJECT: FCC Application for (FCC ID: 2ABHA0086) To Whom It May Concern: We, the undersigned, hereby authorize EMTEK (DONGGUAN) CO., LTD. at Sam Lv on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by EMTEK (DONGGUAN) CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Foster Li 2020/01/09

FCC ID: 2ABHA0086

30MM 15MM Model: SL335 Input: 5V / 1.2A FCC ID: 2ABHA0086

FCC ID: 2ABHA0086 ANT

RF EXPOSURE EVALUATION EUT Specification EUT Flashlight speaker lantern Model Number SL335,2411 FCC ID 2ABHA0086 Antenna gain (Max) 0dBi Operation Frequency 2402-2480MHz Input Rating DC 3.7V Battery Classification Per Stipulated Test Standard §15.247(i), §2.1093 Kind of Device: Bluetooth Ver.5.0 Modulation GFSK, π/4-DQPSK Max. output power -0.19dBm(0.000957W) Test Requirement: According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Rou mea req low One 5m BT DSS: Acc sim Sig L Da Transm Freque (MHz 2.40 2.44 2.48 2.40 2.44 2.48 utine SAR asurement uired, port w threshold e antenna m. cording to multaneous nature: Lisa Wang ate: 2020- mit ency z) Mo 2 GF 1 GF 0 GF 2 Π/4- PS 1 Π/4- PS 0 Π/4- PS evaluation ts or comp table trans require SA is availab KDB 4474 SAR mea -01-09 ode Me a Po (d SK -2 SK -1 SK -1 -DQ SK -1 -DQ SK -0 -DQ SK -0 n refers to puter simu smitters wi AR evaluat ble for the 498, no st surement asured ower dBm) 2.30 1.66 1.34 1.19 0.42 0.19 that spec ulation. Wh th output p tion to qua EUT. The tand-alone is require d Tune up Power (dBm) -2±1 -2±1 -2±1 -1±1 -1±1 -1±1 cifically req hen routine power gre ality for TCB e minimum required f d. Max tu power ( -1 -1 -1 0 0 0 quired by § e SAR eva ater than t B approva m separatio for BT ant ne up (dBm) C 1 0 1 0 1 0 0 0 0 0 0 0 §2.1093, us aluation is the applica l. on distanc tenna, and alculation Result .2462161 .2482069 .2501819 .3099677 .3124740 .3149603 sing not able ce is d no 1-g SAR 3 3 3 3 3 3

Report No. ES191224033E Page 1 of 61 Ver.1.0 TEST REPORT Product Name ：Flashlight speaker lantern Model Number ： SL335,2411 FCC ID ：2ABHA0086 Prepared for : Ningbo Cstar Imp & Exp CO., LTD Address : Floor 4,Building E, No. 655-90,Qiming Road, Yinzhou Investment &Innovation Center, Ningbo, China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES191224033E Date(s) of Tests : December 24, 2019 to January 02, 2020 Date of issue : January 02, 2020 Report No. ES191224033E Page 2 of 61 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................ 3 2 EUT TECHNICAL DESCRIPTION .......................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY .......................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................................... 6 4.2 MEASUREMENT EQUIPMENT USED ..................................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ........................................................................................................... 7 5 FACILITIES AND ACCREDITATIONS .................................................................................................... 8 5.1 FACILITIES ............................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................ 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ................................................................................................ 10 7.1 RADIO FREQUENCY TEST SETUP 1 ................................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP 2 ................................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP ............................................................................................... 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ................................................................... 13 7.5 SUPPORT EQUIPMENT ........................................................................................................................ 13 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ......................................................................... 14 8.1 STANDARD APPLICABLE ...................................................................................................................... 14 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................... 14 8.3 EQUAL HOPPING FREQUENCY USE .................................................................................................. 15 8.4 FREQUENCY HOPPING SYSTEM ........................................................................................................ 15 9 TEST REQUIREMENTS ........................................................................................................................ 16 9.1 20DB BANDWIDTH ................................................................................................................................ 16 9.2 CARRIER FREQUENCY SEPARATION ................................................................................................... 21 9.3 NUMBER OF HOPPING FREQUENCIES ................................................................................................. 25 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................... 30 9.6 CONDUCTED SUPRIOUS EMISSION ...................................................................................................... 34 9.7 RADIATED SPURIOUS EMISSION .......................................................................................................... 41 9.8 CONDUCTED EMISSION TEST .............................................................................................................. 50 9.9 ANTENNA APPLICATION ....................................................................................................................... 53 Report No. ES191224033E Page 3 of 61 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Ningbo Cstar Imp & Exp CO., LTD Address： Floor 4,Building E, No. 655-90,Qiming Road, Yinzhou Investment &Innovation Center, Ningbo, China Manufacturer : Ningbo Cstar Imp & Exp CO., LTD Address： Floor 4,Building E, No. 655-90,Qiming Road, Yinzhou Investment &Innovation Center, Ningbo, China EUT : Flashlight speaker lantern Model Name : SL335,2411 Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relat…

Text truncated - open the document above for the full version.

FCC ID: 2ABHA0086
