Model No. LL83AR 2013. 10 1. Specific Features - 3 levels key (RFID tag) management system - Standard ISO-14443A RFID - High glossy front panel & hidden LED Icons - 1 time or permanent mode - Burglar alarming when opening by force - Warning alarms for low battery or abnormal status - Possible use of external 9V battery - Melody on-off setting - In-use LED icon - High security up and down deadbolt - Using 3 AA type Alkaline batteries last for 1 year - Material: PC/ABS(Body), Steel(Dead Bolt) 2. Sizes - Front: 52(H) * 93(W) * 17(T) mm - Rear: 133(H) * 67(W) * 26.5(T) mm 3. Supported door thickness - Size A: 15~20mm (0.59~0.78 inches) - Size B: 20~25mm (0.79~0.98 inches) - Size C: 25~30mm (0.99~1.18 inches)  Contact us for less than 15mm or larger than 30mm 4. Part Names 5. Change Type (Toggle) - Remove battery from the lock. - Press “Type Sel. S/W” (see paragraph 4 “Part Names”, with a pin like clip) + press “Latch” + insert batteries and stay for 5 seconds. - There will be a beep and “Open” LED blinks 3 times if it is changed for type A. - There will be a beep and “Close” LED blinks 3 times if it is changed for type B. RFID Tag Ty pe A Ty pe B Owner Key 1 1 Master Key 1 20 User Key 1 20 Cleaner Key 1 20 6. Change Mode Options (Toggle) - Press “Function S/W”, see paragraph 4 “Part Names”, with a pin like clip. There will be beeps sequentially. Following functions can be changed by touch owner key after each beep. How To Change Function Sound Factory Set 1 st Beep + Owner key Enable locking status LED Sol-Do Disable locking status LED Beep Default 2 nd Beep + Owner key Enable Cleaners Key Sol-Do Default Disable Cleaners Key Beep 3 rd Beep + Owner key Auto Locking (Automatically locked when close door) Sol-Do Manual Locking (Touch user key or password for locking) Beep Default 4 th Beep + Owner key Enable Beep Sound Sol-Do Default Disable Beep Sound Beep 5 th Beep + Owner key 1 Time Use Mode Beep Membership Use Mode Sol-Do Default 7. LED Icons Icon Meaning Color Status Locking Status Green Open Red Closed Battery Status Orange Change Battery Processing Status Yellow Under Processing Red Abnormal Green Normal 8. Registering and Using RFID keys  Loxury I is using IRDA sensing technology for waking it up from power saving mode. Direct sunlight or strong three wave light bulb may interfere with the IRDA sensing function. Please avoid from direct sunlight or strong three waves light. A. Register an Owner key - First used RF tag became an Owner key. ① Install LL83AR into the locker. ② Insert 3 AA type alkaline batteries for activating. ③ Touch any ISO-14443A RFID tag. There will be beeps 3 times and green key logo LED blinking when it is registered as an Owner key. - 1 Owner key can be registered for a LL83AR. Owner key cannot access the lock. B. Register Master key(s) ① Touch the Owner key ② Touch an extra RF tag (LED blinks during registration mode for 8 seconds). There will be beeps 3 times and green key logo blinking when it is registered as a Master key. ③ (For B type) Touch another RF tag sequentially for up to 20 tags total or touch same tag twice to end the registration. - The Master key can open the LL83AR. - After use the Master key, the deadbolt unlocked even the door is closed. C. Register & using User key(s) ① Touch the Master key ② Touch an extra RF tag (LED blinks during registration mode for 8 seconds). There will be beeps 3 times and green key logo blinking when it is registered as a Master key. ③ (For B type) Touch another RF tag sequentially for up to 20 tags total or touch same tag twice to end the registration. - The User key can lock or unlock the LL83AR. D. Change or delete User key (while lost user key/password) i. Touch Master key for deleting all registered User keys. ii. Register new RF Tags. 9. Install Drawings (For Right Hinge Door) (For Left Hinge Door) (For Two Doors) 10. Out of Battery  There will be battery warning alarms, 5 beeps, while open or close the lock if the batteries are almost flat.  Standard 9V battery can be used at this situation. (Polarity is does not matter at this time) i. Contact 2 terminals, “+” and “-”, of the 9V battery into the 2 external terminals on the lower front. ii. Use a registered Master card to open. 11. Reset Memory (Clear Memory)  Possible to clear all memory of registered RF keys, and return the lock to factory setting. - Connect Front and Rear units and install batteries for the Reset Memory process. 1. Coupling the “RESET” soldering points with a sharp tweezers or similar tool and press the “Latch” (page 1). Release the Latch and the Points for resetting memory. - Beep 1 times if the reset is done. - Register Owner key and Master Key again. 12. Emergency Opening  There is an emergency “Break to Opening Process” if the lock does not work at all even if try paragraph 11 “Out of Battery” 9V Battery 1. Drill a hole at the center of the RF sensing window at right angle by use of 6mm drill bit for 21mm depth. (Customized drill bits are sold separately) 2. Insert “+” driver into the hole and turn to clockwise until the inside locking lever released for opening the lock.  Return the broken front back to Unilock or our dealer for replacing. 21mm FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures…

Text truncated - open the document above for the full version.

FCC ID : 2ABLG-LL83AR Page 1 / 1 FCC, Request for non-disclosure Date: March, 18, 2014 Unilock Co., Ltd. 1409 Mega Bldg., SK n Techno Park, 190-1 Sangdaewon-dong, Jungwon-gu, Seongnam, Gyeonggi-do, South Korea Subject: Request for confidentiality FCC ID: 2ABLG-LL83AR Reference number: Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), < Unilock Co., Ltd.> hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: (2ABLG- LL83AR) ☑ Bill(s) of Material ☑ Block Diagrams ☑ Technical Description ☑ Schematic Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. < Unilock Co., Ltd.> understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. <Date> March, 18, 2014 <City> Seongnam <Name and signature of applicant> OkSoon, Han / President

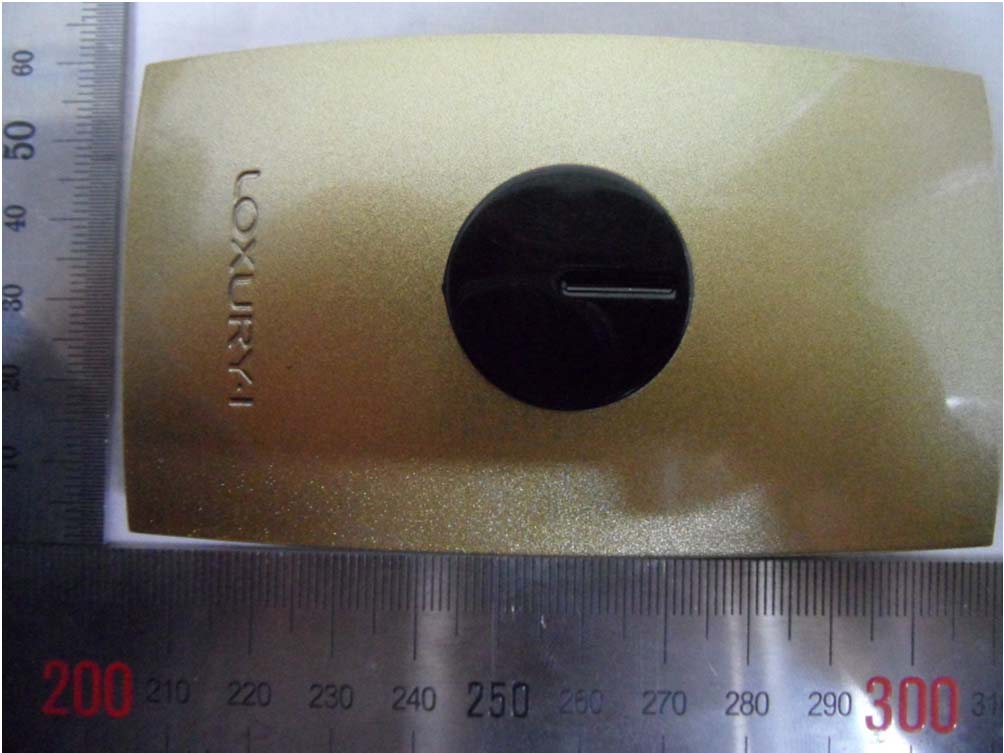

Photo 1: Exterior Photographs Front Top Front Bottom Front Side 1 Front Side 2 Front Side 3 Front Side 4 Rear Top Rear Bottom Rear Side 1 Rear Side 2 Rear Side 3 Rear Side 4

Label Information Label Location Label Drawing 1. Model Name : LL83AR Label Position

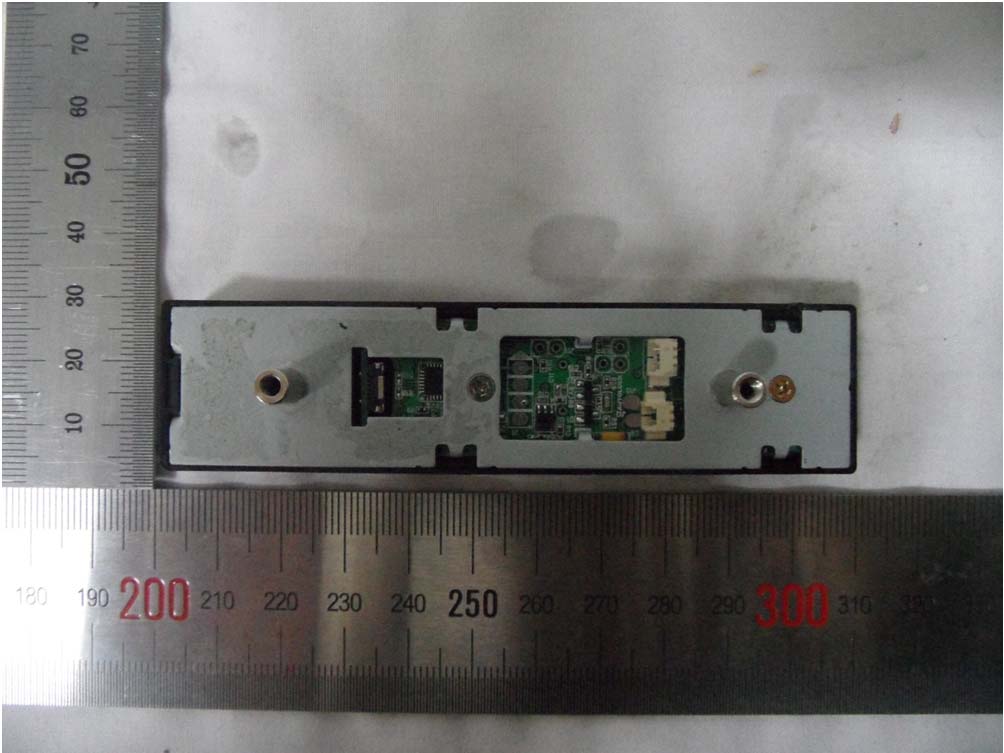

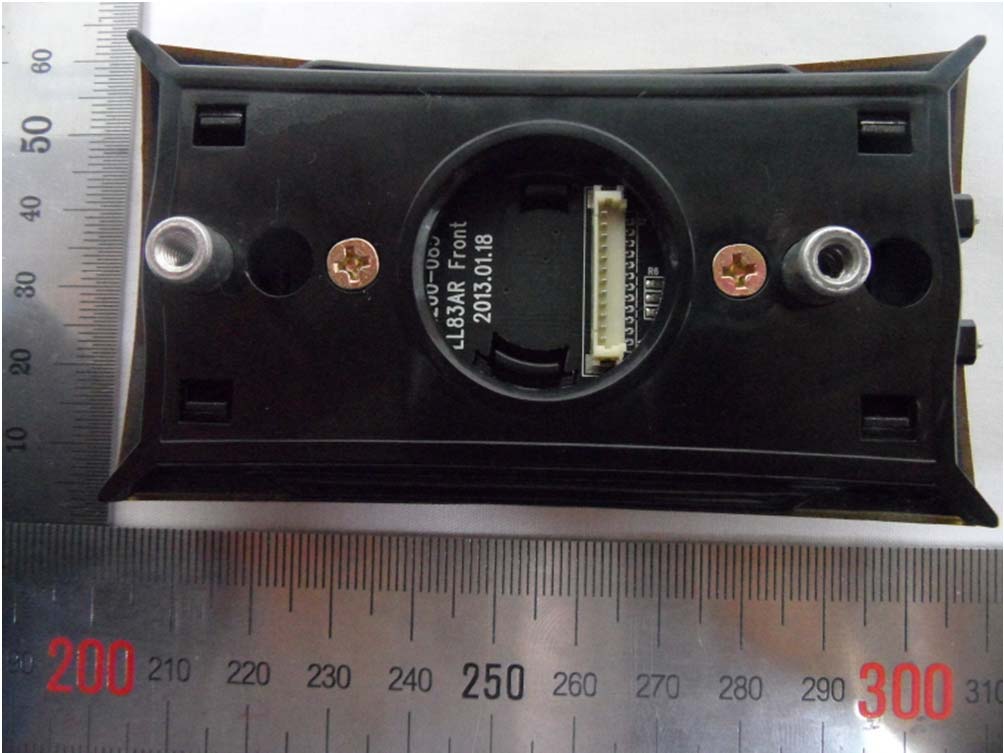

Interior View of EUT View of Interior (Front) View of Front Main Board (Top) View of Front Main Board (Bottom) View of Interior (Rear) View of Rear Main Board (Top) View of Rear Main Board (Bottom)

Global No.1 Testing Laboratory Universal Certification Solution FCC TEST REPORT Product name : LOXURY-I Model : LL83AR Standards : FCC CFR 47 Part 15 Subpart C Applicant : Unilock Co., Ltd. Test Report No. : UCSFR-1403-001 UCS Co., Ltd. #702, AnyangMegavalley, 268 Hagui-ro, Dongan-gu, Anyang-si, Gyeonggi-do, 431-767 Korea. Tel : +82-31-420-5680/ Fax: +82-31-420-5685/ Open Site: +82-31-355-2666 Online: http://www.ucs.co.kr Report Number: UCSFR-1403-001 Page 2 / 20 FCC ID : 2ABLG-LL83AR UCS-QP-20-03-80(Rev.0) FCC Test Report Report Number UCSFR-1403-001 Applicant Company Name Unilock Co., Ltd. Address 1409 Mega Bldg., SK n Techno Park, 190-1 Sangdaewon-dong, Jungwon-gu, Seongnam, Gyeonggi-do, South Korea Product Product Name LOXURY-I Model Name LL83AR FCC ID 2ABLG-LL83AR Manufacturer Unilock Co., Ltd. Serial No. - Country of origin Korea Other Receipt Date 2014.02.14 Receipt Number UCS-R-2014-086 Issued Date 2014.03.18 Tested Date 2014.03.03 ~ 2014.03.06 Standard FCC CFR 47 Part 15 Subpart C Tested by Y. R . J o (sign) Approved by Y. M. Choi (sign) UCS Co., Ltd. #702, AnyangMegavally, 268 Hagui-ro Dongan-gu Anyang-si Gyeonggi-do, Korea. Tel : 82-31-420-5680/Fax :82-31-420-5685, Open Site : 82-31-355-2666 o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of UCS Co., Ltd. Report Number: UCSFR-1403-001 Page 3 / 20 FCC ID : 2ABLG-LL83AR UCS-QP-20-03-80(Rev.0) Revision History Rev. Issue Date Revisions Revised By - 2014.03.18 Initial Issue Y. R. Jo Report Number: UCSFR-1403-001 Page 4 / 20 FCC ID : 2ABLG-LL83AR UCS-QP-20-03-80(Rev.0) CONTENTS 1. APPLICANT AND MANUFACTURER INFORMATION .......................................................................... 5 2. TEST RESULT CERTIFICATION ................................................................................................................ 5 2.1 Applicable standards ................................................................................................................................... 5 3. LABORATORY INFORMATION .................................................................................................................. 6 3.1 General ......................................................................................................................................................... 6 3.2 Test Site ........................................................................................................................................................ 6 3.3 Location ........................................................................................................................................................ 6 4. EUT INFORMATION ...................................................................................................................................... 7 4.1 Family Model ............................................................................................................................................... 7 4.2 EUT Modifications ...................................................................................................................................... 7 4.3 Antenna Requirement ................................................................................................................................. 7 5. Measurement conditions ................................................................................................................................... 8 5.1 Description of test modes ............................................................................................................................ 8 5.2 Description of test configuration ................................................................................................................ 8 5.3 Setup of equipmet under test ...................................................................................................................... 8 5.3.1. Description of support units ............................................................................................................... 8 6. Limite And Result .............................................................................................................................................. 9 6.1 Radiated Electric Field Emissions .............................................................................................................. 9 6.1.1 Regulation.............................................................................................................................................. 9 6.1.2 Test Condition ....................................................................................................................................... 9 6.1.3 Test result .............................................................................................................................................. 9 6.2 Radiated Electric Field Emissions ............................................................................................................ 10 6.2.1 Regulation............................................................................................................................................ 10 6.2.2 Test Procedure .................................................................................................................................... 10 6.2.3 Test Setup Layout ............................................................................................................................... 11 6.3 Frequency Stability .................................................................................................................................... 13 6.3.1 Regulation............................................................................................................................................ 13 6.3.2 Test Condition ..........................…

Text truncated - open the document above for the full version.

Radiated emission Test
