2ABLG-ML32HRHDIGITAL FURNITURE LOCK

- 1 - Model No. ML22HRH, ML22HRV ML32HRH, ML32HRV 2013. 12 - 2 - Specifications RFID 13.56 MHz Mifare Materials & Environments Master 1 Front: ABS Plastic User 1 Lock Cylinder: Zinc casting External Battery Pack (Option) Working temperature: -15~55 °C Using 3 AAA Alkaline batteries Working humidity: 0~90 % RH Usable up to 1 year (10 times/day) USB Port for debugging program Drawer Cylinder Cam Cylinder RFID Type Front V Type (HRV) H Type (HRH) (ML22) (ML32) - 3 - Sizes (mm) Punching Holes RF Front Multi-Drawer Cylinder Cam Cylinder Battery Pack - 4 - ML32HRH (Cam lock + Battery Pack). For furniture door thickness 8 mm or less. Install Drawings ML32HRH (Cam Lock + Battery Pack). For furniture door thickness 9 mm or larger. - 5 - ML22HRH (Drawer Lock + Battery Pack). For furniture door thickness 8 mm or less. ML22HRH (Drawer Lock + Battery Pack). For furniture door thickness 9 mm or larger. - 6 - Precautions  Before using Maeari (for both of Cam lock and Drawer lock) a. Connect battery wire first. (Battery Pack) b. Connect cylinder wire.  Before using Maeari multi- drawer lock. a. Check the locking position of your desk drawer, up or down. b. Install the cylinder into the drawer panel and confirm it works okay. (See page 5) c. Check the locking position of the side locking bar of the drawer, up or down. d. Remove the RED tape on the cylinder knob if you sure it works okay. e. Assemble the cylinder knob and cylinder body securely. * Once you assemble the cylinder after remove the Red tape, there is no way to disassemble it. Be careful please! ** Need to use spacers between drawer and cylinder body if the thickness of the drawer panel is less than 23mm. Max thickness of the drawer front is 23mm.  Aligning 2 holes for proper installation of cylinder knob and cylinder body. - 7 - Instructions  RFID Type: 13.56 MHz, ISO-14443A Compatible  No RFID card is registered at the factory. 1. Register a Master card - Tap an RFID card for registering a Master card. - Melody “do-re-mi” and “green” LED blinks 5 times if registered. 2. Register a User card - Tap the Master card and tap an extra card within 8 seconds for registering a User card. - Melody “do-re-mi” and “green” LED blinks 5 times if registered. 3. Change the Master card - Tap the Master card and stay for 8 seconds. - After beep 3 times, tap an extra card for changing the Master card. - Melody “do-re-mi” and “green” LED blinks 5 times if changed. 4. Melody On/Off - Tap the Master card and stay for 4 seconds. - There will be 5 beeps and the melody toggled on and off.  For better detecting RF card on RF type Maeari - Touch with Hand! - Maeari is getting into the sleep mode for saving battery life. Touch the RF card with hand just like left picture. Hand wakes up Maeari and detects RF card almost at the same time. Better Bad - 8 - Reset Memory (Clear Memory) 1. Coupling the “RESET” soldering points with a sharp tweezers or similar tool and tap any RF card for resetting. - Beep 1 time and green LED and red LED blinking if the reset is done. 2. Register a Master card and a User card again. Emergency Opening  There is an emergency “Break for Opening” if the lock does not work at all even tried to use Micro USB power. These processes are exactly same for both of Drawer Cylinder and Cam Cylinder 1. Drilling a hole at the point of Cylinder Knob at right angle by use of 2ø drill tip for 5mm depth. (Figure 1 and 2) (Customized drill tips are sold separately) - 9 - 2. Push in the drill tip into the end of the hole. Press the drill tip slightly and pull out the Cylinder Knob. (Figure 3) 3. Push in flat-head screwdriver into the back Cylinder and turn to opening direction. (Figure 4) 4. Return the broken Knob part to Unilock or our dealer for replacing - 10 - FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected. • Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. - 11 - IMPORTANT Safety Instruction: 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this equipment near water. 6) Do not using near any heat sources such as radiators, heat resisters, stove, or other equipment that produce heat. - 12 …

Text truncated - open the document above for the full version.

FCC ID : 2ABLG-ML32HRH Page 1 / 1 FCC, Request for non-disclosure Date: December, 23, 2013 Unilock Co., Ltd. 1409 Mega Bldg., SK n Techno Park, 190-1 Sangdaewon-dong, Jungwon-gu, Seongnam, Gyeonggi-do, South Korea Subject: Request for confidentiality FCC ID: 2ABLG-ML32HRH Reference number: Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), < Unilock Co., Ltd.> hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: (2ABLG- ML32HRH) ☑ Bill(s) of Material ☑ Block Diagrams ☑ Technical Description ☑ Schematic Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. < Unilock Co., Ltd.> understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. <Date> December, 23, 2013 <City> Seongnam <Name and signature of applicant> OkSoon, Han / President

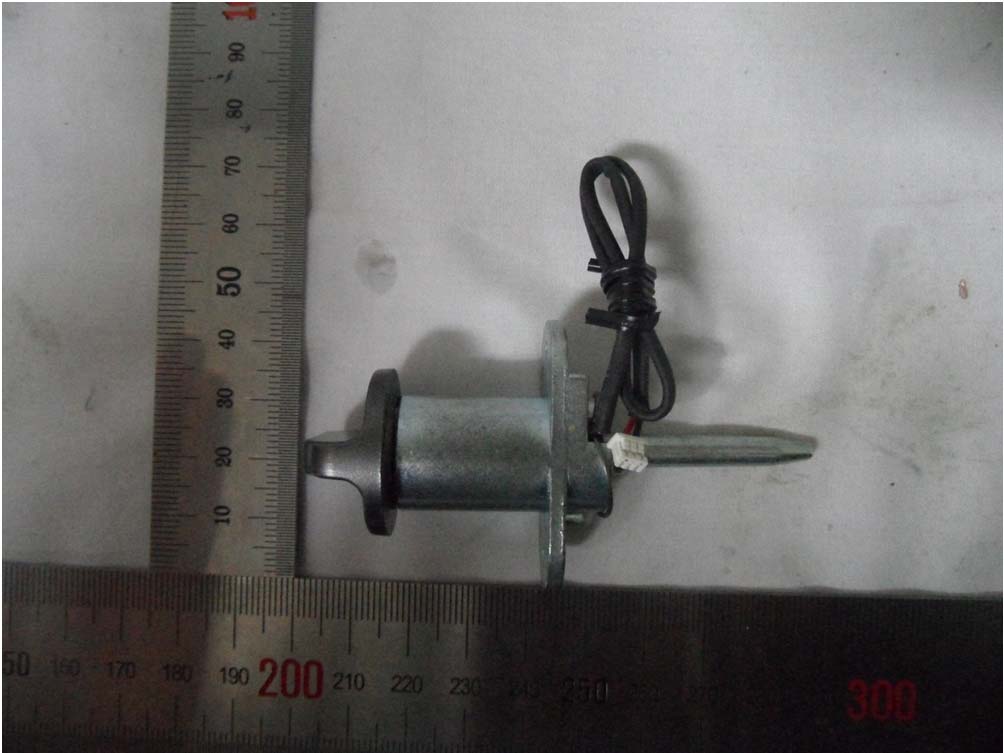

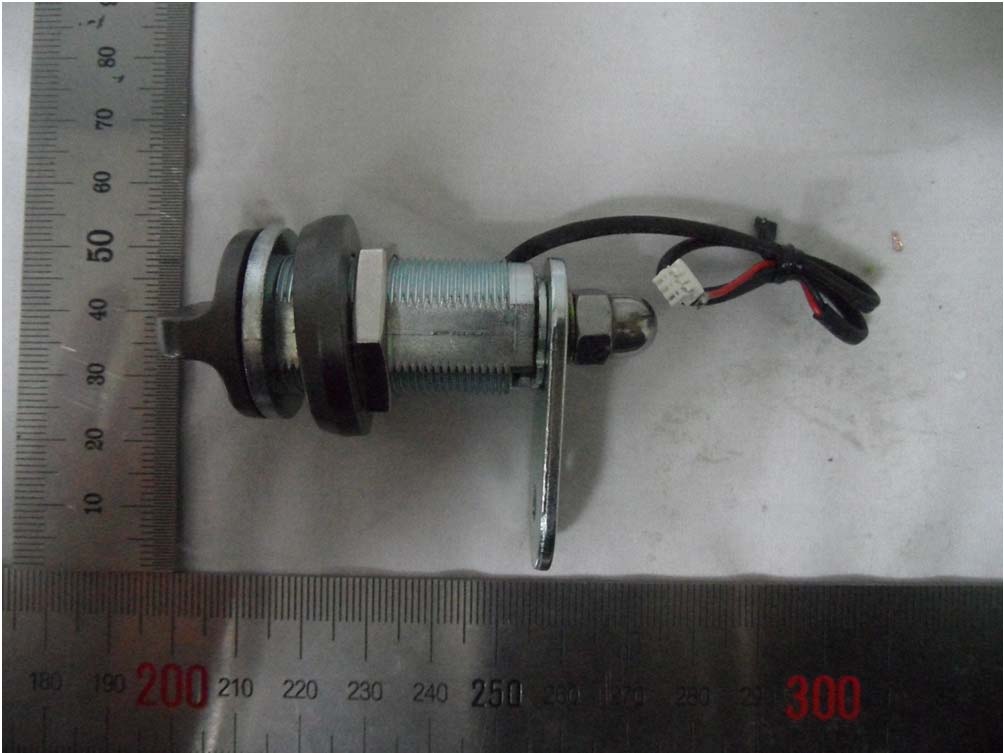

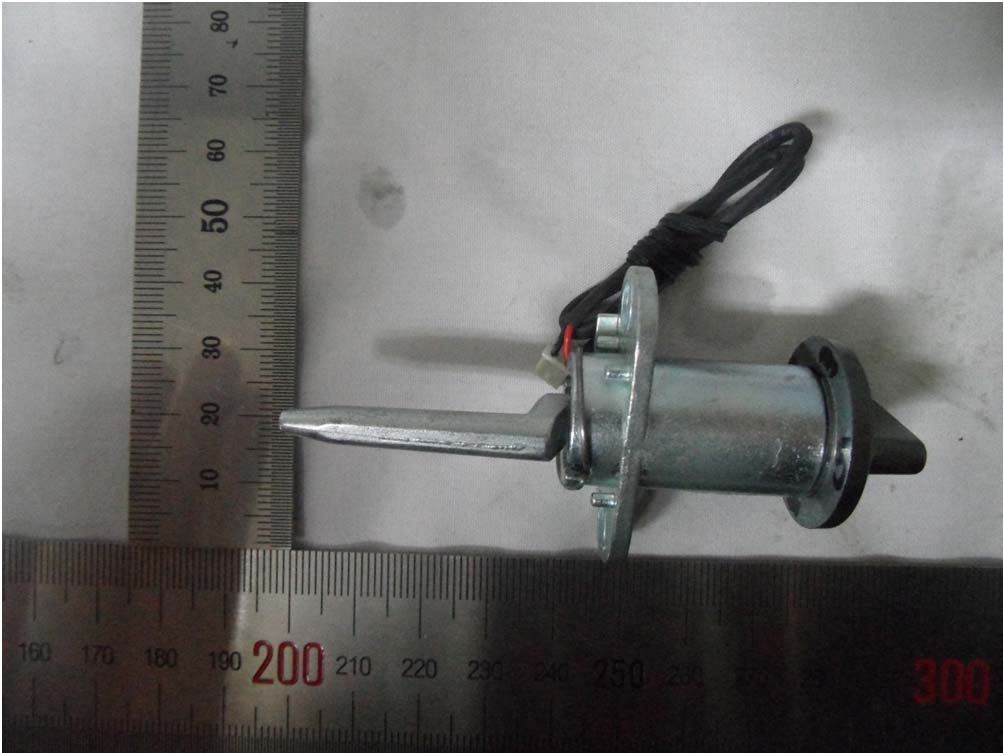

Photo 1: Exterior Photographs RFID Reader Top RFID Reader Bottom RFID Reader Side 1 RFID Reader Side 2 RFID Reader Side 3 RFID Reader Side 4 Battery Case Top Battery Case Bottom Battery Case Side 1 Battery Case Side 2 Battery Case Side 3 Battery Case Side 4 Drawer Cylinder Top Drawer Cylinder Bottom Cam Cylinder Top Cam Cylinder Bottom

Label Information Label Location Label Position Label Drawing 1. Model Name : ML32HRH 2. Model Name : ML32HRV 3. Model Name : ML22HRH 4. Model Name : ML22HRV

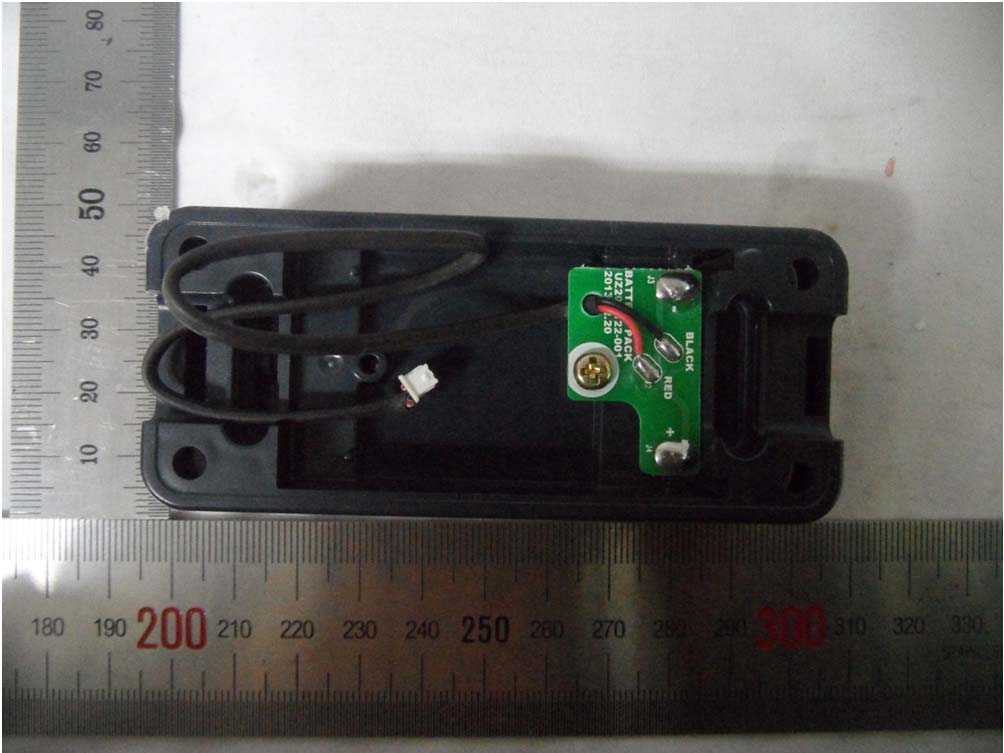

Interior View of EUT View of Interior (RFID Reader) View of Main Board (Top) View of Main Board (Top) View of Main Board (Bottom) View of Antenna (Top) View of Antenna (Bottom) View of Interior (Battery Case) View of Battery Board (Top) View of Battery Board (Bottom)

Global No.1 Testing Laboratory Universal Certification Solution FCC Test Report Product name: DIGITAL FURNITURE LOCK Model: ML32HRH Family model: ML32HRV, ML22HRH, ML22HRV Standards: FCC CFR 47 PART 15 SUBPART C, Section 15.225 Applicant: Unilock Co., Ltd. Test Report No.: UCSFR-1312-002 FCC ID: 2ABLG-ML32HRH UCS Co., Ltd. #702, AnyangMegavally, 268 Hagui-ro Dongan-gu Anyang-si Gyeonggi-do, Korea. Tel : +82-31-420-5680/ Fax: +82-31-420-5685/ Open Site: +82-31-355-2666 Online: http://www.ucs.co.kr Report Number: UCSFR-1312-002 FCC ID : 2ABLG- ML32HRH UCS-QP-20-03-80(Rev.0) Page 2 / 20 FCC Test Report Report Number UCSFR-1312-002 Applicant Company Name Unilock Co., Ltd. Address 1409 Mega Bldg., SK n Techno Park, 190-1 Sangdaewon-dong, Jungwon-gu, Seongnam, Gyeonggi-do, South Korea Product Product Name DIGITAL FURNITURE LOCK Model Name ML32HRH Family Model ML32HRV, ML22HRH, ML22HRV Manufacturer Unilock Co., Ltd. Serial No. - Country of origin Korea Other Receipt Date 2013.10.18 Receipt Number UCS-R-2013-590 Issued Date 2013.12.23 Tested Date 2013.12.10 ~ 2013.12.13 Standard FCC CFR 47 PART 15 SUBPART C, SECTION 15.225 Tested by Y. R . J o (sign) Approved by Y. M. Choi (sign) UCS Co., Ltd. #702, AnyangMegavally, 268 Hagui-ro Dongan-gu Anyang-si Gyeonggi-do, Korea. Tel : 82-31-420-5680/Fax :82-31-420-5685, Open Site : 82-31-355-2666 o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of UCS Co., Ltd. Report Number: UCSFR-1312-002 FCC ID : 2ABLG- ML32HRH UCS-QP-20-03-80(Rev.0) Page 3 / 20 Revision History Rev. Issue Date Revisions Revised By - 2013.12.23 Initial Issue Y. R. Jo Report Number: UCSFR-1312-002 FCC ID : 2ABLG- ML32HRH UCS-QP-20-03-80(Rev.0) Page 4 / 20 CONTENTS 1. APPLICANT AND MANUFACTURER INFORMATION ............................................................................................ 5 2. TEST RESULT CERTIFICATION .................................................................................................................................. 5 2.1 Applicable standards .................................................................................................................................................... 5 3. LABORATORY INFORMATION ................................................................................................................................... 6 3.1 General .......................................................................................................................................................................... 6 3.2 Test Site ......................................................................................................................................................................... 6 3.3 Location ......................................................................................................................................................................... 6 4. EUT INFORMATION ........................................................................................................................................................ 7 4.1 Family Model ................................................................................................................................................................ 7 5. Measurement conditions ..................................................................................................................................................... 8 5.1 Description of test modes ............................................................................................................................................. 8 5.2 Description of test configuration ................................................................................................................................. 8 5.3 Setup of equipmet under test ....................................................................................................................................... 8 5.3.1. Description of support units ................................................................................................................................ 8 6. Limite And Result ............................................................................................................................................................... 9 6.1 Radiated Electric Field Emissions ............................................................................................................................... 9 6.1.1 Regulation .............................................................................................................................................................. 9 6.1.2 Test Condition ....................................................................................................................................................... 9 6.1.3 Test result ............................................................................................................................................................... 9 6.2 Radiated Electric Field Emissions ............................................................................................................................. 10 6.2.1 Regulation ............................................................................................................................................................ 10 6.2.2 Test Procedure ..................................................................................................................................................... 10 6.2.3 Test Setup Layout ................................................................................................................................................ 11 6.3 Frequency Stability ....................................................................................................................................…

Text truncated - open the document above for the full version.

Radiated emission Test ( above 30 MHz) Radiated emission Test (Above 1 000 MHz)
