Android MINI PC User Manual Google TV User Manual 1 SAFETY WARNING PLACEMENT z Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf. z Do not expose the unit to direct sun-light and other sources of heat. z Do not handle liquids near or on the unit. z Never spill liquid of any kind into the unit. z Do not put the unit near appliances that create magnetic fields. z Do not put heavy objects on top of the unit POWER SUPPLY z Make sure use a 5V/1A output AC adapter instead. z Please unplug power supply and aerial plug when the weather is thunder-storm or lightning. z Please unplug power supply, when there is nobody at home or didn’t use over a long period of time z Please keep power cord from physical or mechanical damage. z Please use exclusive power cord, don’t modify or lengthen it. z Please check an ensure AC source is connected with the ground. TEMPERATURE z Do not place the unit near or over a radiator or a heater register. z If your unit is suddenly moved from a cold to a warm place, unplug the power cord for at least two hours until moisture removed. HUMIDITY z Do not expose machine in rain, damp or place near water. z Ensure the indoor is dry and cool. VENTILATION z Keep the ventilation openings clear. z Ensure that the unit has enough space for ventilation around. Google TV User Manual 2 FEATURES Android MINI PC is based on Android OS. You can use it: z Surf the Internet via Wi-Fi z Communicate with your friends via SNS applications z Enjoy movies, music and photos PRODUCT & ACCESSORIES Android MINI PC HDMI extention Wire USB Power Supply Wire Adapter User Manual INTERFACE Number Features 1 Mini USB support OTG/HOST 2 TF card slot 3 Physical button 4 LED 5 Mini HDMI port 6 Standard USB, support USB mouse & keyboard 7 Mini USB for charging 2 5 6 7 3 4 1 Google TV User Manual 3 QUICK INSTALL GUIDE z Normal Condition Insert Android MINI PC into TV’s HDMI input interface. Connect MINI PC mini USB port to adapter via USB power supply wire for power supply. Google TV User Manual 4 MAIN LAUNCHER By using the App Manager, you can view and launch application, such as Weather, Calendar, News Browser contains bookmarks and search bar. It allows you enjoy your time on surfing Internet. You can search for information and watch online TV ect. Settings contains most of the customizing and configuration options, such as language, aspect ratio and network settings. The Video tabs contain: Video / Music / Picture Google TV User Manual 5 SETTINGS Wi-Fi settings Check to turn on Wi-Fi so you can connect to Wi-Fi networks Check to receive an alert when an open Wi-Fi network becomes available Opens a dialog where you can add a Wi-Fi network by entering Its SSID and security type Display Wallpaper Font Size HDMI Resolution Screen Zoom Date & time Automatic date & time (Need network) Set date Set time Select time zone Choose hour format Choose date format Apps Downloaded On SD card Running All Google TV User Manual 6 Storage INTERNAL STORAGE To t a l s p a c e Apps space NAND FLASH SD CARD USB STORAGE Language & input Select language KEYBOARD & INPUT METHODS PHYSICAL KEYBOARD MOUSE/TRACKPAD About device Status Legal information Model number Android version Kernel version Build number APPLICATIONS Install from USB Flash Drive / TF card 1. Open the “File manager” 2. Choose your USB flash drive or any other mass storage’s folder 3. Find you application, and press it 4. Press the install button 5. You can find the application in tab Download & install from Browser 1. Open the Browser. 2. Press search key and input your website address. 3. Download the APK file which you like if there is a link for download (If you have problems with downloading, please try to put your TF card in the card slot). 4. You will find the file in your SD card folder. Install from ApkInstaller 1. Open the ApkInstaller. 2. Find the icon of the application, and enter it. 3. Press the install button. 4. You can find the application in tab “Apps” after installation. Google TV User Manual 7 Remove Applications 1. Enter SETTINGS 2. Enter Apps 3. Find the application you want to remove in tab “All” 4. Enter the icon and press “Disable” 5. Press “OK” to confirm uninstall FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located for operating in conjunction with any other antenna or transmitter.

DATE : Jan 03, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ABLR-1218 Product Name: MINI PC Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Jan 03, 2014 Agency agreement expiration date: Usually Give 8 - 12 Months By: Apu Kumar Signature Printed Title: SVP On behalf of : GamePop, Inc. Telephone: (650) 619-9110

Statement We GamePop, Inc. Are applying for FCC DOC for MINI PC with model number: Z1 FCC DOC is doing at FCC Authorized and Recognized lab. The FCC DOC application will be completed before sell. Your assistance on this matter is highly appreciated. Your assistance on this matter is highly appreciated. Yours sincerely, Dated this Jan 03, 2014 Agency agreement expiration date: Usually Give 8 - 12 Months By: Apu Kumar Signature Printed Title: SVP On behalf of : GamePop, Inc. Telephone: (650) 619-9110

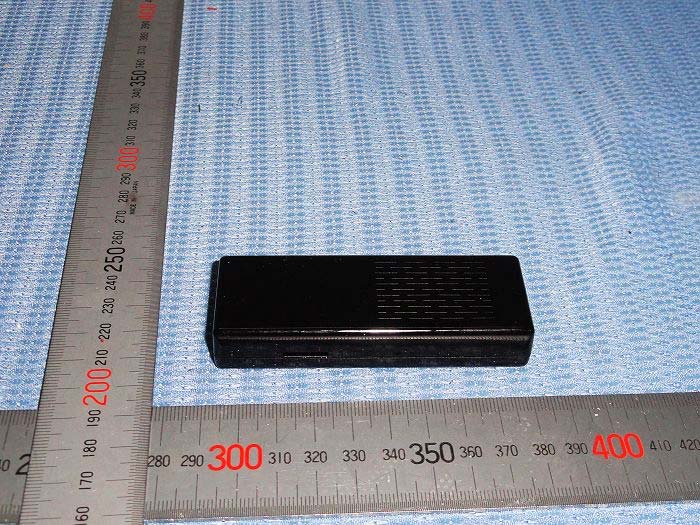

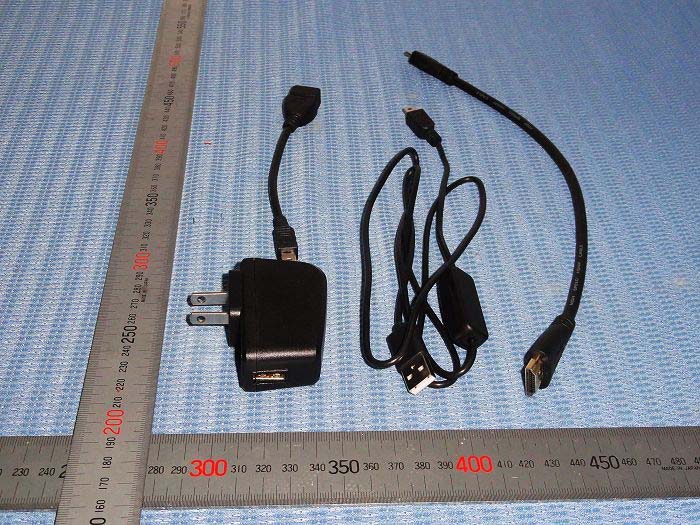

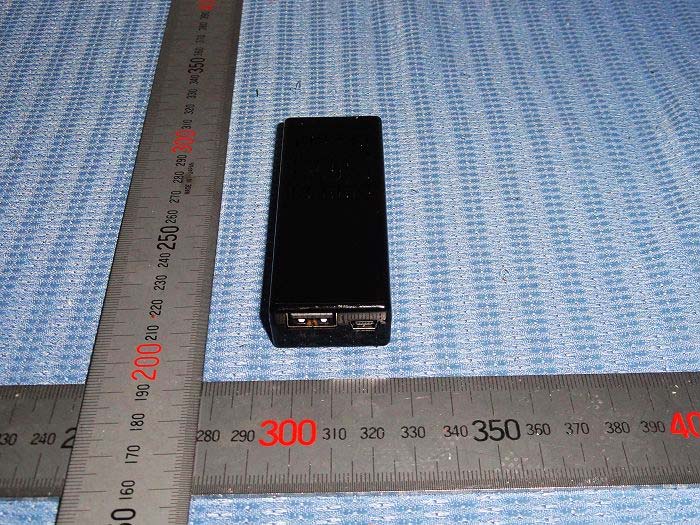

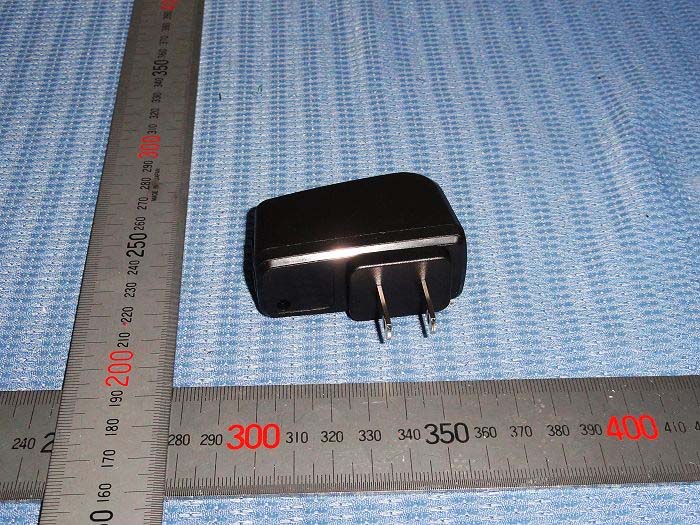

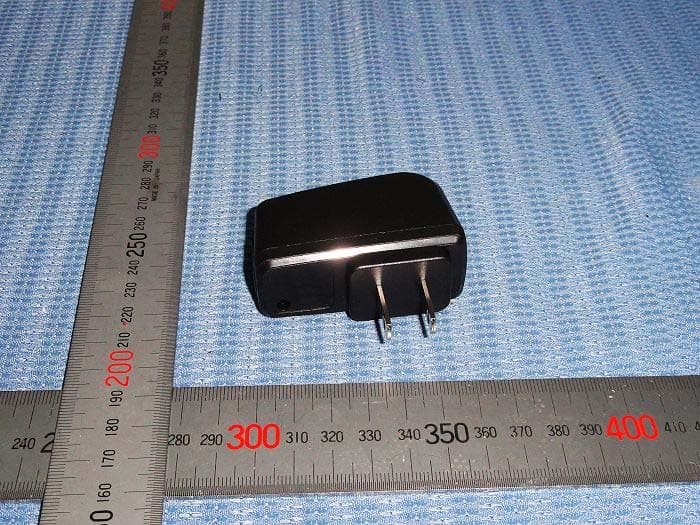

Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT

GamePop, Inc. Product Name: MINI PC Model: Z1 Input: DC5V, 2A FCC ID: 2ABLR-1218 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Location

Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT

Maximum Permissible Exposure FCCID：2ABLR-1218 Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m 2 ) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit (Worse Case) WIFI Mode Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.585 18.47 70.31 0.02217 1 Compiles Bluetooth Mode Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.585 2.22 1.667 0.0005 1 Compiles

ISO/IEC17025Accredited Lab. Report No: FCC 1312088-02 File reference No: 2013-12-20 Applicant: GamePop, Inc. Product: MINI PC Model No: Z1 Trademark: N/A Test Standards: FCC Part 15 Subpart C, Paragraph 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4,FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: December 20, 2013 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO., LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1312088-02 Page 2 of 86 Date: 2013-12-20 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with “Quality Law of People’s Republic of China” Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAL. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAL-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-02. Report No: 1312088-02 Page 3 of 86 Date: 2013-12-20 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 5 1.5 Test Duration.................................................................................... 5 1.6 Test Uncertainty.................................................................................. 5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 9 3.1 Summary of Test Results..................................................................................... 9 3.2 Test Standards.................................................................................................. 9 4.0 EUT Modification.............................................................................................9 5.0 Power Line Conducted Emission Test...................................................................... 10 5.1 Schematics of the Test........................................................................................ 10 5.2 Test Method and Test Procedure............................................................................ 10 5.3 Configuration of the EUT.................................................................................... 10 5.4 EUT Operating Condition....................................................................................11 5.5 Conducted Emissi…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
