User Manual Product： Multi-Function Remote Model： SYM13015 Release Date：2013-11-25 Version： V1.0 SPEC V1.0 PAGE 1 / 5 1. General Description This product is a multi-function remote controller with Air Mouse, Multimedia Control and Motion Sense Support. 2. Features a). Elegant ID design ； b). Ultra low power consumption wireless technology, low interference； c). Low working voltage：1.6V~3.2V； d). Anti-shake algorithm 3. Multimedia Keys a). There are 14 keys in this product, and all can be customized according to customers’ requirements; c). Power Key: press and hold for 3 seconds to force power off the remote controller; d). Any key to wake up the remote controller from hibernation mode. 4. Indicators a). There is one LED indicator in this product. b). The LED will be always off when the product is in working mode. c). The LED will be blinking at 2Hz when the connection is broke. d). The LED will be blinking at 5Hz when it’s in paring mode. 5. Pairing Warning: This operation may disconnect the original paired connection, please operate with cautions. a). Plug in the USB dongle receiver, press the mouse left key and mouse right key for 3 second, the indicator shall blink quickly. b). If the indicator turns into always on, paring succeeds. If indicator continues blinking, please repeat the pairing operation. SPEC V1.0 PAGE 2 / 5 6. Factory Reset Warning: Make sure the mouse function can not perform normally before conduct this operation. a) Remove batteries, Press and Hold the Left key and the Right key on the navigation panel, install batteries, the indicator shall blink quickly. b) Place the remote controller on a stable surface and make sure it stays still, then press OK key, the indicator shall turn off. c) Release OK key, if the indicator turns on and stays on, the operation succeeds. 7. Mouse Sensitivity a) The default setting is in high speed mode, b) Press and hold the Left key and the Right key on the navigation panel for 3 seconds, the sensitivity will set to different speed. 8. Hibernation a) The remote controller will turn into hibernation mode when stays still for 15 seconds. b) Press any key to wake up the remote controller. 9．Specification： Communication 2.4Ghz Working Distance >8m Angel No limitation Frequency 2.402-2.480GHz Power 2 AAA batteries Dimension 138.92*41.77*27.93 mm USB USB2.0 OS Windows；Mac os；Linux；Android SPEC V1.0 PAGE 3 / 5 10. Keys Layout 11. CE Declaration Hereby, Symstar Technology(Shenzhen)Co., Ltd., declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. 12. FCC Statement FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. No. Function Code 1 Power Power on/off 2 UP Keyboard Up 3 Left Keyboard Left 4 Right Keyboard Right 5 Down Keyboard Down 6 Mouse-R Mouse Right Click 7 Menu Left Windows Key 8 Help Keyboard F1 9 Mouse-L Mouse Left Click 10 Home www key 11 X Keyboard X 12 A Keyboard A 13 Y Keyboard Y 14 B Keyboard B SPEC V1.0 PAGE 4 / 5 To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example‐ use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 GamePop, Inc. 2014-09-11 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter FCC ID: 2ABLR-SYMRX We, _____ GamePop, Inc. _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (USB Dongle, SYM13015) Sincerely, Client’s signature Client’s name / title Mr Apu Kumar / SVP Contact information / address 2105S.Bascom Ave. #380, Campbell, CA 95008, United States

GamePop, Inc. SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 GamePop, Inc. SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2014-09-11 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABLR-SYMRX We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Mr Apu Kumar /SVP Contact information / address 2105S.Bascom Ave. #380, Campbell, CA 95008, United States

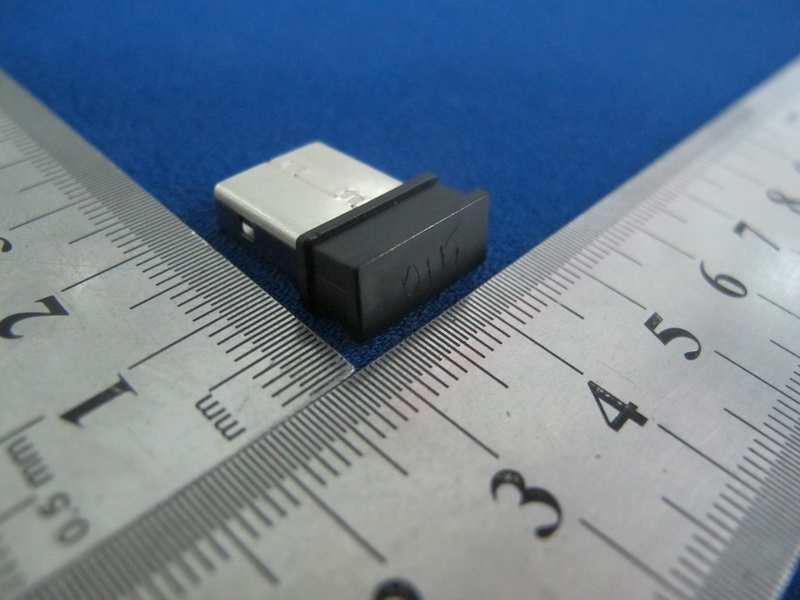

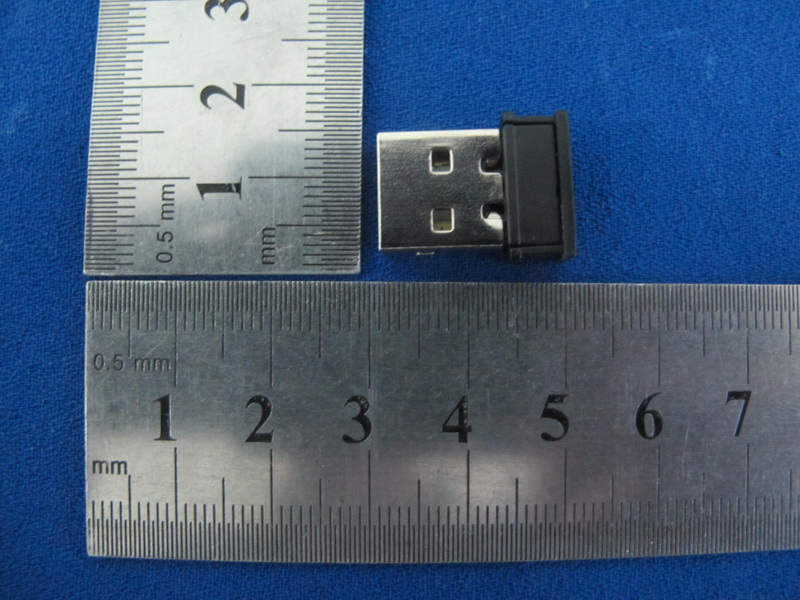

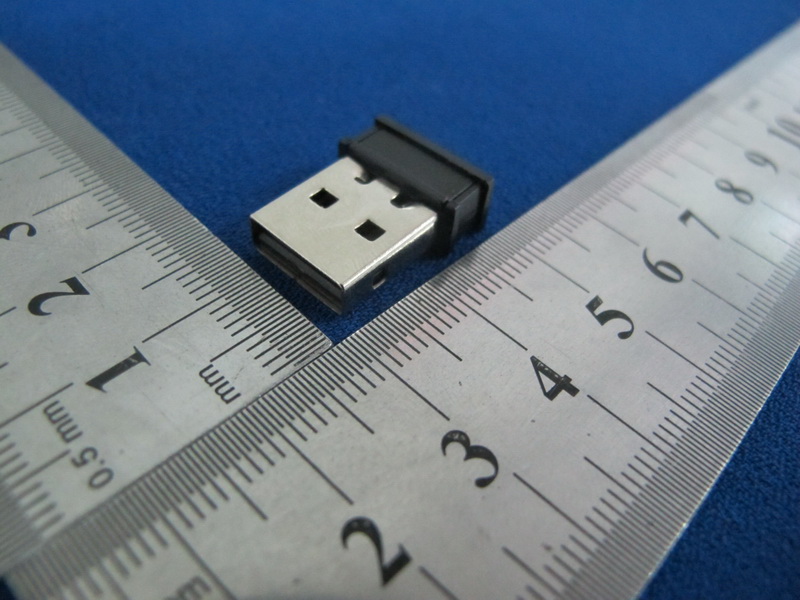

Report No.: TB-RF139317 Page: 3 of 8 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-RF139317 Page: 4 of 8 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Report No.: TB-FCC139317 Page: 1 of 8 TB-RF-074-1.0 Appendix IID Label FCC ID: 2ABLR-SYMRX

Report No.: TB-RF139317 Page: 2 of 8 TB-RF-075-1.0 Appendix II ID Label Location FCC ID LOCATION

Report No.: TB-RF139317 Page: 5 of 8 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Appearance of PCB Report No.: TB-RF139317 Page: 6 of 8 TB-RF-075-1.0 Photo 7 Appearance of PCB Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC139317 Page: 1 of 36 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ABLR-SYMRX Report No. : TB-FCC139317 Applicant : GamePop, Inc. Equipment Under Test (EUT) EUT Name : USB Dongle Model No. : SYM13015 Serial No. : N/A Brand Name : GAMEPOP Receipt Date : 2014-08-25 Test Date : 2014-08-26 to 2014-09-10 Issue Date : 2014-09-11 Standards : FCC Part 15, Subpart C (15.249: 2013) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC139317 Page: 2 of 36 TB-RF-074-1.1 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 3 1.1 Client Information ................................................................................................................. 3 1.2 General Description of EUT (Equipment Under Test) ................................................... 3 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 3 1.4 Description of Support Units .............................................................................................. 4 1.5 Description of Test Mode .................................................................................................... 5 1.6 Description of Test Software Setting ................................................................................ 6 1.7 Test Facility ........................................................................................................................... 7 2. TEST SUMMARY ....................................................................................................................... 8 3. CONDUCTED EMISSION TEST ............................................................................................. 9 3.1 Test Standard and Limit ...................................................................................................... 9 3.2 Test Setup ............................................................................................................................. 9 3.3 Test Procedure ..................................................................................................................... 9 3.4 Test Equipment Used ........................................................................................................ 10 3.5 EUT Operating Mode ........................................................................................................ 10 3.6 Test Data ............................................................................................................................. 10 4. RADIATED EMISSION TEST ................................................................................................ 13 4.1 Test Standard and Limit .................................................................................................... 13 4.2 Test Setup ........................................................................................................................... 14 4.3 Test Procedure ................................................................................................................... 15 4.4 EUT Operating Condition ................................................................................................. 15 4.5 Test Equipment .................................................................................................................. 16 4.6 Test Data ............................................................................................................................. 16 5. BANDWIDTH TEST ................................................................................................................. 32 5.1 Test Setup ........................................................................................................................... 32 5.2 Test Procedure ................................................................................................................... 32 5.3 EUT Operating Condition ................................................................................................. 32 5.4 Test Equipment .................................................................................................................. 32 5.5 Test Data ............................................................................................................................. 32 6. ANTENNA REQUIREMENT ................................................................................................... 36 6.1 Standard Requirement ...................................................................................................... 36 6.2 Antenna Connected Construction ................................................................................... 36 6.3 Result ................................................................................................................................... 36 Report No.: TB-FCC139317 Page: 3 of 36 TB-RF-074-1.1 1. General Information About EUT 1.1 Client Information Applicant : GamePop, Inc. Address : 2105S.Bascom Ave. #380, Campbell, CA 95008, United States Manufacturer : GamePop, Inc. Address : 2105S.Bascom Ave. #380, Campbell, CA 95008, Unit…
