2ABM9A600Ultra Portable Wireless Coffee Cup speaker

SHENZHEN TONGKE ELECTRONICS CO., LTD

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Aug 24, 2014
Application Purpose: Original Equipment
Date of Application: Aug 24, 2014
Equipment Note: Ultra Portable Wireless Coffee Cup speaker
Frequency Range: 2402.00000000 - 2480.00000000
Company: SHENZHEN TONGKE ELECTRONICS CO., LTD
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Torino Tec Enterprise English User Manual For Ultra Portable Wireless Coffee Cup speaker MODEL: F5 PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU USE THIS PRODUCT Thank you for choosing our portable Bluetooth speaker. In order to maintain the designed performance for this unit, please read this manual carefully before using and make sure to operate it as instructed. IMPORTANT SAFETY INSTRUCTION z Read all of these safety and operating instructions before the unit is operated. z Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. z Do not expose the unit to water or excessive moisture. z Do not throw or trample the unit. z Do not use the unit near any heat source such as stove, radiators or any apparatus that can produce heat. z To turn off the unit before cleaning. Clean by only using a soft anti-static dry cloth. z Do not disassemble the unit; there are no user serviceable parts inside. FEATURES • CSR Bluetooth 4.0, high speed Bluetooth version, to carry the best sound performance. • High efficiency Neo 1.5” full range driver design. • Optimum acoustic box design with enhanced bass technology for surround sound with deep bass. • Works for iPhone, Android phone and any Bluetooth-enabled devices. Bluetooth 2.1 or above • 5W output produces powerful great sound. • Internal rechargeable Lithium battery 900mAh, up to 6 - hour operating lifetime at single fully charge • Connectivity: Audio Connections: 3.5mm Line in Bluetooth profiles: A2DP, AVRCP Bluetooth range: Line of sight, 33 FT(10M) . PANEL DESCRIPTION 1. Press once for Play/Pause (NOTE: Holding button down too long will disconnect the Bluetooth connection) 2. Press to reduce volume 3. Press to increase volume 4. Slide button for power on/power off 5. AUX-in 6. Micro USB charging port 7. Charging indication LED 8. Mode indication LED Light Indication: z Charging LED: Charging-- Solid red; Fully charged-- LED off. z Mode LED： Bluetooth mode: Pairing-- blue fast flashing; Paired and connected--blue slow flashing. AUX-in mode: Solid red. Charging the Coffee cup F5 speaker before using: Connect the speaker to a 5V USB charger by using the USB cable (included) or connect to a PC/laptop. The battery can be fully charged in approximately 4 hours . SUPPLIED ACCESSORIES 1. Micro USB-USB cable 1 2. 3.5 mm audio cable 1 3. Manual 1 TROUBLE SHOOTING Problem Possible cause Suggested solution No sound Battery fully discharged Charge the battery Audio input cable loose Check connections and insert fully into slots/jacks Weak sound Low battery Recharge the battery Sound is distorted Low battery Recharge the battery SPECIFICATIONS Output Power 5W x1 Driver 1.5” @ 4Ohm x1, Neo full range speaker System Frequency 80Hz-18KHz S/N Ratio ≥ 75dB Sensitivity ≥85dB Distortion, THD ≤ 1% Recharge Voltage USB DC5V Dimensions φ2.9x3.03X3.43 inch (φ74x77x87mm) Without Ring Weight 6.4 OZ (180g) With Ring FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. TORINO TEC ENTERPRISE LIMITED WARRANTY POLICY Limited Warranty – 1 year from original date of purchase Torino Tec Enterprise warrants the Coffee Cup F5 speaker against defects in materials and workmanship for a period of one (1) year from the date of original purchase. If a defect arises and a valid claim is received within the Warranty Period, Torino Tec Enterprise will, at its option, repair the Coffee Cup F5 or exchange it for a functionally equivalent new unit. This warranty does not apply to damage caused by accident, abuse, misuse, or modification of the product. To return the product, pack it carefully and remember to print or type your name and address clearly along with instruction for repair. Insurance, handling and transportation charges to our service center shall be borne by person desiring service. Service Address for USA: Torino Tec Enterprise 6735 Conroy Rd, Suite 330 Orlando, FL 32835 www.torinotecenterprise.com [email protected]

External Photos

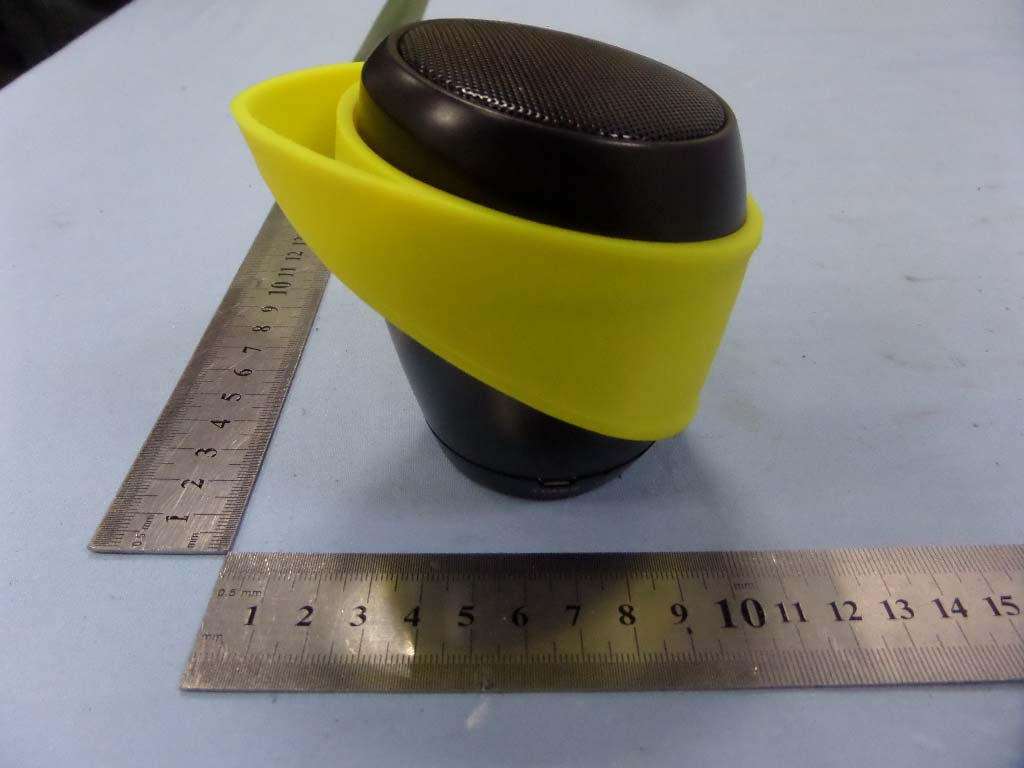

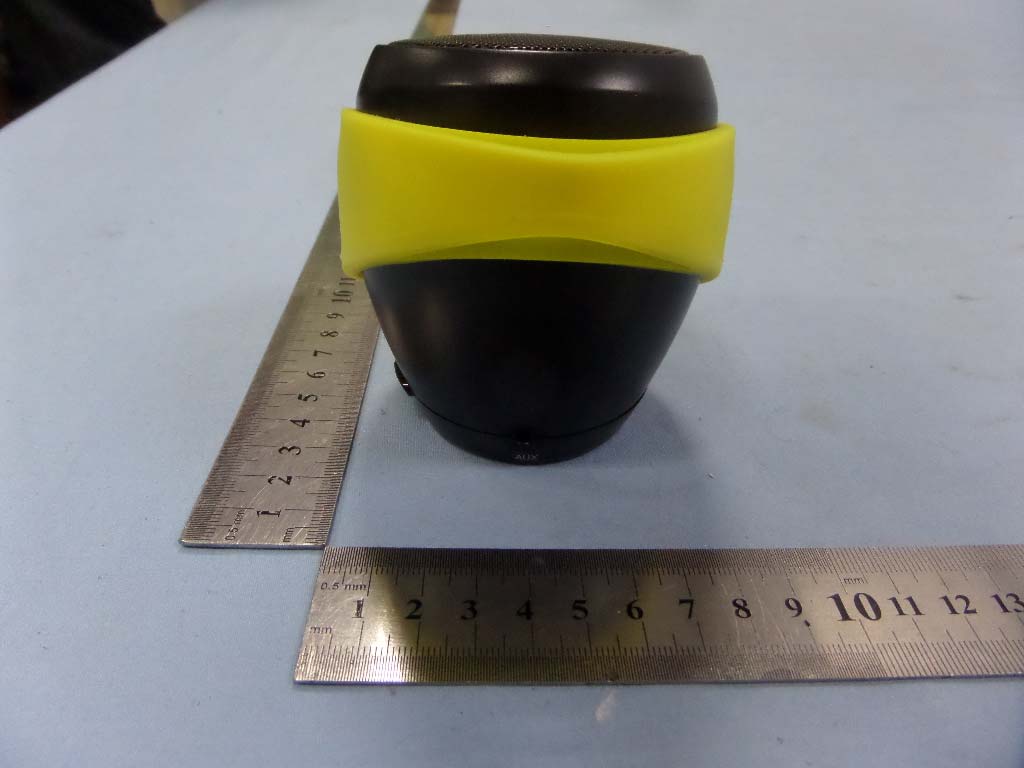

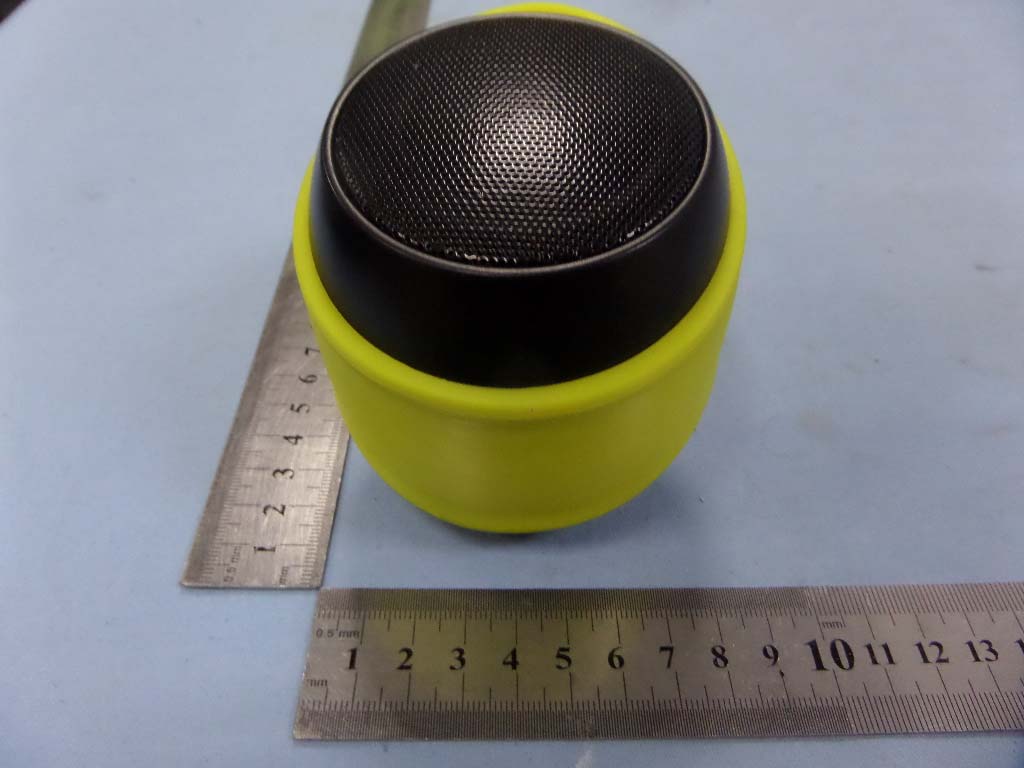

SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I-1&2 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I-1&2 FCC PART 15.247 EUT View 3 EUT View 4 SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I-1&2 FCC PART 15.247 EUT View 5 EUT View 6

ID Label/Location Info

SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I-1&2 FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ABM9A600 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ID Label/Location Info

Internal Photos

SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I-1&2 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I-1&2 FCC PART 15.247 Solder Board-Component View 1 Solder Board-Component View 2 SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I-1&2 FCC PART 15.247 Solder Board-Component View 3 Solder Board-Component View 4 SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I-1&2 FCC PART 15.247 Solder Board-Component View 5

RF Exposure Info

RF Exposure Requirements Product Description: bluetooth keyboard case Model No.: F5 FCC ID: 2ABM9A600 According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth (EDR mode) Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: 8.156 dBm Maximum Output Power: 6.54mW Limit: 10mW Source-based time-averaged output power is 6.54mW < 10 mW Bluetooth (BLE mode) Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: 8.101 dBm Maximum Output Power: 6.46mW Limit: 10mW Source-based time-averaged output power is 6.46mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Test Report

SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I -2 PAGE 1 OF 36 FCC PART 15.247 FCC Part 15C Measurement and Test Report For SHENZHEN TONGKE ELECTRONICS CO.,LTD THE SECOND INDUSTRIAL ZONE,PHOENIX VILLAGE,FUYONG TOWN,SHENZHEN.CHINA FCC ID: 2ABM9A600 FCC Rule(s): FCC Part 15.247 Product Description: Ultra Portable Wireless Coffee Cup speaker Tested Model: F5 Report No.: STR14088066I-2 Tested Date: 2014-08-05 to 2014-08-19 Issued Date: 2014-08-20 Tested By: Vigoss Liang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I -2 PAGE 2 OF 36 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. RF EXPOSURE ......................................................................................................................................................... 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT .................................................................................................................................. 8 4.1 STANDARD APPLICABLE ......................................................................................................................................... 8 4.2 EVALUATION INFORMATION .................................................................................................................................. 8 5. POWER SPECTRAL DENSITY ............................................................................................................................. 9 5.1 STANDARD APPLICABLE ......................................................................................................................................... 9 5.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 5.3 TEST PROCEDURE ................................................................................................................................................... 9 5.4 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 6. 6DB BANDWIDTH ................................................................................................................................................. 13 6.1 STANDARD APPLICABLE ....................................................................................................................................... 13 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 13 6.3 TEST PROCEDURE ................................................................................................................................................. 13 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 13 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. RF OUTPUT POWER ............................................................................................................................................ 17 7.1 STANDARD APPLICABLE ....................................................................................................................................... 17 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 7.3 TEST PROCEDURE ................................................................................................................................................. 17 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 8. FIELD STRENGTH OF SPURIOUS EMISSIO…

Text truncated - open the document above for the full version.

Test Setup Photos

SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I-1&2 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I-1&2 FCC PART 15.247 Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F5 REPORT NO.: STR14088066I-1&2 FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
