2ABM9F1Bluetooth Speaker

SHENZHEN TONGKE ELECTRONICS CO., LTD

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 17, 2014
Application Purpose: Original Equipment
Date of Application: Sep 17, 2014
Equipment Note: Bluetooth Speaker
Frequency Range: 2402.00000000 - 2480.00000000
Company: SHENZHEN TONGKE ELECTRONICS CO., LTD
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Shenzhen Tongke Electronics Co., Ltd www.sztongke.com Add: The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China 518103 Tel: 86 755 3385 6685 Fax: 86 755 33893336 Product Technical Spec Sheet 1. Product Overview 1.1 Product picture 1.2 Key Feature ‐ BK Bluetooth 4.0 ‐Compatibility: works with most Bluetooth smartphones, tablets, music devices, Bluetooth 2.1 or above ‐Internal rechargeable Li‐ion battery, single fully charge with 4‐hour operating lifetime ‐Voice prompt for convenient feedback during Bluetooth Mode ‐Connectivity: Audio Connections: 3.5mm Line in Bluetooth profiles: A2DP, AVRCP, HFP Bluetooth range: Line of sight, 10M or 30FT 2. Electrical Specification 2.1 Audio Performance: - Driver: 1pcs 2” full range driver and 1pc bass enhance radiator - RMS Output: 5W @10% System SNR: >65 dB @ 1W THD: <10% at the Max Volume Loudness: SPL >65dB @ 1kHz sine wave Frequency response: 90Hz – 20kHz 2.2 Power Solution: - Built‐in Lithium battery 3.7V 900mAh, single fully charged with 4‐hour operating lifetime - Micro USB charging port, 5V/500 mA battery charging, single fully charge time is 3hrs Shenzhen Tongke Electronics Co., Ltd www.sztongke.com Add: The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China 518103 Tel: 86 755 3385 6685 Fax: 86 755 33893336 2.3 Operation Instructions: 1. Mode indication LED 2. Mic 3. Short pressing for Play/Pause,3’s long pressing to cutting off connected device and waiting for pairing 4. short pressing for volume down 5. short pressing for volume up 6. Power on/off 7. Micro USB charging port 8. Charging indication LED 9. AUX‐in A. Battery compartment 2.4 Light Indication: 1. Charging LED, charging‐‐‐solid red, fully charged‐LED off 2. Mode LED - Bluetooth mode, pairing‐‐ blue fast flashing, - paired and connected‐‐blue slow flashing - AUX‐in mode, solid red - 2.5 Voice Prompt (for Bluetooth mode only): 1. power on‐‐‐‐‐“Welcome” 2. pairing‐‐‐‐‐‐‐ “Waiting to connect to Bluetooth device” 1min a loop 3. paired and connected‐‐‐‐“Connected to Bluetooth device” Shenzhen Tongke Electronics Co., Ltd www.sztongke.com Add: The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China 518103 Tel: 86 755 3385 6685 Fax: 86 755 33893336 3. Mechanical Specification 3.1 Dimension: 78X75X71 mm 3.2 Weight: TBD 3.3 Material and Finishing: ABS Plastic, matte Finishing, silicon gel , EVA mat 3.4 Color: Black, White, Yellow, Red, Blue, possible to make customized color subject to Buyer requirements 4. Packing 4.1 Color box or blister package:TBD 4.2 Box size: TBD 4.3 Carton size: TBD 4.4 Accessories: 1pc Micro USB charge cable, 1pc 3.5mm audio cable, 1pc QSG, others depends on buyer’s requirements 5. Reliability 5.1 General Operating Temperature: 0 ‐ 40 ºC 5.2 General Humidity test: 90% (Operating @ 40 ºC) 5.3 General storage temperature: ‐20 ‐ 65 ºC 5.4 Heat Storage test: 98.5 hours with Temp Cycling 5.5 Vibration test: 0.75 mm, 13Hz to 25Hz, 3 axis, 30 mins 5.6 Drop test (in pack outer carton): 1 corner, 3 edges, 6 faces 5.7 Drop test (out of pack drop test): 3 faces when opened, two faces when close at 1m height 5.8 Product Life: 36 Months (3 years) with 1 year limited warranty 5.9 Button life: 5000 times pressing FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

External Photos

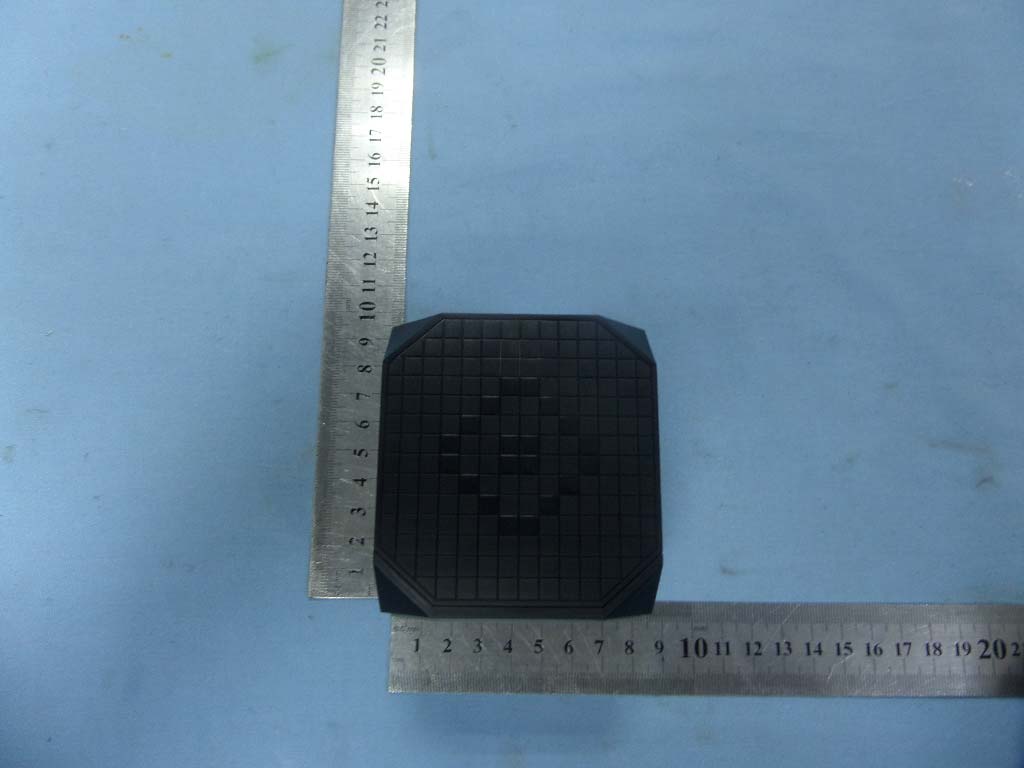

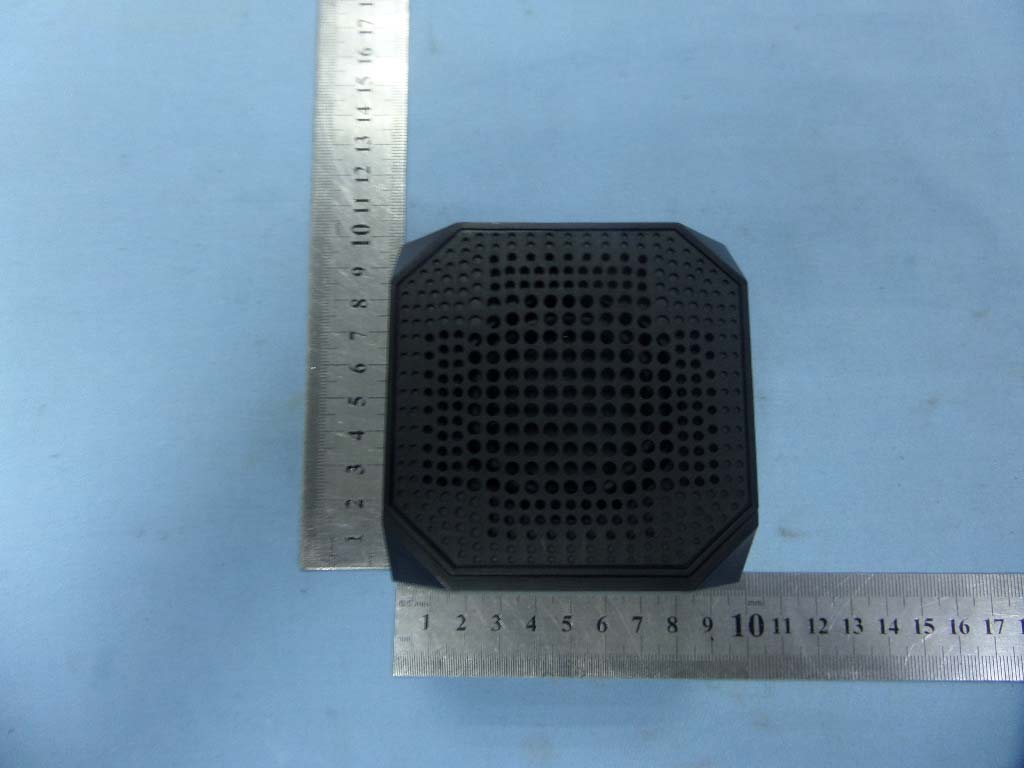

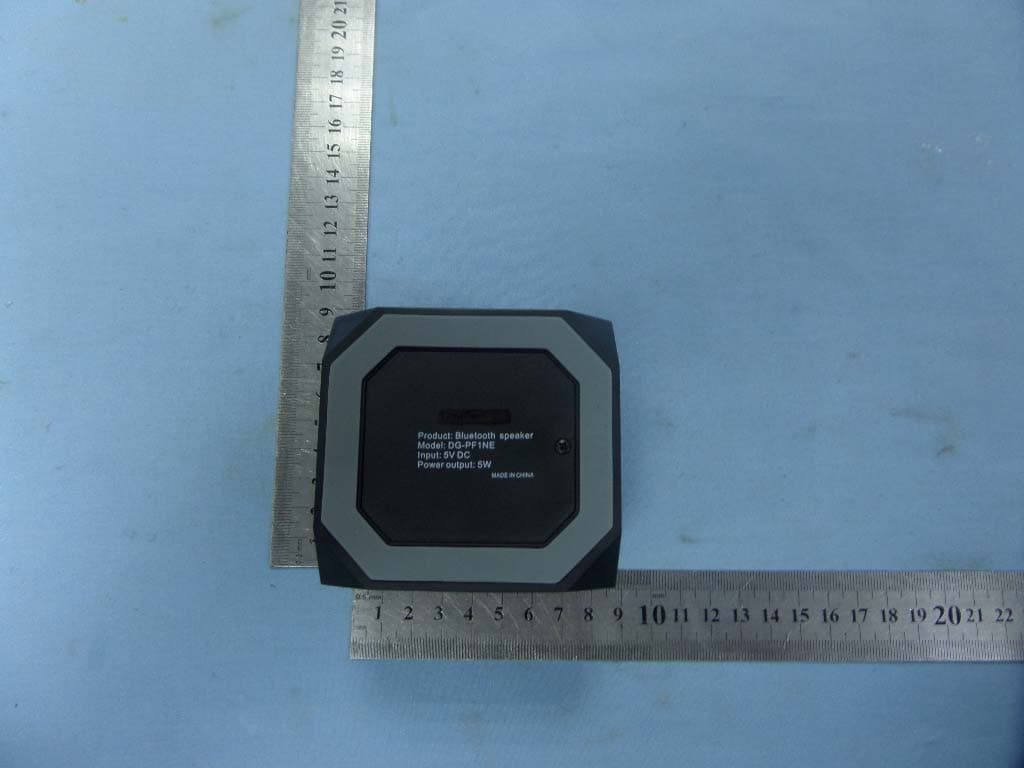

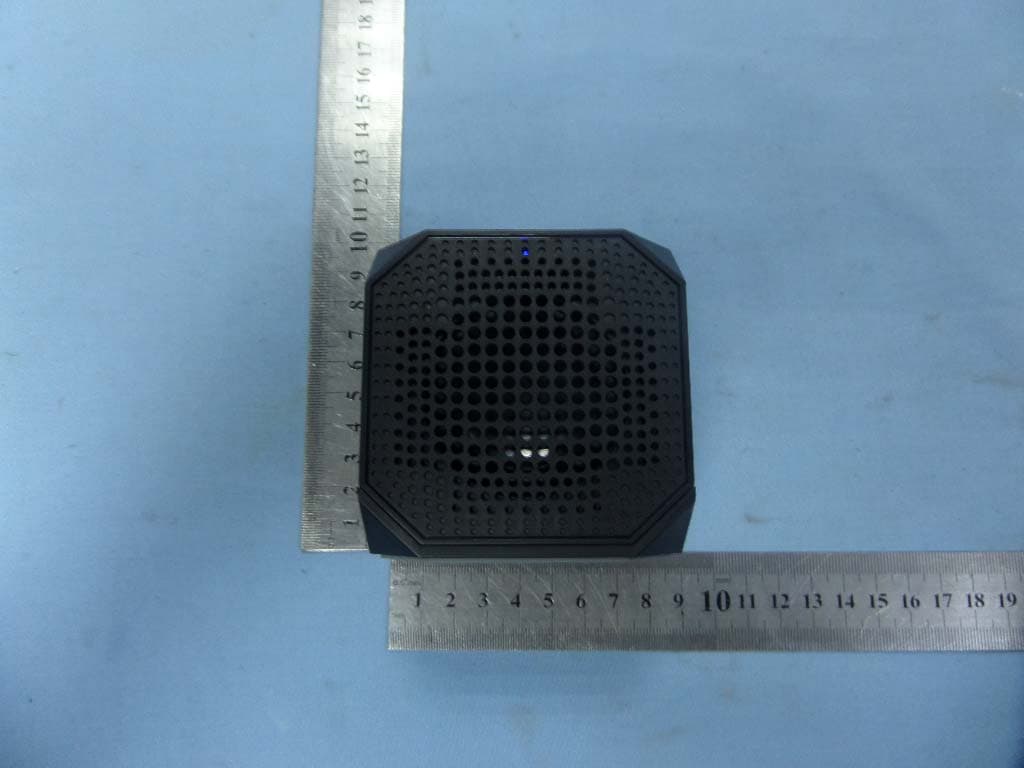

SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 EUT View 3 EUT View 4 SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 EUT View 5 EUT View 6 SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 EUT View 7

ID Label/Location Info

SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ABM9F1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ID Label/Location Info

Internal Photos

SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 Solder Board-Component View 1 Solder Board-Component View 2 SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 Solder Board-Component View 3 Solder Board-Component View 4 SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 Solder Board-Component View 5

RF Exposure Info

RF Exposure Requirements Product Description: Bluetooth Speaker Model No.: F1 FCC ID: 2ABM9F1 According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth (EDR mode) Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: 2.679 dBm Maximum Output Power: 1.85mW Limit: 10mW Source-based time-averaged output power is 1.85mW < 10 mW Bluetooth (BLE mode) Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: 0.273 dBm Maximum Output Power: 1.06mW Limit: 10mW Source-based time-averaged output power is 1.06mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Test Report

SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F1 REPORT NO.: STR14088249I -2 PAGE 1 OF 36 FCC PART 15.247 FCC Part 15C Measurement and Test Report For SHENZHEN TONGKE ELECTRONICS CO.,LTD THE SECOND INDUSTRIAL ZONE,PHOENIX VILLAGE,FUYONG TOWN,SHENZHEN.CHINA FCC ID: 2ABM9F1 FCC Rule(s): FCC Part 15.247 Product Description: Bluetooth Speaker Tested Model: F1 Report No.: STR14088249I-2 Tested Date: 2014-08-22 to 2014-09-02 Issued Date: 2014-09-03 Tested By: Vigoss Liang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. SHENZHEN TONGKE ELECTRONICS CO.,LTD Model: F1 REPORT NO.: STR14088249I -2 PAGE 2 OF 36 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. RF EXPOSURE ......................................................................................................................................................... 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT .................................................................................................................................. 8 4.1 STANDARD APPLICABLE ......................................................................................................................................... 8 4.2 EVALUATION INFORMATION .................................................................................................................................. 8 5. POWER SPECTRAL DENSITY ............................................................................................................................. 9 5.1 STANDARD APPLICABLE ......................................................................................................................................... 9 5.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 5.3 TEST PROCEDURE ................................................................................................................................................... 9 5.4 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 6. 6DB BANDWIDTH ................................................................................................................................................. 13 6.1 STANDARD APPLICABLE ....................................................................................................................................... 13 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 13 6.3 TEST PROCEDURE ................................................................................................................................................. 13 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 13 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. RF OUTPUT POWER ............................................................................................................................................ 17 7.1 STANDARD APPLICABLE ....................................................................................................................................... 17 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 7.3 TEST PROCEDURE ................................................................................................................................................. 17 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 8. FIELD STRENGTH OF SPURIOUS EMISSIONS ........................…

Text truncated - open the document above for the full version.

Test Setup Photos

SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup Charging & Playing mode SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) SHENZHEN TONGKE ELECTRONICS CO., LTD Model: F1 REPORT NO.: STR14088249I-1&2 FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
