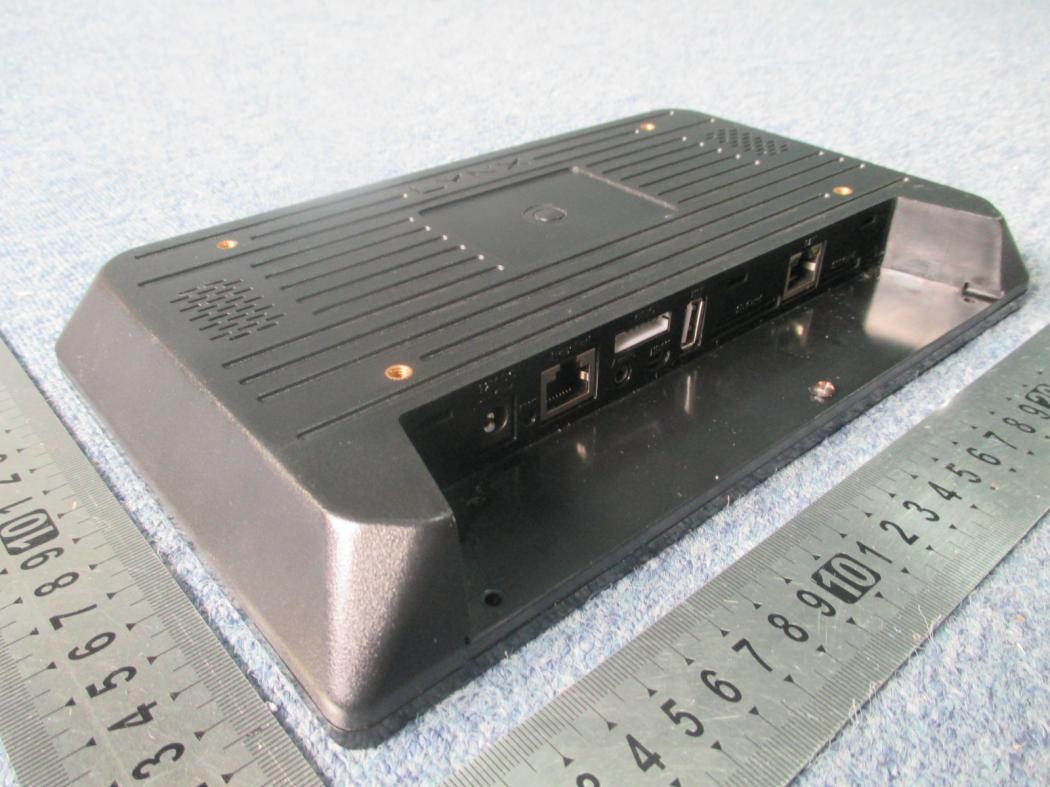

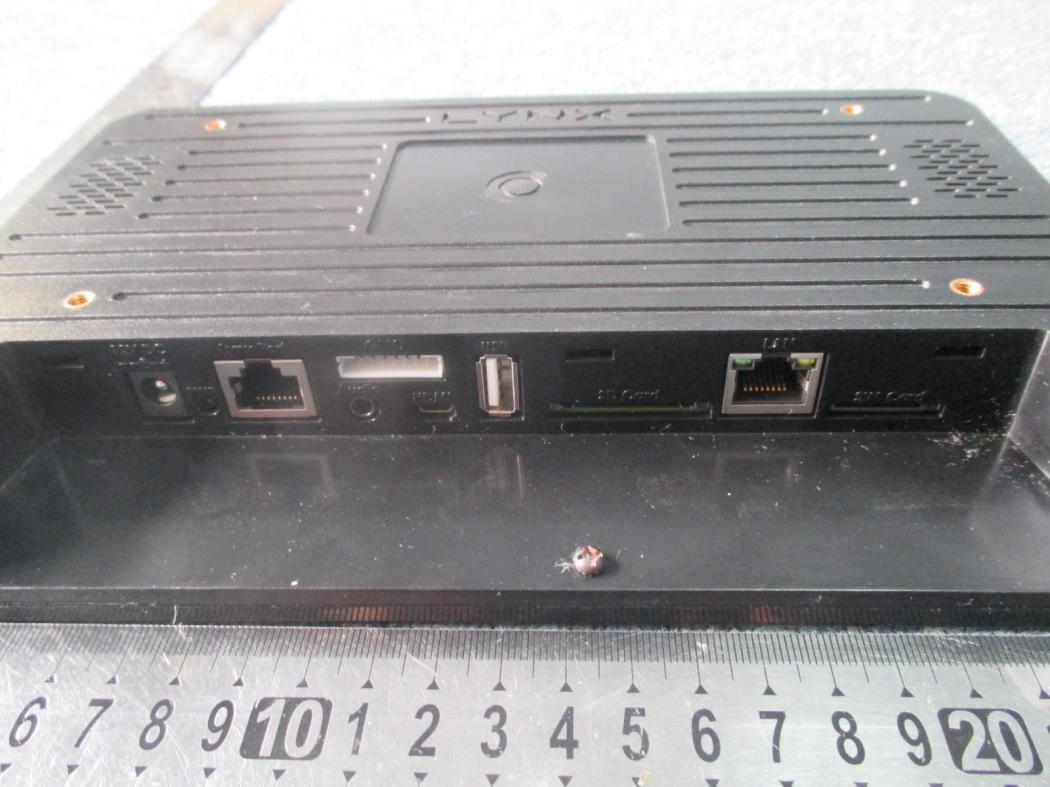

2ABMA-888-700-202Tablet PC

User Manual Model No.:888-700-202 10.1” Tablet This handbook contains important security measures and the correct use of the product information. In order to avoid accident, please make sure to reading the manual carefully before use the device. Production specification for 10.1” Tablet 1 Attention: This instruction contains the correct use of the product information, in order to avoid accidents. Please make sure to reading the manual carefully before use the device.  Do not use alcohol, diluents or any other chemicals to clean the surface, otherwise, it will be corroded and even damaged.  Please don’t be in high temperature, moisture or very dust place.  Please choose the appropriate volume. Use headphones should not be too big volume, if feel tinnitus, lower the volume or stop using it.  Please charge the following condition, A. The power ICONS shows have no power. B. The system automatically shut off, startup after power off soon. C. Operation buttons no response. D. The machine that the top right corner show red icons.  When the device in the format or ongoing upload and download file, please don’t suddenly disconnect, this could cause application error.  USB just only be used for data transmission.  Performance and functionality of the product may be different if the version of software and hardware is different. Any change will be without notice. Our company reserves the right to improve the products.  If you have any questions about the tablet, please contact with us. Attempt to disassemble the product may damage it and avoid your warranty. Users will be responsible for all the consequences caused by disassembling. Main Functions:  10.1”1024*768 capacitive touch screen.  Based on the Android 4.2 operating system and supports WiFi and BT function.  Supports MP3/AAC/OGG/WAV for audio.  Supports automatic browse for picture in JPG/BMP/JPEG/GIF.  Supports AVI/3GP/MP4/MKV/MOV/TS/FLV and up to 1080P for video.  Supports OTG function, external mouse and keyboard. Operational Description: Production specification for 10.1” Tablet 2  Port function Description  12V DC Port：You can connect to DC 12V power supply or a AC/DC adapter which shall be comply with the CE approval. The parameters of adapter shall be as below: Input: 100~240V 50/60HZ 1.5A Output: 12V1.5A  LYNX Port: You can use it to connect the tablet to LYNX audio products.  Audio Port: You can use it to connect the tablet to I²S audio devices.  HDMI Port: You can use it to connect the tablet to HD video display.  USB Port: just only be used for data transmission.  SD Card Socket: Adds additional storage to tablet.  Ethernet Socket: Ethernet network port.  SIM Card Socket: For use with option modem. Not current used.  GIPO: You can use it to connect the tablet to keyboard by which you can get functions, such as on/off, reset, increase/decrease sound volume, reboot and so on.  Basic Operations Home Screen: After startup will enter the main interface. In the main interface, you can，  Management the main interface software ICONS: long press the icons 3 s, after the icons will bigger, then you can drag anywhere in the interface.  Delete icons: long press the icons 3 second, drag the icons to the Remove Bin icon, once it become red, remove your hand, after that you can delete icon. You touch the screen keep a time, appear the dialog box “Add your home Screen” as shown below: Production specification for 10.1” Tablet 3  Click the icon and enter the setting interface.  Click the icon and enter the application program interface. In the application program interface, the tablet will display all apps screen. Touch any application icon andenter the relevant application program interface. Status bar describe,  Click the icon and return to the upper interface.  Click the icon and return to the main screen.  Click the icon and open the list of application which recently used.  Click the icon and save screenshot.  Click the icon and increase sound volume.  Click the icon and decrease sound volume.  Status bar, It is used to show the current status of network connection and wifi connection and system time.  Setting  WiFi Internet Settings The first step: open Wi-Fi and the system automatically scan the available network. The second step: select target network and input the correct network password. Select“Connect”. Production specification for 10.1” Tablet 4 In this interface, you can search Bluetooth, View, Bandwidth Usage, Sound, Display, Storage, App, Security, Back up & Option, Date & Time, Language & Input, Accessibility, About tablet and so on. You can set according your demand, as picture.  Basic Circuit Description Power input:  The tablet is powered from a 12V DC power supply.  ChipAXP209 is used as PMU. The AXP209 provides under/over voltage protection. It generates all internally used voltages and manages charge and discharge: It provides voltage temperature monitoring information to the main processor. CPU  All winner A20 HD SOC Production specification for 10.1” Tablet 5  ARM Cortex-A8 single Core 1Ghz  32KB I-Cache/32 KB D-Cache/256 k L2 Cache Crystal  A20 integrates two crystal oscillators: The 24MHZ crystal is mandatory, which is used to provide clock source for the PLL and the main digital blocks, and the 32768HZ oscillator, which is only used to provide a low power, accurate reference for the RTC.25MHzcrystal is used to provide clock source for Realtek RTL8201CP which is a Fast Ethernet PHYceiver with selectable MII interface to the EMAC chip. GPU  MALI400 2D/3D  2D support BLT/ROP2/3/4, 3D support Open GL ES 2.0/open VG 11.1  Video Decoding (Supper HD 2160P) VP8, AVS, H.264, H.263, VC-1, MPEG-1/2/4  Video Encoding – Support 1920*1080@60fps in all formats  Support encoding in H.264 High Profile format 108p@60fps 720p @100fps Memory  1GB DDR3 RAM (up to 2GB)  4GB NAND Flash (up to 64GB) Display Output  Support HDMI V1.3/V1.4, up to 2160P  Flexible LCD interface (CPU/Sync RGB/LV…
