2ABMEG15-BT3D Glasses

To whom use the device The FCC ID Label can clearly visible to the users, when you open the battery back cover. FCCID Location FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

20730BlockDiagram

Declaration To whom use the device The FCC ID Label can clearly visible to the users, when you open the battery back cover. SHENZHEN GONBES TECHNOLOGY CO., LTD Signature: Date:2012‐12‐25

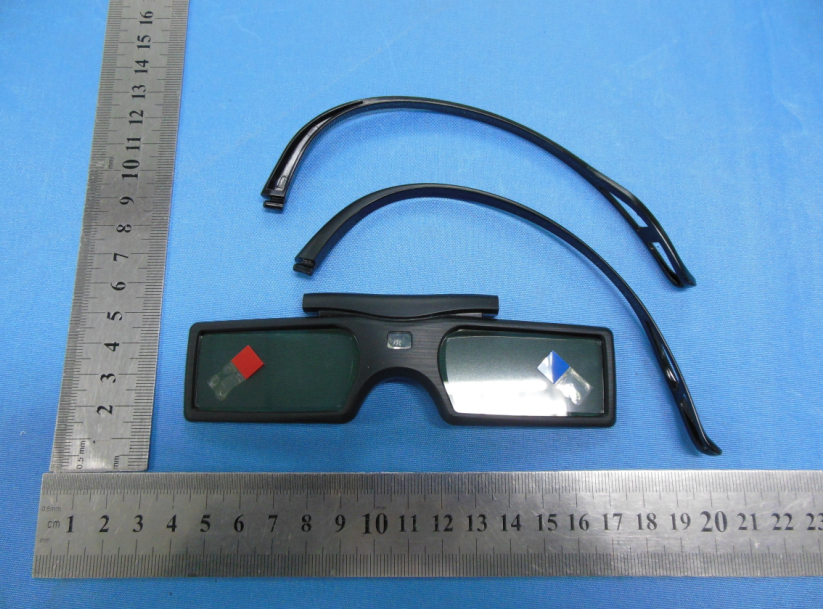

External Photographs EUT –Front View EUT – Rear View

FCC ID LABEL Location FCC ID LABEL Location

FCC ID Label Sample for FCC ID: 2ABMEG15-BT SHENZHEN GONBES TECHNOLOGY CO., LTD Product: 3D Glasses FCC ID: 2ABMEG15-BT Model: G15-BT L=20mm W=20mm

Internal Photographs EUT - Open View EUT - PCB View EUT - PCB View Antenna Location

Function description G15‐BT 3D glasses is a device that enables you to view 3D images. It can also work with 3D TV, then you can enjoy realistic, vivid 3d images. Bluetooth Specifications 1. The Broadcom® BCM20730 is a Bluetooth 3.0‐ compliant, stand‐alone baseband processor with an integrated 2.4 GHz transceiver. It is ideal for wireless input device applications including game controllers, keyboards, 3D glasses, remote controls, gestural input devices, and sensor devices. Built‐in firmware adheres to the Bluetooth Human Interface Device (HID) profile and Bluetooth Device ID profile specifications. 2. The G15‐BT 3D glasses uses the chip BCM20730 and 24MHz crystal. 3. The use Frequency band is 2402~2480MHz,use the GFSK, Pi/4 DQPSK, 8‐DPSK modulation. 4. The G15‐BT 3D glasses BT module use an Integral Antenna. Antenna gain:0dBi

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA Title NumberRevisionSize A3 Date:2013-12-2Sheet of File:D:\G15-BT资料整理\..\G15-BT v1.0.SchDocDrawn By: K1 KEY P27/PWM1 1 P10 2 P9 3 LDOin 4 LDOout 5 VDDif 6 VDDfe 7 RF 8 VDDvco 9 VDDpll 10 XTALI 11 XTALO 12 VDDc 13 RXD 14 TXD 15 VDDm 16 SDA 17 SCL 18 TMC 19 RST 20 P0 21 P1 22 P3 23 P2 24 P4 25 P5 26 P6 27 P7 28 P8 29 P33 30 P32 31 P25 32 P24 33 VDDo 34 P13 35 P14 36 P15 37 P26/PWM0 38 XTALO32/P12 39 XTALI32/P11 40 GPAD 0 IC4 BCM20730A0K ANT1 ACA5020 C19 20P SDA SCL C11 105 C12 104 C13 104 C14 104 BCM_K1 WP 10VEn 1V2 RFIN C18 20P C10 105 C9 104 BCM_LED1 BCM_LED2 bat_detection R12 472 R11 472 VCC3 C8 104 LCH1,RCH2 same signal--->common pin Sunsam bluetooth driver configrature Pin38: RCH1 Pin1: RCH2 Pin35: LCH1 Pin36: LCH2 C7 104 1V2_Detect VCC3 BCM_sync_P R7 104 C15 104 BCM_sync_N BCM_K2 Y1 24.000 i RF i RF VCC3 BAT IN_1 16 IN_2 1 IN_3 2 IN_4 3 VBAT 4 VSS 5 PWDN 6 WP 7 SCL 8 SDA 9 CCSP 10 VOUT 11 OUT_4 12 OUT_3 13 OUT_2 14 OUT_1 15 IC1 ST9902 BCM_syncR_P BCM_syncR_N BCM_sync_P BCM_sync_N OUT_sync_P OUT_sync_N BCM_syncR_P BCM_syncR_N OUT_syncR_P OUT_syncR_N R1 472 R2 472 10VEn R8 103 C16 104 VCC3 C4 106 VCC3 R5 105 WP SCL SDA C3 105/16v C2 475/16v R10 103 VCC3 RST i 10V i 10V i 10V i 10V i 10V BCM_LED2 R4102 LED1 blue R3102 LED2 blue C1 27pL2 1.2nH RFIN_

Test Report of FCC CFR 47 Part 15 Subpart C On Behalf of SHENZHEN GONBES TECHNOLOGY CO., LTD FCC ID: 2ABMEG15-BT Product Description: 3D Glasses Model No.: G15-BT Supplementary Model: N/A Prepared for: SHENZHEN GONBES TECHNOLOGY CO., LTD Room 1102-1103, Unit B4, Kexing Science Park, No.15 Keyuan Rd, Nanshan, Shenzhen, China Prepared by: Shenzhen Bontek Compliance Testing Laboratory Co., Ltd. 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT13KR410E Issue Date: December 11, 2013 Test Date: November 27- December 11, 2013 Tested by: Reviewed by: Lion Cai Owen Yang Approved by: Kendy Wang Report No.: BCT13KR410E Page 2 of 74 FCC ID: 2ABMEG15-BT TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) AND TEST METHODOLOGY ....................................................................... 5 1.3 TEST FACILITY ...................................................................................................................................................... 5 2. SYSTEM TEST CONFIGURATION ...................................................................................................................... 6 2.1 EUT CONFIGURATION .......................................................................................................................................... 6 2.2 EUT EXERCISE ..................................................................................................................................................... 6 2.3 GENERAL TEST PROCEDURES ............................................................................................................................. 6 2.4 MEASUREMENT UNCERTAINTY ............................................................................................................................. 6 2.5TEST EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 3. SUMMARY OF TEST RESULTS .......................................................................................................................... 7 4. TEST OF AC POWER LINE CONDUCTED EMISSION.................................................................................... 8 4.1 APPLICABLE STANDARD ....................................................................................................................................... 8 4.2 TEST SETUP DIAGRAM ......................................................................................................................................... 8 4.3 TEST RESULT ....................................................................................................................................................... 8 5. TEST OF HOPPING CHANNEL BANDWIDTH .................................................................................................. 9 5.1 APPLICABLE STANDARD ....................................................................................................................................... 9 5.2 EUT SETUP .......................................................................................................................................................... 9 5.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 9 5.4 TEST PROCEDURE ................................................................................................................................................ 9 5.5 TEST RESULT ....................................................................................................................................................... 9 6. TEST OF HOPPING CHANNEL SEPARATION ............................................................................................... 15 6.1 APPLICABLE STANDARD ..................................................................................................................................... 15 6.2 EUT SETUP ........................................................................................................................................................ 15 6.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 15 6.4 TEST PROCEDURE .............................................................................................................................................. 15 6.5 TEST RESULT ..................................................................................................................................................... 15 7. TEST OF NUMBER OF HOPPING FREQUENCY ........................................................................................... 22 7.1 APPLICABLE STANDARD ..................................................................................................................................... 22 7.2 EUT SETUP ........................................................................................................................................................ 22 7.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 22 7.4 TEST PROCEDURE .............................................................................................................................................. 22 7.5 TEST RESULT ..................................................................................................................................................... 22 8. TEST OF DWELL TIME OF EACH FREQUENCY ..........…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated emission Radiated emission above 1GHz Radiated emission below 30MHz
