2ABMEK1Bluetooth Eyeglasses

SHENZHEN GONBES TECHNOLOGY CO., LTD FCC Confidentiality Request Number: CF303 Version: V05 D ate: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameSHENZHEN GONBES TECHNOLOGY CO., LTD AddressRoom 1102-1103, Unit B4, Kexing Science Park, No.15 Keyuan Rd, Nanshan, CityShenzhen CountryChina request for this certification filing under: Grantee CodeProduct Number FCC ID :2ABMEK1 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents) ExhibitDescription VOperational D escriptionexplaining the functioning of the block diagram VBlock D iagramsshowing the systematic building blocks of the EUT VSchematics D iagramsshowing components, their values and interconnection Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). D isclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Enschede, The Netherlands 2014-03-27M. Koop (authorized) Manager

SHENZHEN GONBES TECHNOLOGY CO., LTD FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name SHENZHEN GONBES TECHNOLOGY CO., LTD Address Room 1102-1103, Unit B4, Kexing Science Park, No.15 Keyuan Rd, Nanshan, City Shenzhen Country China declare that the following representative (agent): Name (person) Tony Wu Company name Bontek Compliance Laboratory Co., Ltd. Address 1/F, Block East H-3,OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, City Shenzhen,Guangdong Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Bluetooth Sunglasses Type or Model(s) K1 Tradename or Brand(s) N/A We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) SHEN ZHEN 2014-3-7 Zella Liao Sales Manager

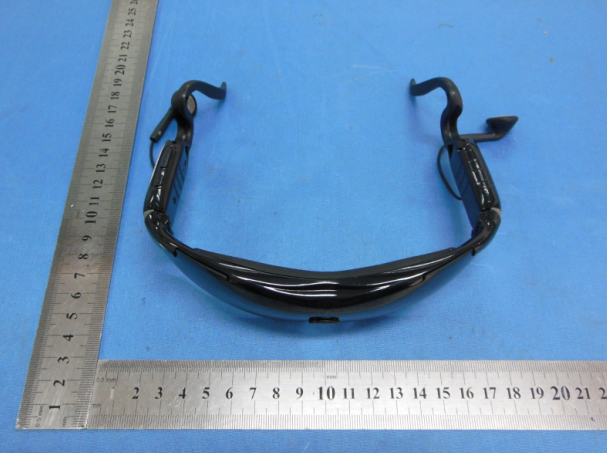

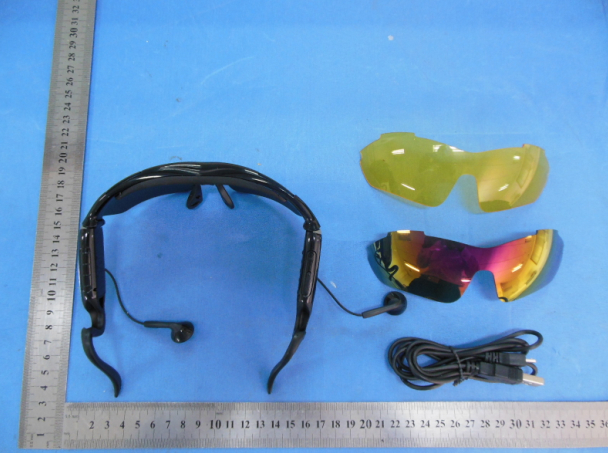

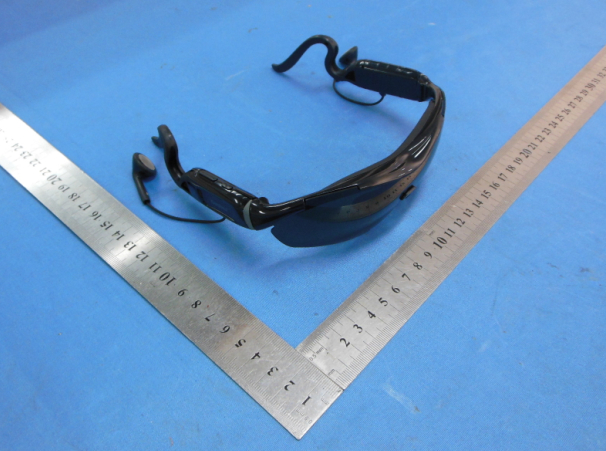

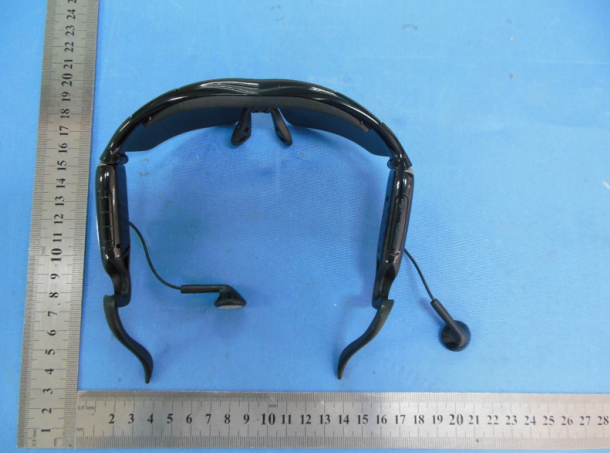

External Photographs EUT –K1 Whole View EUT –Front View EUT – Rear View EUT – Side View EUT – Side View

2ABMEK1 FCC ID Label sample SHENZHEN GONBES TECHNOLOGY CO., LTD Model: K1 FCC ID: 2ABMEK1

Internal Photographs EUT - Open View EUT - PCB View Antenna Location EUT - PCB View EUT - PCB View EUT - PCB View

Test Report of FCC CFR 47 Part 15 Subpart C On Behalf of SHENZHEN GONBES TECHNOLOGY CO., LTD FCC ID: 2ABMEK1 Product Description: Bluetooth Sunglasses Model No.: K1 Supplementary Model: N/A Prepared for: SHENZHEN GONBES TECHNOLOGY CO., LTD Room 1102, Unit B4, Kexing Science Park, No.15 Keyuan Rd, Nanshan, Shenzhen, China Prepared by: Shenzhen Bontek Compliance Testing Laboratory Co., Ltd. 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT14AR012E Issue Date: February 24, 2014 Test Date: February 18-24, 2014 Tested by: Reviewed by: Lion Cai Owen Yang Approved by: Kendy Wang Report No.: BCT13AR012E Page 2 of 74 FCC ID: 2ABMEK1 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) AND TEST METHODOLOGY ....................................................................... 5 1.3 TEST FACILITY ...................................................................................................................................................... 5 2. SYSTEM TEST CONFIGURATION ...................................................................................................................... 6 2.1 EUT CONFIGURATION .......................................................................................................................................... 6 2.2 EUT EXERCISE ..................................................................................................................................................... 6 2.3 GENERAL TEST PROCEDURES ............................................................................................................................. 6 2.4 MEASUREMENT UNCERTAINTY ............................................................................................................................. 6 2.5SUPPORT EQUIPMENTS ......................................................................................................................................... 6 2.6TEST EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 3. SUMMARY OF TEST RESULTS .......................................................................................................................... 7 4. TEST OF AC POWER LINE CONDUCTED EMISSION.................................................................................... 8 4.1 APPLICABLE STANDARD ....................................................................................................................................... 8 4.2 TEST SETUP DIAGRAM ........................................................................................................................................... 8 4.3 TEST RESULT ......................................................................................................................................................... 8 5. TEST OF HOPPING CHANNEL BANDWIDTH ................................................................................................ 11 5.1 APPLICABLE STANDARD ..................................................................................................................................... 11 5.2 EUT SETUP ........................................................................................................................................................ 11 5.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 11 5.4 TEST PROCEDURE .............................................................................................................................................. 11 5.5 TEST RESULT ..................................................................................................................................................... 11 6. TEST OF HOPPING CHANNEL SEPARATION ............................................................................................... 17 6.1 APPLICABLE STANDARD ..................................................................................................................................... 17 6.2 EUT SETUP ........................................................................................................................................................ 17 6.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 17 6.4 TEST PROCEDURE .............................................................................................................................................. 17 6.5 TEST RESULT ..................................................................................................................................................... 17 7. TEST OF NUMBER OF HOPPING FREQUENCY ........................................................................................... 24 7.1 APPLICABLE STANDARD ..................................................................................................................................... 24 7.2 EUT SETUP ........................................................................................................................................................ 24 7.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 24 7.4 TEST PROCEDURE .............................................................................................................................................. 24 7.5 TEST RESULT ............................................................…

Text truncated - open the document above for the full version.

Report No.: BCT13AR012E Page 41 of 74 FCC ID: 2ABMEK1 Channel Middle Channel High Report No.: BCT13AR012E Page 42 of 74 FCC ID: 2ABMEK1 EDR 3M 3DH5 Channel Low Channel Middle Report No.: BCT13AR012E Page 43 of 74 FCC ID: 2ABMEK1 Channel High Report No.: BCT13AR012E Page 44 of 74 FCC ID: 2ABMEK1 9. Test of Maximum Peak Output Power 9.1 Applicable Standard Section 15.247(b)(1): For frequency hopping systems operating in the 2400-2483.5 MHz band employing at least 75 non-overlapping hopping channels and The maximum peak output power shall not exceed 1 watt. For all other frequency hopping systems in this frequency band, The maximum peak output power shall not exceed 0.125 watt. 9.2 EUT Setup 9.3 Test Equipment List and Details See section 2.5. 9.4 Test Procedure 1. The transmitter output was connected to the peak power meter and recorded the peak value. 2. Peak power meter parameter set to auto attenuator and filter is the same as. 3. Repeated the 1 for the middle and highest channel of the EUT. 9.5 Test Result Temperature ( °C ) : 22~23 EUT: Bluetooth Sunglasses Humidity (%RH ): 50~54 M/N: K1 Barometric Pressure ( mbar ): 950~1000 Operation Condition: Tx Mode Spectrum Analyzer Report No.: BCT13AR012E Page 45 of 74 FCC ID: 2ABMEK1 BDR 1M Modulation Type Channel No. Frequency (MHz) Output Power (dBm) Limits (dBm) Margin (dB) GFSK Low 2402.00 -0.55 21 -24.65 GFSK Middle 2441.00 -1.93 21 -25.43 GFSK High 2480.00 -3.07 21 -26.72 EDR 2M Modulation Type Channel No. Frequency (MHz) Output Power (dBm) Limits (dBm) Margin (dB) Pi/4 DQPSK Low 2402.00 -1.56 21 -24.87 Pi/4 DQPSK Middle 2441.00 -3.58 21 -25.32 Pi/4 DQPSK High 2480.00 -5.05 21 -26.75 EDR 3M Modulation Type Channel No. Frequency (MHz) Output Power (dBm) Limits (dBm) Margin (dB) 8-DPSK Low 2402.00 -1.45 21 -24.82 8-DPSK Middle 2441.00 -3.40 21 -25.25 8-DPSK High 2480.00 -4.76 21 -26.74 BDR 1M Channel Low Report No.: BCT13AR012E Page 46 of 74 FCC ID: 2ABMEK1 Channel Middle Channel High Report No.: BCT13AR012E Page 47 of 74 FCC ID: 2ABMEK1 EDR 2M Channel Low Channel Middle Report No.: BCT13AR012E Page 48 of 74 FCC ID: 2ABMEK1 Channel High EDR 3M Channel Low Report No.: BCT13AR012E Page 49 of 74 FCC ID: 2ABMEK1 Channel Middle Channel High Report No.: BCT13AR012E Page 50 of 74 FCC ID: 2ABMEK1 10. Test of Band Edges Emission 10.1 Applicable Standard Section 15.247(d): In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. In addition, radiated emissions that fall in the restricted bands, as defined in Section 15.205, must also comply with the radiated emission limits specified in Section 15.209. 10.2 EUT Setup Radiated Measurement Setup Conducted Measurement Setup 10.3 Test Equipment List and Details See section 2.5. 10.4 Test Procedure Conducted Measurement 1. The transmitter is set to the lowest channel. 2. The transmitter output was connected to the spectrum analyzer via a cable . Spectrum Analyzer Report No.: BCT13AR012E Page 51 of 74 FCC ID: 2ABMEK1 3. Set both RBW and VBW of spectrum analyzer to 100KHz with convenient frequency span including 100MHz bandwidth from lower band edge. Then detector set to peak and max hold this trace. 4. The lowest band edges emission was measured and recorded. 5. The transmitter set to the highest channel and repeated 2~4. Radiated Measurement 1. Configure the EUT according to ANSI C63.4-2003 2. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emission field strength of both horizontal and vertical polarization. 4. For band edge emission, the antenna tower was scan (from 1 M to 4 M) and then the turn table was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. For band edge emission, use 1MHz VBW and 1MHz RBW for reading under AV and use 1MHz VBW and 1MHz RBW for reading under PK. 10.5 Test Result Temperature ( °C ) : 22~23 EUT: Bluetooth Sunglasses Humidity (%RH ): 50~54 M/N: K1 Barometric Pressure ( mbar ): 950~1000 Operation Condition: Tx Mode Radiated Test Result Worst Case BDR 1M Frequency (MHz) Antenna Polarization Emission Read Value (dBμV/m) Limits (dBμV/m) 2389.5 H 34.12 54 2389.5 V 33.45 54 2483.6 H 35.22 54 2483.6 V 33.64 54 Worst Case EDR 2M Frequency (MHz) Antenna Polarization Emission Read Value (dBμV/m) Limits (dBμV/m) 2389.4 H 33.43 54 2389.4 V 32.55 54 2483.7 H 35.89 54 2483.7 V 33.65 54 Report No.: BCT13AR012E Page 52 of 74 FCC ID: 2ABMEK1 Worst Case EDR 3M Frequency (MHz) Antenna Polarization Emission Read Value (dBμV/m) Limits (dBμV/m) 2389.5 H 35.33 54 2389.5 V 33.24 54 2483.6 H 35.68 54 2483.6 V 34.24 54 Report No.: BCT13AR012E Page 53 of 74 FCC ID: 2ABMEK1 Conducted Test Result BDR 1M Low Channel High Channel Report No.: BCT13AR012E Page 54 of 74 FCC ID: 2ABMEK1 EDR 2M Low Channel High Channel Report No.: BCT13AR012E Page 55 of 74 FCC ID: 2ABMEK1 EDR 3M Low Channel High Channel Report No.: BCT13AR012E Page 56 of 74 FCC ID: 2ABMEK1 Hopping Mode Worst case BDR 1M Low High Report No.: BCT13AR012E Page 57 of 74 FCC ID: 2ABMEK1 11. Test of Spurious Radiated Emission 11.1 Applicable Standard Section 15.247(d): In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. In addition, radiated emissions that fall in the restricted bands,…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission Radiated emission 30MHz-1GHz Radiated emission above 1GHz Radiated emission below 30MHz
