2ABMR-X6Bluetooth Headset

Bluetooth Headset Model Name: X6 Brand Name: MEEMEELECTRONICS FCC ID: 2ABMR-X6 X6 PRODUCTS DESCRIPTION PRODUCTS TECHNOLOGY PARAMETERS: PRODUCT SIZE:37mmL X 22mmW X 38mmH PRODUCT WEIGHT: ABOUT 15G CHIP: IS1681S 3.0 BLUETOOTH WORKING VOLTAGE: DC3.7V STAND-BY TIME: 120 HOURS HOLDING TIME (MUSIC PLAY): 5 HOURS CHARGING TIME: 3 HOURS BLUETOOTH DISTANCE: 10 METERS RF Sensitivity ≤-70dBm BATTERY CAPACITY POLYMER BATTERY 120mAh MODULATION SYSTEM : GFSK, π /4-DQPSK, 8DPSK BLUETOOTH FREQUENCY: 2.402GHz～2.480GHz SUPPORT PATTERN: Handfree/Headset IDENTIFICATION CODE: 0000 USAGE TEMPERATURE: -10°C～+45°C STORAGE TEMPERATURE: -20°C～+45°C BLUETOOTH USE METHOD: 1． MATCHING METHODS: PRESS THE POWER BUTTON ABOUT 5 SECONDS UNTIL THE RED AND BLUE LIGHT TWINKLING ALTERNATELY.OPEN THE MOBILE’S BLUETOOTH, SEARCH FOR MATCHING, THE MATCHING CODE IS 0000. IN VIEW OF SOME BUYERS SAID MATCHING SUCEED IN THE FIRST TIME,BUT FAIL IN THE SECOND TIME, YOU CAN DELETE THE ORIGINAL MATCHING RECORD, RE-MATCHING THE BLUETOOTH AGAIN THEN WILL BE SUCCEED.WHEN YOU CLOSED THE BLUETOOTH ,PLEASE CLOSED THE BLUETOOTH EARPHONE FIRST. MAKE SURE TO BROKEN LINK WITH MOBILE,THEN CLOSED MOBILE’S BLUETOOTH, AVOIDING THE BLUETOOTH EARPHONE ALWAYS IN POER-UP STATE. 2、ANSWER INCOMING TELEGRAM: SHORT PRESS ONE TIME MFB KEY 3、HANGING UP: SHORT PRESS ONE TIME MFB KEY Charging： 1、INDICATOR LIGHT (RED LIGHT) ALWAYS ON, MEANS IN CHARGING POWER 2、 INDICATOR LIGHT (BLUE LIGHT) ALWAYS ON, MEANS CHARGING COMPLETE Function Button and time （second） Status Note Starting up press MFB (about 3 seconds) Blue indicator flashing 3 times Heard “power on” means operation succeed matching Press MFB button about 5 seconds Red and blue indicator flashing alternately When matching, heard “Pairing”,then red and blue indicator maintain alternately flashing 2 seconds shutdown Press MFB about 3 seconds Red indicator flashing 3 times Heard “power off”means operation succeed Last number redial Long press MFB “Beep” means operation succeed The mobile should have Bluetooth redial pattern Voice dial Double click MFB in Standby mode use mobile to continue the voice dial Support by mobile Answer the call Short press MFB “Beep” means operation succeed Answer the call End the call Short press MFB “Beep” means operation succeed End the call recover in standby condition then waiting for next call Reject the call Short press MFB in 1 second “Beep”means operation succeed Reject the call but earphone still in standby condition (need mobile support) Music play/stop Short Press MFB to play music, press again to pause “Beep”means operation succeed Last music/next music Long press volume + button in 1 second to play next music, press volume - to play last music Volume adjustment Short press V+、V- Increase and decrease the volume mute press volume + button in 1 second Microphone in mute “Beep”means operation succeed Some functions will be different as different mobile, please pay attention in actual operation. Important Regulatory Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Dec. 26, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ABMR-X6 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, S2E,Inc. Contact person: Martie Shieh Title: Manager

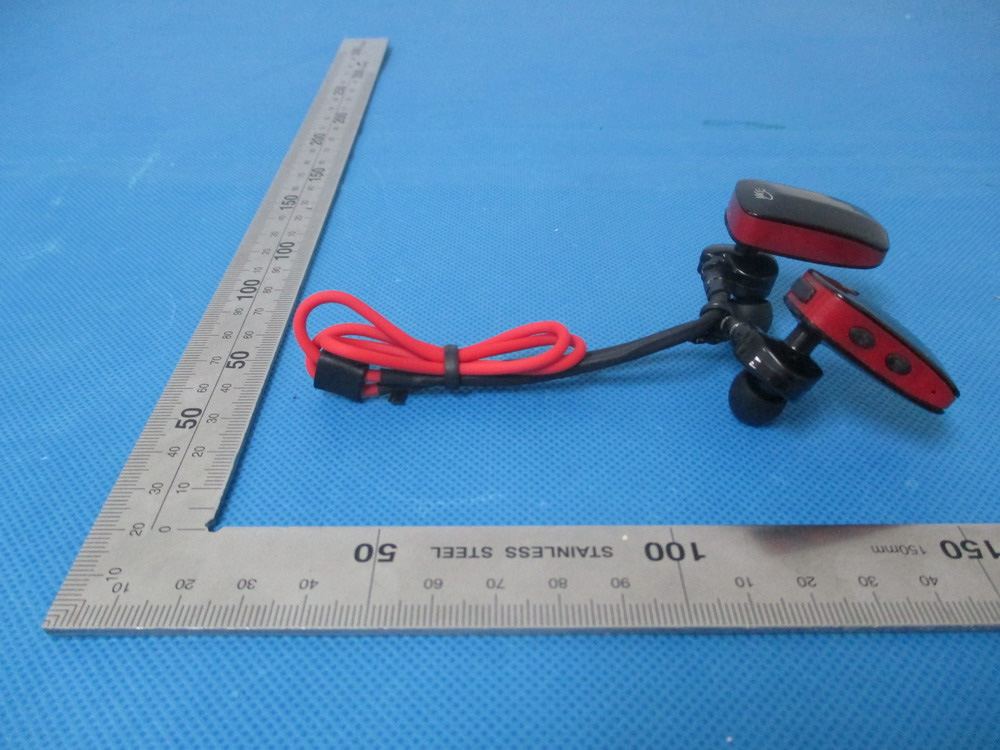

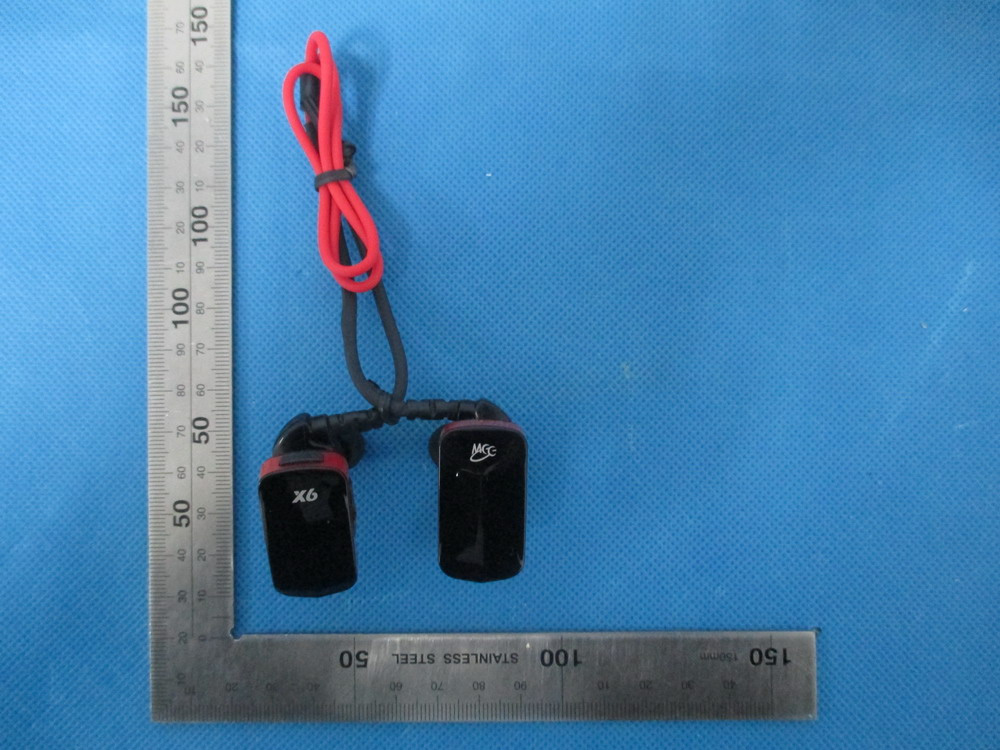

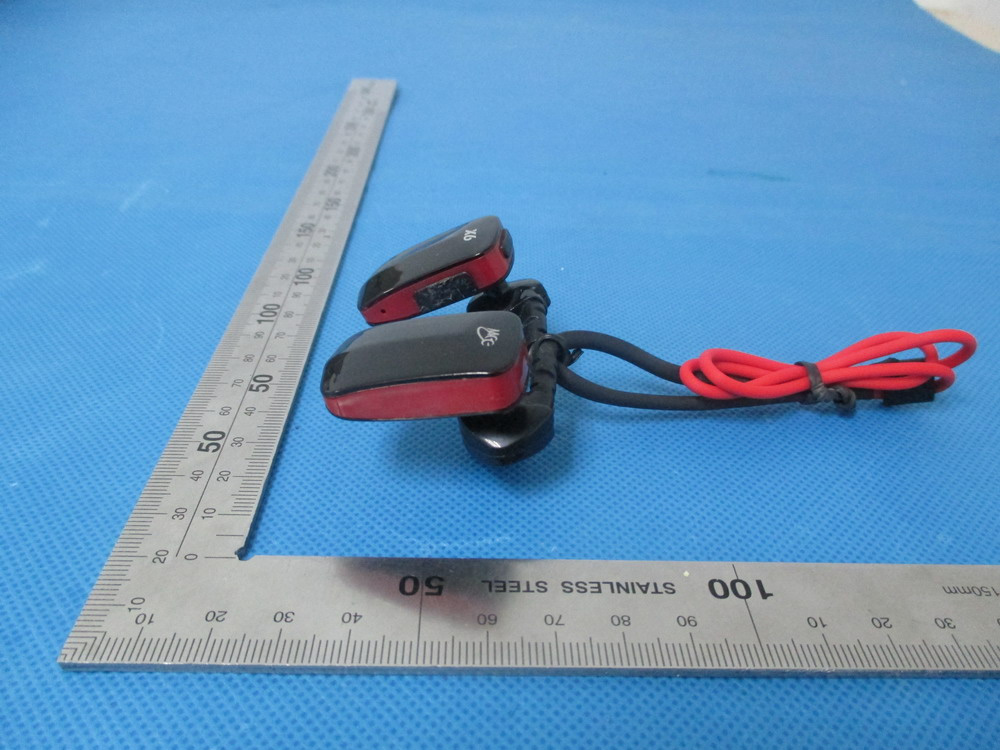

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Bluetooth Headset Model: X6 Trade Name: MEEMEELECTRONICS FCC ID: 2ABMR-X6

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT‐1 BT Antenna INTERNAL VIEW OF EUT‐2

Report No.: AGC01068131202FE03 Page 1 of 57 FCC Test Report Report No.: AGC01068131202FE03 FCC ID : 2ABMR-X6 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Headset BRAND NAME : MEEMEELECTRONICS MODEL NAME : X6 CLIENT : S2E,Inc. DATE OF ISSUE : Dec.26, 2013 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01068131202FE03 Page 2 of 57 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec.26, 2013 Valid Original Report Report No.: AGC01068131202FE03 Page 3 of 57 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ................................................................................................ 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 26 9.1. MEASUREMENT PROCEDURE ................................................................................................ 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 26 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 26 10. RADIATED EMISSION ..................................................................................................... 30 10.1. MEASUREMENT PROCEDURE .............................................................................................. 30 10.2. TEST SETUP ............................................................................................................................ 32 Report No.: AGC01068131202FE03 Page 4 of 57 10.3. TEST RESULT .......................................................................................................................... 33 11. BAND EDGE EMISSION .................................................................................................. 37 11.1. MEASUREMENT PROCEDURE .............................................................................................. 37 11.2. TEST SET-UP ........................................................................................................................... 37 11.3. TEST RESULT .......................................................................................................................... 38 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 42 12.1. MEASUREMENT PROCEDURE .............................................................................................. 42 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) ..…

Text truncated - open the document above for the full version.

Te s t Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
